D37S91C6PV00 datasheet, PDF - EEWORLD Datasheet

D37S91C6PV00: DescriptionCONN D-SUB RCPT 37POS VERT PRESS; CategoryThe connector The connector; File Size120KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

D37S91C6PV00 Overview

CONN D-SUB RCPT 37POS VERT PRESS

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.494 inch
subject depth	0.236 inch
body length	2.729 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	5.004 N
Insulation resistance	5000000000 Ω
insulator material	POLYETHYLENE
MIL compliance	NO
Manufacturer's serial number	D37S91C6PV00
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	THREADED INSERT
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	30u inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	4/C
Terminal length	0.118 inch
Terminal pitch	2.7686 mm
Termination type	PRESS FIT
Total number of contacts	37
UL Flammability Code	94V-0
Evacuation force-minimum value	.3058 N

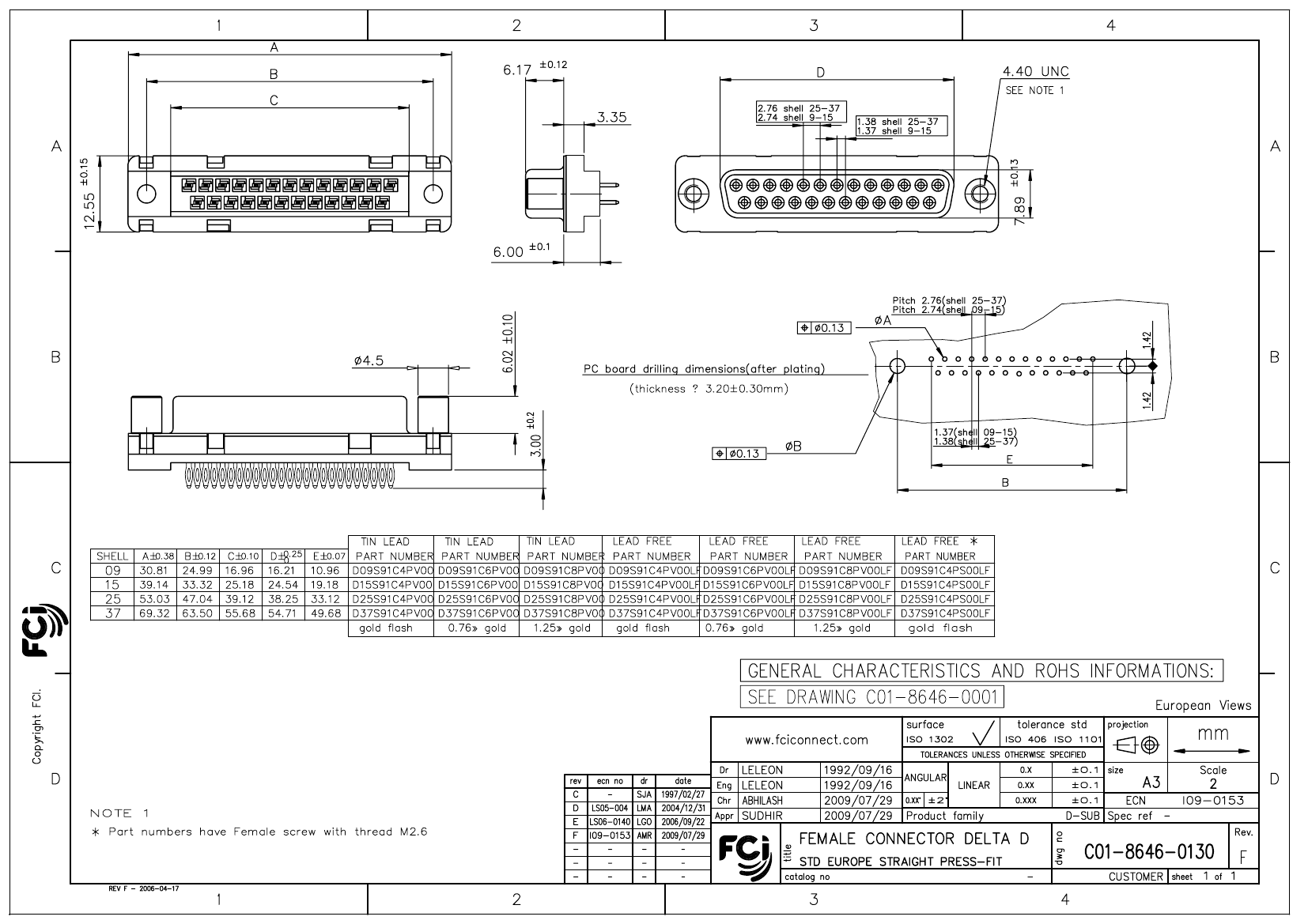

PDM: Rev:F

STATUS:

Released

Printed: Jan 18, 2011
