D09S82C4GL00 datasheet, PDF - EEWORLD Datasheet

D09S82C4GL00: DescriptionCONN DSUB RCPT 9POS R/A PRESSFIT; CategoryThe connector The connector; File Size67KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

D09S82C4GL00 Overview

CONN DSUB RCPT 9POS R/A PRESSFIT

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.494 inch
subject depth	0.538 inch
body length	1.213 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD FLASH
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	4.8928 N
Insulation resistance	5000000000 Ω
insulator material	POLYETHYLENE
MIL compliance	NO
Manufacturer's serial number	D
Plug contact pitch	0.108 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	M3
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	1/E
Terminal length	0.114 inch
Terminal pitch	2.7432 mm
Termination type	PRESS FIT
Total number of contacts	9
UL Flammability Code	94V-0
Evacuation force-minimum value	.3058 N
Base Number Matches	1

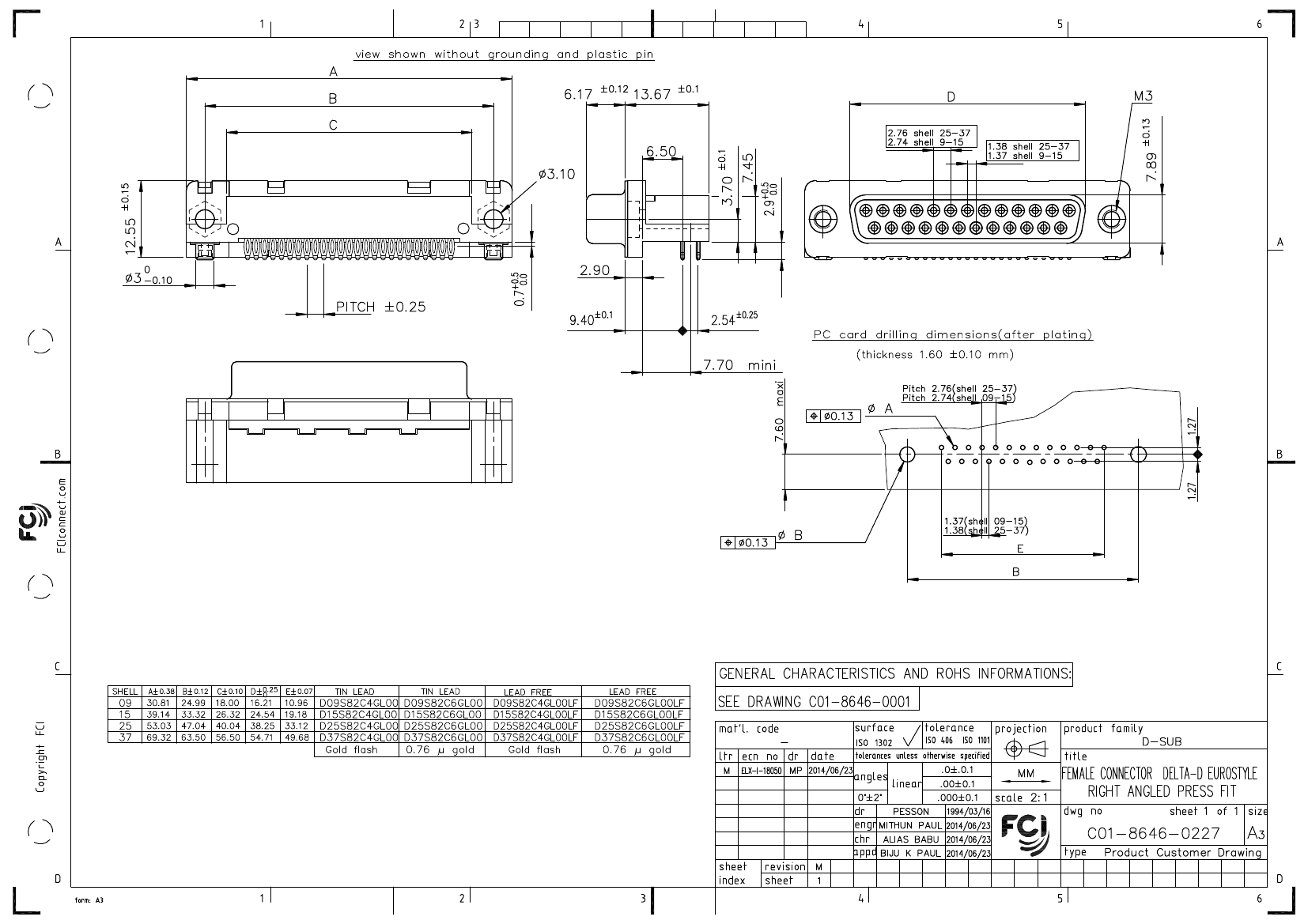

PDS: Rev :M

STATUS:Released

Printed: Jul 04, 2014
