D09P82C4GV00 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> D09P82C4GV00

D09P82C4GV00: DescriptionCONN DSUB PLUG 9POS R/A PRESSFIT; CategoryThe connector The connector; File Size80KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

D09P82C4GV00 Overview

CONN DSUB PLUG 9POS R/A PRESSFIT

D09P82C4GV00 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD FLASH
Contact completed and terminated	TIN LEAD
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	D
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	1/E
Termination type	PRESS FIT
Total number of contacts	9
UL Flammability Code	94V-0

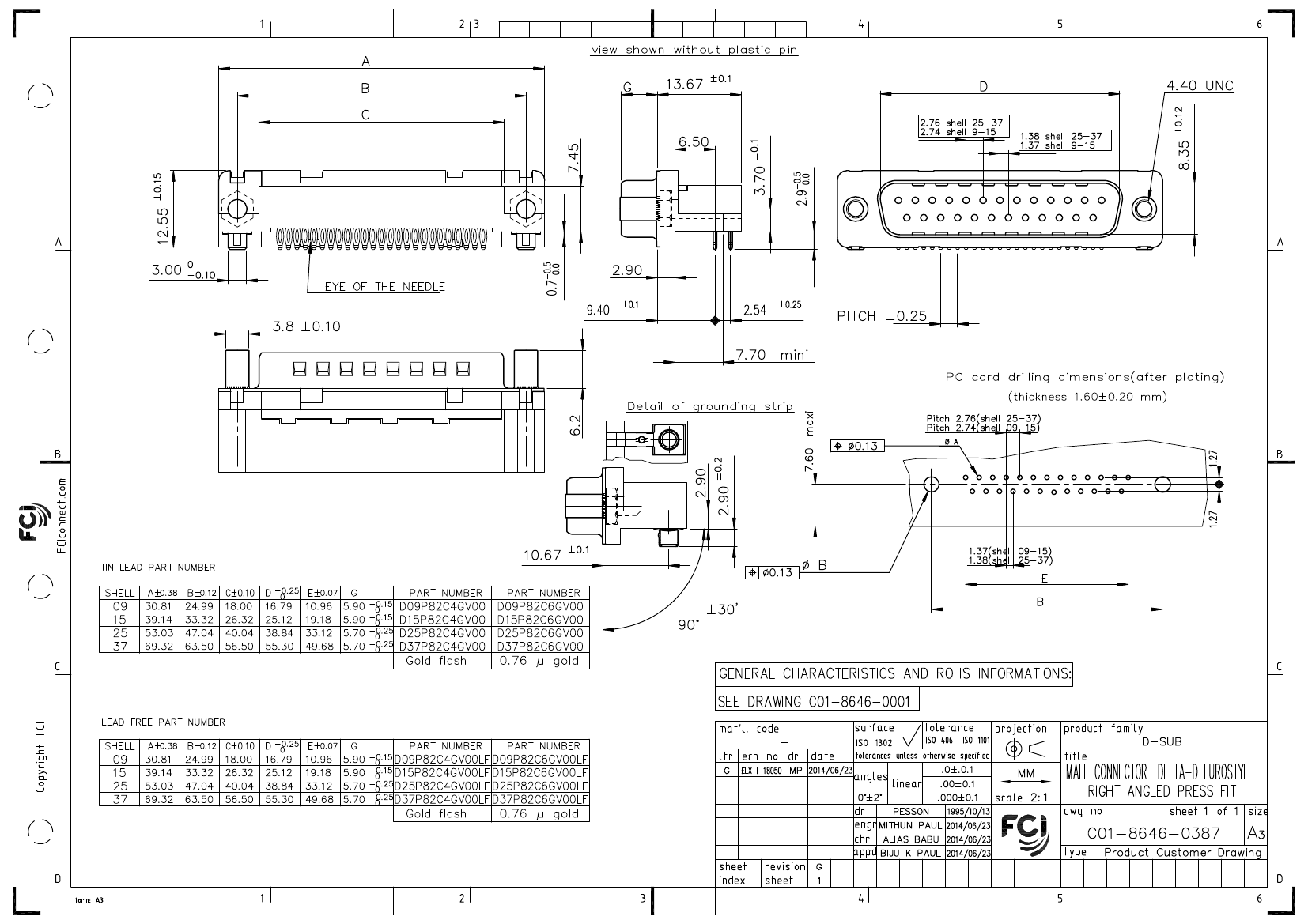

Preview

Download Datasheet

View All

PDS: Rev :G

STATUS:Released

Printed: Jul 04, 2014

D09P82C4GV00 Related Products

	D09P82C4GV00	D25P82C6GV00LF	D09P82C4GV00LF	D25P82C6GV00	D25P82C4GV00LF	D15P82C4GV00LF	D37P82C4GV00	753101FPTR7	753101GPTR7
Description	CONN DSUB PLUG 9POS R/A PRESSFIT	CONN D-SUB PLUG 25POS R/A PRESS	CONN DSUB PLUG 9POS R/A PRESSFIT	CONN D-SUB PLUG 25POS R/A PRESS	CONN D-SUB PLUG 25POS R/A PRESS	D-Sub Pressfit Connector, Input Output Connectors, Signal 15 way Pin RA Press-Fit Eurostyle standard, 200 cycles, Harpoons+Female Screw UNC 4-40 + Elec cont., 1.6mm, 2.4mm, PCB thickness.	D Subminiature Connector, 37 Contact(s), Male, Press Fit Terminal,	High Density Packaging	High Density Packaging
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	-	-	-	-
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	-	-
ECCN code	EAR99	EAR99	EAR99	-	EAR99	EAR99	EAR99	-	-
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	-	-
Contact to complete cooperation	GOLD FLASH	NOT SPECIFIED	NOT SPECIFIED	GOLD (30)	NOT SPECIFIED	NOT SPECIFIED	GOLD FLASH	-	-
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	-	-
DIN compliance	NO	NO	NO	NO	NO	NO	NO	-	-
empty shell	NO	NO	NO	NO	NO	NO	NO	-	-
Filter function	NO	NO	NO	NO	NO	NO	NO	-	-
IEC compliance	NO	NO	NO	NO	NO	NO	NO	-	-
insulator material	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	-	-
MIL compliance	NO	NO	NO	NO	NO	NO	NO	-	-
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	-	-
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	-	-
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	-
Shell surface	TIN	TIN	TIN	TIN	TIN	TIN	TIN	-	-
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	-	-
Housing size	1/E	3/B	1/E	3/B	3/B	2/A	4/C	-	-
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	-	-
Total number of contacts	9	25	9	25	25	15	37	-	-
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	-	-
