HM2P11PK5111GF

Description
CONN HEADER 55POS + 3PWR TYPE M
CategoryThe connector    The connector
File Size150KB,1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric Compare View All

HM2P11PK5111GF Overview

CONN HEADER 55POS + 3PWR TYPE M

HM2P11PK5111GF Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerAmphenol
Reach Compliance Codecompliant
ECCN codeEAR99
Other features22 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE
Board mount optionsPEG
body width0.606 inch
subject depth0.53 inch
body length1.965 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact arrangementS55C3
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
Contact resistance20 mΩ
Contact styleHYBRID
DIN complianceNO
Dielectric withstand voltage750VAC V
Durability250 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force.3614 N
Insulation resistance10000000000 Ω
insulator materialTHERMOPLASTIC
MIL complianceNO
Manufacturer's serial numberHM2
Mixed contactsNO
Installation option 1GUIDE SLOT
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
Number of rows loaded7
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
Plating thickness31u inch
Rated current (signal)1.5 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.512 inch
Terminal pitch2 mm
Termination typePRESS FIT
Total number of contacts77
UL Flammability Code94V-0
Evacuation force-minimum value.0834 N

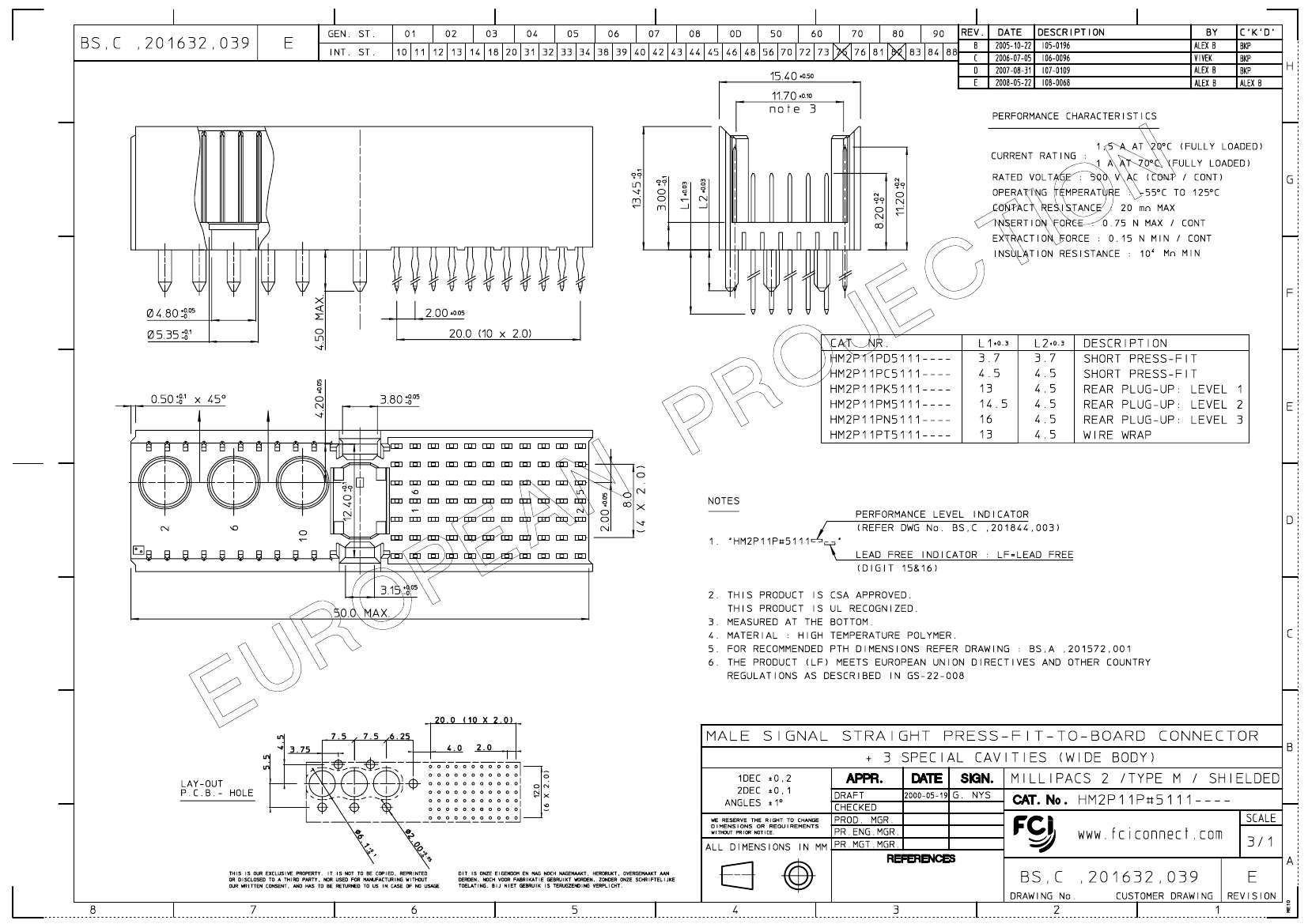

PDM: Rev:E
STATUS:
Released
Printed: May 24, 2008
.

HM2P11PK5111GF Related Products

HM2P11PK5111GF HM2P11PK5111GFLF HM2P11PD5111N9LF HM2P11PD5111N9
Description CONN HEADER 55POS + 3PWR TYPE M CONN HEADER 55POS + 3PWR TYPE M CONN HEADER 55POS + 3PWR TYPE M CONN HEADER 55POS + 3PWR TYPE M
Is it lead-free? Contains lead Lead free Lead free Contains lead
Is it Rohs certified? incompatible conform to conform to incompatible
Maker Amphenol Amphenol Amphenol Amphenol
Reach Compliance Code compliant compliant compliant compliant
ECCN code EAR99 EAR99 EAR99 EAR99
Other features 22 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE 22 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE 22 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE 22 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Contact point gender MALE MALE MALE MALE
Contact material NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
DIN compliance NO NO NO NO
Filter function NO NO NO NO
IEC compliance NO NO NO NO
MIL compliance NO NO NO NO
Manufacturer's serial number HM2 HM2 HM2P11PD5111 HM2P11PD5111
Mixed contacts NO NO NO NO
Installation method STRAIGHT STRAIGHT STRAIGHT STRAIGHT
Installation type BOARD BOARD BOARD BOARD
Number of rows loaded 7 7 7 7
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Terminal pitch 2 mm 2 mm 2 mm 2 mm
Termination type PRESS FIT PRESS FIT PRESS FIT PRESS FIT
Total number of contacts 77 77 77 77
UL Flammability Code 94V-0 94V-0 - 94V-0
