SLW20S-1C7 datasheet, PDF - EEWORLD Datasheet

SLW20S-1C7: DescriptionCard Edge Connector, 20 Contact(s), 1 Row(s), Female, Straight, 0.039 inch Pitch, Solder Terminal, Eject Lever, Black Insulator; CategoryThe connector The connector; File Size258KB，8 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

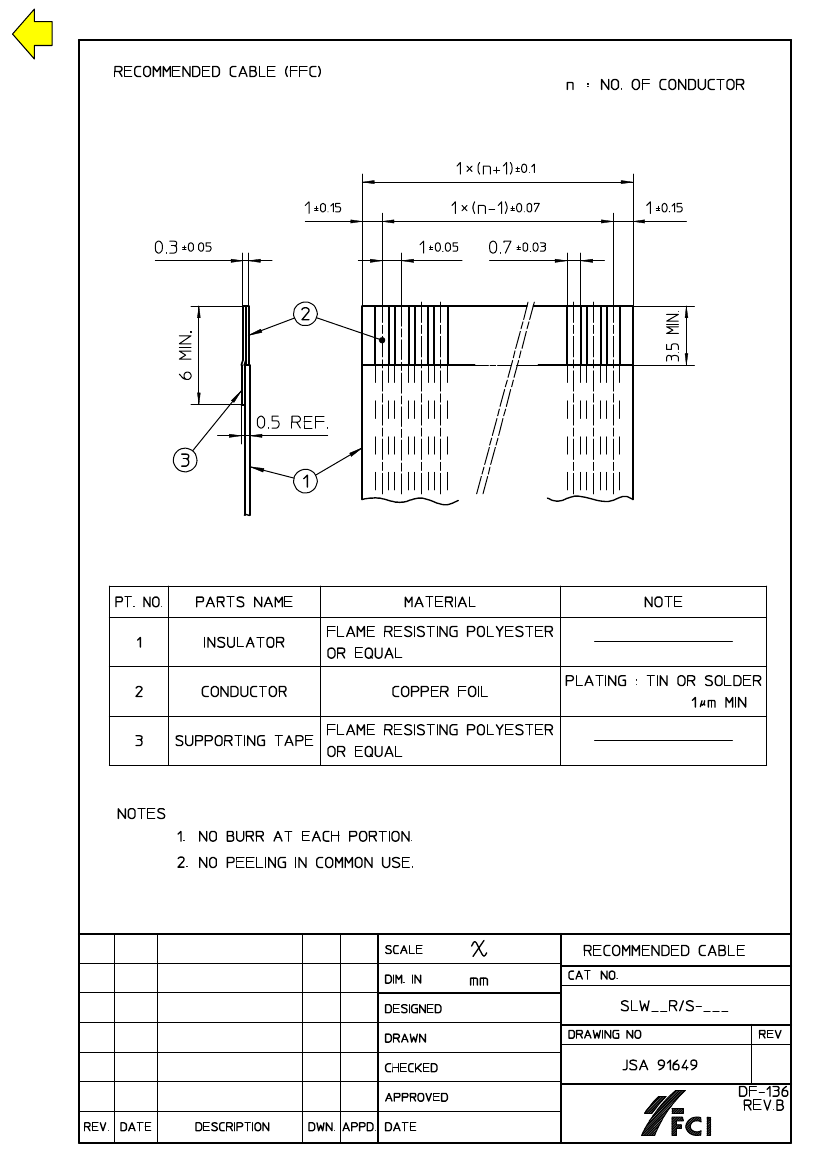

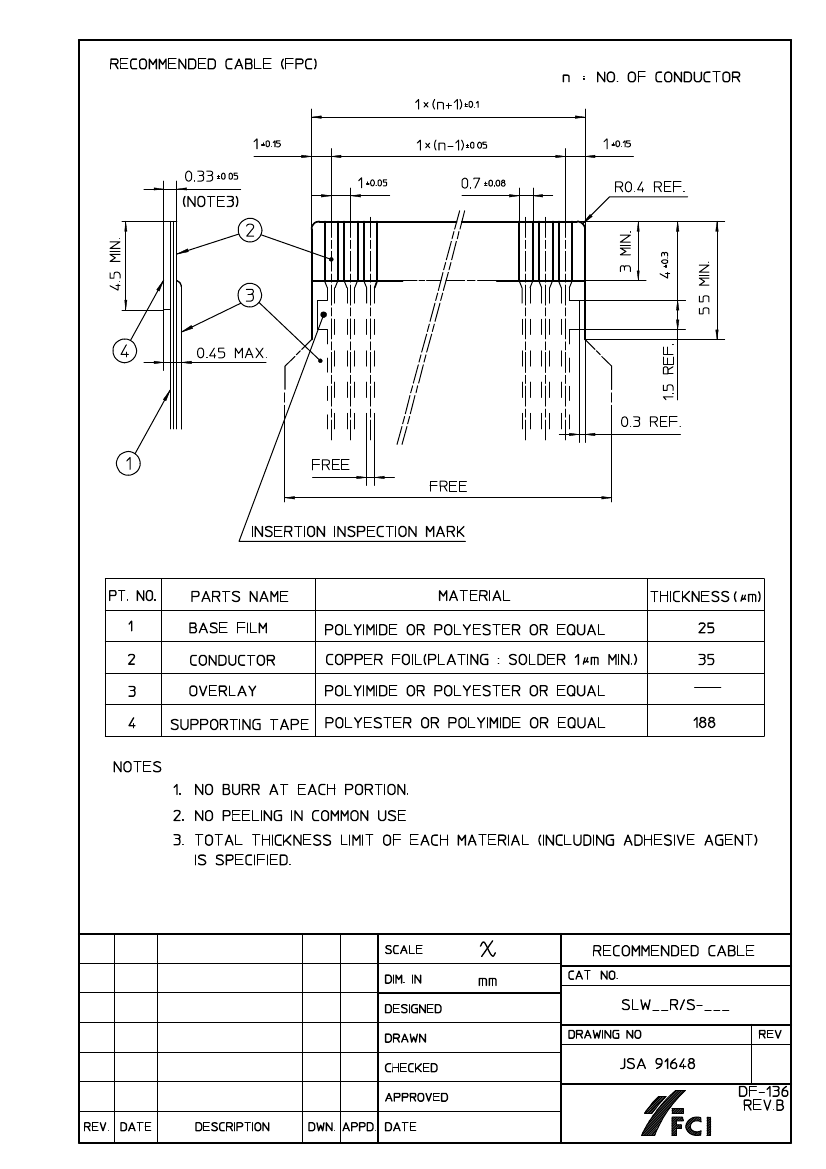

SLW20S-1C7 Overview

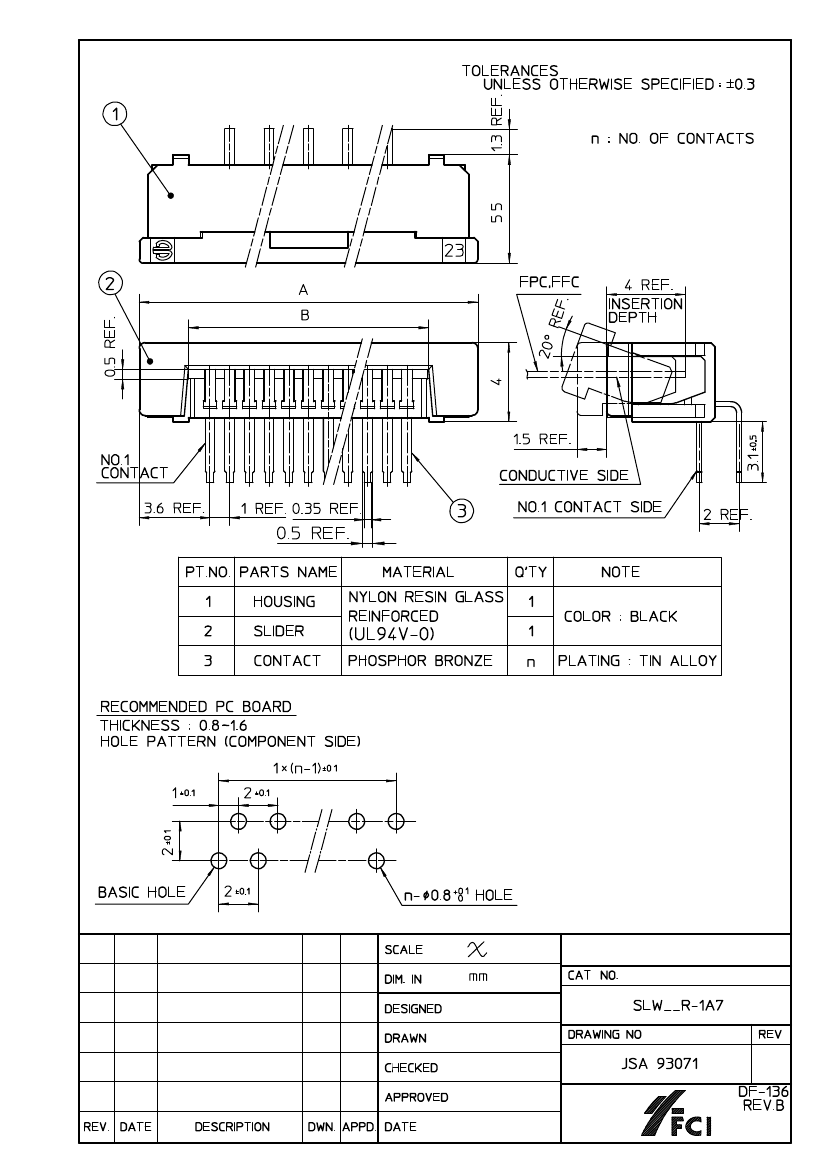

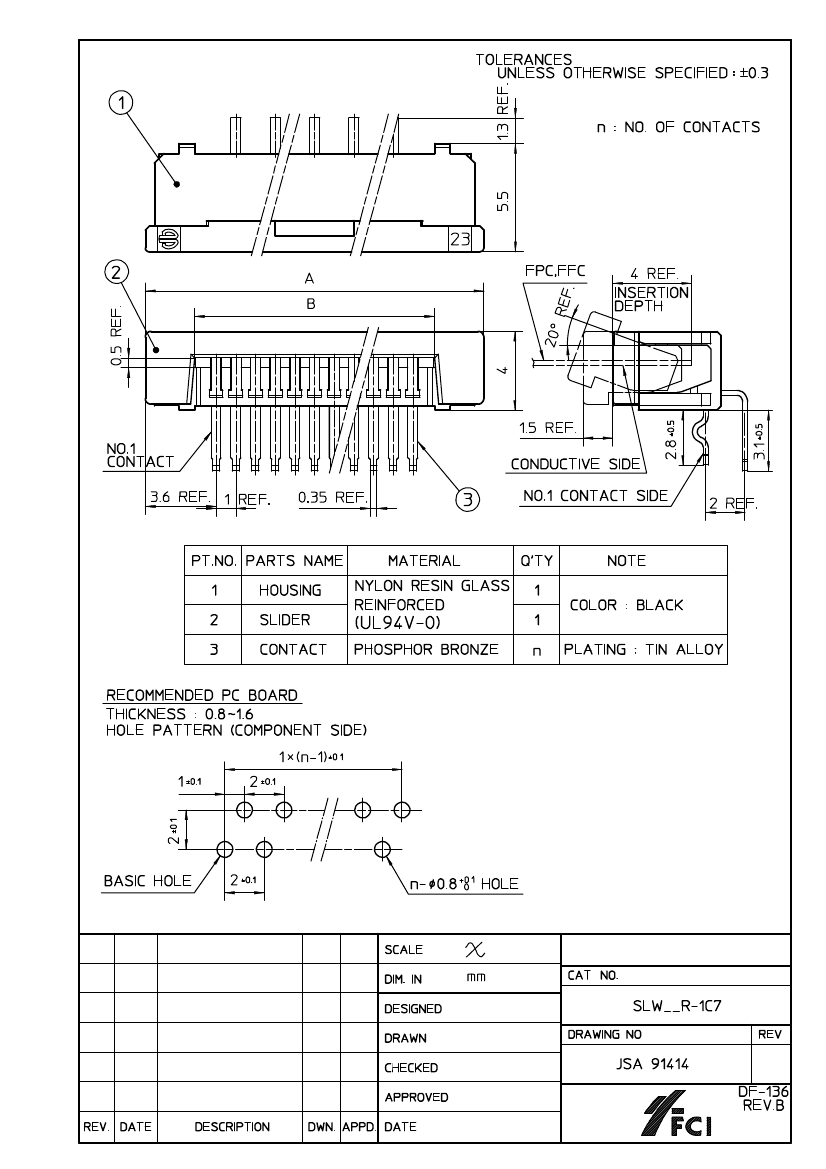

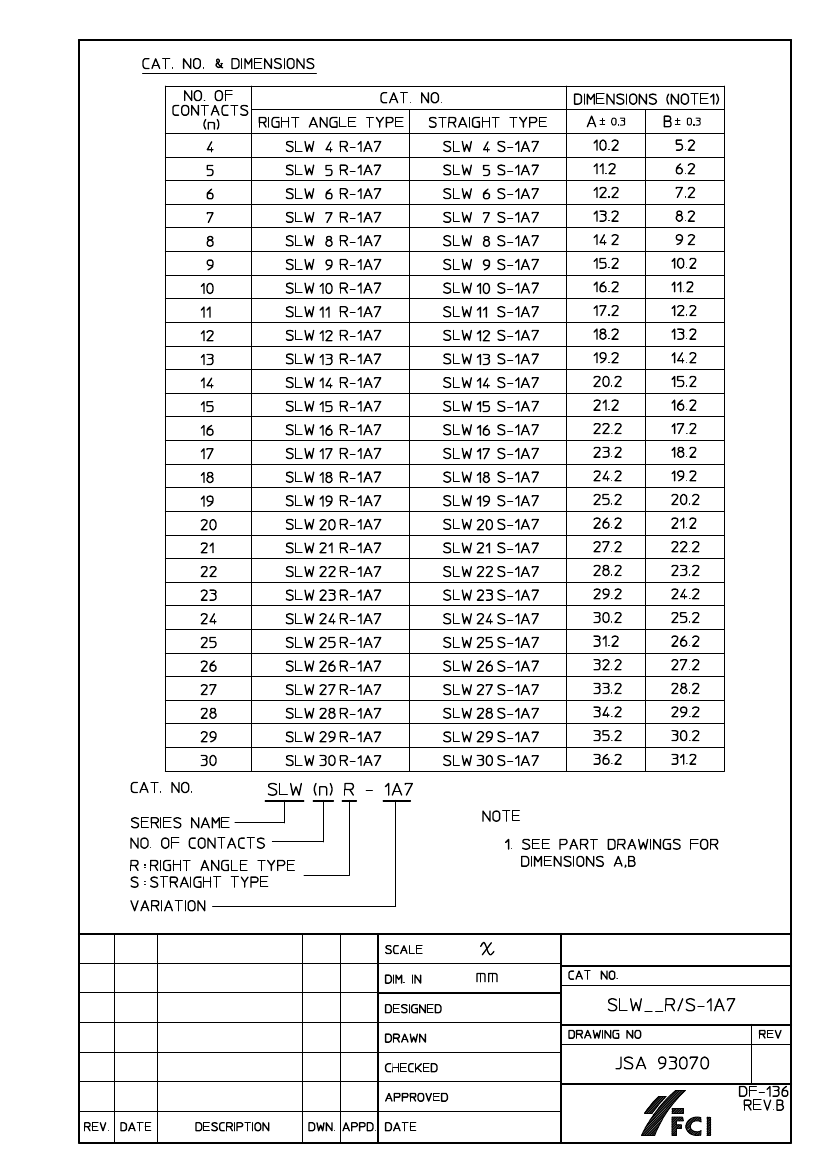

Card Edge Connector, 20 Contact(s), 1 Row(s), Female, Straight, 0.039 inch Pitch, Solder Terminal, Eject Lever, Black Insulator

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1942572763
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	0
Other features	STAGGERED CONFIGURATION
body width	0.157 inch
subject depth	0.217 inch
body length	1.031 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SINGLE PRONG
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	20 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYAMIDE
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.039 inch
Mixed contacts	NO
Installation option 1	EJECT LEVER
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.0066 mm
Rated current (signal)	1 A
Guideline	UL
Terminal length	0.122 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	20
UL Flammability Code	94V-0
Evacuation force-minimum value	ZIF N
