D09P90C6GX00 datasheet, PDF - EEWORLD Datasheet

D09P90C6GX00: DescriptionCONN D-SUB PLUG 9POS VERT PRESS; CategoryThe connector The connector; File Size57KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

D09P90C6GX00 Overview

CONN D-SUB PLUG 9POS VERT PRESS

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Other features	LOW PROFILE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	D09P90C6GX00
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	1/E
Termination type	PRESS FIT
Total number of contacts	9
UL Flammability Code	94V-0

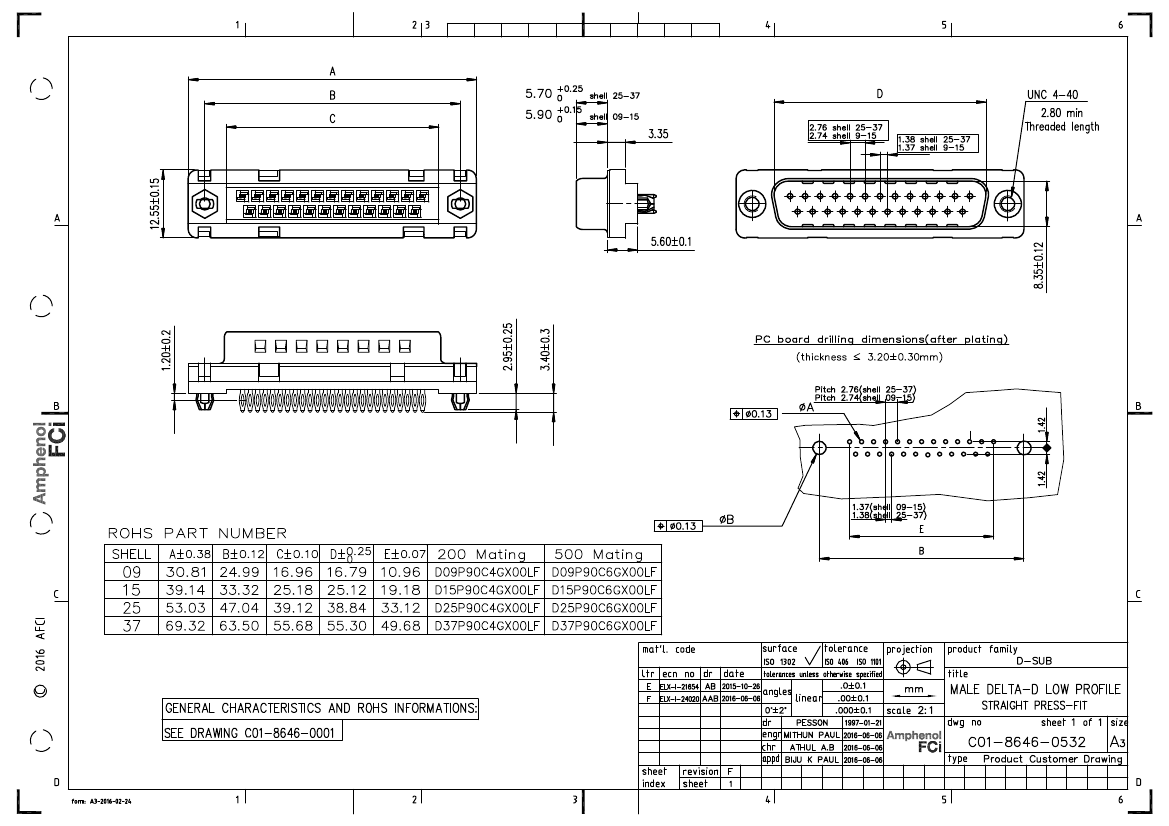

PDS: Rev :F

STATUS:Released

Printed: Jun 07, 2016

	D09P90C6GX00	D09P90C6GX00LF	D37P90C6GX00LF
Description	CONN D-SUB PLUG 9POS VERT PRESS	CONN D-SUB PLUG 9POS VERT PRESS	D Subminiature Connector, 37 Contact(s), Male, Press Fit Terminal, LEAD FREE
Reach Compliance Code	compliant	compliant	compliant
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE
DIN compliance	NO	NO	NO
empty shell	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
MIL compliance	NO	NO	NO
Mixed contacts	NO	NO	NO
Installation type	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Housing size	1/E	1/E	4/C
Termination type	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	9	9	37
Maker	Amphenol	Amphenol	-
Contact completed and terminated	TIN OVER NICKEL	NOT APPLICABLE	-
Is it Rohs certified?	-	conform to	conform to
package instruction	-	LEAD FREE	LEAD FREE
Factory Lead Time	-	18 weeks	12 weeks
Contact material	-	NOT SPECIFIED	NOT SPECIFIED
