D15S90C6GV00 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> D15S90C6GV00

D15S90C6GV00: DescriptionCONN D-SUB RCPT 15POS VERT PRESS; CategoryThe connector The connector; File Size62KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

D15S90C6GV00 Overview

CONN D-SUB RCPT 15POS VERT PRESS

D15S90C6GV00 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LOW PROFILE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	TIN LEAD
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	D
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	2/A
Termination type	PRESS FIT
Total number of contacts	15
UL Flammability Code	94V-0

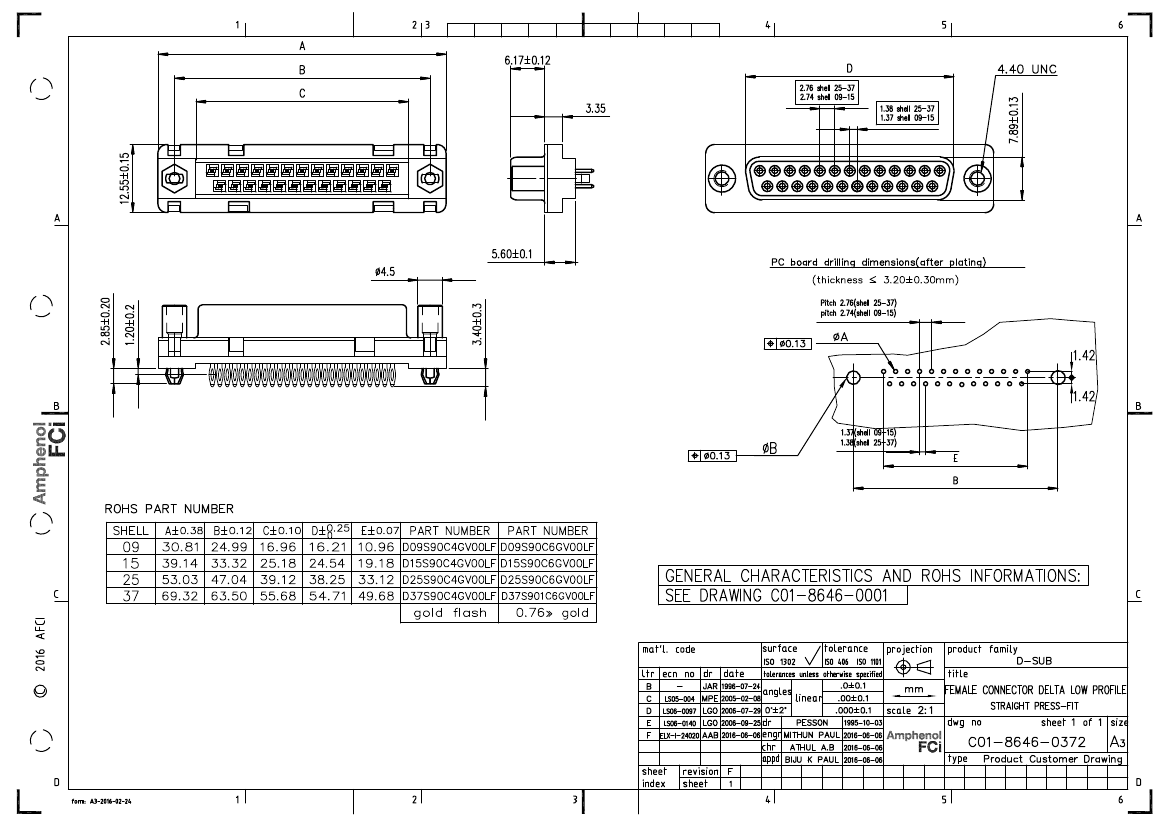

Preview

Download Datasheet

View All

PDS: Rev :F

STATUS:Released

Printed: Jun 07, 2016

D15S90C6GV00 Related Products

	D15S90C6GV00	D25S90C6GV00LF	D15S90C6GV00LF	D37S90C4GV00	D25S90C6GV00	D09S90C6GV00	D09S90C6GV00LF	D25S90C4GV00LF	D09S90C4GV00LF
Description	CONN D-SUB RCPT 15POS VERT PRESS	CONN D-SUB RCPT 25POS VERT PRESS	CONN D-SUB RCPT 15POS VERT PRESS	CONN D-SUB RCPT 37POS VERT PRESS	CONN D-SUB RCPT 25POS VERT PRESS	CONN D-SUB RCPT 9POS VERT PRESS	CONN D-SUB RCPT 9POS VERT PRESS	D Subminiature Connector, 25 Contact(s), Female, Press Fit Terminal, LEAD FREE	D Subminiature Connector, 9 Contact(s), Female, Press Fit Terminal, LEAD FREE
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD (30)	NOT SPECIFIED	NOT SPECIFIED	GOLD FLASH	GOLD (30)	GOLD (30)	NOT SPECIFIED	GOLD FLASH	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Housing size	2/A	3/B	2/A	4/C	3/B	1/E	1/E	3/B	1/E
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	15	25	15	37	25	9	9	25	9
package instruction	-	LEAD FREE	LEAD FREE	-	-	-	LEAD FREE	LEAD FREE	LEAD FREE
