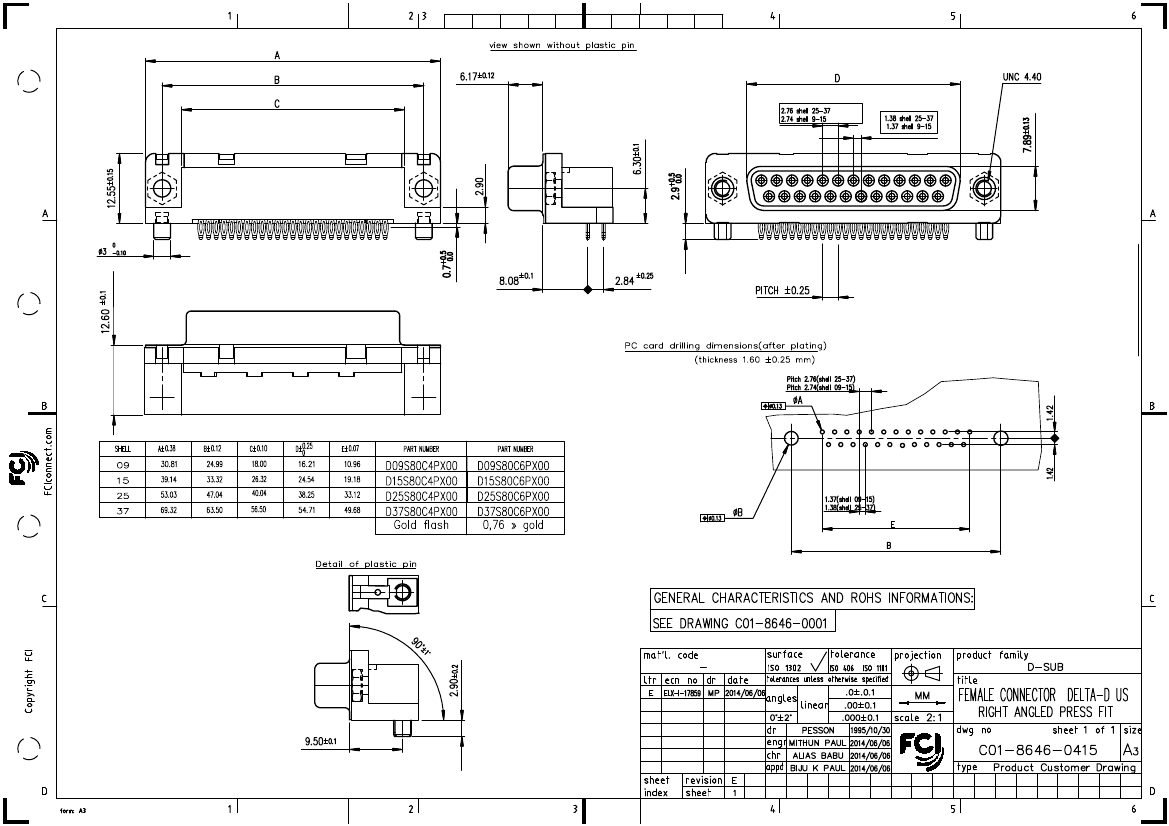

PDF
Preview

D09S80C6PX00

Description
CONN DSUB RCPT 9POS R/A PRESSFIT
CategoryThe connector    The connector
File Size81KB，1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric Compare View All

D09S80C6PX00 Overview

CONN DSUB RCPT 9POS R/A PRESSFIT

D09S80C6PX00 Parametric

Parameter NameAttribute value
MakerAmphenol
Reach Compliance Codecompliant
ECCN codeEAR99
Connector typeD SUBMINIATURE CONNECTOR
Contact to complete cooperationGOLD OVER NICKEL
Contact completed and terminatedTIN OVER NICKEL
Contact point genderFEMALE
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
insulator materialPOLYETHYLENE
JESD-609 codee3
MIL complianceNO
Manufacturer's serial numberD
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation typeBOARD AND PANEL
OptionsGENERAL PURPOSE
Shell surfaceTIN
Shell materialSTEEL
Housing size1/E
Termination typePRESS FIT
Total number of contacts9
UL Flammability Code94V-0

Preview

Download Datasheet
PDS: Rev :E
STATUS:Released
Printed: Jun 09, 2014

D09S80C6PX00 Related Products

D09S80C6PX00 D37S80C4PX00LF D37S80C6PX00LF D15S80C4PX00 D15S80C6PX00 947C471K102CDIS D25S80C6PX00 D37S80C4PX00 D37S80C6PX00 D09S80C4PX00
Description CONN DSUB RCPT 9POS R/A PRESSFIT CONN D-SUB RCPT 37POS R/A PRESS CONN D-SUB RCPT 37POS R/A PRESS D Subminiature Connector, 15 Contact(s), Female, Press Fit Terminal D Subminiature Connector, 15 Contact(s), Female, Press Fit Terminal Polypropylene, DC Link Capacitors D Subminiature Connector, 25 Contact(s), Female, Press Fit Terminal D Subminiature Connector, 37 Contact(s), Female, Press Fit Terminal D Subminiature Connector, 37 Contact(s), Female, Press Fit Terminal D Subminiature Connector, 9 Contact(s), Female, Press Fit Terminal
Maker Amphenol - - Amphenol Amphenol - Amphenol Amphenol Amphenol Amphenol
Reach Compliance Code compliant - - compliant compliant - compliant compliant compliant compliant
Connector type D SUBMINIATURE CONNECTOR socket, female socket socket, female socket D SUBMINIATURE CONNECTOR D SUBMINIATURE CONNECTOR - D SUBMINIATURE CONNECTOR D SUBMINIATURE CONNECTOR D SUBMINIATURE CONNECTOR D SUBMINIATURE CONNECTOR
Contact to complete cooperation GOLD OVER NICKEL - - GOLD OVER NICKEL GOLD OVER NICKEL - GOLD OVER NICKEL GOLD OVER NICKEL GOLD OVER NICKEL GOLD OVER NICKEL
Contact completed and terminated TIN OVER NICKEL - - TIN OVER NICKEL TIN OVER NICKEL - TIN OVER NICKEL TIN OVER NICKEL TIN OVER NICKEL TIN OVER NICKEL
Contact point gender FEMALE - - FEMALE FEMALE - FEMALE FEMALE FEMALE FEMALE
DIN compliance NO - - NO NO - NO NO NO NO
empty shell NO - - NO NO - NO NO NO NO
Filter function NO - - NO NO - NO NO NO NO
IEC compliance NO - - NO NO - NO NO NO NO
insulator material POLYETHYLENE - - POLYETHYLENE POLYETHYLENE - POLYETHYLENE POLYETHYLENE POLYETHYLENE POLYETHYLENE
JESD-609 code e3 - - e3 e3 - e3 e3 e3 e3
MIL compliance NO - - NO NO - NO NO NO NO
Manufacturer's serial number D - - D D - D D - D
Plug information MULTIPLE MATING PARTS AVAILABLE - - MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE - MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE
Mixed contacts NO - - NO NO - NO NO NO NO
Installation type BOARD AND PANEL Through hole, right angle Through hole, right angle BOARD AND PANEL BOARD AND PANEL - BOARD AND PANEL BOARD AND PANEL BOARD AND PANEL BOARD AND PANEL
Options GENERAL PURPOSE - - GENERAL PURPOSE GENERAL PURPOSE - GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Shell surface TIN - - TIN TIN - TIN TIN TIN TIN
Shell material STEEL Polybutylene terephthalate (PBT) Polybutylene terephthalate (PBT) STEEL STEEL - STEEL STEEL STEEL STEEL
Housing size 1/E - - 2/A 2/A - 3/B 4/C 4/C 1/E
Termination type PRESS FIT - - PRESS FIT PRESS FIT - PRESS FIT PRESS FIT PRESS FIT PRESS FIT
Total number of contacts 9 - - 15 15 - 25 37 37 9
UL Flammability Code 94V-0 - - 94V-0 94V-0 - 94V-0 94V-0 94V-0 94V-0
