DBL21W1S500P00LF

Description
CONN D-SUB RCPT 21POS R/A SOLDER
CategoryThe connector
File Size77KB,1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

DBL21W1S500P00LF Online Shopping

Suppliers Part Number Price MOQ In stock
DBL21W1S500P00LF - - View Buy Now

DBL21W1S500P00LF Overview

CONN D-SUB RCPT 21POS R/A SOLDER

DBL21W1S500P00LF Parametric

Parameter NameAttribute value
Connector styleD-Sub, combined
Connector typesocket, female socket
Number of pins21 (20 + 1 power supply)
Number of rows2
Housing size, connector layout3(DB,B)- 21W1
Contact typeSignal and power (not included)
Installation typeThrough hole, right angle
Flange characteristicsBody base/shell (M3)
Terminationwelding
characteristic-
Housing material, platingSteel, tinned
Contact platinggold
Contact plating thickness-
Intrusion protection-
Material flammability ratingUL94 V-0
Rated current7.5A
Operating temperature-55°C ~ 125°C
Rated voltage300V
color-
Contact shape-
Shell materialthermoplastic
Wire gauge-
Contact materialbrass
Braking device interval-

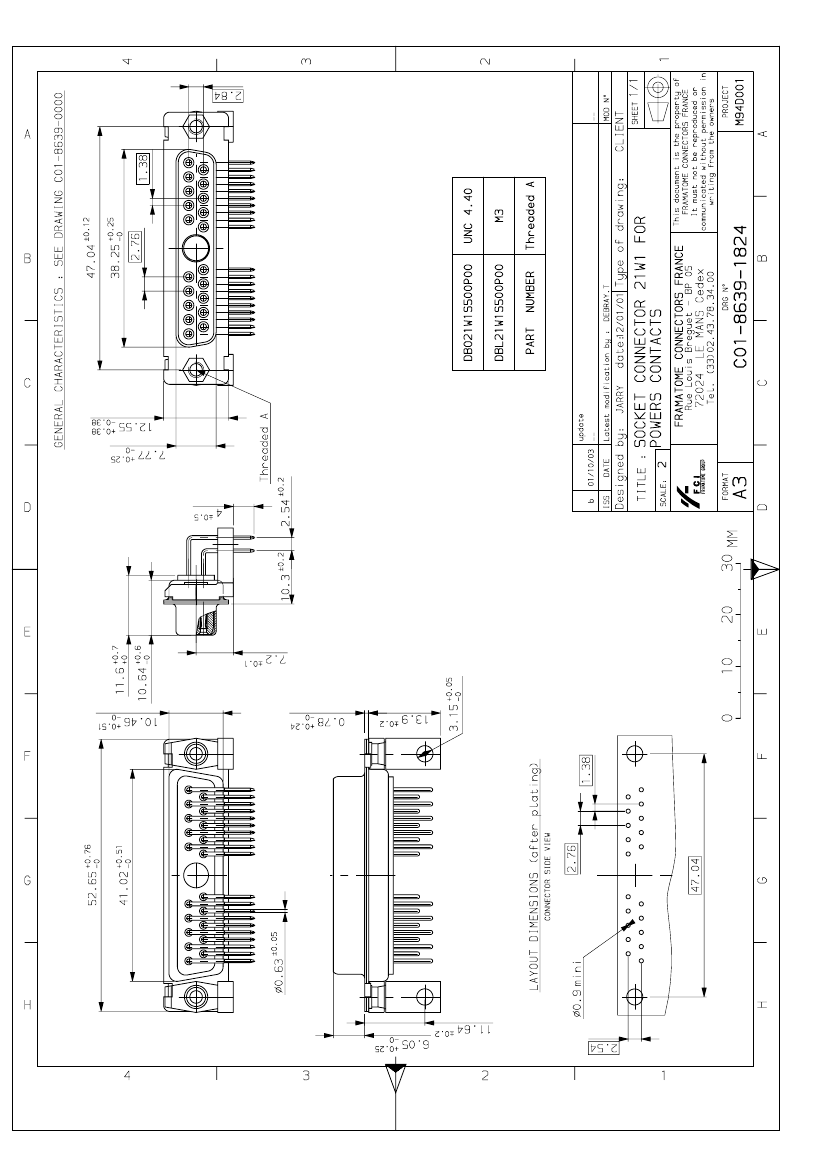

PDM: Rev:B
STATUS:
Released
Printed: Mar 02, 2004
