HM2R10PACA39N9 datasheet, PDF - EEWORLD Datasheet

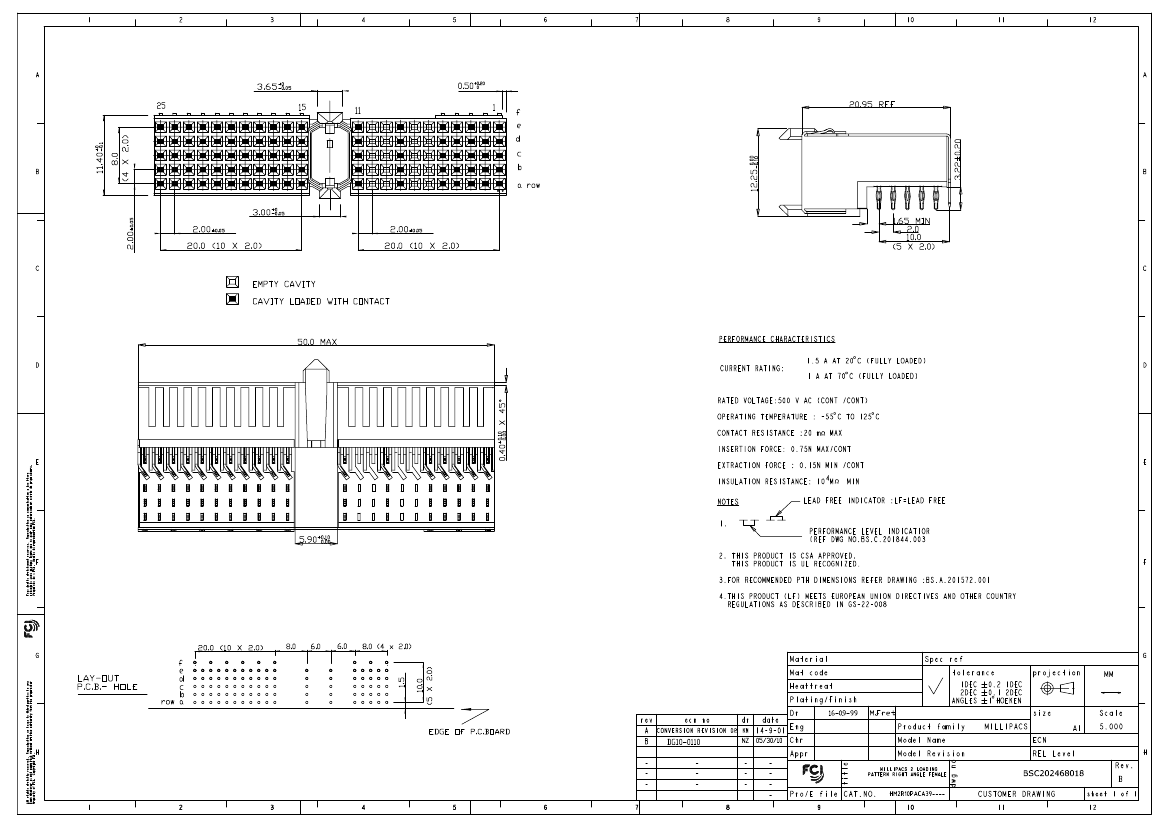

HM2R10PACA39N9: DescriptionCONN RECEPT 110POS TYPE A R/A; CategoryThe connector The connector; File Size85KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

HM2R10PACA39N9 Overview

CONN RECEPT 110POS TYPE A R/A

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARDS: DIN 43355; IEC 917; IEC 61076-4-101, HIGH DENSITY, SHIELDED
body width	0.482 inch
subject depth	0.825 inch
body length	1.969 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	750VAC V
Durability	250 Cycles
Filter function	NO
IEC compliance	YES
maximum insertion force	.3614 N
Insulation resistance	10000000000 Ω
insulator material	THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	HM2
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	6
Number of rows loaded	5
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	31u inch
polarization key	CENTER
Rated current (signal)	1.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.11 inch
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	90
UL Flammability Code	94V-0
Evacuation force-minimum value	.07228 N

PDM: Rev:B

STATUS:

Released

Printed: Mar 15, 2011

	HM2R10PACA39N9	HM2R10PACA39N9LF
Description	CONN RECEPT 110POS TYPE A R/A	CONN RECEPT 110POS TYPE A R/A
Is it lead-free?	Contains lead	Lead free
Is it Rohs certified?	incompatible	conform to
Maker	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Other features	STANDARDS: DIN 43355; IEC 917; IEC 61076-4-101, HIGH DENSITY, SHIELDED	STANDARDS: DIN 43355; IEC 917; IEC 61076-4-101, HIGH DENSITY, SHIELDED
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	YES	YES
Filter function	NO	NO
IEC compliance	YES	YES
MIL compliance	NO	NO
Manufacturer's serial number	HM2	HM2
Mixed contacts	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of rows loaded	5	5
Options	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT
Total number of contacts	90	90
UL Flammability Code	94V-0	94V-0
