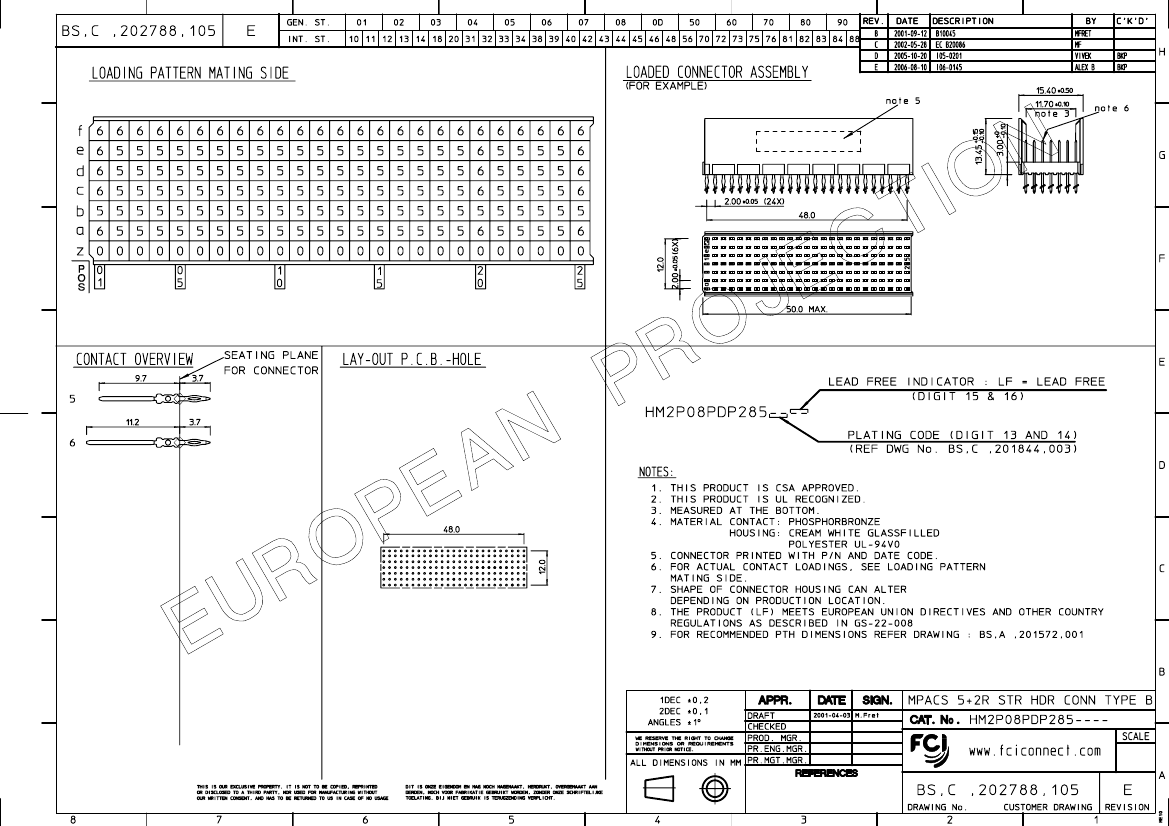

CONN HEADER 125POS TYPE B VERT
| Parameter Name | Attribute value |
| Maker | Amphenol |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Other features | 25 GROUND SHIELD CONTACTS AVAILABLE IN 1 ROW |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | TIN LEAD |
| Contact completed and terminated | TIN LEAD |
| Contact point gender | MALE |
| DIN compliance | NO |
| Filter function | NO |
| IEC compliance | NO |
| JESD-609 code | e0 |
| MIL compliance | NO |
| Manufacturer's serial number | HM2 |
| Mixed contacts | NO |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of rows loaded | 6 |
| Options | GENERAL PURPOSE |
| Terminal pitch | 2 mm |
| Termination type | PRESS FIT |
| Total number of contacts | 150 |
| UL Flammability Code | 94V-0 |
| HM2P08PDP285N9 | HM2P08PDP285N9LF | HM2P08PDP285N9L | HM2P08PDP285N9LLF | HM2P08PDP285N9L1LF | |
|---|---|---|---|---|---|
| Description | CONN HEADER 125POS TYPE B VERT | MPAC 5R ST PF HDR | MPAC 5R ST PF HDR | MPAC 5R ST PF HDR | MPAC 5R ST PF HDR |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | Connector, male pin | Connector, male pin | Connector, male pin |
| Installation type | BOARD | BOARD | Through hole | Through hole | Through hole |
| Connector style | - | - | B 25 | B 25 | B 25 |
| Number of pins | - | - | 150 (125 + 25 ground) | 150 (125 + 25 ground) | 150 (125 + 25 ground) |
| Number of pins loaded | - | - | all | all | all |
| spacing | - | - | 0.079"（2.00mm） | 0.079"（2.00mm） | 0.079"（2.00mm） |
| Number of rows | - | - | 5 + 1 | 5 + 1 | 5 + 1 |
| Termination | - | - | Press fit | Press fit | Press fit |
| Contact plating | - | - | gold | gold | gold |
| Contact plating thickness | - | - | flash | flash | flash |
| Rated current | - | - | 1.5A | 1.5A | 1.5A |
| Rated voltage | - | - | 750Vrms | 750Vrms | 750Vrms |
| Operating temperature | - | - | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
