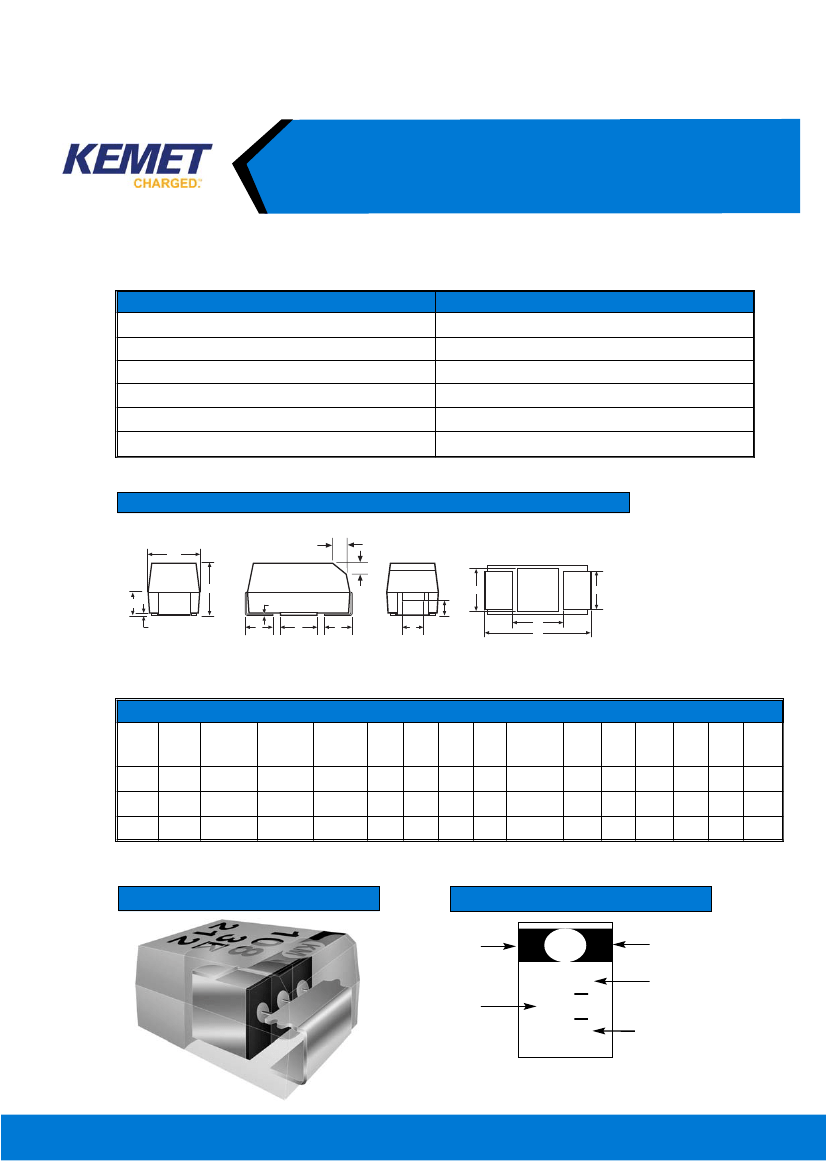

T530D227M006AH4097: DescriptionHigh Capacitance/Ultra-Low ESR Tantalum Surface Mount Capacitor; File Size95KB，2 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com

Download Datasheet Compare View All

T530D227M006AH4097 Overview

High Capacitance/Ultra-Low ESR Tantalum Surface Mount Capacitor

Preview

Download Datasheet

View All

Product Bulletin

T530 Series - High Capacitance/Ultra-Low ESR Tantalum Surface Mount Capacitor

DSCC Dwg. 04052 Approved

Features

Polymer Cathode Technology

Extremely Low ESR

High Frequency Capacitance Retention

Non-Ignition Failure Mode

Use up to 90% of Rated Voltage (10% Derating)

Operating Temperature -55°C to +125°C

100% Accelerated Steady State Aging

100% Surge Current Testing

Utilizes Multiple Tantalum Anode Technology

Volumetrically Efficient

Self-Healing Mechanism

Available tested per DSCC Dwg. 04052

Outline Drawing

CATHODE (-) END

VIEW

SIDE VIEW

Termination

cutout at

KEMETs

Option,

either end

ANODE (+) END

VIEW

BOTTOM VIEW

Dimensions – Millimeters

KEMET

Size

Code

EIA Size

Code

Length

7.3 ± 0.30

(.287 ± .012)

7.3 ± 0.30

(.287 ± .012)

7.3 ± 0.30

(.287 ± .012)

Width

Height

±0.20

±(.008)

1.5

(.059)

1.9

(.075)

2.3

(.090)

±0.10

±(.004)

2.4

(.094)

2.4

(.094)

2.4

(.094)

B(Ref)

±0.30

±0.15

±(.012) ±(.006)

1.3

(.051)

1.3

(.051)

1.3

(.051)

0.5

(.020)

----

(Ref)

0.10 ± 0.10

(.004 ± .004)

0.10 ± 0.10

(.004 ± .004)

0.10 ± 0.10

(.004 ± .004)

(Ref)

0.9

(.035)

----

(Ref)

1.0

(.039)

----

(Ref)

0.13

(.005)

0.13

(.005)

0.13

(.005)

(Min)

3.8

(.150)

3.8

(.150)

3.8

(.150)

(Ref)

3.5

(.138)

3.5

(.138)

3.5

(.138)

(Ref)

3.5

(.138)

3.5

(.138)

3.5

(.138)

7343-31

7343-40

4.3 ± 0.30

2.8 ± 0.30

(.169 ± .012) (.110 ± .012)

4.3 ± 0.30

(.169 ± .012)

4.0 max.

4.3 ± 0.30

4.0 ± 0.30

(.169 ± .012) (.157 ± .012)

Construction

High

Capacitance

Ultra-low ESR

Device

Rated

Voltage

Component Marking

Polarity

Indicator (+)

(Solid Stripe)

Picofarad

Code

Print Week Code

1st Digit = Year

2nd & 3rd Digits = Week

“610” = 10th Week of 2006

158

610

F-9077 03/06
