SFAF801G - SFAF808G
Taiwan Semiconductor
CREAT BY ART

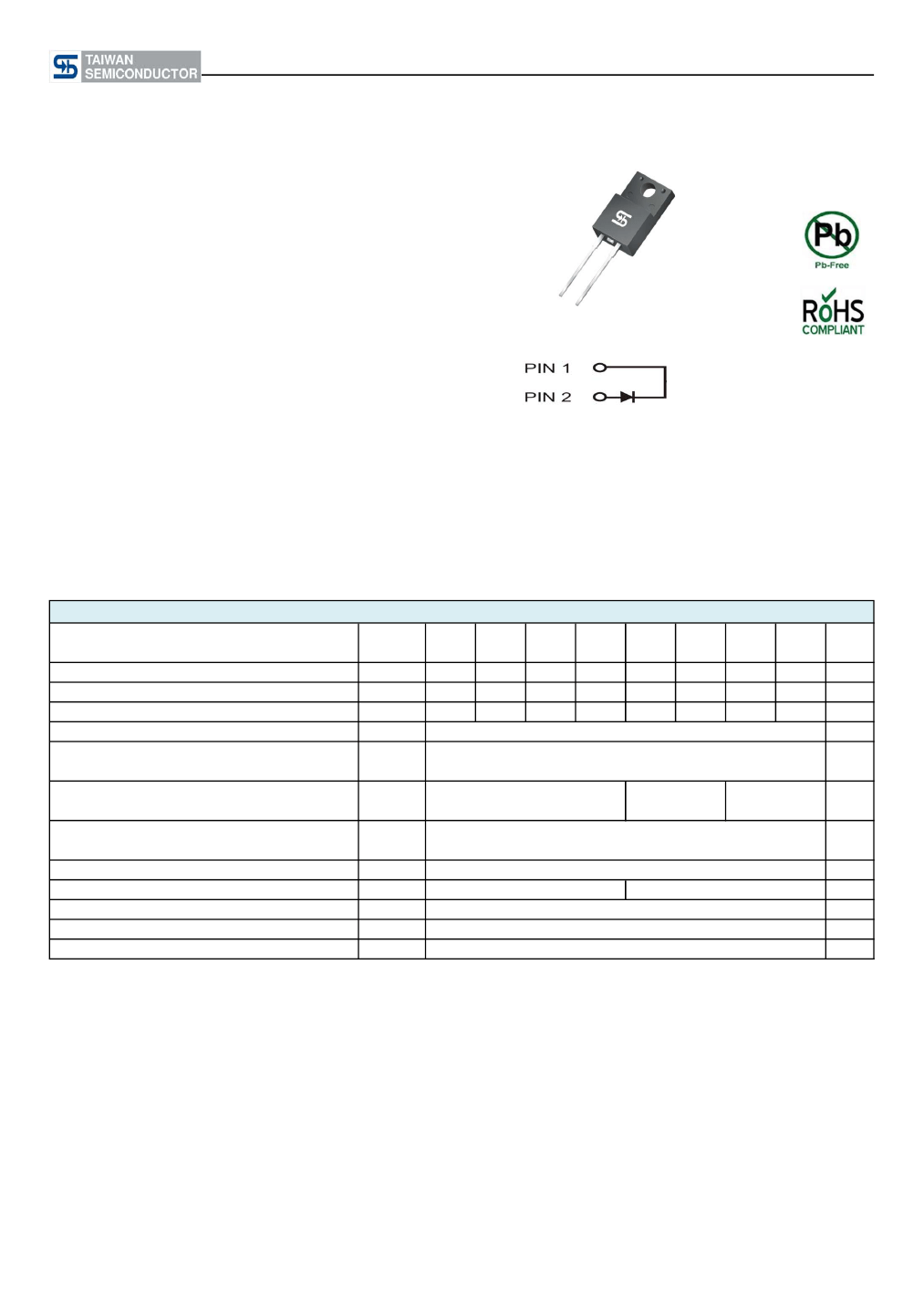

8A, 50V - 600V Isolated Glass Passivated Super Fast Rectifiers
FEATURES
- Glass passivated chip junction
- High efficiency, Low VF
- High surge current capability
- High current capability
- High reliability
- UL Recognized File # E-326243
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21
1
2
ITO-220AC
MECHANICAL DATA
Case:
ITO-220AC
Molding compound, UL flammability classification rating 94V-0
Part no. with suffix "H" means AEC-Q101 qualified
Packing code with suffix "G" means green compound (halogen-free)
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 2 whisker test
Polarity:
As marked
Mounting torque:
0.56 Nm max.
Weight:
1.7 g (approximately)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25°C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half
sine-wave superimposed on rated load
Maximum instantaneous forward voltage (Note 1)
I
F
= 8 A
Maximum reverse current @ rated V
R
Maximum reverse recovery time (Note 2)
Typical junction capacitance (Note 3)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300μs, 1% duty cycle
Note 2: Test conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
Note 3: Measured at 1 MHz and applied reverse voltage of 4.0V DC.
T
J
=25°C
T
J
=100°C
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
t
rr
C
J
R
θJC
T
J
T
STG
90
4
- 55 to +150
- 55 to +150
0.95
10
400
35
60
SFAF
801G
50
35
50
SFAF
802G
100
70
100
SFAF
803G
150
105
150
SFAF
804G
200
140
200
8
125
1.3
1.7
SFAF
805G
300
210
300
SFAF
806G
400
280
400
SFAF
807G
500
350
500
SFAF
808G
600
420
600
UNIT
V
V
V
A
A
V
μA
ns
pF
°C/W
°C
°C
Version: J1511
SFAF801G - SFAF808G
Taiwan Semiconductor
CREAT BY ART
ORDERING INFORMATION
PART NO.
SFAF80xG
(Note 1)
*: Optional available
PART NO.
SUFFIX
H
PACKING CODE
C0
PACKING CODE
SUFFIX
G
(*)
PACKAGE
ITO-220AC
PACKING
50 / Tube
Note 1: "x" defines voltage from 50V (SFAF801G) to 600V (SFAF808G)
EXAMPLE
EXAMPLE P/N
SFAF801GHC0G
PART NO.
SFAF801G
PART NO.
SUFFIX
H
PACKING CODE
C0
PACKING CODE
SUFFIX
G
DESCRIPTION
AEC-Q101 qualified
Green compound

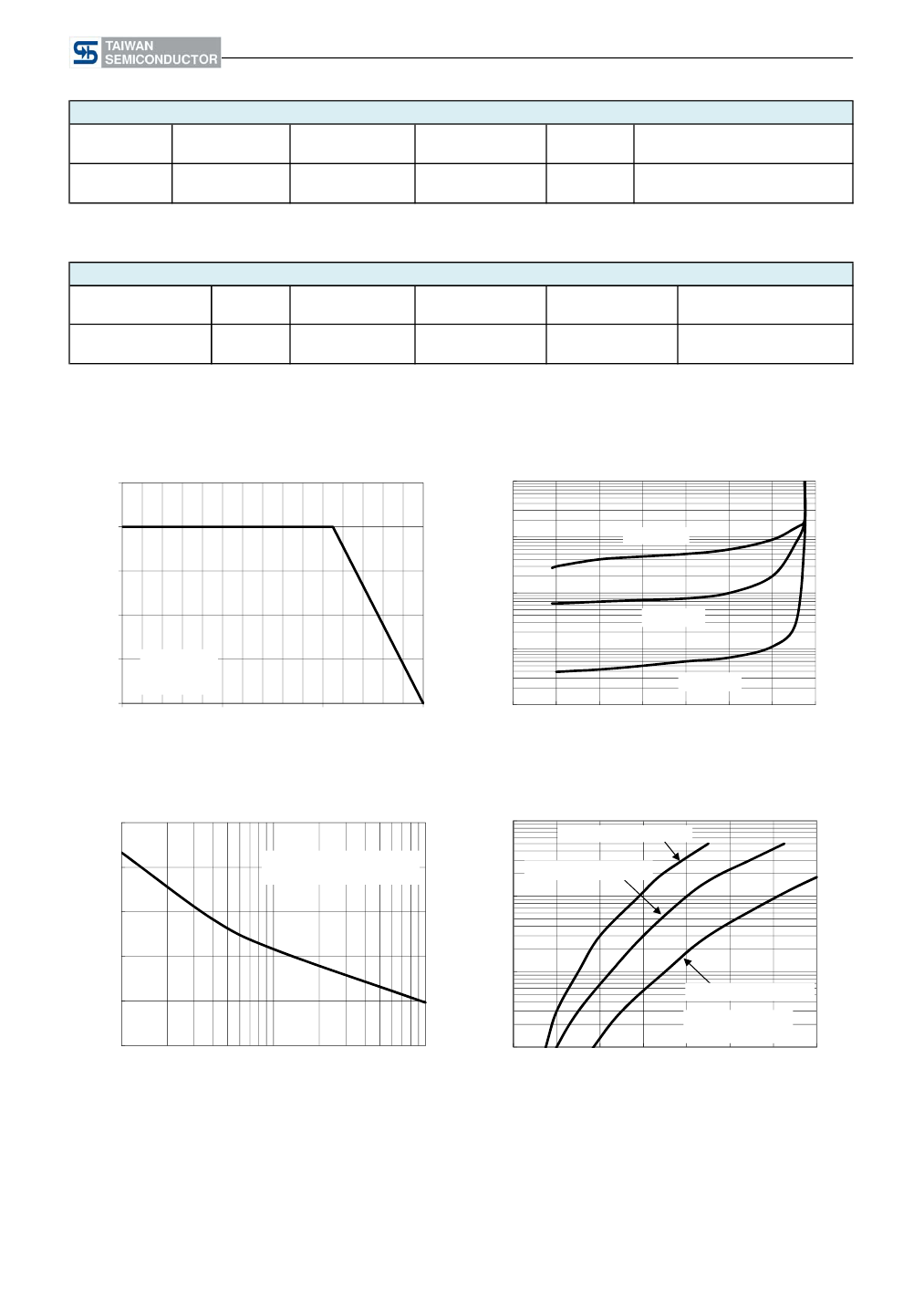

RATINGS AND CHARACTERISTICS CURVES
(T
A
=25°C unless otherwise noted)
FIG.1 MAXIMUM FORWARD CURRENT
DERATING CURVE
FIG. 2 TYPICAL REVERSE CHARACTERISTICS
1000
INSTANTANEOUS REVERSE CURRENT (μA)
10
AVERAGE FORWARD CURRENT (A)
8
100
T
J
=100
°
C
6
10
4
T
J
=75
°
C
1
2
Resistive or
inductive load
with heat sink
T
J
=25
°
C
0.1
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
0
0
50
100
150
CASE TEMPERATURE (
°
C)
FIG. 3 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
150
FIG. 4 TYPICAL FORWARD CHARACTERISTICS
100
INSTANTANEOUS FORWARD CURRENT. (A)
SFAF801G-SFAF804G
SFAF805G-SFAF806G
10
PEAK FORWARD SURGE CURRENT (A)
120
8.3ms single half sine wave
90
60
1
SFAF807G-SFAF808G
Pulse width=300μs
1% duty cycle
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
30
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
0.1
FORWARD VOLTAGE. (V)
Version: J1511

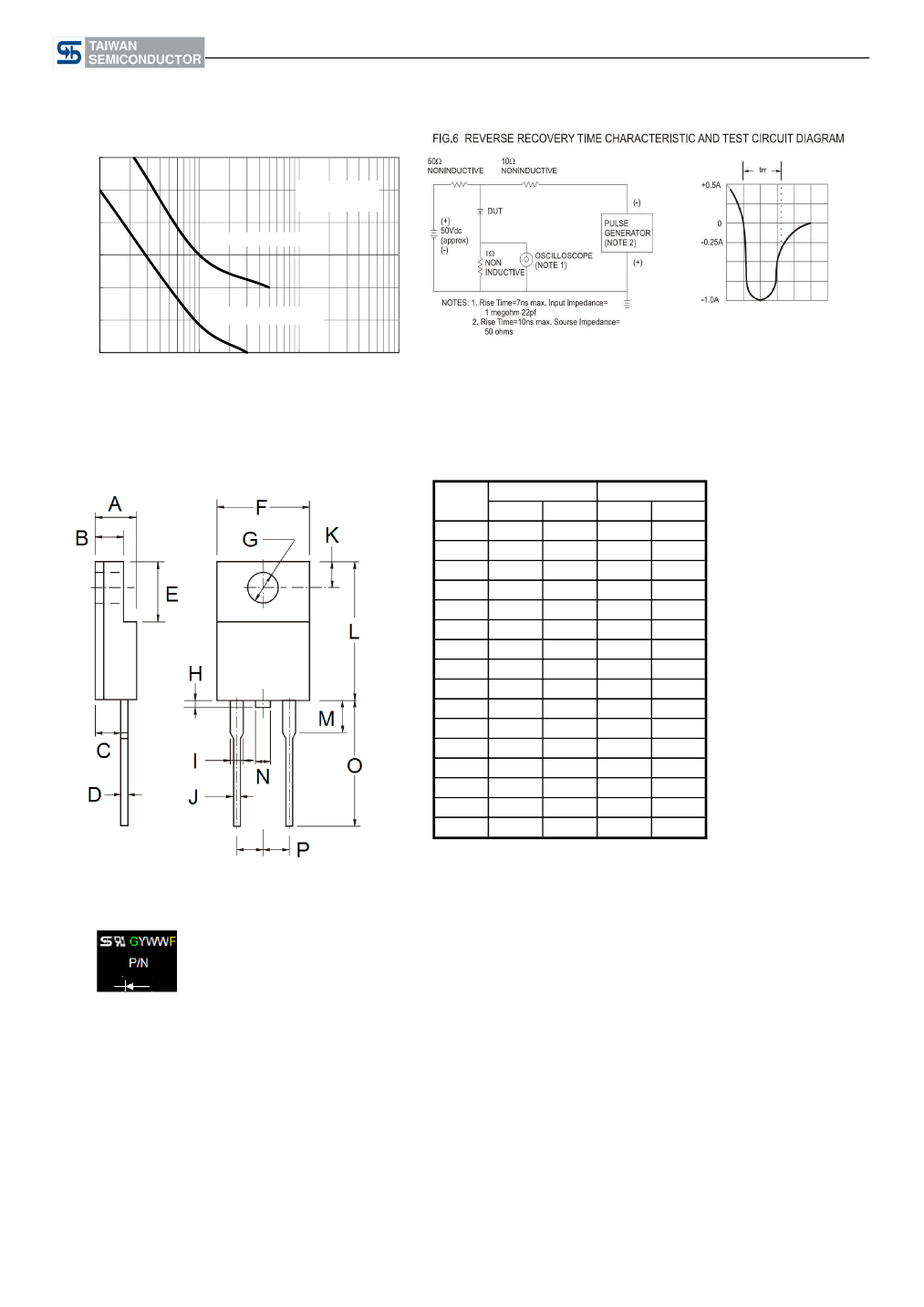

SFAF801G - SFAF808G
Taiwan Semiconductor
CREAT BY ART
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors or inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied, to
any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or selling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
Version: J1511
