Part Number

Search

0026623054

Description
KK 156 HDR ASSY RTAN TIN 5POS
CategoryThe connector
File Size216KB,2 Pages
ManufacturerMolex Premise Network
Environmental Compliance
Download Datasheet Parametric Compare View All

0026623054 Online Shopping

Suppliers Part Number Price MOQ In stock
0026623054 - - View Buy Now

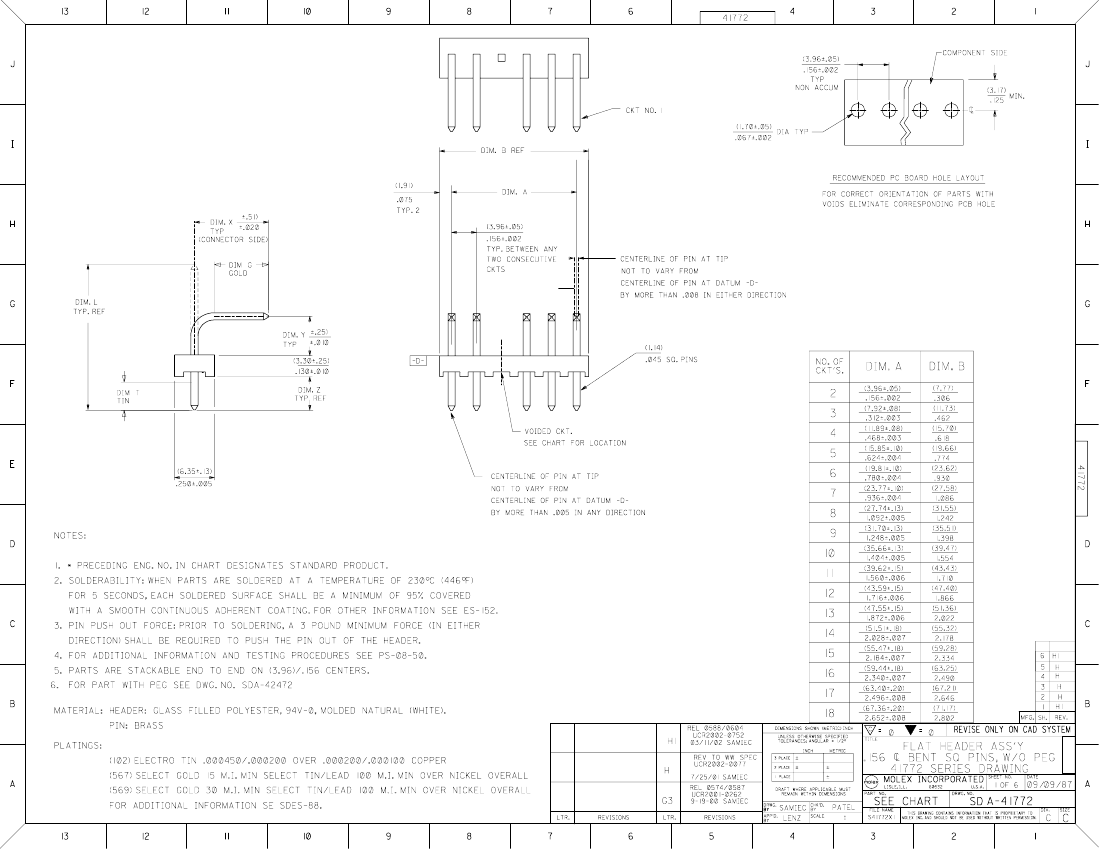

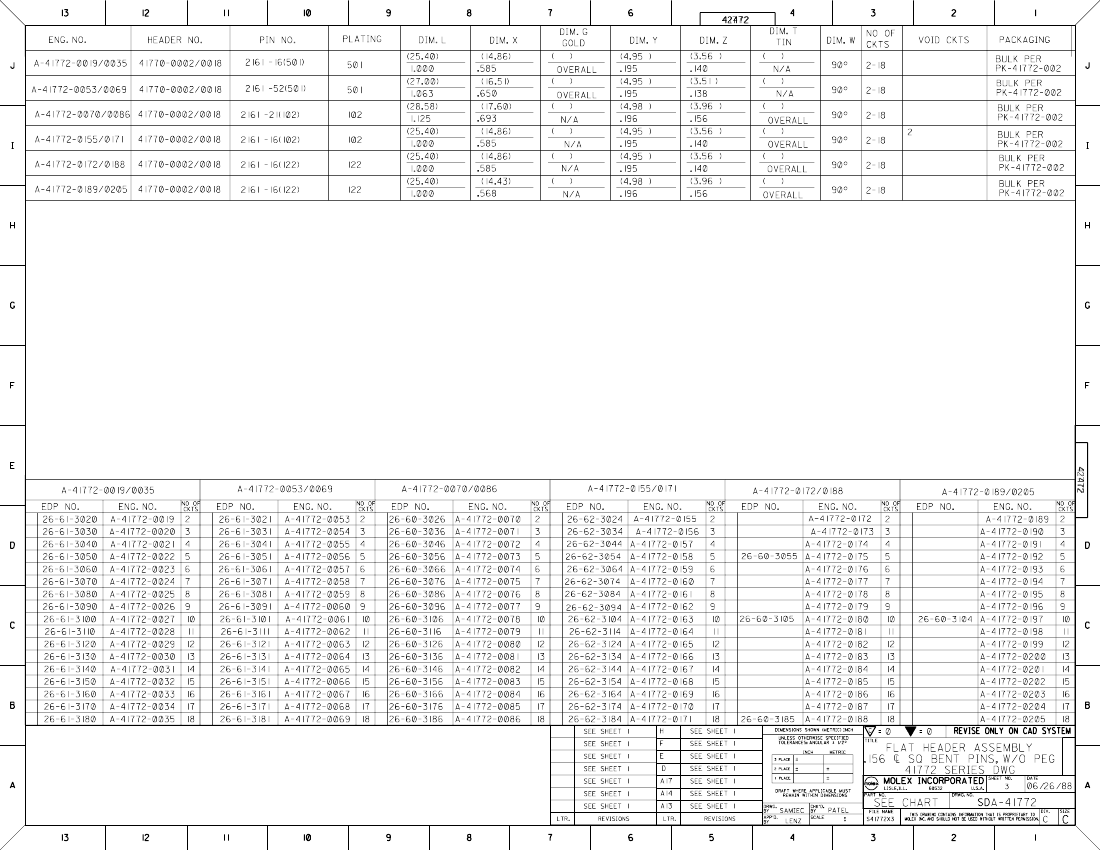

0026623054 Overview

KK 156 HDR ASSY RTAN TIN 5POS

0026623054 Parametric

Parameter NameAttribute value
Connector typeConnector
Contact typeMale pin
Spacing - Mating0.156"(3.96mm)
Number of pins5
Number of rows1
Line spacing - patching-
Number of pins loaded4
styleBoard to Board or Cable
shieldUncovered
Installation typeThrough hole, right angle
Terminationwelding
Fastening typepush-pull
Contact Length - Mating0.585"(14.86mm)
Contact length - terminal0.140"(3.56mm)
Overall contact length-
Insulation height0.130"(3.30mm)
Contact shapeSquare
Contact surface treatment - matingtin
Contact Surface Treatment Thickness - Mating60.0µin(1.52µm)
Contact Surface Preparation - Columntin
Contact materialbrass
Insulation MaterialsPolyester, fiberglass reinforced
characteristic-
Operating temperature-
Intrusion protection-
Material flammability ratingUL94 V-0
Insulation colornatural
Rated current-
Rated voltage-
Joint stack height-
Contact Surface Treatment Thickness - Column60.0µin(1.52µm)
applicationAutomotive, general, industrial, medical, telecommunications

0026623054 Related Products

0026623054
Description KK 156 HDR ASSY RTAN TIN 5POS
Connector type Connector
Contact type Male pin
Spacing - Mating 0.156"(3.96mm)
Number of pins 5
Number of rows 1
Number of pins loaded 4
style Board to Board or Cable
shield Uncovered
Installation type Through hole, right angle
Termination welding
Fastening type push-pull
Contact Length - Mating 0.585"(14.86mm)
Contact length - terminal 0.140"(3.56mm)
Insulation height 0.130"(3.30mm)
Contact shape Square
Contact surface treatment - mating tin
Contact Surface Treatment Thickness - Mating 60.0µin(1.52µm)
Contact Surface Preparation - Column tin
Contact material brass
Insulation Materials Polyester, fiberglass reinforced
Material flammability rating UL94 V-0
Insulation color natural
Contact Surface Treatment Thickness - Column 60.0µin(1.52µm)
application Automotive, general, industrial, medical, telecommunications
