0022286183

Description

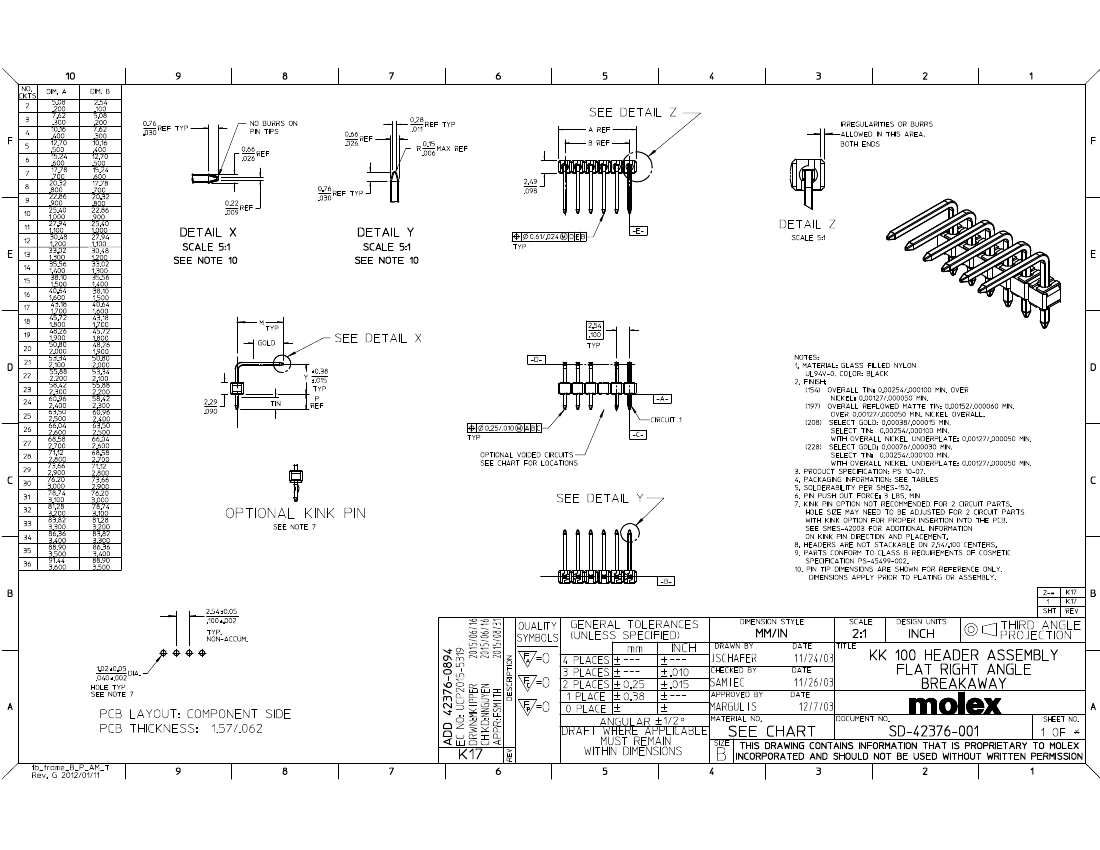

KK 100 HDR ASSY RA BKWY 18POS
CategoryThe connector
File Size290KB,12 Pages
ManufacturerMolex Premise Network
Environmental Compliance
Download Datasheet Parametric View All

0022286183 Online Shopping

Suppliers Part Number Price MOQ In stock
0022286183 - - View Buy Now

0022286183 Overview

KK 100 HDR ASSY RA BKWY 18POS

0022286183 Parametric

Parameter NameAttribute value
Connector typeNeedle hub, separate
Contact typeMale pin
Spacing - Mating0.100"(2.54mm)
Number of pins18
Number of rows1
Line spacing - patching-
Number of pins loadedall
styleBoard to Board or Cable
shieldUncovered
Installation typeThrough hole, right angle
Terminationwelding
Fastening typepush-pull
Contact Length - Mating0.405"(10.29mm)
Contact length - terminal0.120"(3.05mm)
Overall contact length-
Insulation height0.090"(2.29mm)
Contact shapeSquare
Contact surface treatment - matinggold
Contact Surface Treatment Thickness - Mating15.0µin(0.38µm)
Contact Surface Preparation - Columntin
Contact material-
Insulation MaterialsPolyamide (PA), nylon, glass fiber reinforced
characteristic-
Operating temperature-
Intrusion protection-
Material flammability ratingUL94 V-0
Insulation colorblack
Rated current-
Rated voltage-
Joint stack height-
Contact Surface Treatment Thickness - Column100.0µin(2.54µm)
applicationAutomotive, general, medical, telecommunications
