Part Number

Search

85822-105LF

Description
METRAL HDR STB 24POS
CategoryThe connector    The connector
File Size153KB,2 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Environmental Compliance
Download Datasheet Parametric View All

85822-105LF Online Shopping

Suppliers Part Number Price MOQ In stock
85822-105LF - - View Buy Now

85822-105LF Overview

METRAL HDR STB 24POS

85822-105LF Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerAmphenol
package instructionLEAD FREE
Reach Compliance Codecompliant
Factory Lead Time7 weeks
Board mount optionsPEG
body width0.543 inch
subject depth1.211 inch
body length0.47 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage1400VAC V
Filter functionNO
IEC complianceNO
Insulation resistance1000000000 Ω
MIL complianceNO
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Mixed contactsNO
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number4
Number of rows loaded4
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.0066 mm
polarization keyPOLARIZED HOUSING
Rated current (signal)1 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.114 inch
Terminal pitch2 mm
Termination typeSOLDER
Total number of contacts24

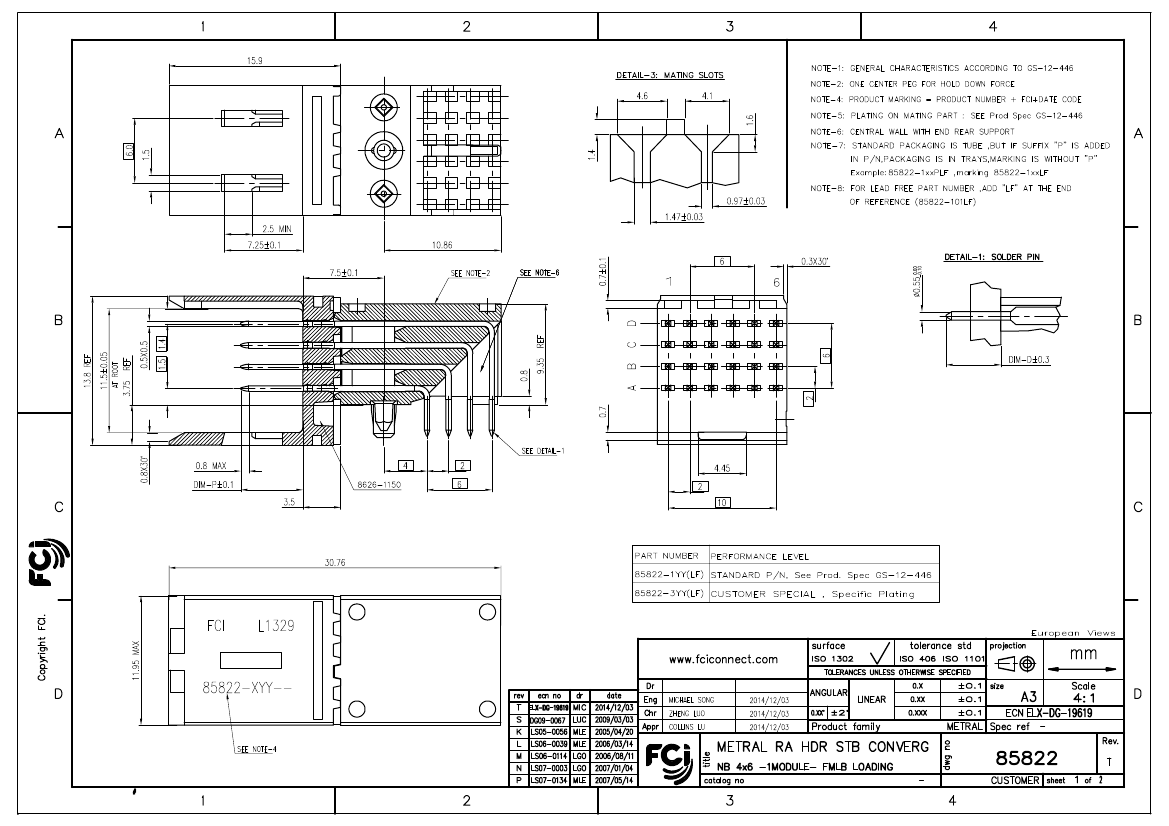

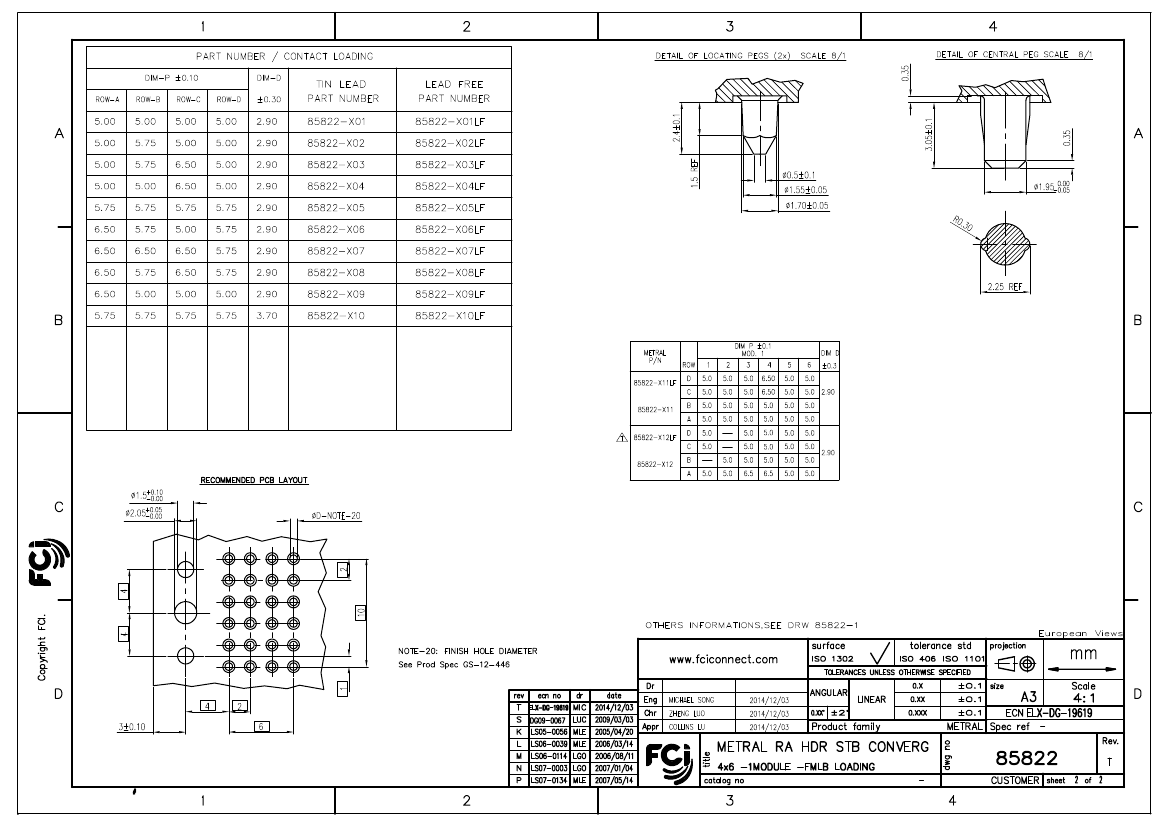

PDS: Rev :T
STATUS:Released
Printed: Dec 04, 2014
