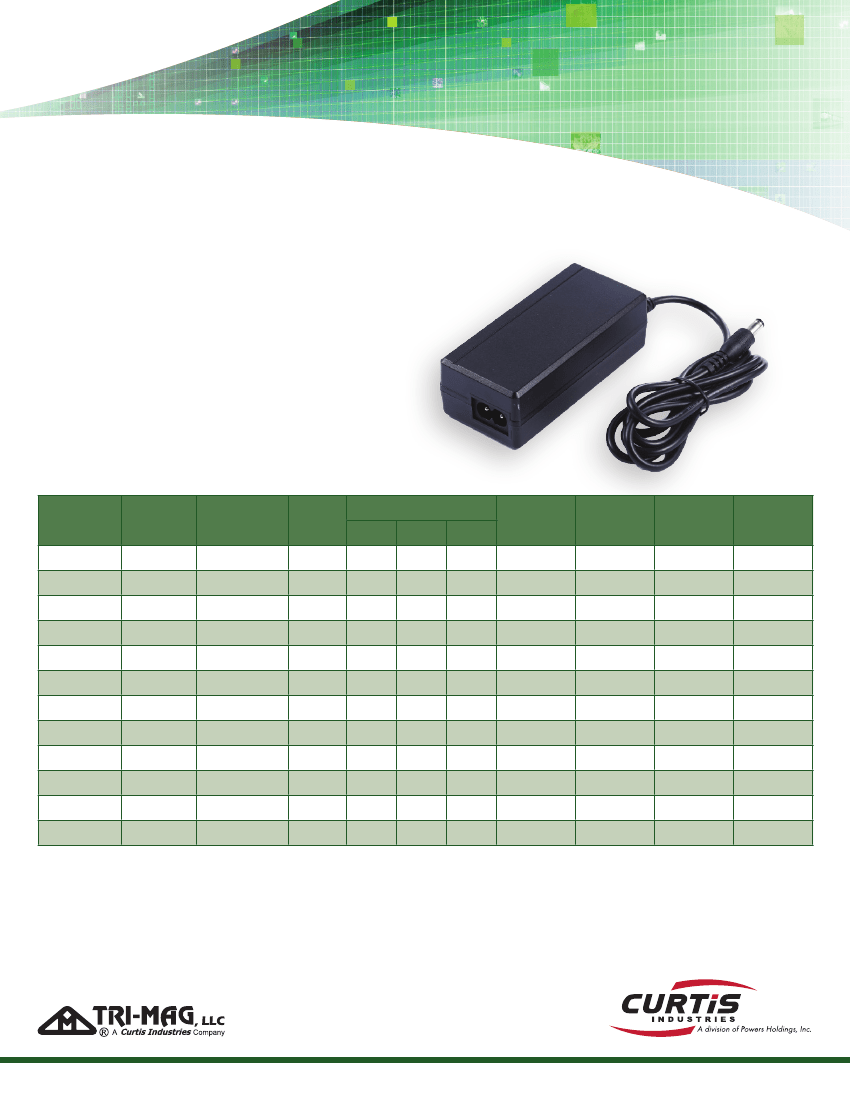

L6R24D / L6R30D Series
24W & 30W Desktop Power Supplies
•
•
•
•
•
•
DOE Level VI Efficiency Rating
Universal Input: 90 ~ 264Vac, 47/63 Hz
UL/cUL Safety Approved
Corded Output Connection
IEC 60320 C8 AC input connector
Light Weight and Compact
Output
Connector
Corded Jack
Corded Jack
Corded Jack
Corded Jack
Corded Jack
Corded Jack
Corded Jack
Corded Jack
Corded Jack
Corded Jack
Corded Jack
Corded Jack
Output
Voltage
+9.0V
+12.0V
+18.0V
+24.0V
+30.0V
+36.0V
+9.0V
+12.0V
+18.0V
+24.0V
+30.0V
+36.0V
Output Current
Min
0
0
0
0
0
0
0
0
0
0
0
0
Rated
2.7
2.0
1.3
1.0
0.8
0.7
3.3
2.5
1.67
1.25
1.0
0.83
Peak
—
—
—
—
—
—
—
—
—
—
—
—
Voltage
Accuracy
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
Ripple
Noise
< ± 1%
< ± 1%
< ± 1%
< ± 1%
< ± 1%
< ± 1%
< ± 1%
< ± 1%
< ± 1%
< ± 1%
< ± 1%
< ± 1%
Line
Reg.
± 1%
± 1%
± 1%
± 1%
± 1%
± 1%
± 1%
± 1%
± 1%
± 1%
± 1%
± 1%
Load
Reg.
± 5%
± 5%
± 5%
± 5%
± 5%
± 5%
± 5%
± 5%
± 5%
± 5%
± 5%
± 5%
Model No.
1
Application
ITE
ITE
ITE
ITE
ITE
ITE
ITE
ITE
ITE
ITE
ITE
ITE
L6R24D-090
L6R24D-120
L6R24D-180
L6R24D-240
L6R24D-300
L6R24D-360
L6R30D-090
L6R30D-120
L6R30D-180
L6R30D-240
L6R30D-300
L6R30D-360
1.
Add “C8” suffix for the required AC input connector configuration.
Output voltages from 5.0Vdc to 36.0Vdc are available in increments of 0.1V. Please contact Tri-Mag, LLC for the part number and specifications for your output voltage
requirement and application.
The output voltage is verified to specs at 60 percent rated load condition.
The
line regulation
is defined by changing ± 10 percent of input voltage from the nominal line at rated load.
The
load regulation
is defined by changing ± 40 percent of the measured output load from 60 percent of the rated load.
The
ripple and noise
is measured by using 20MHz bandwidth limited oscilloscope with each output terminated with a 10 µF electrolytic and a 0.1 µF capacitor at rated load
and nominal line.
The
efficiency
is measured at rated load and nominal line.
•
•
•
•
•
•
1601 N. Clancy Ct. • Visalia, CA 93291 • (559) 651-2222 • FAX (559) 651-0188 • sales@tri-mag.com •
tri-mag.com
GREEN POW ER
Power
Supplies
Power
Supplies
L6R24D / L6R30D Series
Whether powering stationary or charging portable
devices, this desktop power supply is reliable
and economical.
DOE Level VI compliant. Rated up to 30W. Voltage
levels from 5.0Vdc to 36.0Vdc (in increments of 0.1V),
to match your specifications.
Call us (800-657-0853) for the part number to match
your particular need.
Specifications
Input
Input Voltage
Input Frequency
No Load Input Power
Input Current
Inrush Current
Leakage Current
Input Connection
•
•
•
•
•
•
•
90 Vac ~ 264 Vac
47 Hz to 63 Hz
< 0.1W
1.2A Max.
40A Max.
0.25mA Max.
US (others available)
Warranty
Warranty Period
• 1 year
Dimensions and Notes
Dimensions in mm
Tolerance
Size
Weight
Connectors
± 0.2mm
91.9 x 45.4 x 27.5 mm
3.62 x 1.79 x 1.14 Inches
Approx. 140g (4.9oz.)
AC input; IEC 60320 C8 connector
DC output, standard 5.5mm x 2.1mm
corded dc output jack or per
customer specification.
• 1500 ± 20 mm (59 ± .8”)
•
•
•
•
•
•
Output
Output Voltage Range
Output Current Range
Minimum Load
Line Regulation
Load Regulation
Ripple & Noise
Overvoltage Protection
Overload Protection
Short Circuit Protection
•
•
•
•
•
•
•
•
•
•
5.0 to 36.0 Vdc
L6R24D: 667 - 3500mA, 24W Max.
L6R30D: 833 - 3500mA, 30W Max.
No min. load required.
± 1% at rated load across input
voltage range
± 5%
240mVp-p Max.
Auto recovery
Auto recovery
Auto recovery
Cord length
Mechanical Drawing
General
Insulation Resistance
Efficiency
MTBF
•
•
•
50MΩ Min.
Level VI compliant
50,000 hrs to MIL-HDBK-217F at +25°C
Environmental
Operating Temperature
Operating Humidity
Storage Temperature
•
•
•
0°C to 40°C
5% - 95% RH, Non-Condensing
-20°C to +80°C
EMC & Safety
Safety Approvals
EMC Approvals
•
•
•
UL: UL60950-1
cUL: UL60950-1
FCC
2017-03
1601 N. Clancy Ct. • Visalia, CA 93291 • (559) 651-2222 • FAX (559) 651-0188 • sales@tri-mag.com •
tri-mag.com
