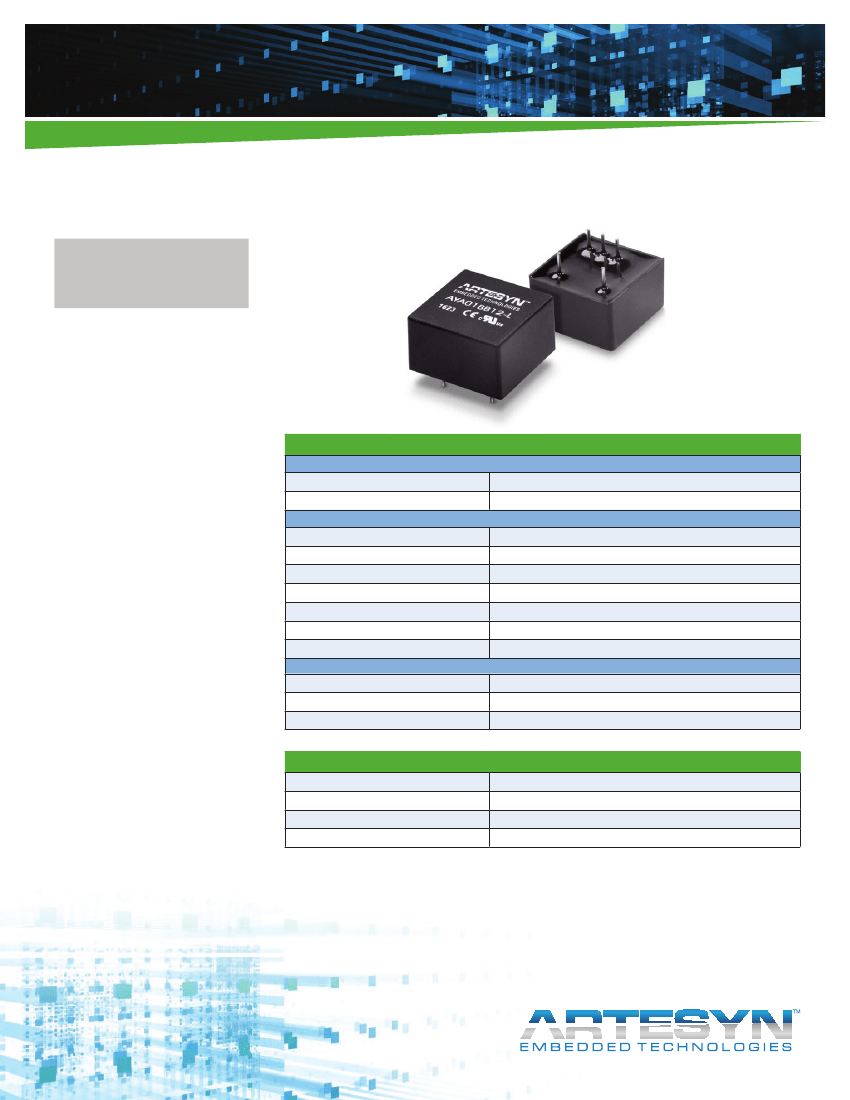

POWER
Data Sheet
Total Power:
3 W
Input Voltage:
5, 12, 24, 48 V
# of Outputs:
Single and Dual
SPECIAL FEATURES
Ultra compact DIP package
(14 x 14 x 8.0 mm; 0.55 x 0.55 x 0.31
inches)
Efficiency up to 87%
I/O-isolation 1500 VDC
Wide 2:1 input range
Operating temperature range
-40 °C to +85 °C (with derating)
Three year product warranty
UL/cUL/IEC/EN 60950-1 Safety
Approval, CE Mark
AYA Series
3 Watts
Electrical Specifications
Input
Input range
Efficiency
4.5 - 10 Vdc; 9 - 18 Vdc; 18 - 36 Vdc; 36 - 75 Vdc
87% @ 12 Vo
±1.5%
±0.2%
1.0%
70 mV
170% typ of Io max, foldback
Continuous, automatic recovery
100 kHz
I/O: 1500 Vdc
1000 Mohm
100 pF
Output
SAFETY
cUL/UL 60950-1 recognition
CE Mark
Voltage tolerance
Line regulation
Load regulation
Noise/ripple
Overload protection
Short circuit protection
Switching frequency
Isolation
I/O isolation
Insulation resistance
Insulation capacitance
Environmental Specifications
Operating ambient temperature range
Storage temperature
Humidity
MTBF
-40 °C to +85 °C
-50 °C to +125 °C
5% to 95% non-condensing
3.5 Mhrs calculated
AYA 3W Series Data Sheet

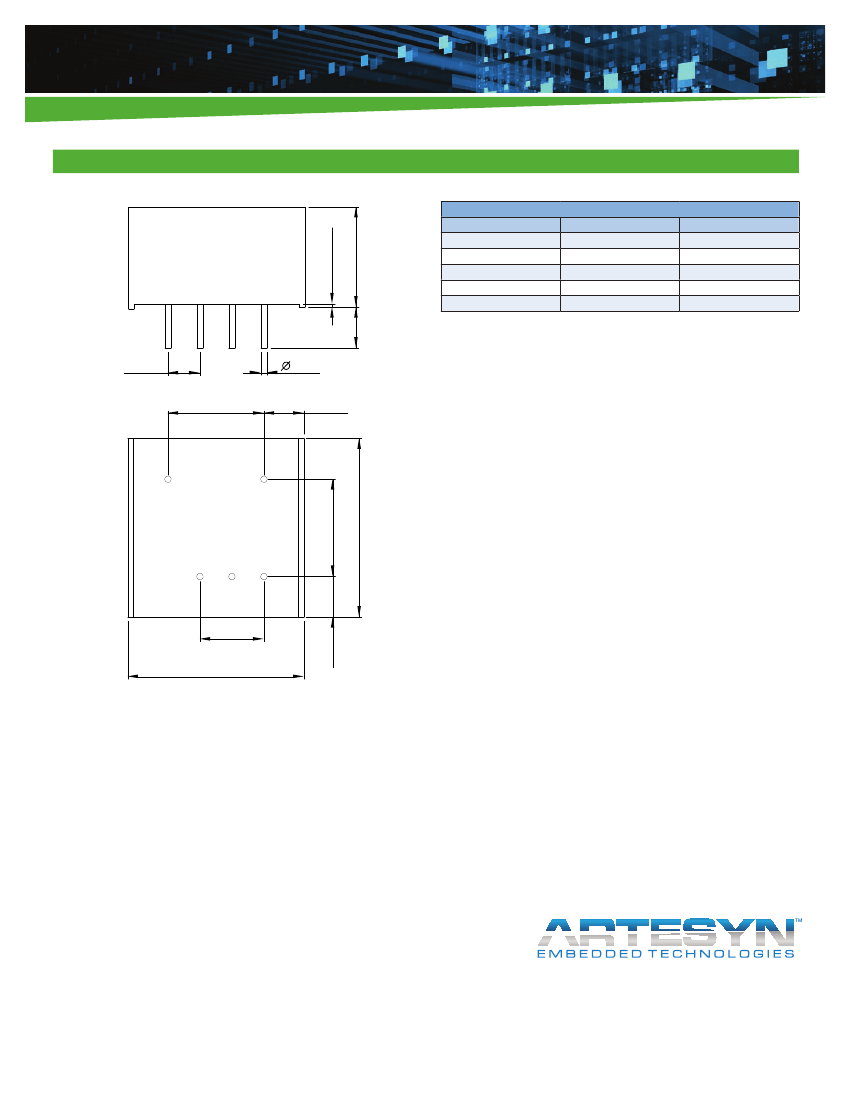

Mechanical Dimensions
Pin Connections
0.25 [ 0.01]
8.0 [ 0.31]
Pin
1
4
5
6
7
Single Output
-Vin
+Vin
+Vout
No pin
-Vout
Dual Output
-Vin
+Vin
+Vout
Common
-Vout
2 .54
[ 0 .10 ]
7 . 62 [ 0 . 30 ]
0 .50
[ 0 . 02 ]
3 .19
[ 0 . 13 ]
7.62 [ 0.30]
Bottom View
7
6
5
14 .0 [ 0 . 55 ]
• All dimensions in mm (inches)
• Tolerance: X.X±0.5 (X.XX±0.02)
X.XX±0.25 ( X.XXX±0.01)
• Pin diameter Ø 0.5 ±0.05 (0.02±0.002)
WORLDWIDE OFFICES
Americas
2900 S.Diablo Way
Tempe, AZ 85282
USA
+1 888 412 7832
Europe (UK)
Waterfront Business Park
Merry Hill, Dudley
West Midlands, DY5 1LX
United Kingdom
+44 (0) 1384 842 211
3.19
[ 0.13]
Asia (HK)
14/F, Lu Plaza
2 Wing Yip Street
Kwun Tong, Kowloon
Hong Kong
+852 2176 3333
2 x 2 .54
[ 2 x 0 . 10 ]
14.0 [ 0.55]
1
4
3.1
[ 0.12]
www.artesyn.com
For more information:
www.artesyn.com/power
For support:
productsupport.ep@artesyn.com
AYA 3W 03Aug2016
