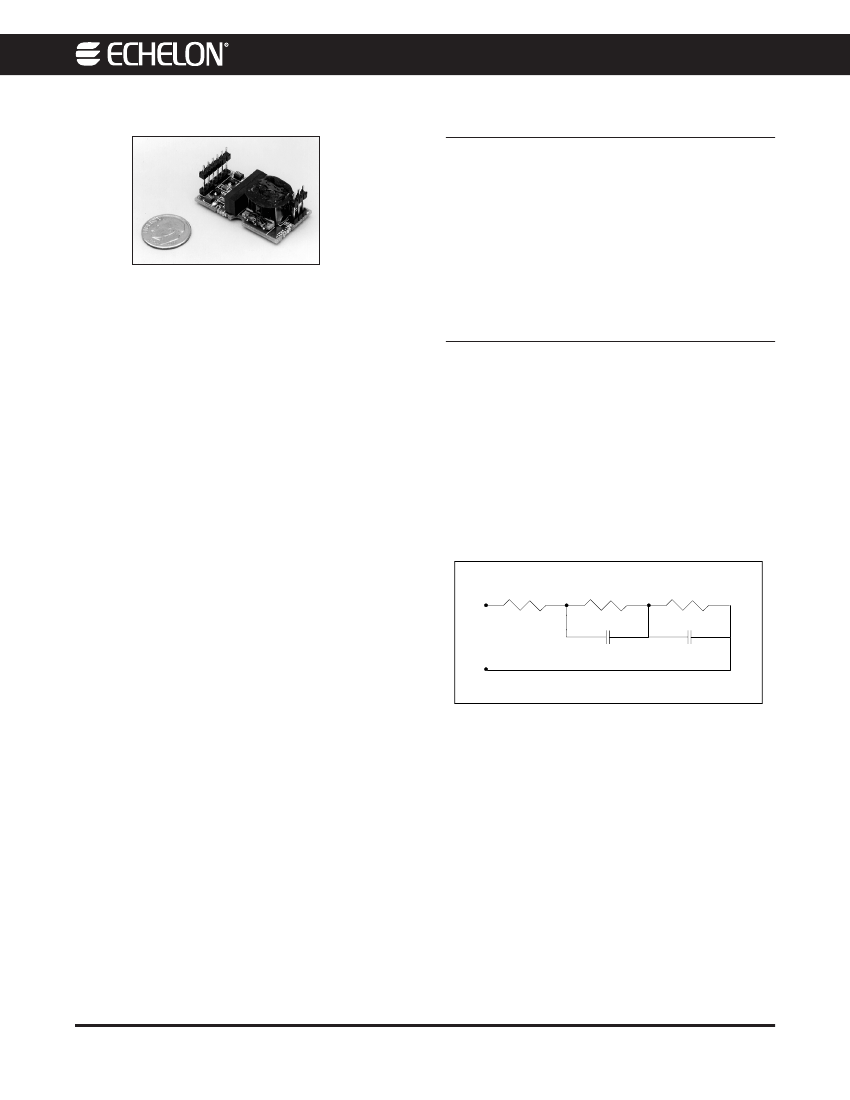

TPT/XF Twisted Pair Transceivers
Models 50010-10, 50020-10, 50010R-10, and 50020R-10
M
Complete L
ON
W
ORKS
®
communication transceivers
M
Differential Manchester encoded signaling for polarity-
insensitive network wiring
M
Transformer isolation for common mode rejection
M
78 kilobits per second bit rate (TPT/XF-78) at 1400 meters
worst case
1
; 1.25 megabits per second bit rate (TPT/XF-1250)
at 130 meters worst case
1
M
+5VDC input voltage
M
Designed to comply with FCC and VDE Level B requirements
M
UL, CSA, TÜV Recognized component
M
L
ON
M
ARK
certifiable
®
Description
The TPT/XF Twisted Pair Transceivers provide a simple, cost-
effective method of adding a L
ON
W
ORKS
transceiver to any Neuron
®
Chip-based control system. The TPT/XF transceivers consist of
transformer-isolated differential Manchester encoded communica-
tion transceivers and connectors for power, the Neuron Chip com-
munications port (CP) lines, and the twisted pair network data bus.
The small size of the transceivers permits them to be mounted
almost anywhere on a printed circuit board assembly, either as a
socketed or soldered component. The TPT/XF transceivers are
available as either a 78kbps transceiver (Models 50010-10 and
50010R-10) or 1.25Mbps transceiver (Models 50020-10 and
50020R-10). The TPT/XF transceivers can communicate with
TP/XF control modules operating at the same bit rate for those
applications using both types of devices.
Models 50010R-10 and 50020R-10 are compliant with the
European Directive 2002/95/EC on the restriction of the use of
certain hazardous substances (RoHS) in electrical and electronic
equipment.
The TPT/XF transceivers use transformers to isolate them from
the twisted pair network bus. This design provides excellent com-
mon mode rejection and permits the system to operate in electrically
noisy environments. It also reduces the susceptibility of the system
to ground loops caused by the use of multiple node power supplies
that float relative to ground. This architecture makes the transceivers
ideal for communicating over long distances in industrial environ-
ments. The transceivers are self-contained network transceivers,
and require only a +5VDC power source, a Neuron 3120
®
Chip or
Neuron 3150
®
Chip and associated memory, an oscillator, and
application electronics to form a complete node.
Using TPT/XF transceivers can save hundreds of hours of
development time compared with designing custom transceivers.
The TPT/XF transceivers are designed to comply with FCC and
VDE requirements, minimizing time consuming and expensive
laboratory transceiver testing. As UL, CSA, and TÜV Recognized
components, the transceivers can be integrated into products with
minimal additional safety testing. The transceivers meet the
L
ON
M
ARK
interoperability guidelines and are economically priced
for OEM applications. In addition, the 78kbps and 1.25Mbps trans-
ceivers fit in the same mounting holes, allowing a common mother-
board to be used with both devices.
Echelon offers a comprehensive range of development tools,
network interfaces, routers, and network service tools to simplify the
task of designing products using the transceivers. Technical support
for the transceivers is available through Echelon’s LonSupport
™
Premier technical assistance program.
TP/XF-78 & TP/XF-1250 module termination network
102
Ω
340
Ω
59
Ω
0.33F
0.15F
50V metal polyester
Resistor values 1%
Capacitor values 1%
Specifications
Function
Data Communications Type
Isolation Between Network and I/O
Connectors
2
Common Mode Range
Electrostatic Discharge Network Connector
EMI
Listings
Bit Rate
Maximum Nodes Per Channel
Network Bus Wiring
Network Bus Length
TPT/XF-78:
TPT/XF-1250:
Maximum Stub Length
Network Bus Polarity
Power-down Bus Protection
Supply Voltage
Typical Supply Current
Communication Port Connector
Network Connector
Network Terminators
Operating Temperature
Non-operating Temperature
Operating Humidity (non-condensing)
Non-operating Humidity
(non-condensing)
Dimensions
Recommended Hole Pattern
Twisted pair transceiver
Transformer-isolated, Differential Manchester coding
0-60 Hz (60 seconds): 1000V
RMS
0-60 Hz (continuous): 277V
RMS
0-60 Hz 277V
RMS
No errors to 15,000V, no hard failures to 20,000V tested per MIL-STD 883
Designed to comply with FCC Part 15 Level B and VDE 0871 Level B
UL 1950, CSA C22.2 No. 950, TÜV EN60950
TPT/XF-78: 78kbps
TPT/XF-1250: 1.25Mbps
TPT/XF-78:
64 (0 to +70°C), 44 (-40 to +85°C)
4
64 (0 to +70°C), 32 (-20 to +85°C), 16 (-40 to +85°C)
TPT/XF-1250:
Level 4, 22AWG twisted pair
3
1400 m (4600 feet) worst case
1
130 m (430 feet) worst case
1
TP/XF-78: 3 m (9.8 feet)
TP/XF-1250: 0.3 m (12″)
Polarity insensitive
High impedance when unpowered
+5VDC ±5%
10mA
1 x 6 0.64 mm x 0.64 mm (0.025″ x 0.025″) post, 2.54 mm (0.1”) centers, tin plated
1 x 3 0.64 mm x 0.64 mm (0.025″ x 0.025″) post, 2.54 mm (0.1”) centers, tin plated
Required at both ends of network
-40 to +85°C
-40 to +85°C
25-90% RH @ +70°C
95% RH @ +70°C
38 mm x 15 mm x 20 mm, (1.5″ x 0.59″ x 0.8″)
0.041″ diameter holes on 0.1″ grid
Ordering Information
Product
TPT/XF-78 Module
TPT/XF-1250 Module
L
ON
W
ORKS
TPT Twisted Pair Transceiver Module User’s Guide
Echelon Model Number
50010-10, 50010R-10
50020-10, 50020R-10
078-0025-01
(order separately–not shipped with product)
Notes:
1. Worst case distance figures are based on variations in node distribution, node temperature, node voltage, wire characteristics, transceiver characteristics, and Neuron Chip
characteristics, and allow for an average wire temperature of up to +55°C.
2. Safety agency hazardous voltage barrier requirements are not supported.
3. For wire specifications, see
Junction Box and Wiring Guidelines for Twisted Pair L
ON
W
ORKS
Networks,
005-0023-01 Rev D or later.
4. Proper operation of TPT/XF-1250 segments requires that no more than eight (8) TPT/XF-1250 and/or TP/XF-1250 modules be used in any 16-meter (53 feet) sections of bus
wiring.
* Neuron Chips and TPT transceivers were not designed for use in equipment or systems which involve danger to human health or safety or a risk of property damage and
Echelon assumes no responsibility or liability for use of the Neuron Chips or TPT Transceivers in such applications.
Copyright © 2001-2006, Echelon Corporation. Echelon, LON, L
ON
W
ORKS
, L
ON
M
ARK
, LonBuilder, NodeBuilder, LonManager, LonTalk, LonUsers, LonPoint, Digital Home, Neuron, 3120, 3150, LNS,
i.LON,
L
ON
W
ORLD
, ShortStack,
Panoramix, LonMaker, the Echelon logo, and the LonUsers logo are trademarks of Echelon Corporation registered in the United States and other countries. LonLink, LonResponse, LonSupport, LONews, Open Systems Alliance,
OpenLDV, Powered by Echelon, LNS Powered by Echelon, Panoramix Powered by Echelon, L
ON
W
ORKS
Powered by Echelon, Networked Energy Services Powered by Echelon, NES Powered by Echelon, Digital Home Powered by
Echelon, Pyxos, and Thinking Inside the Box are trademarks of Echelon Corporation. Other trademarks belong to their respective holders.
Disclaimer
Neuron Chips, Free Topology Twisted Pair Transceiver Modules, and other OEM Products were not designed for use in equipment or systems which involve danger to human health or safety or a risk of property damage and Echelon
assumes no responsibility or liability for use of the Neuron Chips or Free Topology Twisted Pair Transceiver Modules in such applications. ECHELON MAKES AND YOU RECEIVE NO WARRANTIES OR CONDITIONS, EXPRESS,
IMPLIED, STATUTORY OR IN ANY COMMUNICATION WITH YOU, AND ECHELON SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. 003-0324-01B
