MODEL NO.
147-0701-211
PACKAGING
ONE PCS PER BAG
数字签名人
lin.ma@cn.cinch.com
DN：cn=lin.ma@cn.cinch.com
日期：2017.12.05
13:55:47 +08'00'
REV
001
ECO
ECO-17-0032
DATE
11/28/2017
O
.063 ±.001 X 2
LASER MARK: "1470701211"
#0-80 UNF X 2
M7 X P0.75-6g
A
O
.394
O
.140 MIN
O
.059
O
.052
O
.140
.2819
.1409
O
.020
O
.016
O
.022
RECOMMENDED MOUNTING PATTEN
.065
.430
.223
O
.067
O
.067
.118
NOTES: UNLESS OTHERWISE SPECIFIED
1. MATERIAL & FINISH:
1.1 BODY: PASSIVATED STAINLESS STEEL
1.2 CONTACT PIN : GOLD PLATED BERYLLIUM COPPER
1.3 INSULATOR: PTFE WHITE
1.4 WASHER: STAINLESS STEEL
1.5 BOLT: SUS302
2. ELECTRICAL:
2.1 IMPEDANCE: 50 OHMS
2.2 FREQUENCY RANGE: 0-50 GHz
2.3 INSULATION RESISTANCE: 5000 MOHM MIN
2.4 CONTACT RESISTANCE:
2.4.1 CENER CONTACT: 4 MILLIOHM MAX
2.4.2 OUTER CONTACT: 2.5 MILLIOHM MAX
2.5 DIELECTRIC WITHSTANDING VOLTAGE: 500VRMS MIN
3. MECHANICAL:
3.1 ENGAGEMENT/ DISENGAGEMENT FORCE: 0.23 NM MAX
3.2 CONTACT RETENTION: 20 N MIN
3.3 DURABILITY: 500 CYCLES MIN
4. ENVIRONMENT:
4.1 THERMAL SHOCK: MIL-STD-202, METHOD 107, CONDITION B.
4.2 OPERATING TEMPERATURE: -55 TO 125°C
4.3 SALT SPRAY: MIL-STD-202, METHOD 101, CONDITION B
4.4 SHOCK: MIL-STD-202, METHOD 213, CONDITION I
4.5 VIBRATION: MIL-STD-202, METHOD 204, CONDITION D
4.6 MOISTURE RESISTANCE: MIL-STD-202, METHOD 106
.003
.006
A DETAIL (10/1)
#0-80 UNF X 2
SCALE (3/1)
Model No.
147-0701-211
Cage Code
3RD ANGLE PROJECTION
Johnson
Title:

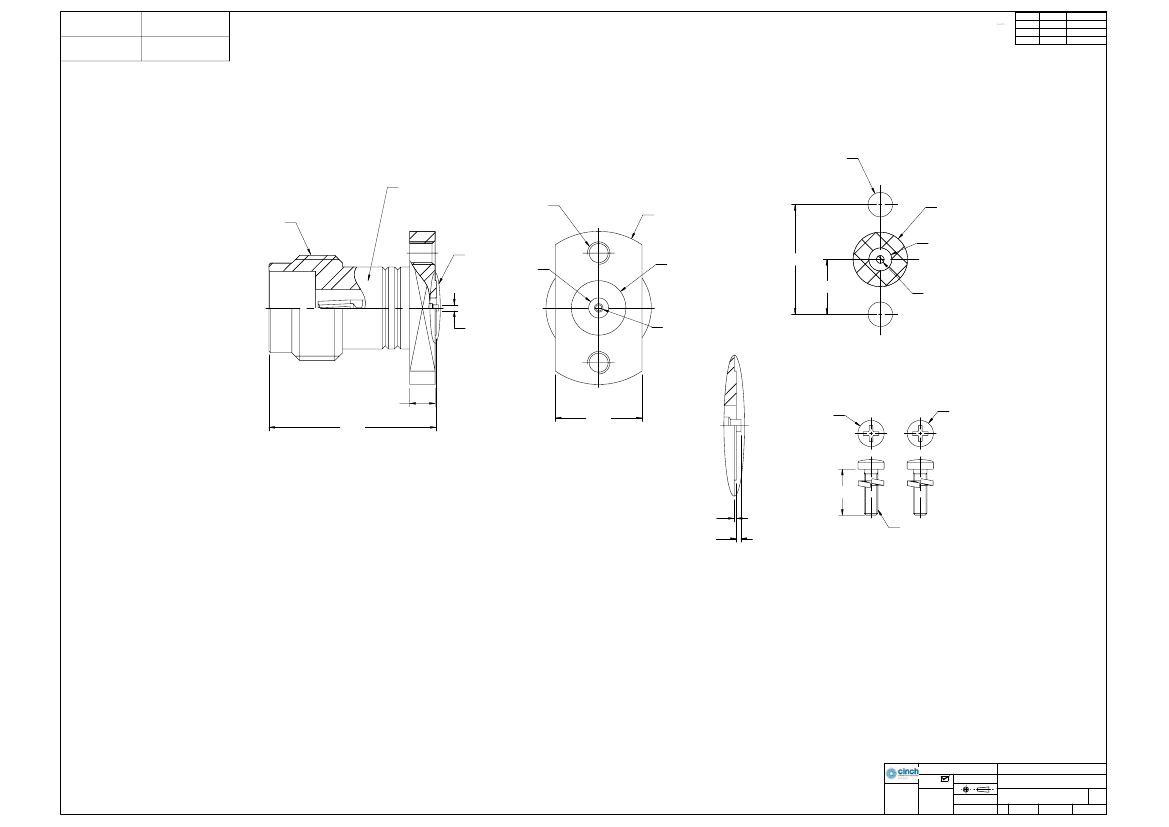

PC MOUNT JACK,2 HOLE FLANGE, FOR 1.57mm
RoHS2
This PROPRIETARY Document
is property of Cinch Connectivity
Solutions. It is confidential in
nature, non-transferable, and
issued with the clear
understanding that it is not
traced or copied without
permission and is returnable
upon demand.
2011/65/EU
UNLESS OTHERWISE SPECIFIED
UNITS: INCH
TO 2.79mm BOARD THICKNESS, 2.4mm
Drawing No.
Rev.
Drawn by:
INTERPRET DRAWING IN
ACCORDANCE WITH ASME
Y14.5-2009.
.XXX
u
.02
.XXXX
u
.01
ANGLES
u
5
v
Betty.Yu
Date:
Size
147-0701-211
C
DO NOT SCALE
DRAWING
Workmanship Std:
001
Sheet 1 of 1
10/19/2017
NONE
