Wall-Mount EnclosurEs
FUSION G7 aNd acceSSOrIeS
Spec-00539

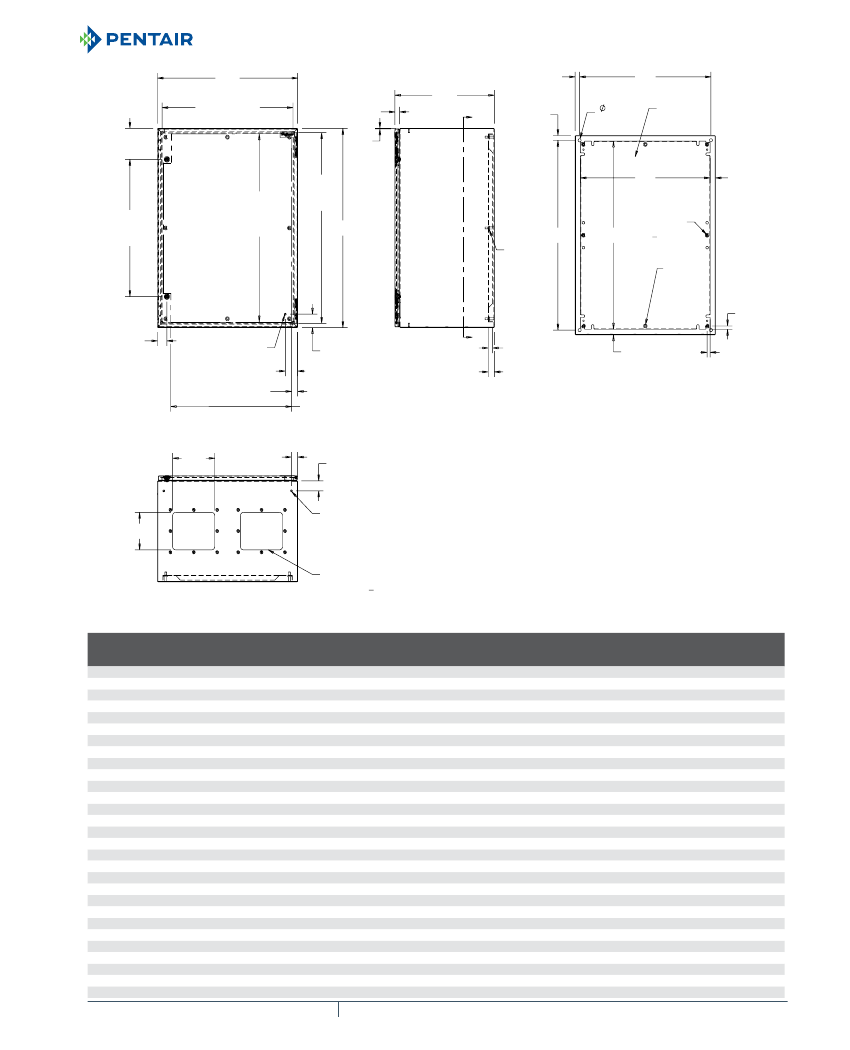

Fusion G7, typE 4 and 12
Wall-mounting brackets required to maintain UL/CSA external
mounting requirement.
industry standards
Ul 508a listed; type 4, 12; File no. 61997
cUl listed per cSa c22.2 no. 94; type 4, 12; File no. 61997
neMa/eeMac type 4, 12, 13
cSa File no. 42186: type 4, 12
iec 60529, iP66

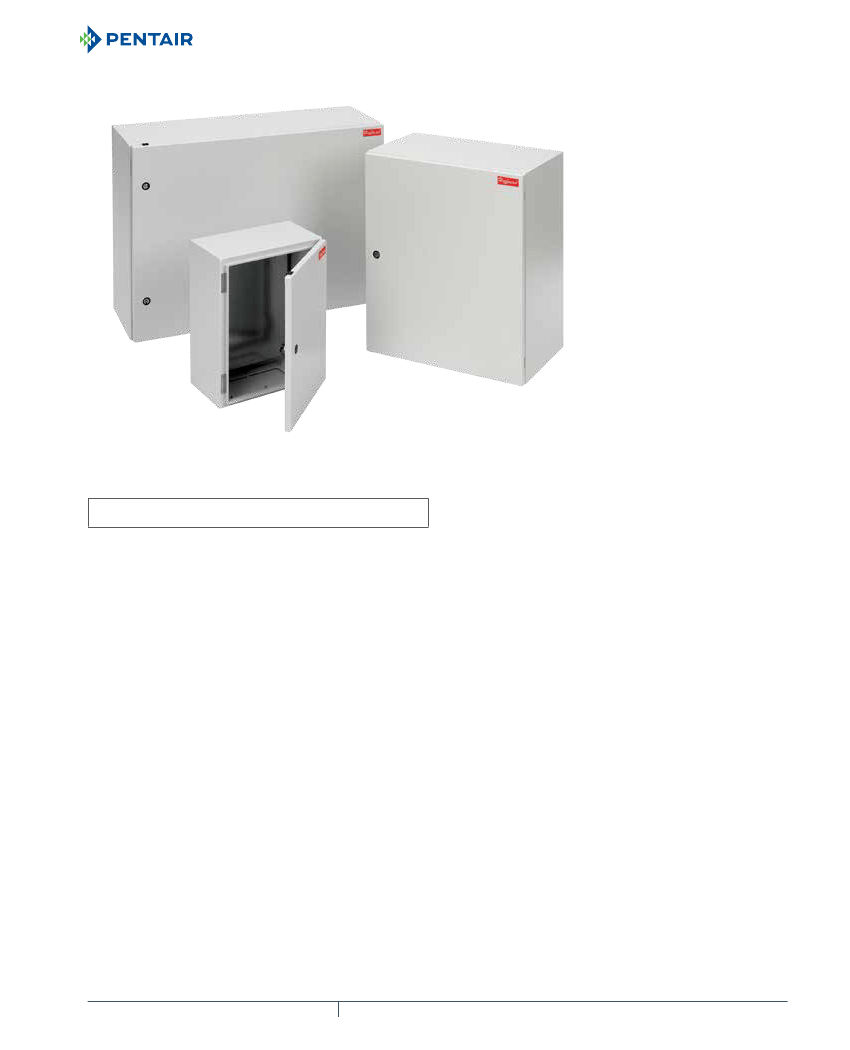

innovative, metric-dimensioned wall-mount enclosure designed
to house and protect electrical and electronic components
in industrial environments. Provides traditional enclosure
functionality with scalable internal component mounting capability
using the optional internal mounting system and accessory
components.
•
•
•
•
•
•
•
•
•
application
Pre-cut gland plate opening(s) in enclosure bottom
Quarter-turn latch(es) with 3-mm double-bit insert
corner-formed door
Simple, easy-to-remove and install hinge pins with captivation
clip
High-torque threadless studs and fasteners on door
Wide assortment of user-friendly internal accessories to
increase internal mounting area capability and design flexibility
Hardware kit includes grounding and sealing hardware
Hinged on right side
installation instruction provided
ral 7035 textured, light-gray polyester powder paint inside and out
Panel is galvanized
Gland Plate
Full-Height Back Panel
Half-Height Back Panel
Half-Height Side Panel
Side-Mount accessory rail
Front and Back Vertical accessory Mounting rails
Handles
aluminum Swing Panel
FUSiOn G7 Door Stop Kit
FinisH
accEssoriEs
spEciFications
•
•
•
•
•
•
•
•
•
1.2-mm (18 gauge), 1.5-mm (16 gauge) and 2-mm (14 gauge) steel
Seamless foam-in-place gasket
reversible door with sealed hinges and hinge brackets
Gland plate(s) for enclosure bottom
Bonding provision on door; grounding studs (2) on body
Full-height galvanized steel back panel included
external formed 90-degree body flange channels away liquids
Bulletin: A4G
three-point latching on enclosures 1000-mm high and taller
Door alignment device on doors with 3-point latching and 800 mm
or wider
1
Mild stEEl
SUBJECT TO CHANGE WITHOUT NOTICE
Pentair electrical
Spec-00539 H
Wall-Mount EnclosurEs
FUSION G7 aNd acceSSOrIeS
FUSION G7
G1500900425G
Full Back Panel
G1500P900
Half Back Panel
G1500P900H
Full Side Panel
G1500SMP425
Half Side Panel
G1500SMP425H
Side-Mount
Accessory Rail
G50SMR425
Horizontal
Separator
GHS900425
100-mm
Plinth Base
GPB900425
Aluminum
Swing
Panel
GSP1500900A
Front and Back
Vertical Accessory
Mounting Rails
GAMR1500
Top/Bottom
Mounting
Brackets
GTBMTBKT900

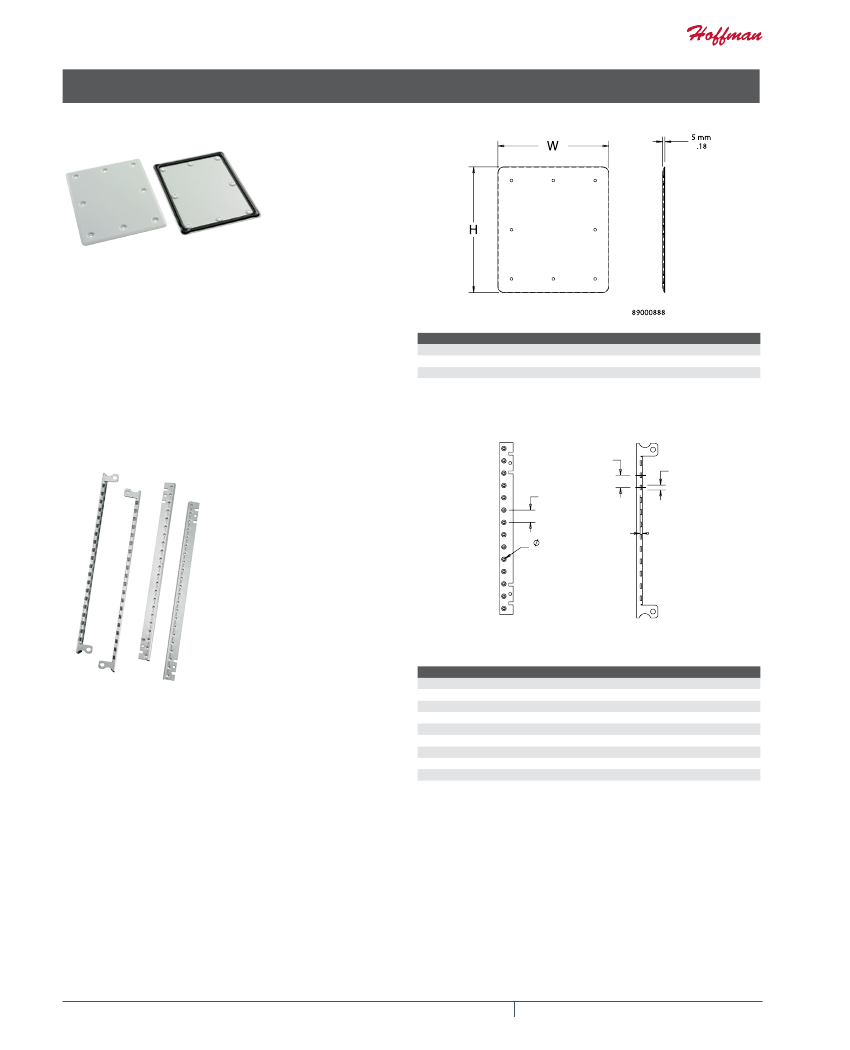

Gland platE
constructed of 1.5-mm thick (16 gauge) steel and designed for use
with FUSiOn G7 enclosures. Provides a removable cable egress and
entry plate while maintaining iP/Ul/cSa integrity of the enclosure.
ral 7035 textured, light-gray polyester powder paint finish. Foam-
in-place gasket, fasteners and instructions provided. Maintains
iP66/Ul/cSa type 4 and 12 when properly installed on a Hoffman
enclosure.
Bulletin: A4GY
Catalog Number
GGP90180
GGP90280
GGP150180
GGP150280
Cutout Size (mm)
90 x 180
90 x 280
150 x 180
150 x 280
Cutout Size (in.)
3.54 x 7.09
3.54 x 11.02
5.91 x 7.09
5.91 x 11.02
W x H (mm)
165 x 255
165 x 355
225 x 255
225 x 355
W x H (in.)
6.50 x 10.04
6.50 x 13.98
8.86 x 10.04
8.86 x 13.98
Front and Back VErtical accEssory MountinG
rails
25 mm
.98
25 mm
.98
10 mm
.39
5 mm
.20
4 mm
.17
89000891
Front Rail
Catalog Number
GAMR300
GAMR400
GAMR500
GAMR600
GAMR700
GAMR800
GAMR1000
GAMR1200
GAMR1500
Fits A (mm)
300
400
500
600
700
800
1000
1200
1500
Back Rail
Fits A (in.)
11.81
15.75
19.68
23.62
27.56
31.50
39.37
47.24
59.05
constructed of galvanized steel. Front rail is 2.0-mm thick (14
gauge) and back rail is 1.5-mm thick (16 gauge). Package includes
two front and two back rails and mounting screws.
Required for side-mount and adjustable-depth accessory installation.
Bulletin: A4GY
Spec-00539 H
Pentair electrical
PH 763.422.2211 • PentairProtect.com/Hoffman
Mild stEEl
4
