1SV322
TOSHIBA Diode
Silicon Epitaxial Planar Type
1SV322
TCXO/VCO
•
•
•
High capacitance ratio: C
1V
/ C
4V
= 4.3 (typ.)
Low series resistance: r
s
= 0.4
Ω
(typ.)
Useful for small size tuner.
Unit: mm
Absolute Maximum Ratings
(Ta
=
25°C)
Characteristics
Reverse voltage
Junction temperature
Storage temperature range
Symbol
V
R
T
j
T
stg
Rating
10
125
−55
to 125
Unit
V
°C
°C
Note: Using continuously under heavy loads (e.g. the application of high
temperature/current/voltage and the significant change in
temperature, etc.) may cause this product to decrease in the
reliability significantly even if the operating conditions (i.e.
operating temperature/current/voltage, etc.) are within the
absolute maximum ratings.
Please design the appropriate reliability upon reviewing the
Toshiba Semiconductor Reliability Handbook (“Handling
Precautions”/“Derating Concept and Methods”) and individual
reliability data (i.e. reliability test report and estimated failure rate,
etc).
JEDEC
JEITA
TOSHIBA
―
―
1-1E1A
Weight: 0.004 g (typ.)
Electrical Characteristics
(Ta
=
25°C)
Characteristics
Reverse voltage
Reverse current
Capacitance
Capacitance
Capacitance ratio
Series resistance
Symbol
V
R
I
R
C
1V
C
4V
C
1V
/ C
4V
r
s
I
R
=
1
μA
V
R
=
10 V
V
R
=
1 V, f
=
1 MHz
V
R
=
4 V, f
=
1 MHz
⎯
V
R
=
4 V, f
=
100 MHz
Test Condition
Min
10
⎯
26.5
6.0
4.0
⎯
Typ.
⎯
⎯
⎯
⎯
4.3
0.4
Max
⎯
3
29.5
7.1
⎯
0.8
Unit
V
nA
pF
pF
⎯
Ω
Note: Signal level when capacitance is measured: V
sig
=
500 mVrms
Marking
Start of commercial production
1999-03
1
2014-03-01

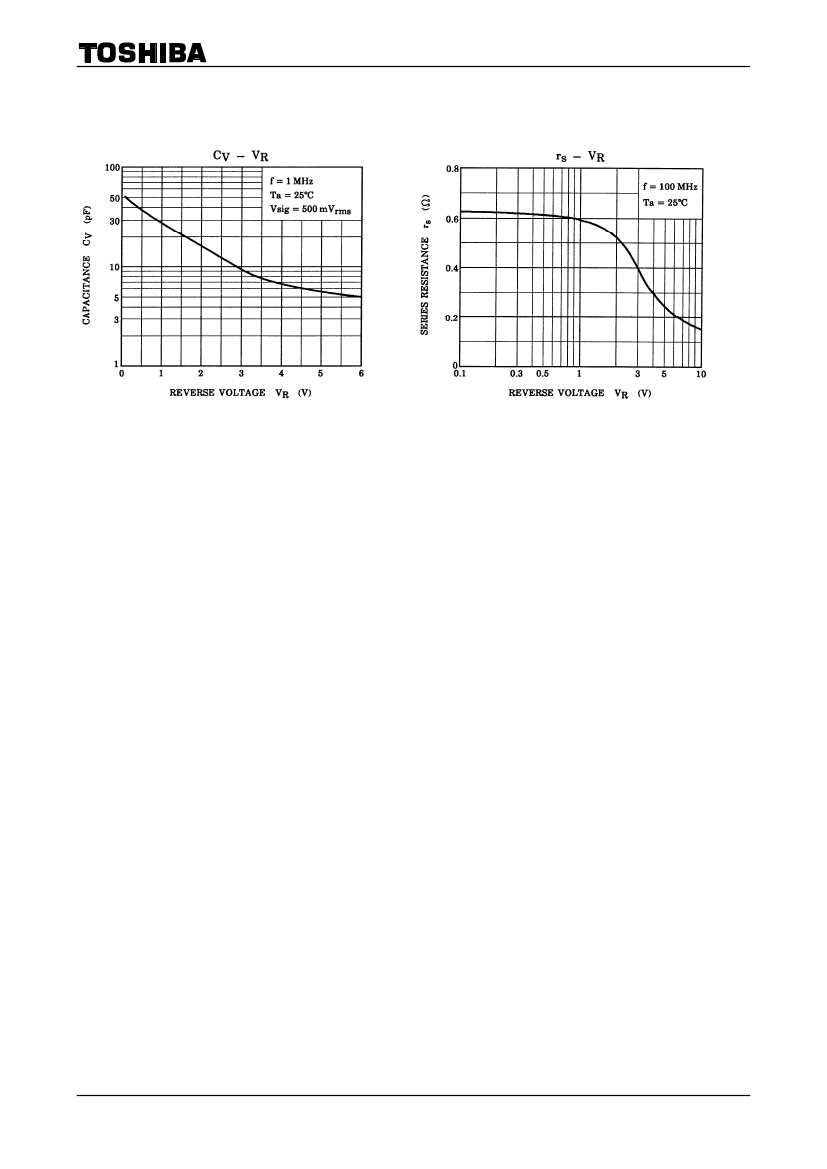

1SV322
