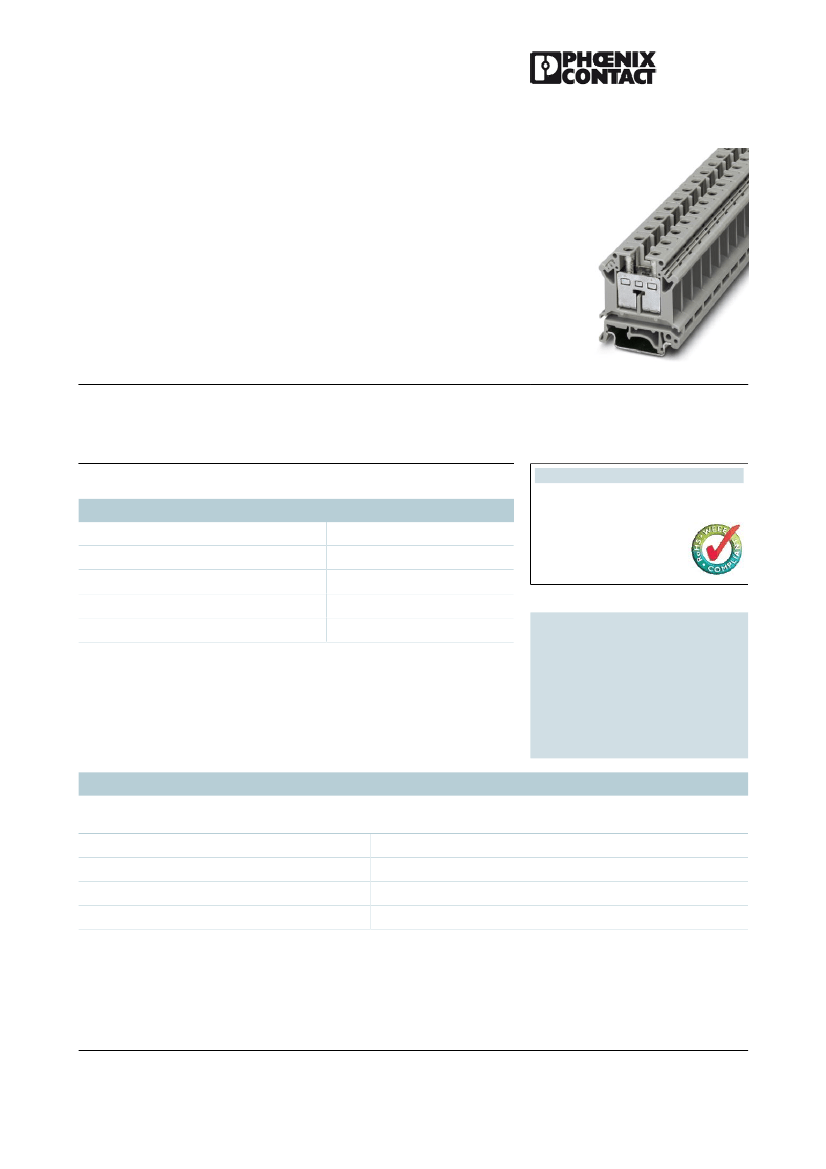

UIK 16
Order No.: 3006153
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3006153
Feed-through modular terminal block, Screw connection, Cross
section: 2.5 mm² - 25 mm², AWG: 12 - 4, Width: 12.2 mm, Color: gray,
Mounting type: NS 35/7,5, NS 35/15, NS 32
Product notes
Commercial data
EAN
Pack
Customs tariff
Weight/Piece
Catalog page information
4017918091378
50 pcs.
85369010
0.02202 KG
Page 416 (CL-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
WEEE/RoHS-compliant since:
01/01/2005
Technical data
General
Number of levels
Number of connections
Color
Insulating material
1
2
gray
PA
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 1 / 7
Mar 24, 2010
UIK 16
Order No.: 3006153
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3006153
Inflammability class acc. to UL 94
Dimensions
Width
Length
Height NS 35/7,5
Height NS 35/15
Height NS 32
Technical data
Maximum load current
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded, with ferrule
without plastic sleeve min.
Conductor cross section stranded, with ferrule
without plastic sleeve max.
Conductor cross section stranded, with ferrule
with plastic sleeve min.
Conductor cross section stranded, with ferrule
with plastic sleeve max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded
min.
V2
12.2 mm
42.5 mm
47 mm
54.5 mm
52 mm
101 A (with 25 mm conductor cross section)
6 kV
3
III
I
IEC 60947-7-1
76 A
400 V
2
2.5 mm²
25 mm²
4 mm²
16 mm²
12
4
1.5 mm²
16 mm²
1.5 mm²
16 mm²
1.5 mm²
6 mm²
1.5 mm²
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 2 / 7
Mar 24, 2010
UIK 16
Order No.: 3006153
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3006153
2 conductors with same cross section, stranded
max.
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, min.
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, max.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, min.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, max.
Type of connection
Stripping length
Screw thread
Tightening torque, min
Tightening torque max
Certificates / Approvals
6 mm²
1.5 mm²
4 mm²
0.75 mm²
10 mm²
Screw connection
11 mm
M4
1.5 Nm
1.8 Nm
Certification
CSA
Nominal voltage U
N
Nominal current I
N
AWG/kcmil
CUL
Nominal voltage U
N
Nominal current I
N
AWG/kcmil
UL
Nominal voltage U
N
Nominal current I
N
AWG/kcmil
CCA, CSA, CUL, KEMA, UL
600 V
85 A
22-4
600 V
85 A
22-4
600 V
85 A
22-4
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 3 / 7
Mar 24, 2010
UIK 16
Order No.: 3006153
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3006153
Accessories
Item
Assembly
3003224
3022218
ATP-UK
CLIPFIX 35
Partition plate, Length: 56 mm, Width: 1.5 mm, Height: 59 mm,
Color: gray
Snap-on end bracket, for 35 mm NS 35/7.5 or NS 35/15 DIN
rail, can be fitted with Zack strip ZB 8 and ZB 8/27, terminal strip
marker KLM 2 and KLM, width: 9.5 mm, color: gray
End cover, Length: 42.5 mm, Width: 1.8 mm, Height: 35.9 mm,
Color: gray
End clamp, for assembly on NS 32 or NS 35/7,5 DIN rail
G rail 32 mm (NS 32)
G-profile DIN rail, deep-drawn, material: Copper, unperforated,
height 15 mm, width 32 mm, length 2 m
G-profile DIN rail, material: Copper, unperforated, height 15 mm,
width 32 mm, length 2 m
G-profile DIN rail, material: Steel, perforated, height 15 mm, width
32 mm, length 2 m
G-profile DIN rail, material: Steel, unperforated, height 15 mm,
width 32 mm, length 2 m
DIN rail, material: Copper, unperforated, height 7.5 mm, width 35
mm, length: 2 m
DIN rail, material: Steel, galvanized and passivated with a thick
layer, perforated, height 7.5 mm, width 35 mm, length: 2 m
DIN rail, material: Steel, unperforated, height 7.5 mm, width 35
mm, length: 2 m
DIN rail, deep-drawn, high profile, unperforated, 1.5 mm thick,
material: Aluminum, height 15 mm, width 35 mm, length 2 m
DIN rail, material: Copper, unperforated, 1.5 mm thick, height 15
mm, width 35 mm, length: 2 m
DIN rail, material: Steel, perforated, height 15 mm, width 35 mm,
length: 2 m
DIN rail, material: Steel, unperforated, height 15 mm, width 35
mm, length: 2 m
DIN rail, material: Steel, unperforated, 2.3 mm thick, height 15
mm, width 35 mm, length: 2 m
Separating plate, Length: 22.7 mm, Height: 30.5 mm, Color: gray
Designation
Description
3003020
1201442
1201028
1201280
1201358
1201002
1201015
0801762
0801733
0801681
1201756
1201895
1201730
1201714
1201798
1302215
Bridges
3006137
0200075
D-UK 4/10
E/UK
NS 32 AL UNPERF 2000MM
NS 32 CU/120QMM UNPERF
2000MM
NS 32 CU/35QMM UNPERF
2000MM
NS 32 PERF 2000MM
NS 32 UNPERF 2000MM
NS 35/ 7,5 CU UNPERF
2000MM
NS 35/ 7,5 PERF 2000MM
NS 35/ 7,5 UNPERF 2000MM
NS 35/15 AL UNPERF 2000MM
NS 35/15 CU UNPERF 2000MM
NS 35/15 PERF 2000MM
NS 35/15 UNPERF 2000MM
NS 35/15-2,3 UNPERF 2000MM
TS-K
EB 10-12
FBI 2-12
Cross connector/bridge, Number of positions: 10, Color: gray
Cross connector/bridge, Number of positions: 2, Color: aluminum
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 4 / 7
Mar 24, 2010
UIK 16
Order No.: 3006153
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3006153
0203454
0202235
Marking
0812120
FBI 10-12
SB 2- 8/13
Cross connector/bridge, Number of positions: 10, Color: silver
Cross connector/bridge, Number of positions: 2, Color: aluminum
ZB 12:UNPRINTED
Zack marker strip, unprinted: 5-section, for individual labeling with
M-PEN, ZB-T or CMS system, sufficient for 100 terminal blocks
per pack
Plug/Adapter
0311647
0303299
0303406
0303354
0303419
0303370
0303396
0303325
0303383
0303312
0303367
PS-MT
PSB 4/7/6
PSBJ 4/15/6 BK
PSBJ 4/15/6 BU
PSBJ 4/15/6 FARBLOS
PSBJ 4/15/6 GN
PSBJ 4/15/6 GY
PSBJ 4/15/6 RD
PSBJ 4/15/6 VT
PSBJ 4/15/6 WH
PSBJ 4/15/6 YE
Test plugs
Female test connector, Color: silver
Female test connector, Color: black
Female test connector, Color: blue
Female test connector, Color: transparent
Female test connector, Color: green
Female test connector, Color: gray
Female test connector, Color: red
Female test connector, Color: violet
Female test connector, Color: white
Female test connector, Color: yellow
