Features/Benefits
•
Snap-Action provides positive tactile feed-
•
•
•
•
•
•
back
IP68 sealed to endure harsh environments
1,000,000 life cycle
Up to 5A resistive load
Multiple housing styles
Various termination types and wirelead
options are also available
RoHS compliant
PNP Series
Sealed Pushbutton Switch
Typical Applications
•
Control Grips
•
Off-Road Panels
•
Heavy Equipment
•
Industrial Instruments
•
Lifts
•
Conveyor Controls
A
Pushbutton
Specifications
FUNCTION: SPST, SPDT Double Break (Form Z) Momentary
CONTACT ARRANGEMENT: N.O. and N.C.
MOUNTING TYPE: Threaded front mount
TORQUE SPEC FOR THREADED BODY: Do not exceed 10 in-lbs
(1.35 N-m)
DIELECTRIC STRENGTH: 1000 V AC for 1 min.
INSULATION RESISTANCE: 1 G Ω @ 500 VDC
INITIAL CONTACT RESISTANCE 50 mΩ max (without wire leads)
BOUNCE TIME: <5 ms
Materials
HOUSING: PBT/PC
BASE: PBT
CAP: PBT
ACTUATOR: PBT
INTERNAL SEAL: Silicone rubber
TERMINALS: Copper with silver nickel inlay, silver plating
MOVABLE CONTACT: Copper alloy, gold over silver plating
TERMINAL SEAL: Epoxy
Mechanical
OPERATING LIFE: 1,000,000 cycles
TOTAL TRAVEL: 2 mm max.
OPERATING POINT 0.9 ± 0.25 mm
OVER TRAVEL: 0.25 mm min.
OPERATING FORCE: 3N ± 1.5N
8N ± 1.5N
VIBRATION: 10-500 Hz 10g Max
SHOCK: 50g 11ms sawtooth wave
CONTACT RATING:
Option “Q” Silver
5A/32 VDC resistive (25,000 cycles)
3A/32 VDC resistive (25,000 cycles)
Option “G” Gold over Silver
10mA/5 VDC resistive (1,000,000 cycles)
Operating Environment
OPERATING TEMPERATURE: -40˚C to +85˚C
ESD PROTECTION: 15KV min.
SEALING: IP68
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, please contact Customer Service.
Electrical

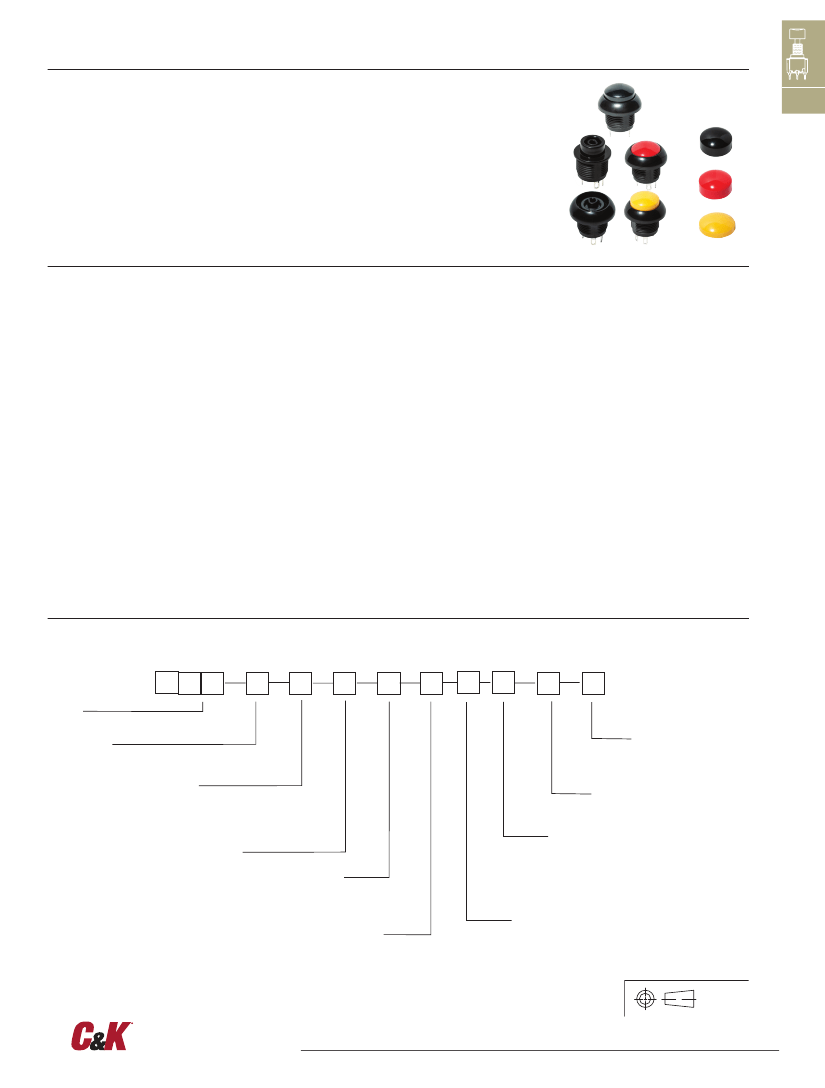

Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box.
P
Designation
PNP
PNP Series
Operating Force
3
3 Newtons
8
8 Newtons

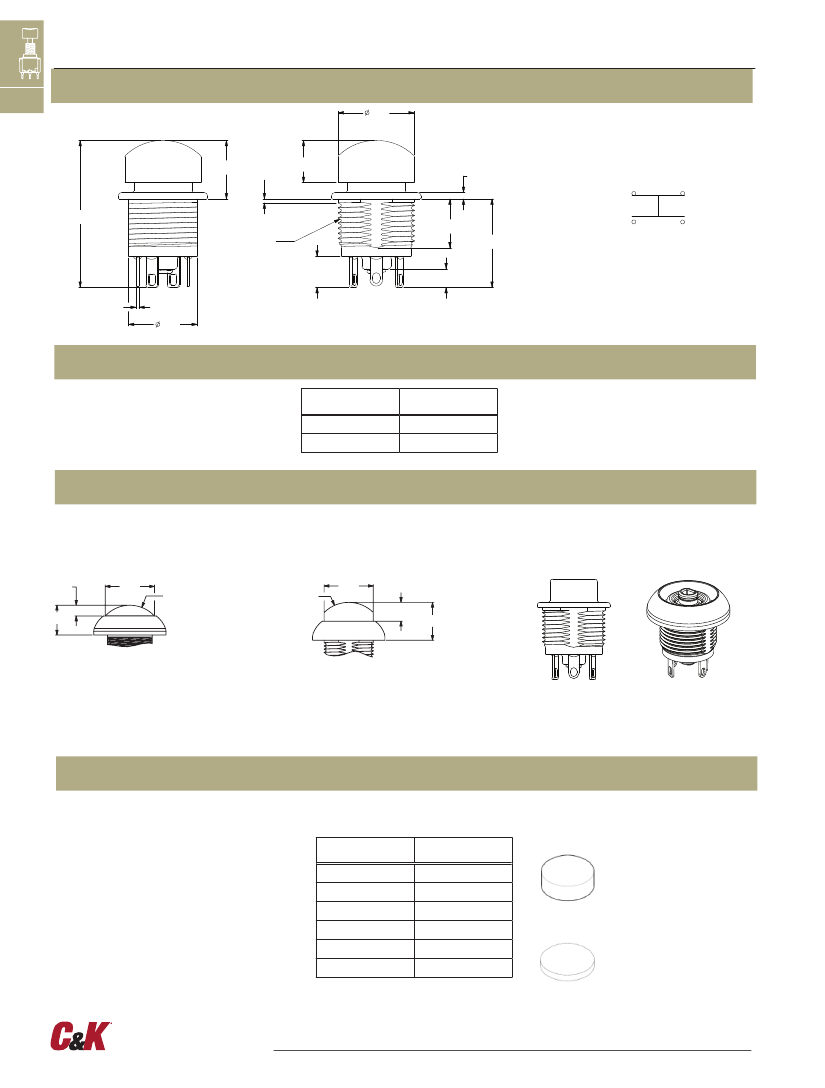

Actuator Style
S
Standard
E
Extended (D housing style only)
N
None
Actuator Color *
0
No Cap
2
Black (STD)
3
Red
4
Orange
5
Yellow
9
Gray
N
P
2
E
Terminal Seal
E
Epoxy
All models are epoxy sealed

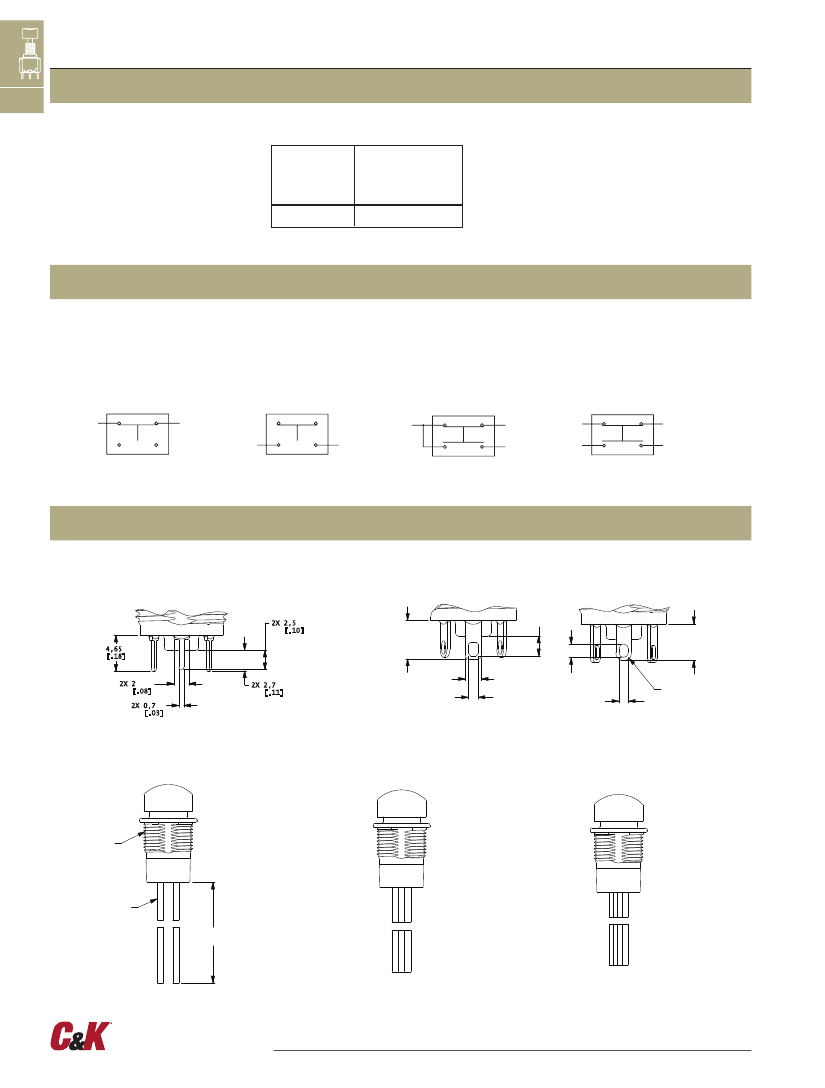

Contact Material
Q
Silver (STD)
G
Gold over silver
Termination
02
PC Pin (G contact material only)
03
Solder Lug (STD)
W2
2 x 12” 22 AWG UL1569 wire (overmolded)
W3
3 x 12” 22 AWG UL1569 wire (overmolded)
W4
4 x 12” 22 AWG UL1569 wire (overmolded)
Circuit
C
SPDT - Double Break
W
SPST NC - Double Break
SPST NO - Double Break
Y
Third Angle
Projection

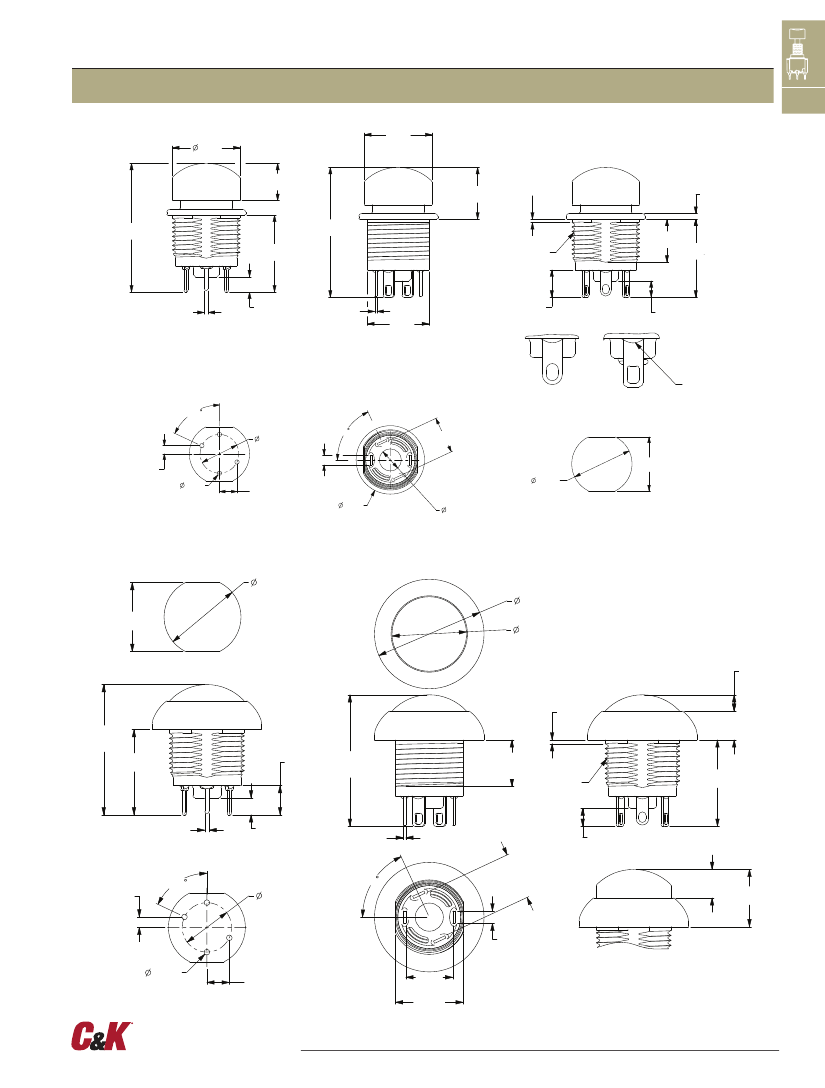

Housing Style
T
Standard threaded mount
D
Dome bezel
Housing Color
2
Black (STD)
* Additional colors available, please contact Customer Service
11 Sep 18
Dimensions are shown: mm (inches)
Specifications and dimensions subject to change
