TSP
ThinPot
Features
- Linear Position Sensor
- Half the width of the SoftPot
- IP64 Dust Proof, Splash Proof
- Polyester Substrate
- 3M Pressure Sensitive Adhesive (PSA)
- Upon Request
- Male or Female Nicomatic or Berg
Connectors
- Wiper of 0.7-2.2 Newton Force to Actuate
Part
SoftPot
Mechanical Specifications
-Life Cycle: >1 million
-Height: 0.51mm (0.020")
-Actuation Force (with a 6mm wide active cavity):
-40°C 0.9 to 2.2 N
-25°C 0.9 to 2.2 N
+23°C 0.7 to 1.8 N
+50°C 0.7 to 1.8 N
Electrical Specifications
-Resistance - Standard: 10k Ohms
(lengths >300mm = 20k Ohms)
-Resistance - Custom: 1k to 100k Ohms
-Resistance Tolerance: ±20%
-Effective Electrical Travel: 8 to 2000mm
-Linearity (Independent): Linear ±1% or ±3%
Rotary ±3% or ±5%
-Repeatability: No hysteresis, but with any wiper
looseness some hysteresis will occur
-Power Rating (depending on size, varies with
length and temperature): 1 Watt max. @ 25°C,
0.5 Watt recommended
-Resolution: Analog output theoretically infinite;
affected by variation of contact wiper surface
area.
-Dielectric Value: No affect @ 500VAC for 1
minute
Environmental Specifications
-Operating Temperature: -40°C to +50°C
-Humidity: No affect @ 95% RH, 4hrs 50°C
-IP Rating of Active Area: IP64

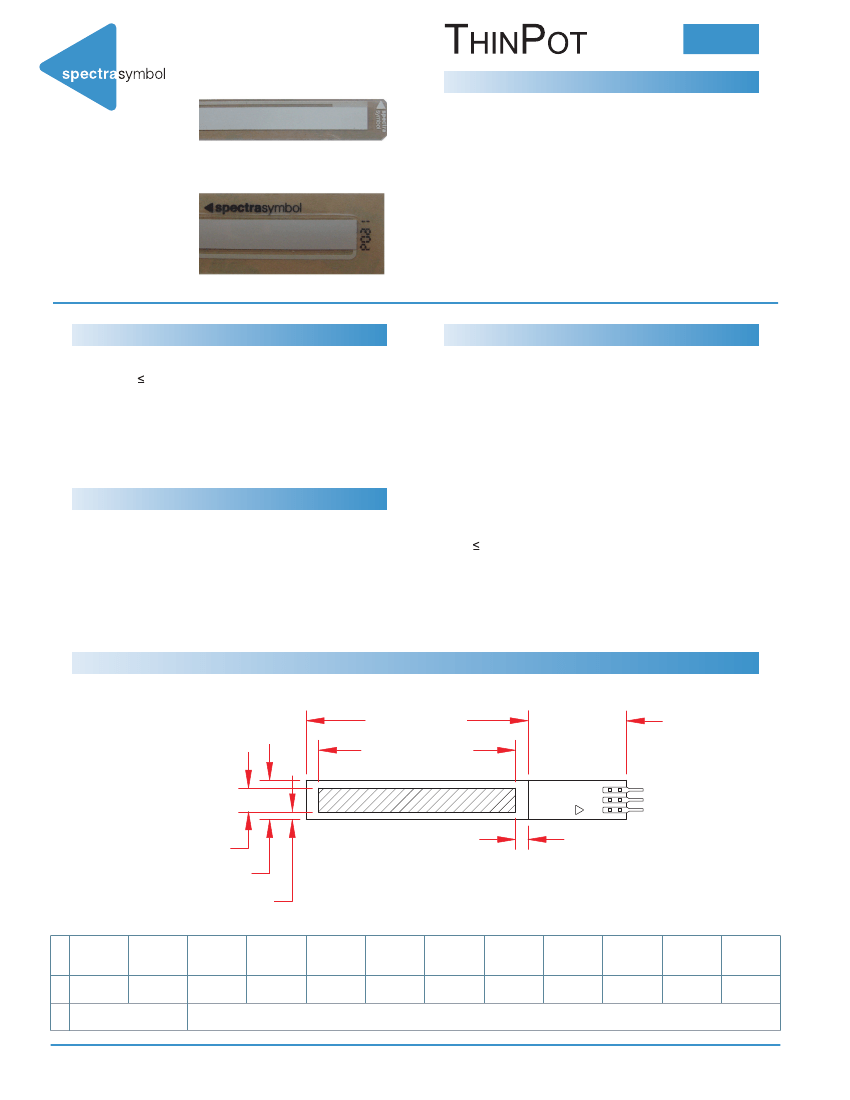

Dimensional Diagram - Stock Linear ThinPot
PART LENGTH [P]
ACTIVE LENGTH [A]
TAIL LENGTH [T]
6.00 [0.236]
ACTIVE WIDTH
10.00 [0.394]
2.00 [0.079]
2 PLCS
3.17 [0.125]
2 PLCS
A
P
T
12.50mm
0.492"
18.85mm
0.742"
25.00mm
0.984"
31.35mm
1.234"
50.00mm 100.00mm 150.00mm 170.00mm 200.00mm 300.00mm 400.00mm 500.00mm 750.00mm 1000.00mm
6.693"
29.528"
39.370"
1.969"
3.937"
5.906"
7.874"
11.811"
15.748"
19.685"
56.35mm
2.219"
106.35mm
4.187"
156.35mm
6.156"
176.35mm
6.943"
206.35mm
8.124"
306.35mm
12.061"
406.35mm
15.998"
506.35mm
19.935"
756.35mm
29.778"
1006.35mm
39.620"
12.70mm
0.500"
25.00mm
0.984"
spectrasymbol.com
Rev A1 - Page 1
(888) 795-2283

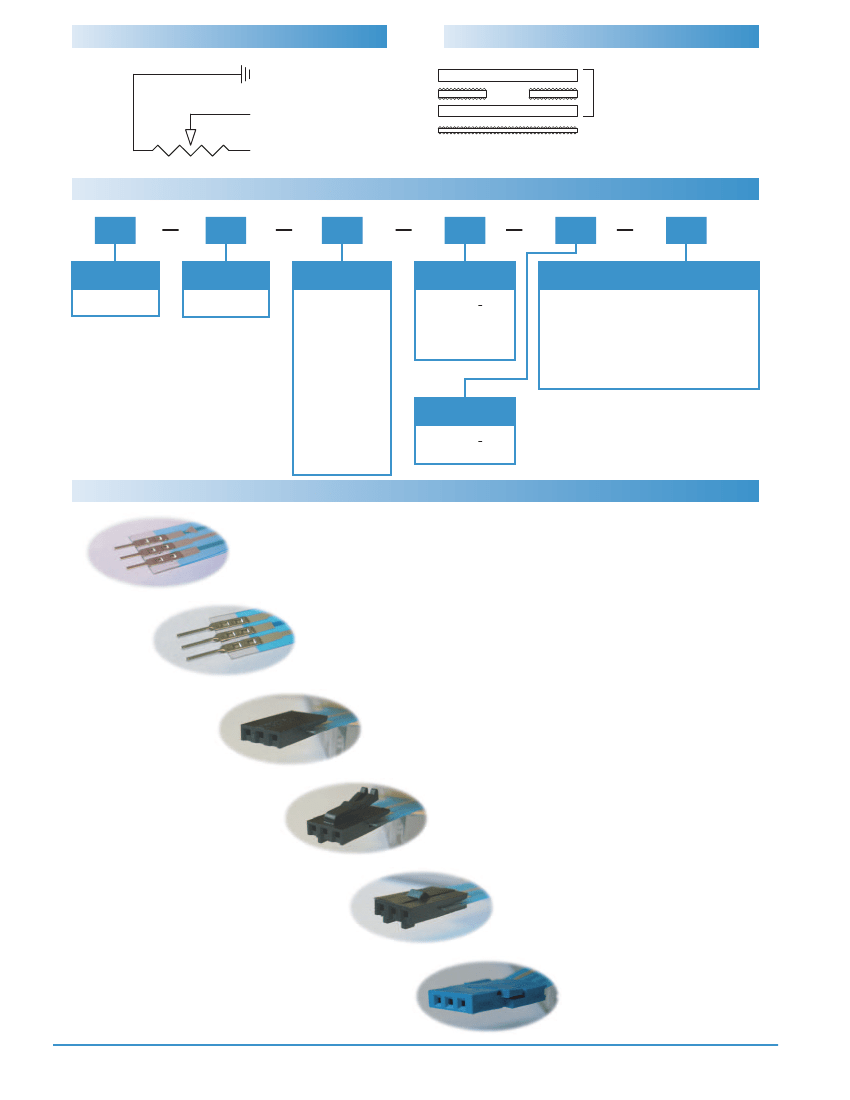

Electrical Schematic
PIN 3 (GND)
(LEFT BUS BAR)
Material Cross-Section
0.41 [0.016] CIRCUIT
0.05 [0.002] 3M 200MP ADHESIVE
0.46 [0.018] TOTAL THICKNESS
PIN 2
(COLLECTOR)
PIN 1 (V+)
10K or 20K
(RIGHT BUS BAR)
How to Order - Linear ThinPots
TSP
Series
TSP = ThinPot
L
Model
L = Linear
0050
Active Length
0012 = 12,5mm
0025 = 25mm
0050 = 50mm
0100 = 100mm
0150 = 150mm
0170 = 170mm
0200 = 200mm
0300 = 300mm
0400 = 400mm
0500 = 500mm
0750 = 750mm
1000 = 1000mm
103
Resistance
Active Lengths < 300mm
3%
ST
Connectors
103 = 10 KOhm
Active Lengths > 300mm
203 = 20 KOhm
ST = Solder Tab
MP = Male Pins
RH = Receptacles w/Plain Housing
RL = Receptacles w/Latch Housing
RD = Receptacles w/Detent Housing
B = FCI/Berg Clincher
Ind. Linearity
1% = ±1%
3% = ±3%
Standard Connector Options
Crimpflex Solder Tab (ST)
Crimpflex Short Male Pins (MP)
Crimpflex Female Receptacles with a
Plain Housing (RH)
Crimpflex Female Receptacles with a
Latch Housing (RL)
Crimpflex Female Receptacles
with a Detent Housing (RD)
FCI/Berg Clincher (B)
spectrasymbol.com
Page 2
(888) 795-2283
Customization
Customize the size, shape, and even the number of tracks. Such custom requests, for example, can be: multiple
ganged sensors (up to 40 tracks); serpentine active area track; custom lengths 10mm-2000mm; custom rotary
diameters, etc. Feel free to contact Spectra Symbol with your custom request at sales@spectrasymbol.com or
(888)795-2283.
How It Works
In simple terms, the ThinPot membrane potentiometer is a resistive element, which comprises a conductive
resistor, a sealed encasement and a simple wiper assembly. A membrane potentiometer can also function as a
voltage divider.
The ThinPot is a three-wire system with two resistive output channels and an electrical collector channel.

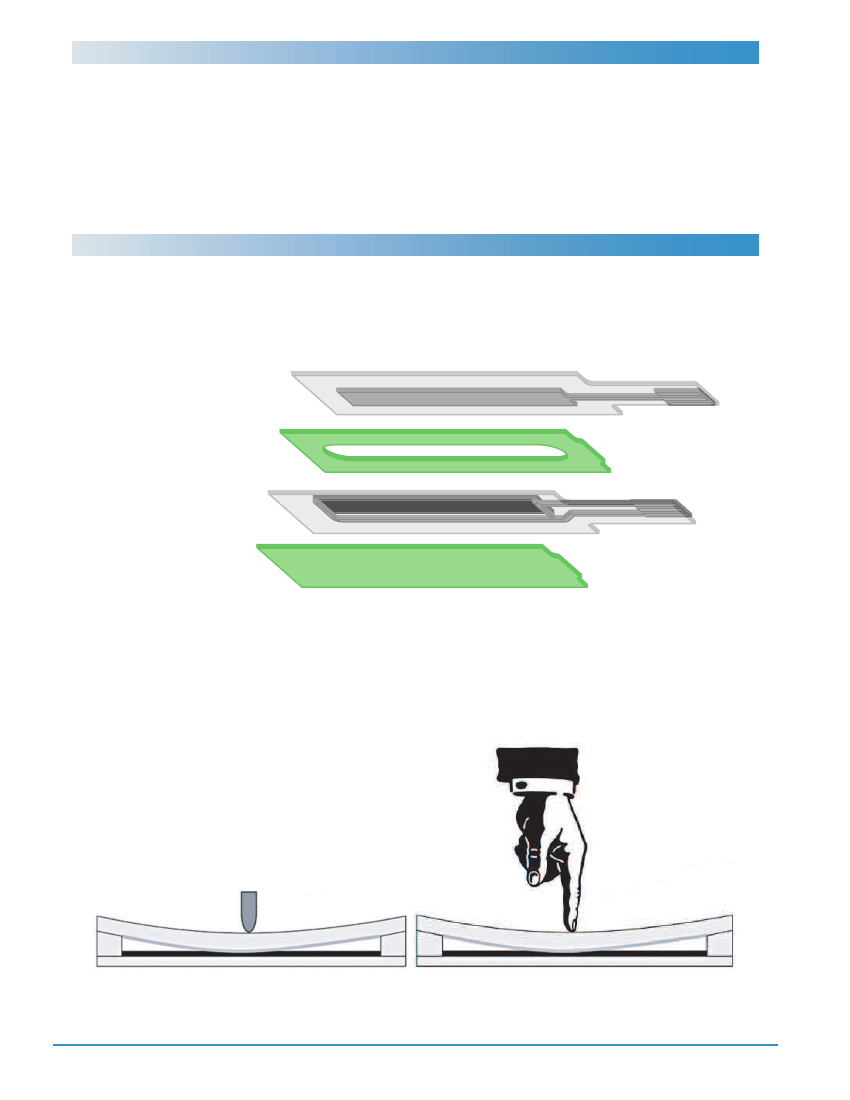

Top Circuit (Collector)
Circuit Spacer
Bottom Circuit (Resistor)
Bottom Adhesive
By pressing a wiper down onto the top circuit the SoftPot produces the desired electrical output. The "wiper" is a
non-conductive mechanism that depresses the top circuit actuating the potentiometer from the outside of the
element. The top and bottom circuits are separated by 0.15mm (0.006") of spacer adhesive build-up and contact
between the circuit occurs by pressure (usually 0.7-1.8 Newtons) from the wiper on the top circuit, pushing down
until the top circuit connects with the bottom circuit to create a potentiometric output.
The construction of the wiper design can adapt to any application because most materials can serve as the wiper:
plastics, metals, sliders, rollers, wheels, etc. Also, the ThinPot can also be manually (hand) actuated.
spectrasymbol.com
Page 3
(888) 795-2283

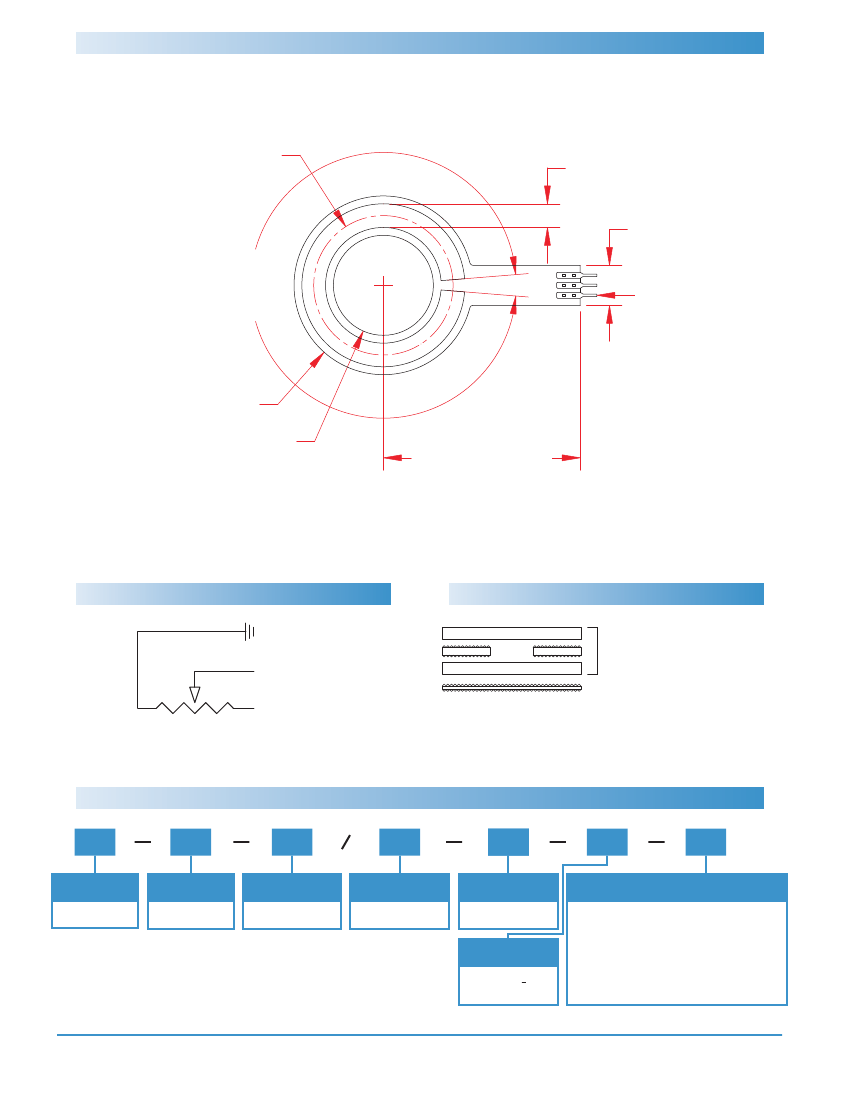

Diagram - Stock Rotary ThinPot
Ø35.40 [Ø1.394]
CENTER OF TRACK
6.00 [0.236]
ACTIVE WIDTH
10.16 [0.400]
351°
ACTIVE
ANGLE
PIN 1
Ø45.40 [Ø1.787]
Ø25.40 [Ø1.000]
THRU HOLE
50.00 [1.969]
Electrical Schematic
PIN 3 (GND)
(LEFT BUS BAR)
Material Cross-Section
0.41 [0.016] CIRCUIT
0.05 [0.002] 3M 200MP ADHESIVE
0.46 [0.018] TOTAL THICKNESS
PIN 2
(COLLECTOR)
PIN 1 (V+)
10K
(RIGHT BUS BAR)
How to Order - Rotary ThinPot
TSP
Series
TSP = ThinPot
R
Model
R = Rotary
0036
Center of
Active Track
0036 = 35.40mm
0351
Active Angle
0351 = 351°
103
Resistance
103 = 10 KOhm
5%
ST
Connectors
Ind. Linearity
3% = ±3%
5% = ±5%
ST = Soldertab
MP = Male Pins
RH = Receptacles w/Plain Housing
RL = Receptacles w/Latch Housing
RD = Receptacles w/Detent Housing
B = FCI/Berg Clincher
spectrasymbol.com
Page 4
(888) 795-2283
