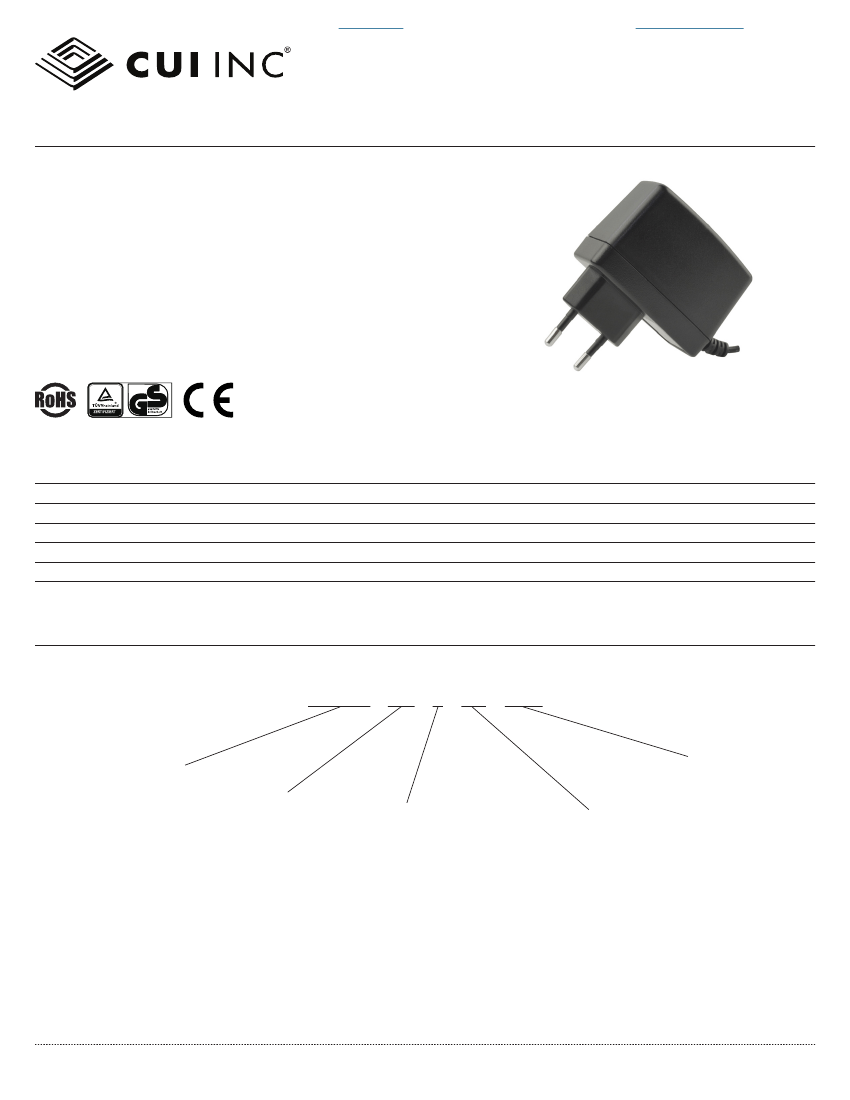

over voltage, over current, and short circuit protections
CE and GS safety approvals
Class II construction
MODEL
SWI15-5-E
SWI15-9-E
SWI15-12-E
SWI15-15-E
SWI15-24-E
Notes:
output
voltage
(Vdc)
output
current
max
(A)
output
power
max
(W)
ripple
and noise
1
max
(mVp-p)
efficiency
level
2
5
9
12
15
24
2
1.4
1
1
0.63
10
12.6
12
15
15.1
50
90
100
100
100
VI
VI
VI
VI
VI
1. At full load, nominal input, 20 MHz bandwidth oscilloscope, output terminated with 0.1 µF ceramic and 10 µF electrolytic capacitors.
2. CoC Tier 2 compliant.
3. All specifications are measured at Ta=25°C, nominal input voltage, and 75% rated output load unless otherwise specified.
PART NUMBER KEY
SWI15
-
XX
- E
-
P5
-
CXX
Base Number
Output Voltage
AC Input Type:
Europe
Reserved for Custom
Configurations
DC Plug Type:
5.5 x 2.1 x 9.5 mm
cui.com
For more information, please visit the
product page
|
For information on related products, view
Dc Power Connectors
CUI Inc
│
SERIES:
SWI15-E
│
DESCRIPTION:
AC-DC POWER SUPPLY
date
03/08/2017
│
page
2 of 4
INPUT
parameter
voltage
frequency
current
inrush current
leakage current
no load power consumption
at 240 Vac, 25°C, cold start
conditions/description
min
90
47
typ
max
264
63
0.5
50
0.25
0.075
units
Vac
Hz
A
A
mA
W
OUTPUT
parameter
voltage set point accuracy
line regulation
load regulation
hold-up time
conditions/description
at 60% load
measured from 100~240 Vac, full load
measured from 60~100% load and 60~20% load
5 Vdc output model
all other models
at 115 Vac
min
typ
±2
±1
±4
±2
10
max
units
%
%
%
%
ms
PROTECTIONS
parameter
conditions/description
hiccup mode, auto recovery
5 Vdc output model
9 Vdc output model
12 Vdc output model
15 Vdc output model
24 Vdc output model
hiccup mode, auto recovery
continuous, hiccup mode, auto recovery
120
min
typ
max
7.14
12.1
15.8
19.5
28.4
140
units
Vdc
Vdc
Vdc
Vdc
Vdc
%
over voltage protection
over current protection
short circuit protection
SAFETY & COMPLIANCE
parameter
isolation voltage
isolation resistance
safety approvals
safety class
EMI/EMC
MTBF
RoHS
conditions/description
input to output for 1 minute
input to output
GS EN 60950-1, IEC 60950-1
Class II
CE, EN 55022 Class B
as per MIL-HDBK-217F at 115 Vac, full load, 25°C
2011/65/EU
330,000
hours
100
min
typ
3,000
4,242
max
units
Vac
Vdc
MΩ
ENVIRONMENTAL
parameter
operating temperature
storage temperature
conditions/description
min
-20
-20
typ
max
40
85
units
°C
°C
cui.com
For more information, please visit the
product page
|
For information on related products, view
Dc Power Connectors
CUI Inc
│
SERIES:
SWI15-E
│
DESCRIPTION:
AC-DC POWER SUPPLY
date
03/08/2017
│
page
3 of 4
MECHANICAL
parameter
dimensions
inlet plug
weight
conditions/description
71.00 x 33.00 x 48.40 (2.795 x 1.299 x 1.906 inches)
Europe
100
g
min
typ
max
units
mm

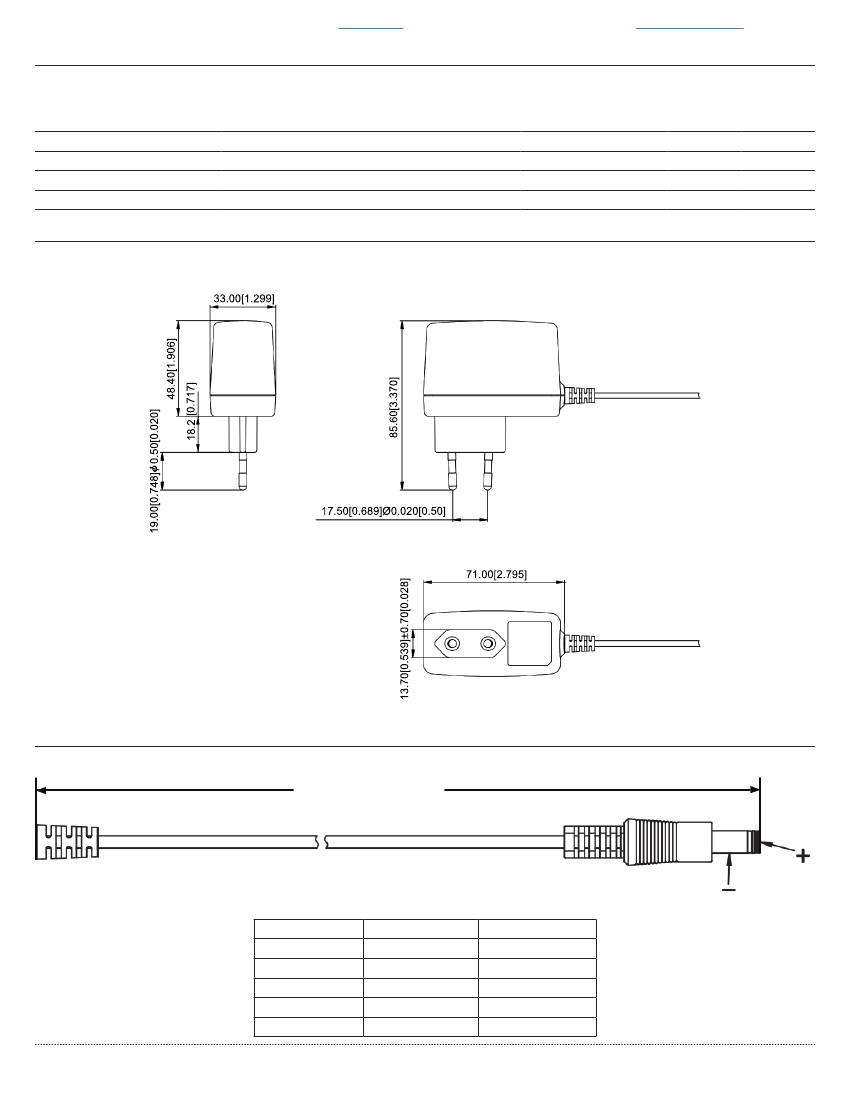

MECHANICAL DRAWING
units: mm [inch]
tolerance: X.XX: ±0.50 [±0.020]
DC CORD
units: mm
cord length
Plug: 5.5 x 2.1 x 9.5 mm
MODEL NO.
SWI15-5-E
SWI15-9-E
SWI15-12-E
SWI15-15-E
SWI15-24-E
Table 1
CABLE
20 AWG
18 AWG
24 AWG
24 AWG
24 AWG
cui.com
CORD LENGTH
1,800 mm ±50
1,800 mm ±50
1,800 mm ±50
1,800 mm ±50
1,800 mm ±50
For more information, please visit the
product page
|
For information on related products, view
Dc Power Connectors
CUI Inc
│
SERIES:
SWI15-E
│
DESCRIPTION:
AC-DC POWER SUPPLY
date
03/08/2017
│
page
4 of 4
REVISION HISTORY
rev.
1.0
description
initial release
The revision history provided is for informational purposes only and is believed to be accurate.
date
03/08/2017
Headquarters
20050 SW 112th Ave.
Tualatin, OR 97062
800.275.4899
Fax 503.612.2383
cui.com
techsupport@cui.com
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
CUI offers a one (1) year limited warranty. Complete warranty information is listed on our website.
CUI reserves the right to make changes to the product at any time without notice. Information provided by CUI is believed to be accurate and reliable. However, no responsibility is
assumed by CUI for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
CUI products are not authorized or warranted for use as critical components in equipment that requires an extremely high level of reliability. A critical component is any component of a
life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system, or to affect its safety or effectiveness.
