REVISION A
DO NOT
SCALE FROM
THIS PRINT
NOTES:
1. CUSTOM BODY NOT AVAILABLE AS STANDARD.
2.
REPRESENTS A CRITICAL DIMENSION.
3. MAXIMUM BURR ALLOWANCE: .0015[0.038]
4. MINIMUM PUSHOUT FORCE: SIGNAL: .5 LB, GROUND: 1 LB
5. MAX VARIANCE OF .002[0.05]
6. DIMENSION APPLIES TO CONTACTS & GROUND PLANE.
7. GROUND PLANE PRESS HEIGHT MUST BE .003[0.08] LESS THAN THE MAX HEIGHT
OR .001[0.03] GREATER THAN THE MINIMUM HEIGHT OF THE CONTACT.
8. MAXIMUM CUT FLASH: .010[0.25]
9. PARTS TO BE PACKAGED IN TRAYS.
.946±.010 24.02±0.25
.625 15.88
(1 BANK x .8400[21.336])
- .2150[5.461]
.009 0.23
REF (TYP)
.083 2.10
REF
02
.275 6.99
REF
BY SIGNING THIS DOCUMENT
YOU ARE ACCEPTING THE
CONDITIONS SET WITHIN.
YOUR REQUIREMENTS MUST BE
LISTED WITHIN THIS DRAWING.
WHERE NO DIRECTION FROM THE
CUSTOMER IS IDENTIFIED
SAMTEC'S PROCESS
REQUIREMENTS WILL BE USED.
C
L
.320 8.13
REF
01
.004 0.10
.535 13.59 REF
4
"A"
.173±.020 4.38±0.51
.134 3.40
(MEASURED CONTACT
TO CONTACT)
.431 10.95
REF
1
2
.004[0.10]
(SEE NOTE 6)
.320±.006 8.13±0.15
.051 1.30 REF
3
.371
- .002
9.42
- 0.05
(SEE NOTES 5, 6 & 7)
+.004
+0.10
CUSTOMER SIGNATURE:
PRINTED NAME:
.050 1.27
REF
EXCEPTIONS:
PHONE No:
"A"
.686 17.42 REF
.810 20.57 REF
.040 1.02
REF (TYP)
COMPANY:
DATE:
SECTION "A"-"A"
PICK & PLACE PAD NOT SHOWN FOR CLARITY
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
ITEM NO.
1
2
3
4
5
PART NUMBER
QUANTITY
1.0000
52.000
1.0000
1.0000
1.0000
MATERIAL
VECTRA E130i, COLOR: BLACK
PHOS BRONZE
PHOS BRONZE
VECTRA E130, COLOR: BLACK
BLACK HIPS
DECIMALS
ASP-144730-03-B
C-223-06.25-S
T-1G28-06.25-L
PPP-51
TY-ASP146
.XX: .01[.3]
.XXX: .005[.13]
.XXXX: .0020[.051]
ANGLES
2
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
SHEET SCALE: 3:1
DO NOT SCALE DRAWING
PLATING:
CONTACTS:
CONTACT AREA: .000030 GOLD OVER .000050 NICKEL
REMAINDER: .000200 REF TIN OVER .000050 NICKEL
GROUND PLANE:
CONTACT AREA: .000010 GOLD OVER .000050 NICKEL
REMAINDER: .000200 REF TIN OVER .000050 NICKEL
c:\enterprisevault\DWG\MISC\MKTG\ASP-129646-22-MKT.SLDDRW

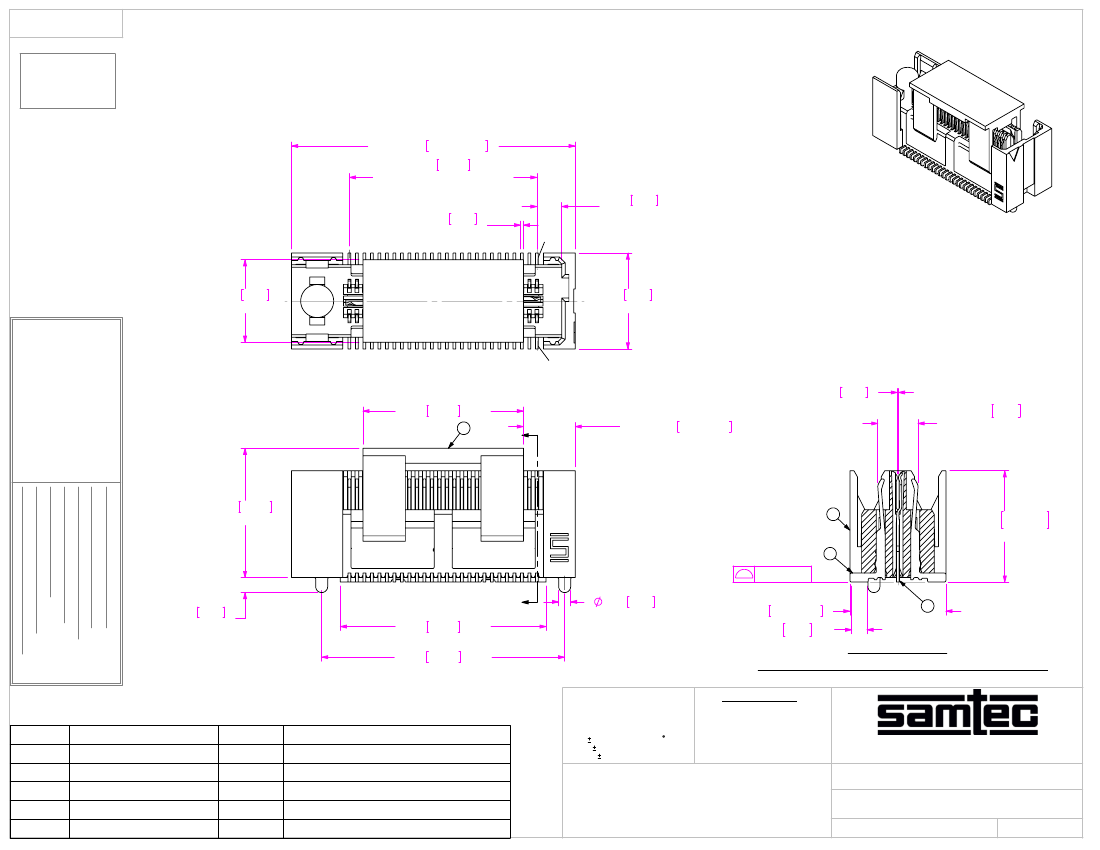

MODIFIED ELEVATED QFS
ASP-129646-22
BY:
J. BROWNING 06/26/2014
SHEET
1
OF
2
REVISION A
(ALL DIMENSIONS ARE SYMMETRIC ABOUT THE CENTERLINE)
.985 25.02
.810 20.57
.710 18.03
.625 15.88
.025 0.64 (TYP)
.046 1.17 NPTH
(TYP 2 PLCS)
RECOMMENDED PCB LAYOUT
01
.590 14.99
.340 8.64
.080 2.03
C
L
.020 0.51
02
.085 2.16 (TYP)
.016 0.41 (TYP)
C
L
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
SHEET SCALE: 5:1
MODIFIED ELEVATED QFS
ASP-129646-22
c:\enterprisevault\DWG\MISC\MKTG\ASP-129646-22-MKT.SLDDRW
BY:
J. BROWNING 06/26/2014
SHEET
2
OF
2
