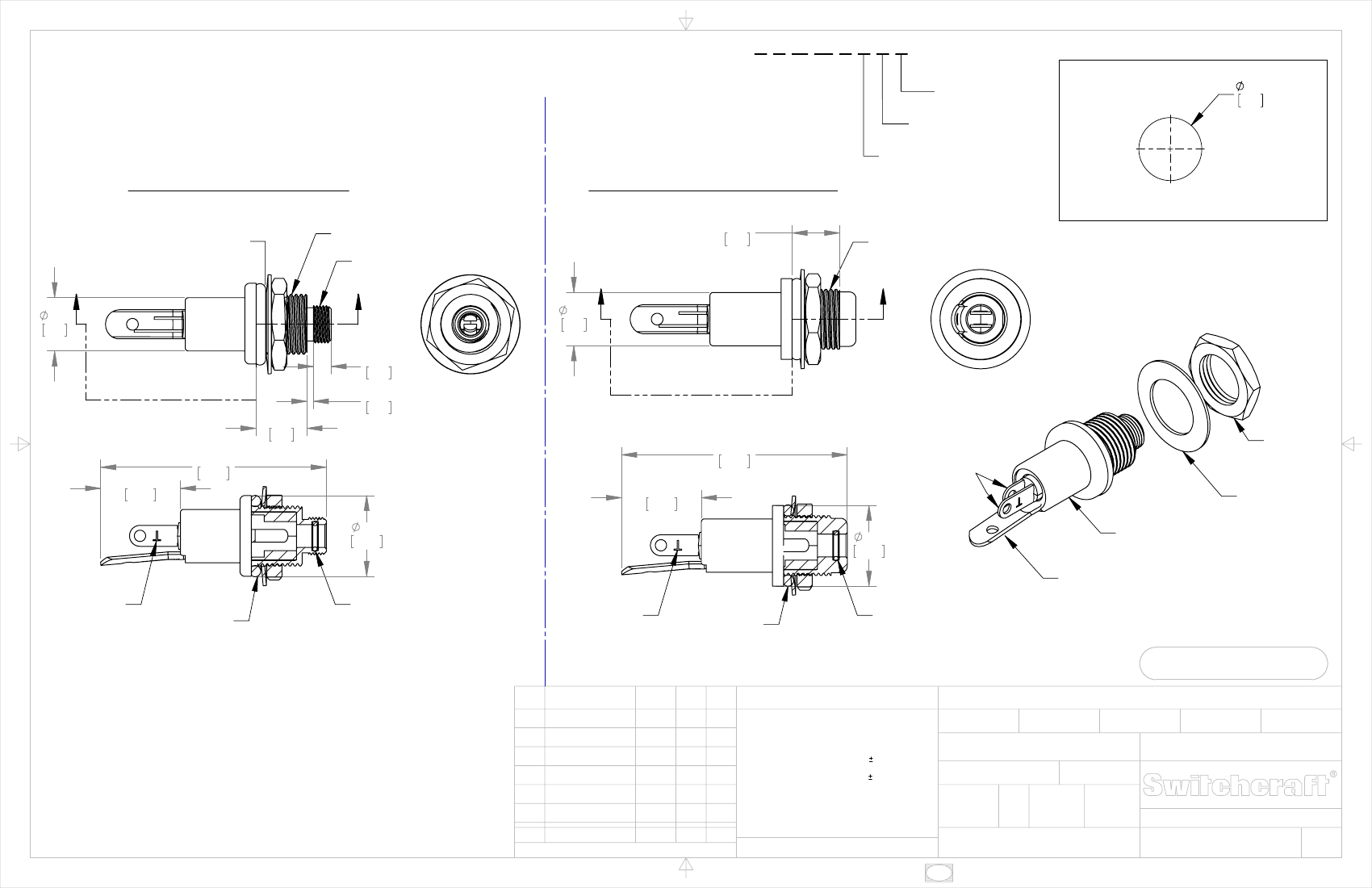

35RM3
S - SEALED
BLANK - NON SEALED
L - LOCKING
BLANK - NON LOCKING
AU - GOLD
BLANK- SILVER
LOCKING & SEALED ASSEMBLY SHOWN
NON LOCKING & SEALED ASSEMBLY SHOWN
RECOMMENDED PANEL MTG HOLE
0.07 [1.7] ESTIMATED PANEL
THICKNESS
3/8-32 UNEF-2A THREAD
M6 X 0.5-6g THREAD
0.30
7.5
3/8-32 UNEF-2A THREAD
0.39
9.9
A
0.33
8.4
A
0.33
8.4
0.11
2.8
0.04
1.0
FRONT VIEW
B
B
BACK VIEW
0.32
8.0
1.40
35.5
1.40
35.5
0.49
12.6
0.50
12.7
0.50
12.7
0.49
12.6
CONTACTS (T & R)
HEX NUT
3/8-32 THREAD
FLAT WASHER
REAR PANEL MOUNT
(LOCKING VERSION SHOWN)
SLEEVE
T' MARKS
TIP CONTACT
PANEL O-RING
MATING O-RING
T' MARKS
TIP CONTACT
PANEL O-RING
MATING O-RING
SECTIONA-A
NOTES:
1.
2.
3.
USE SWITCHCRAFT'S 3.5MM LOCKING STEREO PLUG FOR MATING.
DIMENSIONS SHOWN FOR REFERENCE ONLY.
HEX NUT, WASHER AND O-RINGS ARE PROVIDED ASSEMBLED
TO THE HOUSING ASSEMBLY.
NO O-RINGS SUPPLIED WITH NON SEALED VERSIONS.
MATERIAL:
HOUSINGS, HEX NUT - COPPER ALLOY, NICKEL PLATED
FLAT WASHERS - STEEL, NICKEL PLATED
CONTACTS - BERYLLIUM COPPER, SILVER PLATED
O-RINGS - NITRILE RUBBER, 70 DUROMETER
THIS PRODUCT IS RoHS COMPLIANT.
SECTIONB-B
PRELIMINARY
CUSTOMER DRAWING
THIS DRAWING DESCRIBES A DESIGN CONSIDERED PROPRIETARY IN NATURE, DEVELOPED AND MANUFACTURED
BY SWITCHCRAFT INC. AND IS RELEASED ON A CONFIDENTIAL BASIS FOR IDENTIFICATION PURPOSES ONLY.
UNLESS OTHERWISE SPECIFIED
1. ALL DIMENSIONS IN INCHES [mm]
- TWO PLACE DECIMALS
- THREE PLACE DECIMALS
0.02
[0.5]
SIZE
FINISH
*
WIDTH
4.
0.005 [0.13]
SPEC No.
FIRST USED ON
DATE DRAWN
*
*
*
MULT
*
LBS/M
MATERIAL
SPEC No.
*
TEMPER
*
*
*
*
SCALE
2:1
BY
CHKD
0A
REV
FIRST DRAWN
ECO NUMBER
02/10/17
DATE
AM
BY
*
APVD
02/10/17
AM
5.
REVISIONS
DO NOT SCALE DRAWING
NAME
3.5MM JACK ASSM
REAR PANEL MOUNT, RoHS
*
*
APVD
*
*
SHEET
PART No.
1
OF
1
35RM3 SERIES
0A
REV
SolidWorks CAD File
