3288: DescriptionCONN ADAPT N PLUG TO BNC JACK; CategoryThe connector; File Size176KB，1 Pages; ManufacturerPomona Electronics; Environmental Compliance

Download Datasheet Parametric View All

3288 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3288	-	-	View	Buy Now

3288 Overview

CONN ADAPT N PLUG TO BNC JACK

3288 Parametric

Parameter Name	Attribute value
Adapter type	plug to jack
conversion type	Across series
Adapter series	BNC to N
neutral	female to male
Convert from (adapter side)	N plug, male pin
Convert to (adapter side)	BNC jack, female jack
impedance	50 ohms
style	Straight
Installation type	free hanging
Installation features	-
Fastening type	Bolt lock, threaded
Intrusion protection	-
Center contact plating	gold
characteristic	-
include	-
Matrix material	brass
substrate surface	nickel
center contact material	copper beryllium
dielectric materials	Polytetrafluoroethylene (PTFE)
Number of patches	-
Insertion loss	-
Operating temperature	-65°C ~ 165°C

Preview

Download Datasheet

View All

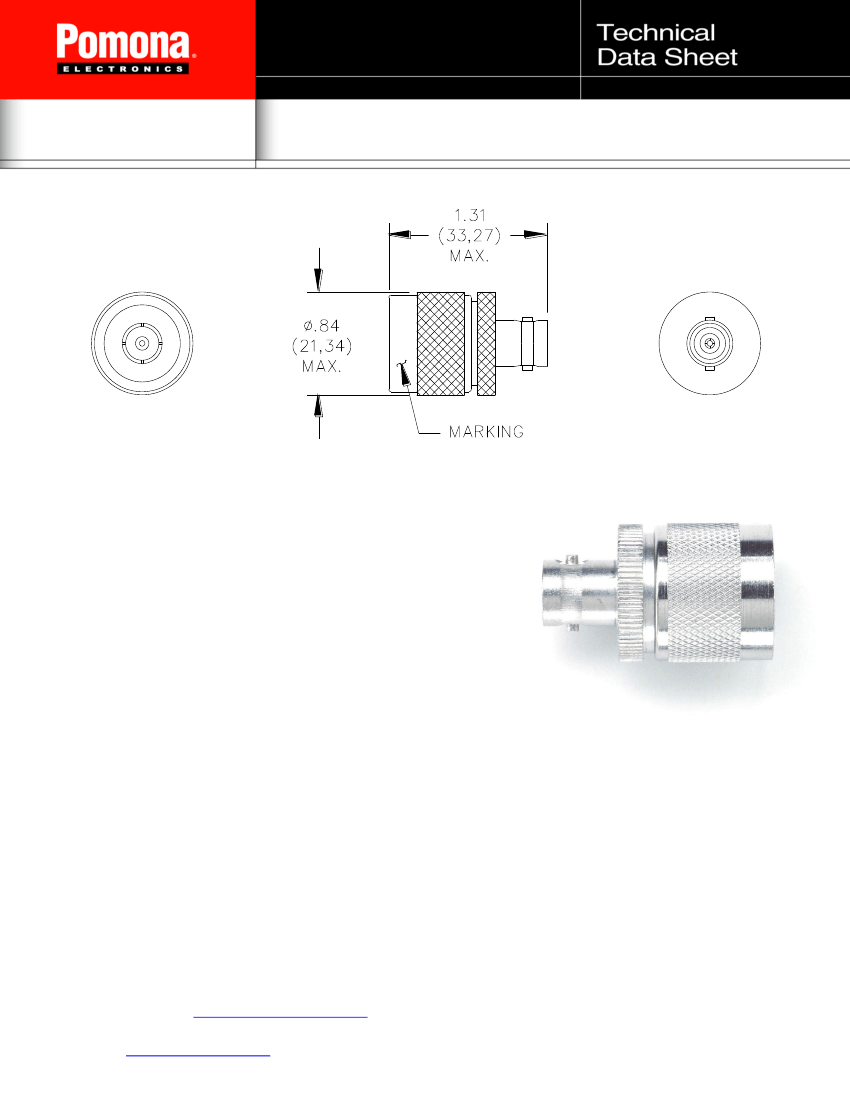

Model 3288

N-Type (Male) to BNC (Female) Adapter

Features



Adapter allows you to convert between N-Type

connections and BNC connections

Meets the interface requirements of MIL-STD-348

Materials

Body and Fittings:

Center Contact:

Dielectric:

Marking:

Brass, Tarnish Resistant Nickel Plating

Beryllium Copper, Gold Plated

PTFE

“Pomona 3288” (optional)

Ratings

Voltage:

For

CE compliance

and for personal safety, do not hold in hand when voltages exceed

30 Vac/60 Vdc.

Maximum voltage for

hands free use

in controlled testing environments: 500 Vrms

Do not use on circuits where transient stresses can exceed the rated voltage.

Operating Temperature:

-65ºC to +165ºC

Nominal Impedance:

50 Ohm

Ordering Information

Model: 3288

ADAPTER, BNC (F), N (M)

USA:

Sales: 800-490-2361

Technical Support:

technicalsupport@pomonatest.com

Fax: 425-446-5844

Europe:

31-(0) 40 2675 150

International:

425-446-5500

Where to Buy:

www.pomonaelectronics.com

All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm),

.xxx = ± .005” (,127 mm). All specifications are to the latest revisions.

Specifications are subject to change without notice. Registered trademarks are

the property of their respective companies.

D1094011 Rev. 100

Page 1 of 1
