0.3mm Contact Pitch, 1.25mm above the board, Flexible Printed Circuit Connectors
FH 23 Series
●

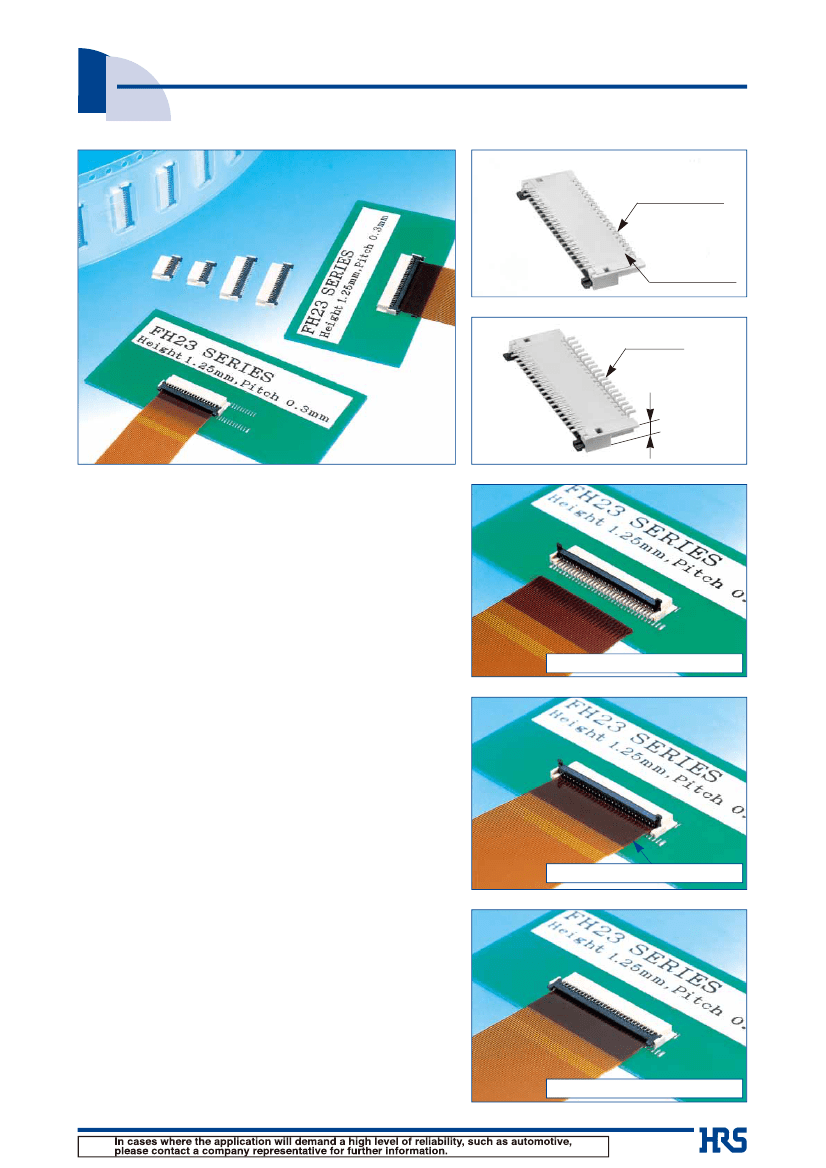

Staggered termination configuration. Only 1.25 mm
above the board.
Leadless type
Completely enclosed
bottom surface
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Lead type
1.25mm
■
Features
1. FPC low insertion force and high holding force
Hirose Electric's unique low insertion force (LIF) design
(patents pending) improves the Flexible Printed Circuit
(FPC) holding force after insertion.
2. Temporary hold of FPC
There is no need to hold the FPC after insertion in the
connector. The connector will hold it in correct position,
allowing closing of the actuator.
3. Easy board mounting
The surface mounted termination of the contacts is staggered
on 0.6 mm centers, positioned on front and back of the
connector.
Bottom of the connector is completely insulated,
allowing conductive traces on PCB to run under the
connector.
When the actuator is opened
4. Proven Flip-lock Actuator assures easy
and reliable operation
Rotating actuator permits easy insertion and reliable
connection with the FPC. Tactile sensation confirms complete
mechanical locking of the actuator and the electrical
connection.
5. Variations to suit different mounting areas
Available with lead and leadless type of terminations
(for opposing FPC insertion side).
6. Designed for placement with automatic
equipment
Flat top surface allows pick-up with vacuum nozzles.
Packaged in embossed tape, on reel. One reel contains 2,500
pieces.
Temporary hold of FPC
7. Accepts 0.2mm thick FPC
8. Variety of contact positions
Available with 15,17,21,23,25,27,31,33,37,39,45,51,61and 71
pos.
9. Halogen Free
The connector does not use chlorine and bromine
exceeding standard limits.
*Defined in accordance with IEC61249-2-21
*Br
900ppm or lower, Cl 900ppm or lower, Br + Cl 1,500ppm or
lower
When the actuator is closed
2013.11
w
1
FH23 Series●0.3mm Contact Pitch, 1.25mm above the board, Flexible Printed Circuit Connectors
■Product
Specifications
Current rating
Ratings
Voltage rating
Operating temperature range
-55
ç
to +85
ç
(Note 1)
Operating humidity range
30V AC
Relative humidity 90% max. (No condensation)
0.3A
Storage temperature range
-10
ç
to +50
ç
(Note 2)
Storage humidity range
Relative humidity 90% max. (No condensation)
Recommended FPC
Item
Thickness: = 0.2±0.03mm Gold plated
Specification
100 V DC
90 V AC/one minute
1 mA AC
10 cycles
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 10
cycles, 3 axis.
Acceleration of 981 m/s
2
, 6ms duration, sine half-wave
waveform, 3 cycles, 3 axis.
96 hours at 40
°
C and humidity of 90% to 95%
Temperature:-55
ç
/
+15
ç
to +35
ç
/
+85
ç
/
+15
ç
to +35
ç
Time: 30
/
2 to 3
/
30
/
2 to 3 (Minutes)
5 cycles
Reflow: At the recommended temperature profile
Manual soldering: 350
ç
±5
ç
for 5 seconds
Conditions
1. Insulation resistance 50 M ohms min.
2. Withstanding voltage No flashover or insulation breakdown
3. Contact resistance
100 m ohms max.
*Including FPC/FFC conductor resistance
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Contact resistance: 100 m ohms max.
4. Durability
4.
(insertion / withdrawal) No damage, cracks, or parts dislocation.
5. Vibration
No electrical discontinuity of 1
μ
s or more.
Contact resistance: 100 m ohms max.
No damage, cracks, or parts dislocation.
No electrical discontinuity of 1
μ
s or more.
Contact resistance: 100 m ohms max.
No damage, cracks, or parts dislocation.
Contact resistance: 100 m ohms max.
Insulation resistance: 50 M ohms min.
No damage, cracks, or parts dislocation.
Contact resistance: 100 m ohms max.
Insulation resistance: 50 M ohms min.
No damage, cracks, or parts dislocation.
6. Shock
7. Humidity
(Steady state)
8. Temperature cycle
9. Resistance to
soldering heat
No deformation of
components affecting performance.
Note 1: Includes temperature rise caused by current flow.
Note 2: The term ”storage” refers to products stored for long period of time prior to mounting and use. Operating
Temperature Range and Humidity range covers non-conducting condition of installed connectors in storage,
shipment or during transportation.
■Materials
Part
Insulator
Actuator
Contacts
Material
LCP
LCP
Phosphor bronze
Finish
Color: Beige
Color: Black
Gold plated
Remarks
UL94V-0
---------------
■Ordering
information
FH 23 - 39S - 0.3 SHW (05)
1
1
Series name : FH
2
Series No : 23
3
Number of contacts : 15 to 71
4
Contact pitch: 0.3mm
5
Terminal type
SHW: SMT horizontal mounting type, lead type termination.
SHAW: SMT horizontal mounting type, lead-less type termination.
2
3
4
5
6
6
Plating specifications :
(05) : Gold plated (All contact positions except 51
contacts)
(06) : Gold plated (51 contacts)
2
FH23 Series●0.3mm Contact Pitch, 1.25mm above the board, Flexible Printed Circuit Connectors
■Connector
Dimensions (Lead Type termination)
A
0.3
0.6
B
1.7
(0.15)
2.45
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
**
0.6
Number of contacts indicator
C
(0.12)
0.05MAX.
E
4.15
0.5
(2.84)
1.25(Including contact terminal leads)
0.05MAX.
0.1MAX.
1
2
(D: FPC insertion area dimensions)
1
2
0.1MAX.
0.55
Notes 1 The coplanarity of each terminal lead is within 0.1.
2 The contact terminal lead position indicates the dimension from the E surface, the bottom surface of the insulator body.
3 Any discoloration of the plastic compound will NOT AFFECT form, fit or function of the connector.
4 Packaged on tape and reel only. Check packaging specification.
Lead Type
Part Number
FH23-15S-0.3SHW(05)
FH23-17S-0.3SHW(05)
FH23-21S-0.3SHW(05)
FH23-23S-0.3SHW(05)
FH23-25S-0.3SHW(05)
FH23-27S-0.3SHW(05)
FH23-31S-0.3SHW(05)
FH23-33S-0.3SHW(05)
FH23-37S-0.3SHW(05)
FH23-39S-0.3SHW(05)
FH23-45S-0.3SHW(05)
FH23-51S-0.3SHW(06)
FH23-61S-0.3SHW(05)
FH23-71S-0.3SHW(05)
CL No.
586-1317-0-05
586-1300-7-05
586-1314-1-05
586-1324-5-05
586-1322-0-05
586-1308-9-05
586-1302-2-05
586-1304-8-05
586-1335-1-05
586-1306-3-05
586-1318-2-05
586-1312-6-06
586-1310-0-05
586-1320-4-05
Number of Contacts
15
17
21
23
25
27
31
33
37
39
45
51
61
71
A
7
7.6
8.8
9.4
10
10.6
11.8
12.4
13.6
14.2
16
17.8
20.8
23.8
B
3.6
4.2
5.4
6
6.6
7.2
8.4
9
10.2
10.8
12.6
14.4
17.4
20.4
C
4.2
4.8
6
6.6
7.2
7.8
9
9.6
10.8
11.4
13.2
15
18
21
Unit: mm
D
4.83
5.43
6.63
7.23
7.83
8.43
9.63
10.23
11.43
12.03
13.83
15.63
18.63
21.63
Note1: Embossed tape reel packaging(2,500 pieces/reel)
Order by number of reels.
Note2: The specification of (06) is applied to number of 51.
Refer to ordering information.
3
FH23 Series●0.3mm Contact Pitch, 1.25mm above the board, Flexible Printed Circuit Connectors
■Connector
Dimensions Diagram (Leadless Type termination)
A
0.3
0.6
B
1.7
(0.15)
2.45
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
**
0.6
Number of contacts indicator
C
(0.12)
0.05MAX.
0.1MAX.
1
2
E
0.55
4.15
(2.84)
1.25 (Including contact terminal leads)
0.05MAX.
0.1MAX.
1
2
(D: FPC insertion area dimensions)
Notes 1 The coplanarity of each terminal lead is within 0.1.
2 The contact terminal lead position indicates the dimension from the E surface, the bottom surface of the insulator body.
3 Any discoloration of the plastic compound will NOT AFFECT form, fit or function of the connector.
4 Packaged on tape and reel only. Check packaging specification.
Leadless Type
Part Number
FH23-15S-0.3SHAW(05)
FH23-17S-0.3SHAW(05)
FH23-21S-0.3SHAW(05)
FH23-23S-0.3SHAW(05)
FH23-25S-0.3SHAW(05)
FH23-27S-0.3SHAW(05)
FH23-31S-0.3SHAW(05)
FH23-33S-0.3SHAW(05)
FH23-39S-0.3SHAW(05)
FH23-45S-0.3SHAW(05)
FH23-51S-0.3SHAW(06)
FH23-61S-0.3SHAW(05)
FH23-71S-0.3SHAW(05)
CL No.
586-1316-7-05
586-1301-0-05
586-1315-4-05
586-1325-8-05
586-1323-2-05
586-1309-1-05
586-1303-5-05
586-1305-0-05
586-1307-6-05
586-1319-5-05
586-1313-9-06
586-1311-3-05
586-1321-7-05
Number of Contacts
15
17
21
23
25
27
31
33
39
45
51
61
71
A
7
7.6
8.8
9.4
10
10.6
11.8
12.4
14.2
16
17.8
20.8
23.8
B
3.6
4.2
5.4
6
6.6
7.2
8.4
9
10.8
12.6
14.4
17.4
20.4
C
4.2
4.8
6
6.6
7.2
7.8
9
9.6
11.4
13.2
15
18
21
Unit: mm
D
4.83
5.43
6.63
7.23
7.83
8.43
9.63
10.23
12.03
13.83
15.63
18.63
21.63
Note1: Embossed tape reel packaging(2,500 pieces/reel)
Order by number of reels.
Note2: The specification of (06) is applied to number of 51.
Refer to ordering information.
4
FH23 Series●0.3mm Contact Pitch, 1.25mm above the board, Flexible Printed Circuit Connectors
■Recommended
PCB Land and Metal Mask Dimensions (Lead Type)
0.7±0.05
B±0.05
(0.1)
(5.2)
0.6±0.05
0.3±0.05 (Land)
0.25±0.05 (Metal mask)
3.45±0.05
(5.4)
0.3±0.05
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
1.25±0.05
Recommended metal mask thickness: t = 0.1 mm
0.25±0.05 (Metal mask)
C±0.05
(0.1)
0.6±0.05
0.3±0.05 (Land)
Lead Type
Part Number
CL No.
Number of Contacts
15
17
21
23
25
27
31
B
C
G
Part Number
CL No.
Number of Contacts
33
37
39
45
51
61
71
B
9
FH23-15S-0.3SHW(05) 586-1317-0-05
FH23-17S-0.3SHW(05) 586-1300-7-05
FH23-21S-0.3SHW(05) 586-1314-1-05
FH23-23S-0.3SHW(05) 586-1324-5-05
FH23-25S-0.3SHW(05) 586-1322-0-05
FH23-27S-0.3SHW(05) 586-1308-9-05
FH23-31S-0.3SHW(05) 586-1302-2-05
3.6 4.2 4.8
4.2 4.8 5.4
5.4
6
6
6.6
FH23-33S-0.3SHW(05) 586-1304-8-05
FH23-37S-0.3SHW(05) 586-1335-1-05
FH23-39S-0.3SHW(05) 586-1306-3-05
FH23-45S-0.3SHW(05) 586-1318-2-05
FH23-51S-0.3SHW(06) 586-1312-6-06
FH23-61S-0.3SHW(05) 586-1310-0-05
FH23-71S-0.3SHW(05) 586-1320-4-05
Unit: mm
C
G
9.6 10.2
10.2 10.8 11.4
10.8 11.4 12
12.6 13.2 13.8
14.4 15 15.6
17.4 18 18.6
20.4 21 21.6
6.6 7.2
6.6 7.2 7.8
7.2 7.8 8.4
8.4
9
9.6
■Recommended
Land and Metal Mask Dimensions (Leadless Type)
B±0.05
0.65±0.05
( 0.1 )
(4.6)
0.6±0.05
0.3±0.05(Land)
0.25±0.05(Metal mask)
2.9±0.05
0.3±0.05
(4.8)
1.25±0.05
Recommended metal mask thickness: t = 0.1 mm
0.6±0.05
0.3±0.05(Land)
0.25±0.05(Metal mask)
C±0.05
(0.1)
Leadless Type
Part Number
CL No.
Number of Contacts
15
17
21
23
25
27
31
B
C
G
Part Number
CL No.
Number of Contacts
33
39
45
51
61
71
B
9
FH23-15S-0.3SHAW(05) 586-1316-7-05
FH23-17S-0.3SHAW(05) 586-1301-0-05
FH23-21S-0.3SHAW(05) 586-1315-4-05
FH23-23S-0.3SHAW(05) 586-1325-8-05
FH23-25S-0.3SHAW(05) 586-1323-2-05
FH23-27S-0.3SHAW(05) 586-1309-1-05
FH23-31S-0.3SHAW(05) 586-1303-5-05
3.6 4.2 4.8
4.2 4.8 5.4
5.4
6
6
6.6
FH23-33S-0.3SHAW(05) 586-1305-0-05
FH23-39S-0.3SHAW(05) 586-1307-6-05
FH23-45S-0.3SHAW(05) 586-1319-5-05
FH23-51S-0.3SHAW(06) 586-1313-9-06
FH23-61S-0.3SHAW(05) 586-1311-3-05
FH23-71S-0.3SHAW(05) 586-1321-7-05
Unit: mm
C
G
9.6 10.2
10.8 11.4 12
12.6 13.2 13.8
14.4 15 15.6
17.4 18 18.6
20.4 21 21.6
6.6 7.2
6.6 7.2 7.8
7.2 7.8 8.4
8.4
9
9.6
5
京公网安备 11010802033920号
EEWORLD
