LUMOTAST 22 Stop pushbutton, active/inactive, 2 NC, reset by
rotation
1.15.105.112/0000
General information
Form of lens
Color of lens
Form of collar
Dimensions
Mushroom Diameter
Overall height
Mounting depth
Mounting hole
Mechanical design
Mounting
Terminals
Torque for nut ring
Contact function
Contact arrangement
Illuminability
Reset
Mechanical characteristics
Robustness max.
conical mushroom form
red
round
30 mm
25.9 mm
17.6 mm
22.3 mm
ring nut
quick connector 2.8 x 0.8 mm, solderable
1.9 Nm
latching
2 NC
arrows with 2 LED
by rotation
100 N
Electrical characteristics acc. to IEC/EN 60947-5-1 (VDE 0660 Part 200)
Application category
AC15/DC13
Rated insulation voltage U
i
250V (AC/DC)
Rated operating voltage U
e
250V AC, 240V DC
{Term. Dauerstrom}
2.5A (AC/DC)
Other specifications
Ambient temp. operating min.
Ambient temp. operating max.
Robustness
Operating life (operations) / B10
Degree of protection from front side
Storage temperature min.
Storage temperature max.
Environmental restistance
Salt spray
Solder techniques
-25 °C
+70 °C
acc. to IEC 600 68-2-3 und 2-30
15,000 cycle
IP65 (DIN EN 60529)
-40 °C
+80 °C
acc. to IEC 60068-2-14, -30, -33 and -78
IEC 600 68-2-11
manual soldering, lead-free
Technical data are approximate and intended solely for general orientation in the selection of a product.
Subject to modifications and errors. Images and other graphics may only be similar.
For more information, refer to www.rafi.de chapter Imprint / Data Protection.
22.03.2018
Soldering temperature max.
Soldering time max.
ROHS compliant
REACH compliant

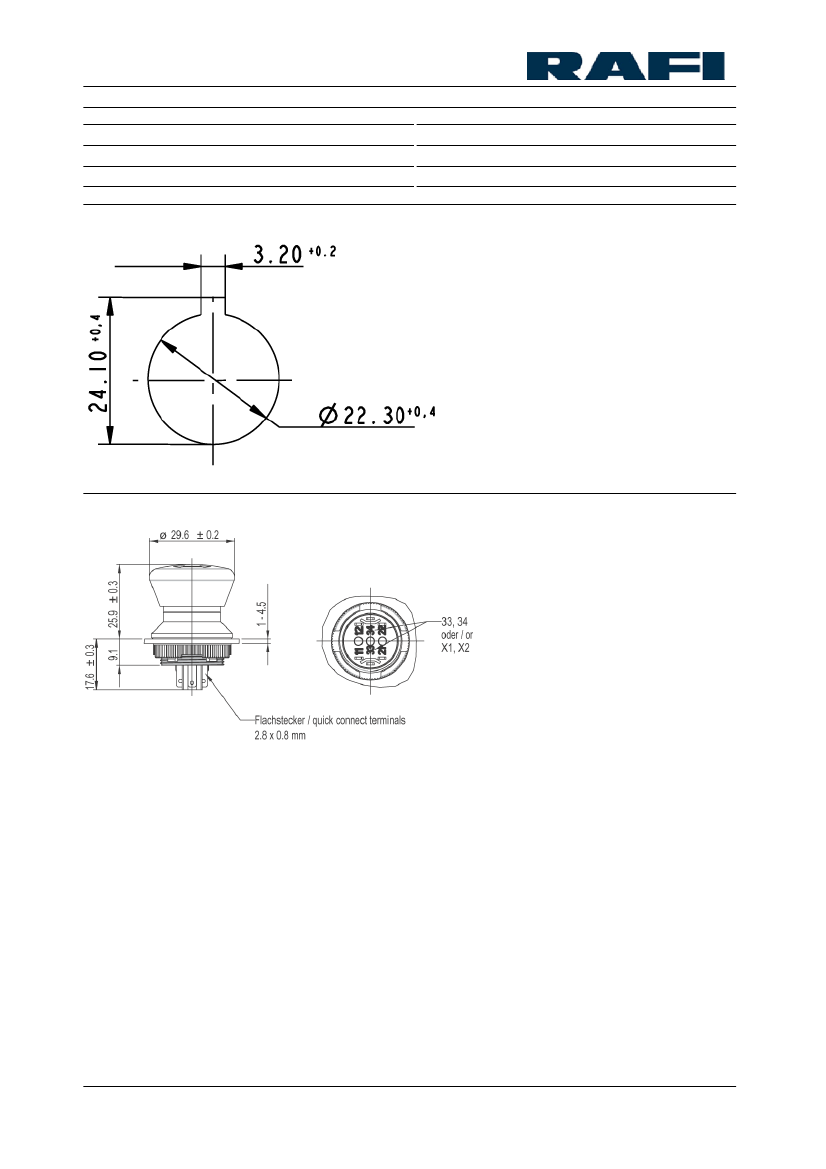

Panel cut-out to IEC 60947-5-1
350 °C
5s
yes
yes
Technical data are approximate and intended solely for general orientation in the selection of a product.
Subject to modifications and errors. Images and other graphics may only be similar.
For more information, refer to www.rafi.de chapter Imprint / Data Protection.
