J0B-2005NL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> J0B-2005NL

J0B-2005NL: DescriptionCONN PULSEJACK 8 PORT 2.5G POE; CategoryThe connector; File Size160KB，1 Pages; ManufacturerPulse Electronics Network; Environmental Compliance

Download Datasheet Parametric Compare View All

J0B-2005NL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	J0B-2005NL	-	-	View	Buy Now

J0B-2005NL Overview

CONN PULSEJACK 8 PORT 2.5G POE

J0B-2005NL Parametric

Parameter Name	Attribute value
Connector type	RJ45
Number of ports	8
Number of rows	2
application	2.5G Base-T，AutoMDIX
Installation type	Panel mount, through hole
towards	90° angle (right angle)
Termination	welding
board height	1.005"（25.53mm）
LED color	green - green
Number of cores per jack	10
shield	Shielded, EMI refers
characteristic	board guide
tab direction	up and down
Contact material	Phosphor bronze
Contact plating	gold
Operating temperature	0°C ~ 70°C
Contact plating thickness	30.0µin（0.76µm）
shielding material	copper alloy
Shell material	thermoplastic

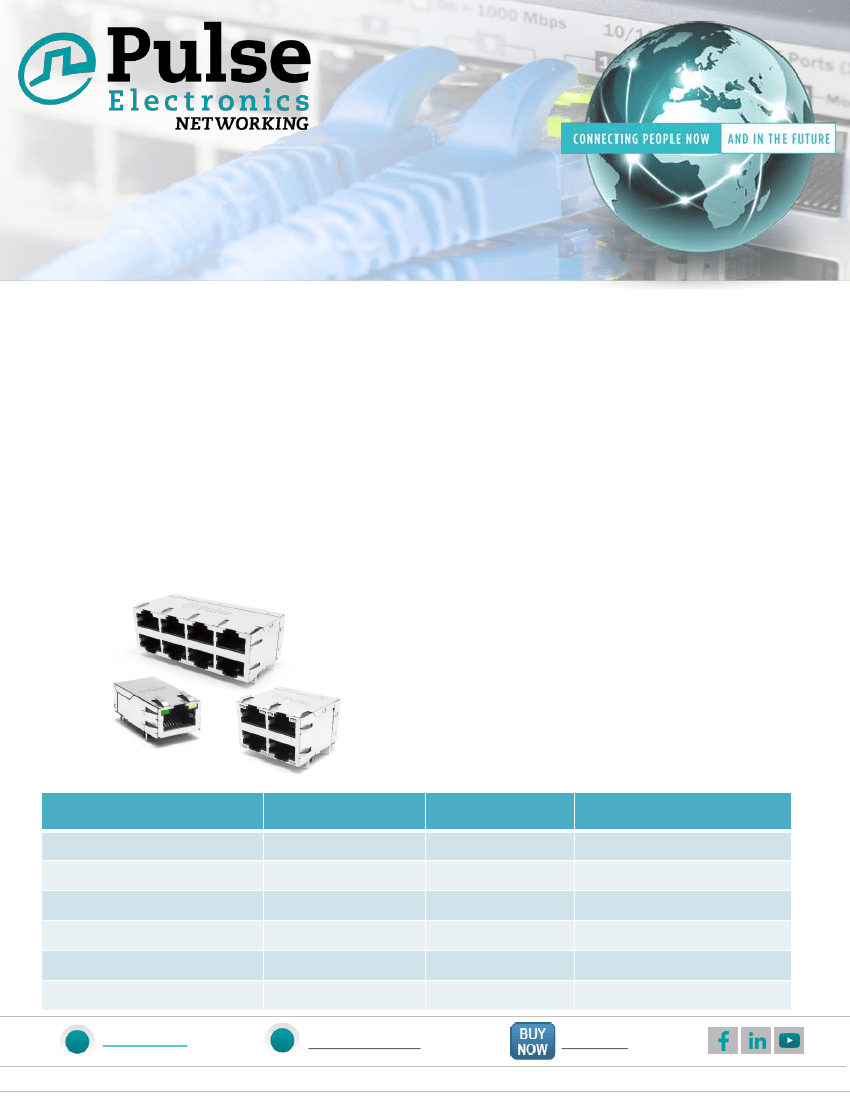

Preview

Download Datasheet

View All

2.5GBase-T

Ethernet Connector Modules

Pulse electronics offers full line of

2.5GBase-T Ethernet Connector Modules

that support 4P PoE connections for

multiple Ethernet applications. The parts

are compatible with all major 2.5GBase-T

PHY suppliers. Multiple package options

and extended temp. solutions are available.

The parts are ideal for applications

requiring higher bandwidth and PoE

function such as base stations, 802.11ac

access points, routers, switches and video

displays.

Features and Benefits:

• Designed to meet IEEE802.3bz for

2.5GBase-T

• Compatible with all Major PHYs

• 4P PoE up to 100W

• Available in -40C to +85C operating

temperature

• Multiple package options available

• Industry Standard Footprints

Applications:

• Access Points

• Switches

• Base Stations

• Gateways

• Video Displays

Part Number

JK0-2500NL

JK0-2501NL

JXK0-2500NL

J0B-2005NL

J0B-2014NL

J0B-2015NL

Datasheets

Number of Ports

1x1

2x4

2x2

2x6

Order Samples

Power Rating

100W

80W

100W

75W

Temperature Range

0 to 70 C

-40 to +85 C

0 to 70 C

Buy Now

J0B-2005NL Related Products

	J0B-2005NL	JK0-2501NL	JXK0-2500NL	J0B-2014NL	JK0-2500NL	J0B-2015NL
Description	CONN PULSEJACK 8 PORT 2.5G POE	CONN PULSEJACK 1 PORT 2.5G POE	CONN PULSEJACK 1 PORT 2.5G POE	CONN PULSEJACK 4 PORT 2.5G POE	CONN PULSEJACK 1 PORT 2.5G POE	CONN PULSEJACK 12 PORT 2.5G POE
Connector type	RJ45	RJ45	RJ45	RJ45	RJ45	RJ45
Number of ports	8	1	1	4	1	12
Number of rows	2	1	1	2	1	2
application	2.5G Base-T，AutoMDIX	2.5G Base-T，AutoMDIX	2.5G Base-T，AutoMDIX	2.5G Base-T，AutoMDIX	2.5G Base-T，AutoMDIX	2.5G Base-T，AutoMDIX
Installation type	Panel mount, through hole	Panel mount, through hole	Panel mount, through hole	Panel mount, through hole	Through hole	Panel mount, through hole
towards	90° angle (right angle)	90° angle (right angle)	90° angle (right angle)	90° angle (right angle)	90° angle (right angle)	90° angle (right angle)
Termination	welding	welding	welding	welding	welding	welding
board height	1.005"（25.53mm）	0.546"（13.87mm）	0.546"（13.87mm）	1.002"（25.46mm）	0.546"（13.87mm）	1.002"（25.46mm）
LED color	green - green	LED not included	green, yellow - green	green,yellow - green,yellow	yellow, green - green	green,yellow - green,yellow
Number of cores per jack	10	8	8	8	8	8
shield	Shielded, EMI refers	Shielded, EMI refers	Shielded, EMI refers	Shielded, EMI refers	Shielded, EMI refers	Shielded, EMI refers
characteristic	board guide	board guide	board guide	board guide	board guide	board guide
tab direction	up and down	superior	superior	up and down	superior	up and down
Contact material	Phosphor bronze	Phosphor bronze	Phosphor bronze	Phosphor bronze	Phosphor bronze	copper alloy
Contact plating	gold	gold	gold	gold	gold	gold
Operating temperature	0°C ~ 70°C	0°C ~ 70°C	-40°C ~ 85°C	0°C ~ 70°C	0°C ~ 70°C	0°C ~ 70°C
Contact plating thickness	30.0µin（0.76µm）	30.0µin（0.76µm）	30.0µin（0.76µm）	50.0µin（1.27µm）	30.0µin（0.76µm）	50.0µin（1.27µm）
shielding material	copper alloy	copper alloy	copper alloy	copper alloy	copper alloy	copper alloy
Shell material	thermoplastic	thermoplastic	thermoplastic	thermoplastic	thermoplastic	thermoplastic
