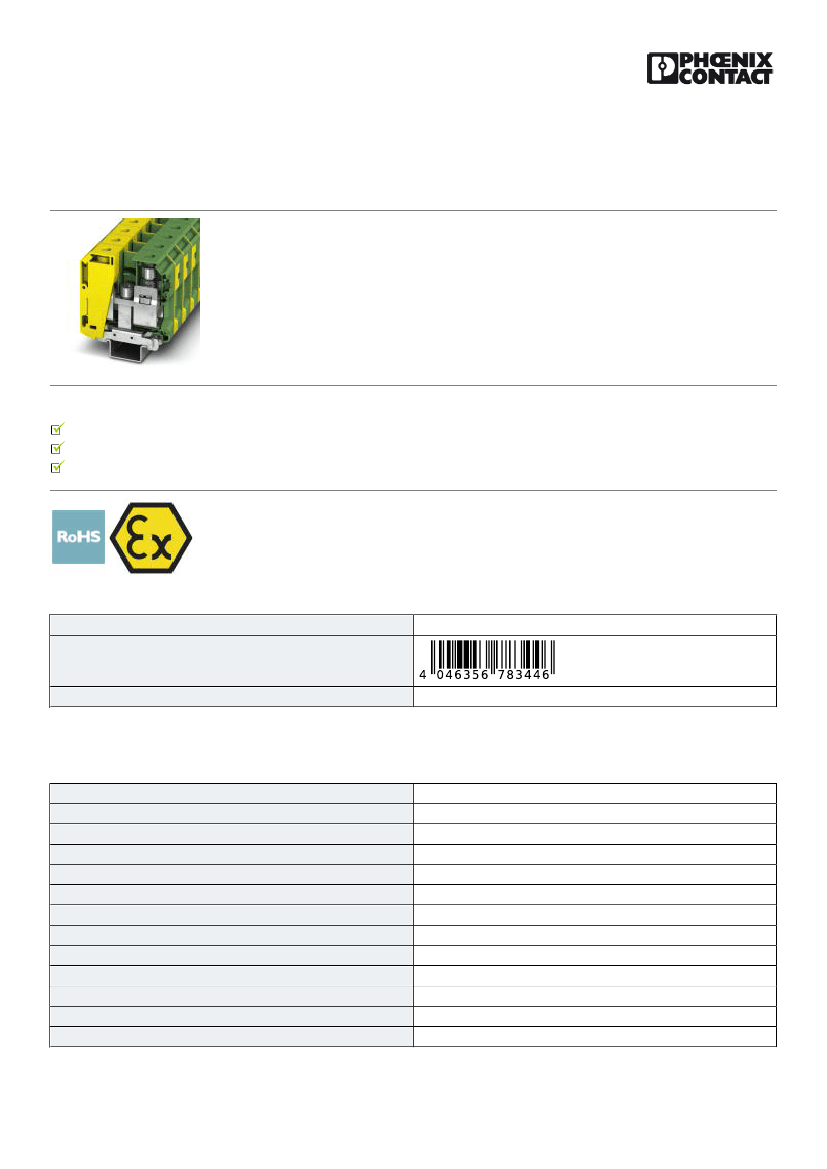

Ground modular terminal block - UKH 70-PE/S - 3213141
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Ground modular terminal block, connection method: Screw connection, number of connections: 2, number
of positions: 1, cross section:16 mm² - 95 mm², AWG: 4 - 3/0, width: 20.3 mm, color: green-yellow, mounting
type: NS 35/7,5, NS 35/15, NS 35/15-2,3, NS 32
Your advantages
Reliable cable connection is ensured by three-point centering of the conductor in the prismatic sleeve base
Low contact resistance of the contact surface due to ribbing
Screw locking by means of spring-loaded elements in the clamping part
Key Commercial Data
Packing unit
GTIN
GTIN
4046356783446
10 pc
Technical data
General
Number of positions
Number of levels
Number of connections
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
Open side panel
Terminal block mounting
1
1
2
70 mm²
green-yellow
PA
V0
8 kV
3
III
I
No
6 Nm ... 8 Nm (PE foot with mounting screw, M6)
10/28/2018 Page 1 / 5
https://www.phoenixcontact.com/pi/products/3213141
Ground modular terminal block - UKH 70-PE/S - 3213141
Technical data
General
Oscillation, broadband noise test result
Test specification, oscillation, broadband noise
Test spectrum
Test frequency
ASD level
Acceleration
Test duration per axis
Test directions
Shock test result
Test specification, shock test
Shock form
Acceleration
Shock duration
Number of shocks per direction
Test directions
Relative insulation material temperature index (Elec., UL 746 B)
Temperature index of insulation material (DIN EN 60216-1 (VDE
0304-21))
Static insulating material application in cold
Behavior in fire for rail vehicles (DIN 5510-2)
Flame test method (DIN EN 60695-11-10)
Oxygen index (DIN EN ISO 4589-2)
NF F16-101, NF F10-102 Class I
NF F16-101, NF F10-102 Class F
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
Calorimetric heat release NFPA 130 (ASTM E 1354)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
Test passed
DIN EN 50155 (VDE 0115-200):2008-03
Service life test category 1, class B, body mounted
f
1
= 5 Hz to f
2
= 150 Hz
1.857 (m/s ) /Hz
0,8 g
5h
X-, Y- and Z-axis
Test passed
DIN EN 50155 (VDE 0115-200):2008-03
Half-sine
5g
30 ms
3
X-, Y- and Z-axis (pos. and neg.)
130 °C
130 °C
-60 °C
Test passed
V0
>32 %
2
2
passed
passed
passed
28 MJ/kg
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
2 2
Dimensions
Width
Length
Height NS 35/15
20.3 mm
70.5 mm
87.5 mm
Connection data
Note
Connection method
Connection in acc. with standard
Please observe the current carrying capacity of the DIN rails.
Screw connection
IEC 60947-7-2
10/28/2018 Page 2 / 5
https://www.phoenixcontact.com/pi/products/3213141
Ground modular terminal block - UKH 70-PE/S - 3213141
Technical data
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Stripping length
Internal cylindrical gage
Screw thread
Tightening torque, min
Tightening torque max
16 mm²
95 mm²
4
3/0
25 mm²
70 mm²
3
2/0
16 mm²
16 mm²
70 mm²
24 mm
A11
M8
8 Nm
10 Nm
Conductor cross section flexible, with ferrule without plastic sleeve max. 70 mm²
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
IEC 60947-7-2
V0
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
Circuit diagram
Approvals
Approvals
Approvals
CSA / UL Recognized / cUL Recognized / EAC / cULus Recognized
10/28/2018 Page 3 / 5
https://www.phoenixcontact.com/pi/products/3213141
Ground modular terminal block - UKH 70-PE/S - 3213141
Approvals
Ex Approvals
IECEx / ATEX / UL Recognized / cUL Recognized / cULus Recognized
Approval details
CSA
mm²/AWG/kcmil
B
600 V
4
http://www.csagroup.org/services-industries/product-listing/
6
13631
UL Recognized
Nominal voltage UN
mm²/AWG/kcmil
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
C
600 V
4
FILE E 60425
cUL Recognized
Nominal voltage UN
mm²/AWG/kcmil
B
4
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
C
600 V
4
FILE E 60425
600 V
EAC
EAC-Zulassung
cULus Recognized
10/28/2018 Page 4 / 5
https://www.phoenixcontact.com/pi/products/3213141
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
10/28/2018 Page 5 / 5
