LC20G-101 1/300: DescriptionDC GEARED MOTOR 1/300 12VDC 0.98; CategoryTopical application Mechanical and electrical/engineering/automation; File Size48KB，2 Pages; ManufacturerNidec Copal Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

LC20G-101 1/300 Overview

DC GEARED MOTOR 1/300 12VDC 0.98

LC20G-101 1/300 Parametric

Parameter Name	Attribute value
type	DC
Function	Gear motor
Motor type	-
Voltage - Rated	12VDC
RPM	6000 RPM
Torque - Rating (oz-in / mNm)	3.47 / 24.5
Power - Rating	-
Encoder type	-
size/dimensions	Round - 0.787" diameter (20.00mm)
Diameter - Shaft	0.118"（3.00mm）
Length - Shaft and Bearings	0.276"（7.00mm）
Mounting hole spacing	0.205"（5.20mm）
Terminal type	screw terminal
characteristic	-
Gear reduction ratio	300
Torque - Instantaneous Maximum (oz-in / mNm)	-
Operating temperature	-
Approval	-
weight	0.133 pounds (60.33g)

Preview

Download Datasheet

View All

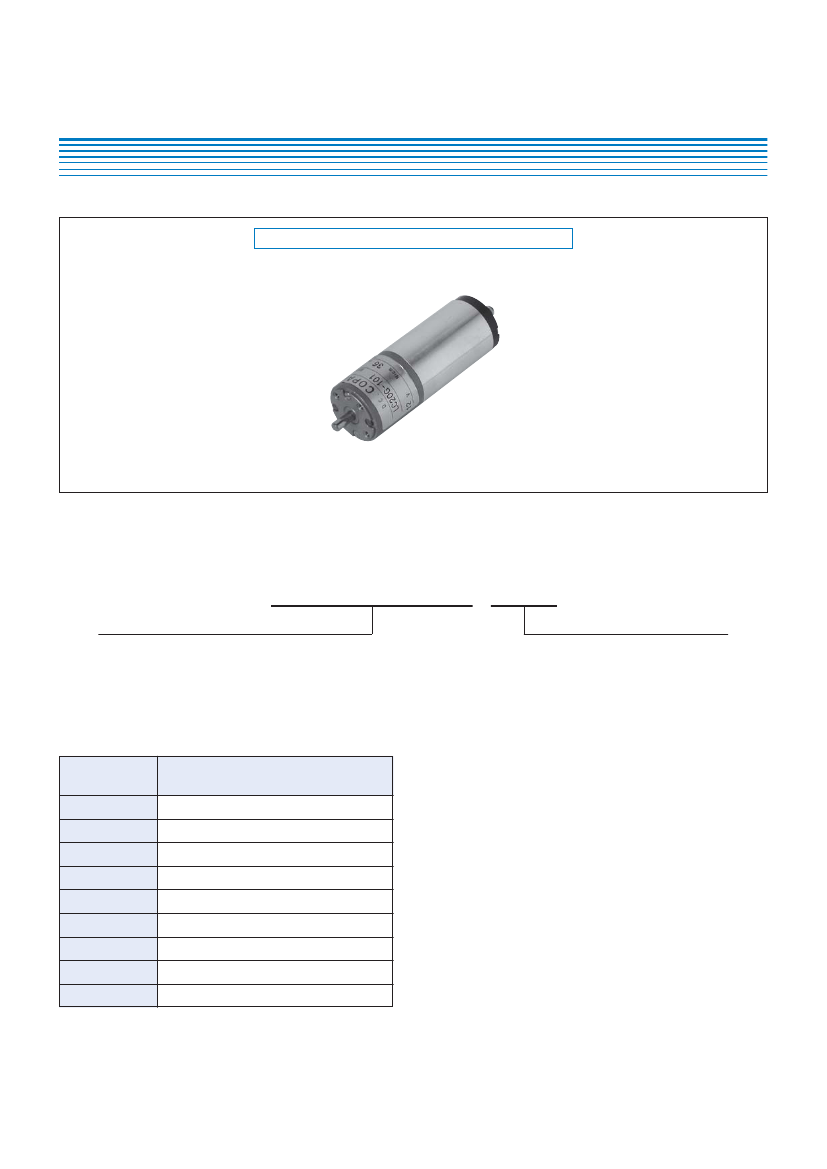

DC GEARED MOTORS

LC20G

RoHS compliant

Weight : approx. 60 g

■

PART NUMBER DESIGNATION

L C 2 0 G - 1 0 1 1/1 0

Series name

1/10

1/25

1/50

1/100

1/150

Gear ratio

1/300

1/500

1/1000

1/1500

■

LIST OF PART NUMBERS

Gear ratio

1/10

1/25

1/50

1/100

1/150

1/300

1/500

1/1000

1/1500

Part number

LC20G-101 1/10

LC20G-101 1/25

LC20G-101 1/50

LC20G-101 1/100

LC20G-101 1/150

LC20G-101 1/300

LC20G-101 1/500

LC20G-101 1/1000

LC20G-101 1/1500

※

Verify the above part numbers when placing orders.

LC20G-101 1/300 Related Products

	LC20G-101 1/300	LC20G-101 1/1000	LC20G-101 1/100	LC20G-101 1/150	LC20G-101 1/500	LC20G-101 1/1500	LC20G-101 1/25	LC20G-101 1/50	LC20G-101 1/10
Description	DC GEARED MOTOR 1/300 12VDC 0.98	DC GEARED MOTOR 1/1000 12VDC 0.9	DC GEARED MOTOR 1/100 12VDC 0.98	DC GEARED MOTOR 1/150 12VDC 0.98	DC GEARED MOTOR 1/500 12VDC 0.98	DC GEARED MOTOR 1/1500 12VDC 0.9	DC GEARED MOTOR 1/25 12VDC 0.98M	DC GEARED MOTOR 1/50 12VDC 0.98M	DC GEARED MOTOR 1/10 12VDC 0.98M
type	DC	DC	DC	DC	DC	DC	DC	DC	DC
Function	Gear motor	Gear motor	Gear motor	Gear motor	Gear motor	Gear motor	Gear motor	Gear motor	Gear motor
Voltage - Rated	12VDC	12VDC	12VDC	12VDC	12VDC	12VDC	12VDC	12VDC	12VDC
RPM	6000 RPM	6000 RPM	6000 RPM	6000 RPM	6000 RPM	6000 RPM	6000 RPM	6000 RPM	6000 RPM
Torque - Rating (oz-in / mNm)	3.47 / 24.5	3.47 / 24.5	2.08 / 14.7	2.08 / 14.7	3.47 / 24.5	3.47 / 24.5	1.11 / 7.8	1.39 / 9.8	0.69 / 4.9
size/dimensions	Round - 0.787" diameter (20.00mm)	Round - 0.787" diameter (20.00mm)	Round - 0.787" diameter (20.00mm)	Round - 0.787" diameter (20.00mm)	Round - 0.787" diameter (20.00mm)	Round - 0.787" diameter (20.00mm)	Round - 0.787" diameter (20.00mm)	Round - 0.787" diameter (20.00mm)	Round - 0.787" diameter (20.00mm)
Diameter - Shaft	0.118"（3.00mm）	0.118"（3.00mm）	0.118"（3.00mm）	0.118"（3.00mm）	0.118"（3.00mm）	0.118"（3.00mm）	0.118"（3.00mm）	0.118"（3.00mm）	0.118"（3.00mm）
Length - Shaft and Bearings	0.276"（7.00mm）	0.276"（7.00mm）	0.276"（7.00mm）	0.276"（7.00mm）	0.276"（7.00mm）	0.276"（7.00mm）	0.276"（7.00mm）	0.276"（7.00mm）	0.276"（7.00mm）
Mounting hole spacing	0.205"（5.20mm）	0.205"（5.20mm）	0.205"（5.20mm）	0.205"（5.20mm）	0.205"（5.20mm）	0.205"（5.20mm）	0.205"（5.20mm）	0.205"（5.20mm）	0.205"（5.20mm）
Terminal type	screw terminal	screw terminal	screw terminal	screw terminal	screw terminal	screw terminal	screw terminal	screw terminal	screw terminal
Gear reduction ratio	300	1000	100	150	500	1500	25	50	10
weight	0.133 pounds (60.33g)	0.133 pounds (60.33g)	0.133 pounds (60.33g)	0.133 pounds (60.33g)	0.133 pounds (60.33g)	0.133 pounds (60.33g)	0.133 pounds (60.33g)	0.133 pounds (60.33g)	0.133 pounds (60.33g)
