3266-20-1-0500-001-1-TS datasheet, PDF

Datasheet> All Categories > Wire/cable> 3266-20-1-0500-001-1-TS

3266-20-1-0500-001-1-TS: DescriptionHOOK-UP STRND 20AWG BLACK 500'; CategoryWire/cable; File Size172KB，1 Pages; ManufacturerCNC Tech; Environmental Compliance

Download Datasheet Parametric Compare View All

3266-20-1-0500-001-1-TS Overview

HOOK-UP STRND 20AWG BLACK 500'

3266-20-1-0500-001-1-TS Parametric

Parameter Name	Attribute value
Cable type	electronic wire
Wire gauge	20 AWG
Number of wire strands	21/0.0071"
conductor material	Copper, tin plated
Sheath (insulation) material	Polyethylene (XLPE), irradiated
Sheath (insulation) diameter	0.073"（1.85mm）
Sheath (insulation) thickness	0.015"（0.38mm）
length	500.0'（152.4m）
Voltage	300V
Operating temperature	-10°C ~ 125°C
Casing color	black
grade	UL type 3266
characteristic	Oil resistant

Preview

Download Datasheet

View All

P/N 3266-20-1-0500-0XX-1-TS

Conductor: Tinned Strands

(Conductor: Tinned strands)

Insulation: XLPE

(Insulation: Silicone Rubber)

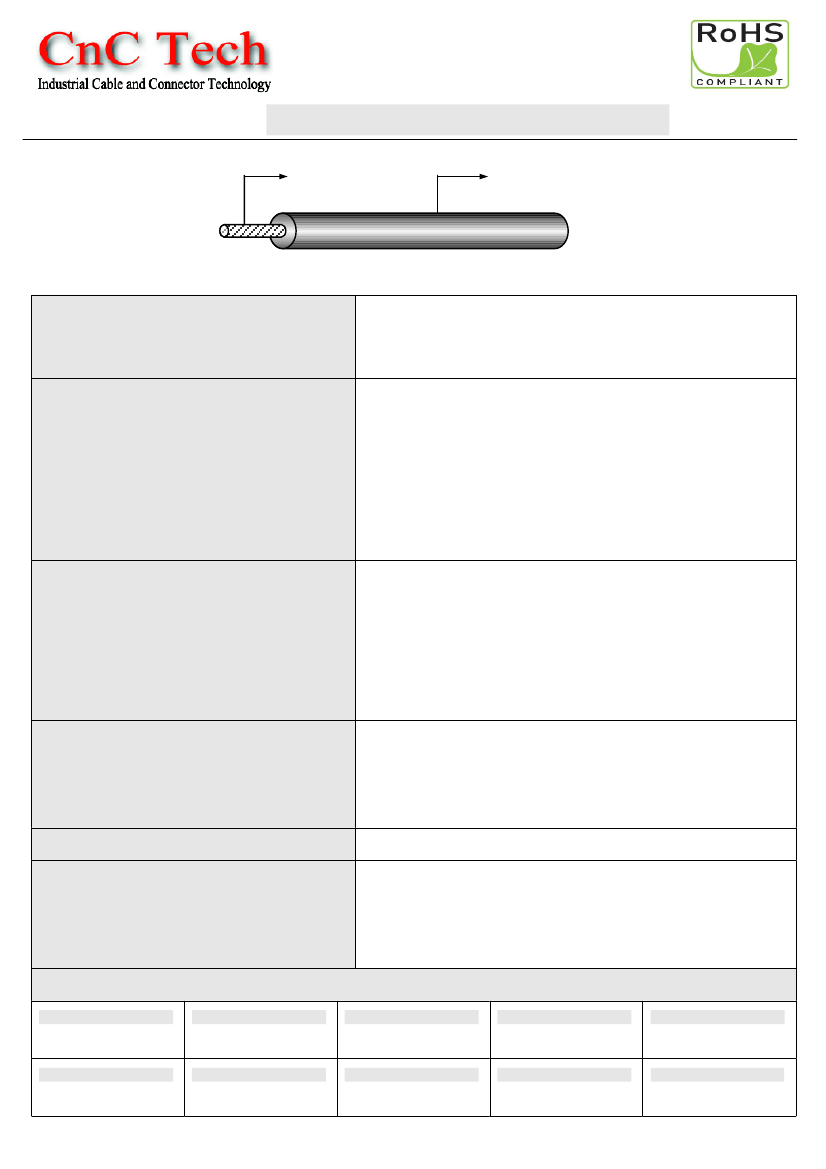

UL3266 XLPE Wire 125°C 300V (20AWG)

CONSTRUCTION:

Tinned Strands, copper conductor, 21/0.180mm strands.

Overall Diameter=1.85+/-0.10mm

Insulation Thickness: 0.38mm

DUAL-RATED AWM: Can be used in USA and Canada

UL Subject 758 UL FILE NO:E108485

CSA Standard CSA FILE NO:LL84687

Printed Markings:

AWG 3266 105°C 300V E108485-S ( )AWG -H- REI HSING

CSA AWM I A 125° 300V LL84687 ()AWG FT2 HF

CERTIFICATION & APPROVALS:

PHYSICAL

ELECTRICAL PROPERTIES:

Rated Temperature: 125

℃

~ -10

℃

Rated Voltage: 300V

Insulation Potential Strength: 2000 VAC/min.

Flexibility: XLPE Insulation

Maximum Conductor Resistance: 39.5 ohm/km

Resistant to: Oil, hot & cold, lighter, flexing.

APPLICATIONS:

XLPE Wire, pass FT2 flame test

Halogen Free (Cl, Br </=900ppm each, CL+BL </=1500 ppm in total)

Suitable for internal wires of household appliance,

headlamp, mechanical etc.

PACKAGING:

ENVIRONMENTAL APPROVALS:

500ft per reel.

Conforms to all current RoHS directives as laid out in EU

Directive 2011/65/EC.

Current SGS reports for this wire are available upon

request.

P/N's & COLORS

3266-20-1-0500-001-1-TS

3266-20-1-0500-002-1-TS

3266-20-1-0500-003-1-TS

3266-20-1-0500-004-1-TS

3266-20-1-0500-005-1-TS

BLACK

3266-20-1-0500-006-1-TS

WHITE

3266-20-1-0500-007-1-TS

YELLOW

3266-20-1-0500-008-1-TS

RED

3266-20-1-0500-010-1-TS

BLUE

3266-20-1-0500-011-1-TS

BROWN

GREEN

ORANGE

VIOLET

GREEN + YELLOW

3266-20-1-0500-001-1-TS Related Products

	3266-20-1-0500-001-1-TS	3266-20-1-0500-006-1-TS	3266-20-1-0500-011-1-TS	3266-20-1-0500-003-1-TS	3266-20-1-0500-005-1-TS	3266-20-1-0500-008-1-TS	3266-20-1-0500-010-1-TS	3266-20-1-0500-002-1-TS	3266-20-1-0500-004-1-TS	3266-20-1-0500-007-1-TS
Description	HOOK-UP STRND 20AWG BLACK 500'	HOOK-UP STRND 20AWG BROWN 500'	HOOK-UP STRND 20AWG GRN/YEL 500'	HOOK-UP STRND 20AWG YELLOW 500'	HOOK-UP STRND 20AWG BLUE 500'	HOOK-UP STRND 20AWG ORANGE 500'	HOOK-UP STRND 20AWG VIOLET 500'	HOOK-UP STRND 20AWG WHITE 500'	HOOK-UP STRND 20AWG RED 500'	HOOK-UP STRND 20AWG GREEN 500'
Cable type	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire
Wire gauge	20 AWG	20 AWG	20 AWG	20 AWG	20 AWG	20 AWG	20 AWG	20 AWG	20 AWG	20 AWG
Number of wire strands	21/0.0071"	21/0.0071"	21/0.0071"	21/0.0071"	21/0.0071"	21/0.0071"	21/0.0071"	21/0.0071"	21/0.0071"	21/0.0071"
conductor material	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated
Sheath (insulation) material	Polyethylene (XLPE), irradiated	Polyethylene (XLPE), irradiated	Polyethylene (XLPE), irradiated	Polyethylene (XLPE), irradiated	Polyethylene (XLPE), irradiated	Polyethylene (XLPE), irradiated	Polyethylene (XLPE), irradiated	Polyethylene (XLPE), irradiated	Polyethylene (XLPE), irradiated	Polyethylene (XLPE), irradiated
Sheath (insulation) diameter	0.073"（1.85mm）	0.073"（1.85mm）	0.073"（1.85mm）	0.073"（1.85mm）	0.073"（1.85mm）	0.073"（1.85mm）	0.073"（1.85mm）	0.073"（1.85mm）	0.073"（1.85mm）	0.073"（1.85mm）
Sheath (insulation) thickness	0.015"（0.38mm）	0.015"（0.38mm）	0.015"（0.38mm）	0.015"（0.38mm）	0.015"（0.38mm）	0.015"（0.38mm）	0.015"（0.38mm）	0.015"（0.38mm）	0.015"（0.38mm）	0.015"（0.38mm）
length	500.0'（152.4m）	500.0'（152.4m）	500.0'（152.4m）	500.0'（152.4m）	500.0'（152.4m）	500.0'（152.4m）	500.0'（152.4m）	500.0'（152.4m）	500.0'（152.4m）	500.0'（152.4m）
Voltage	300V	300V	300V	300V	300V	300V	300V	300V	300V	300V
Operating temperature	-10°C ~ 125°C	-10°C ~ 125°C	-10°C ~ 125°C	-10°C ~ 125°C	-10°C ~ 125°C	-10°C ~ 125°C	-10°C ~ 125°C	-10°C ~ 125°C	-10°C ~ 125°C	-10°C ~ 125°C
Casing color	black	brown	green,yellow	yellow	blue	orange color	Purple	White	red	green
grade	UL type 3266	UL type 3266	UL type 3266	UL type 3266	UL type 3266	UL type 3266	UL type 3266	UL type 3266	UL type 3266	UL type 3266
characteristic	Oil resistant	Oil resistant	Oil resistant	Oil resistant	Oil resistant	Oil resistant	Oil resistant	Oil resistant	Oil resistant	Oil resistant
