EVAL-L99DZ100G,
EVAL-L99DZ120

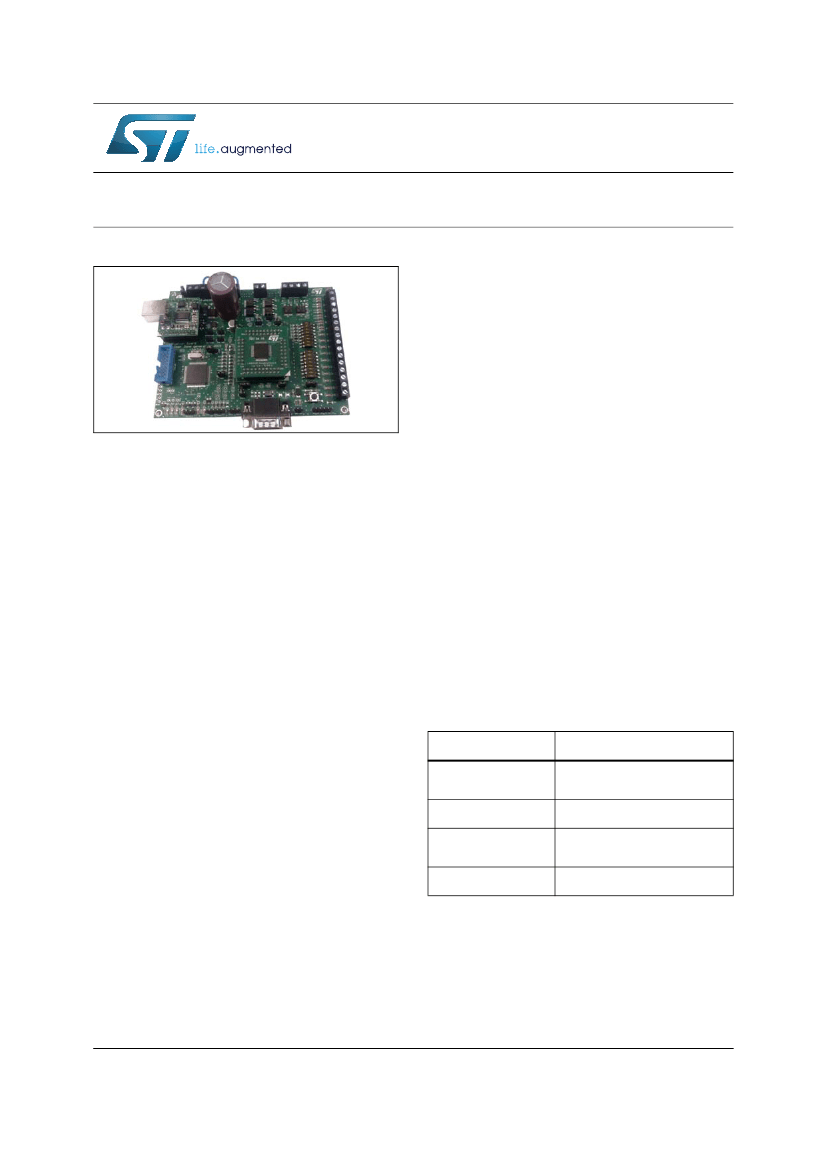

L99DZ100G, L99DZ120 Evaluation Board
value (for OUT1-6, OUT7, OUT8 and
OUT_HS) with thermal expiration feature
Control block for electro-chromic element (not
present in L99DZ120)
Two 5 V voltage regulators for microcontroller
and peripheral supply
Configurable window watchdog
LIN 2.2a compliant (SAEJ2602 compatible)
transceiver
Data brief
Features
1 half bridge for 7.5 A load (RON = 100 m
Ω
)
1 half bridge for 7.5 A load (RON = 150 m
Ω
)
2 half bridges for 0.5 A load (RON = 2000 m
Ω
)
(not present in L99DZ120)
2 half bridges for 3 A load (RON = 300 m
Ω
)
1 configurable high-side driver for up to 1.5 A
(RON = 500
mΩ)
or 0.35 A (RON = 1600 m
Ω
)
load
1 configurable high-side driver for 0.8 A (RON
= 800
mΩ)
or 0.35 A (RON = 1600 m
Ω)
load
3 configurable high-side drivers for 0.15 A/0.35
A (RON =2
Ω
)
1 configurable high-side driver for 0.25 A/0.5 A
(RON = 2
Ω
) to supply EC Glass MOSFET (not
present in L99DZ120)
4 configurable HS drivers for 0.15A/0.25A
(RON = 5
Ω
)
Internal 10bit PWM timer for each stand-alone
HS driver
Buffered supply for voltage regulators and 2
high-side drivers (OUT15 & OUT_HS / both
P-channel) to supply e.g. external contacts
Programmable soft-start function to drive loads
with higher inrush currents as current limitation
Advanced high speed CAN transceiver (ISO
11898-2:2003 /-5:2007 and SAE J2284
compliant) with local failure and bus failure
diagnosis and selective wake-up functionality
according to ISO 11898-6:2013 (not present in
L99DZ120)
Separated (Isolated) fail-safe block with 2 LS
(RON = 1
mΩ)
to pull down the gates of the
external HS MOSFETs
Thermal clusters
A/D conversion of supply voltages and internal
temperature sensors
Embedded and programmable VS duty cycle
adjustment for LED driver outputs
Table 1. Device summary
Order code
EVAL-L99DZ100G
Reference
L99DZ100G Mother and
Daughter Board
EVAL-D-L99DZ100G L99DZ100G Daughter Board
EVAL-L99DZ120
EVAL-D-L99DZ120
L99DZ120 Mother and
Daughter Board
L99DZ120 Daughter Board
December 2017
DocID031320 Rev 1
1/14
www.st.com
For further information contact your local STMicroelectronics sales office.
Contents
EVAL-L99DZ100G, EVAL-L99DZ120
Contents
1
2
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Application schematics and layouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.1
L99DZ100G motherboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3
4
L99DZ100G daughterboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Demonstration software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.1
System requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5
Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2/14
DocID031320 Rev 1
EVAL-L99DZ100G, EVAL-L99DZ120
List of tables
List of tables
Table 1.
Table 2.
Device summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Document revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
DocID031320 Rev 1
3/14
3
List of figures
EVAL-L99DZ100G, EVAL-L99DZ120
List of figures
Figure 1.
Figure 2.
Figure 3.
Figure 4.
Figure 5.
Figure 6.
Figure 7.
L99DZ100G motherboard top layer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
L99DZ100G motherboard bottom layer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Motherboard typical application diagram example (1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Motherboard typical application diagram example (2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
L99DZ100G Daughterboard top layer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
L99DZ100G Daughterboard bottom layer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
L99DZ100G Daughterboard typical application example . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4/14
DocID031320 Rev 1
EVAL-L99DZ100G, EVAL-L99DZ120
Description
1
Description
The EVAL-L99DZ100G and EVAL-L99DZ120 are evaluation boards designed for Door Zone
Applications. Both are composed by the same motherboard and they differentiate for the
daughter board on which is pre-assembled the L99DZ100G in the EVAL-L99DZ100G case
(conceived for front door application) or the L99DZ120 in the EVAL-L99DZ120 case
(conceived for rear door applications).
The motherboard, based on STM8 microcontroller, provides the logic section for monitoring
and driving the L99DZ100G or the L99DZ120 assembled in the daughterboard.
With aim of making the board usage and settings simpler, ST provides a dedicated and a
user-friendly software with a Graphic User Interface (GUI). This enables the user to set
L99DZ100G or L99DZ120 parameters and at the same time it shows real time device
diagnostic information as the current output evolution, the battery voltage monitoring, the
board temperature and much more.
