FHQ69273CD-518VC5 datasheet, PDF

Datasheet> All Categories > Topical application> Wireless rf/communication> FHQ69273CD-518VC5

FHQ69273CD-518VC5: DescriptionRF ANT 405/829MHZ MODULE RP-SMA; CategoryTopical application Wireless rf/communication; File Size341KB，2 Pages; ManufacturerLaird Technologies

Download Datasheet Parametric Compare View All

FHQ69273CD-518VC5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FHQ69273CD-518VC5	-	-	View	Buy Now

FHQ69273CD-518VC5 Overview

RF ANT 405/829MHZ MODULE RP-SMA

FHQ69273CD-518VC5 Parametric

Parameter Name	Attribute value
frequency group	broadband
Frequency (center/band)	405MHz，829MHz，2.2GHz，5.4GHz
Frequency Range	380MHz ~ 430MHz，698MHz ~ 960MHz，1.71GHz ~ 2.7GHz，4.9GHz ~ 5.875GHz
Antenna type	module
Number of frequency bands	4
VSWR	1.5
Return loss	-
Gain	7.8dB
Power - Max	10W
characteristic	-
Termination	Connector, RP-SMA male, SMA male
Intrusion protection	IP67
Installation type	Panel mounting
Height (maximum value)	6.299"（160.00 mm）
application	GPS，LTE，WLAN

Preview

Download Datasheet

View All

Phantom Fin Multiband

Roof Mount Antenna

PHANTOM FIN

4G/LTE, GPS, UHF & WLAN

ROOF MOUNT ANTENNA

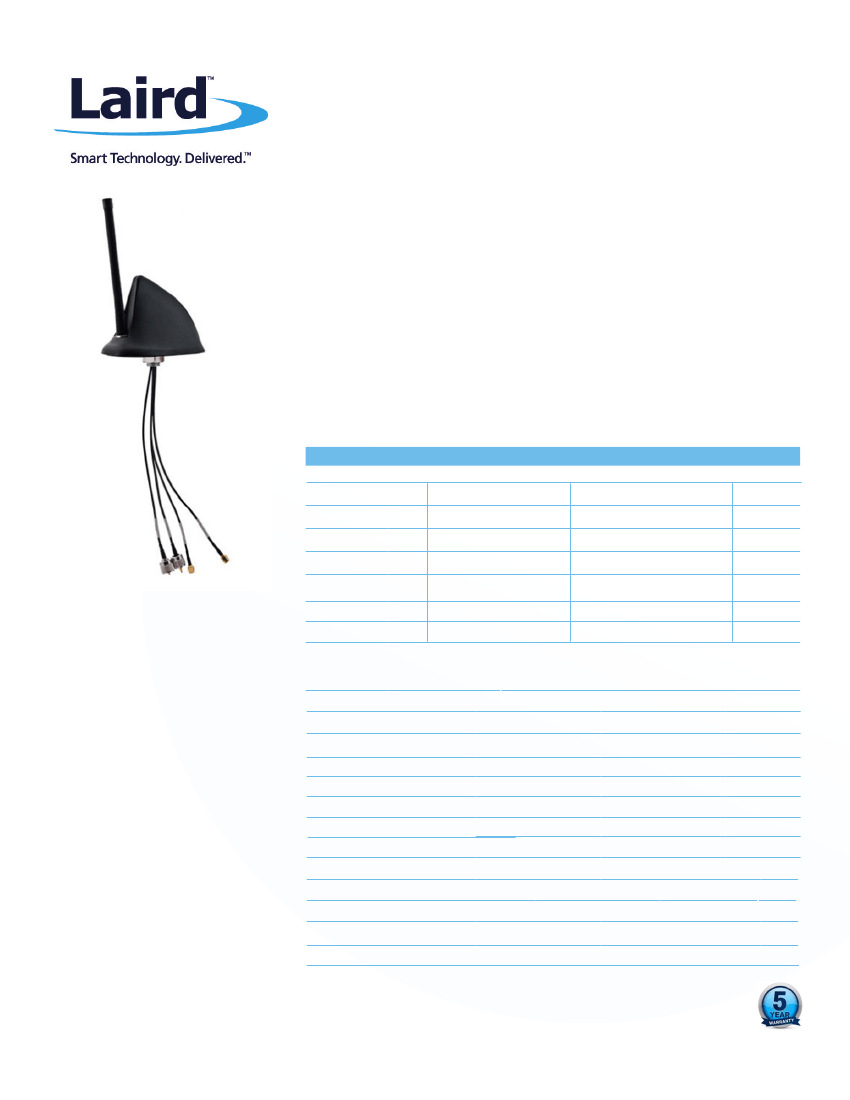

The Laird Phantom Fin multiband antenna provides an excellent solution for the public safety,

transportation and after market fleet applications. The Phantom Fin requires only (1) one single

hole

mount/fixing

which reduces vehicle damage, cost of installation and visual impact. The

Phantom Fin design provides multiple antenna functions while remaining discrete. The Phantom

Fin multiband antenna integrates 4G/LTE, GPS, UHF and WLAN frequency operation into one

aerodynamic housing.

FHQ69273CD

FEATURES

• One (1) single hole

mount/fixing

which reduces

vehicle damage

and

cost of installation.

• Attractive,

IP67 rated

aerodynamic housing excellent

for overt and/or discrete installations.

•

Multiband 4G/LTE,GPS,UHF,

and

WLAN frequency operation.

MARKETS

•

Public Safety

Transportation

Aftermarket Fleet

Land Mobile Radio

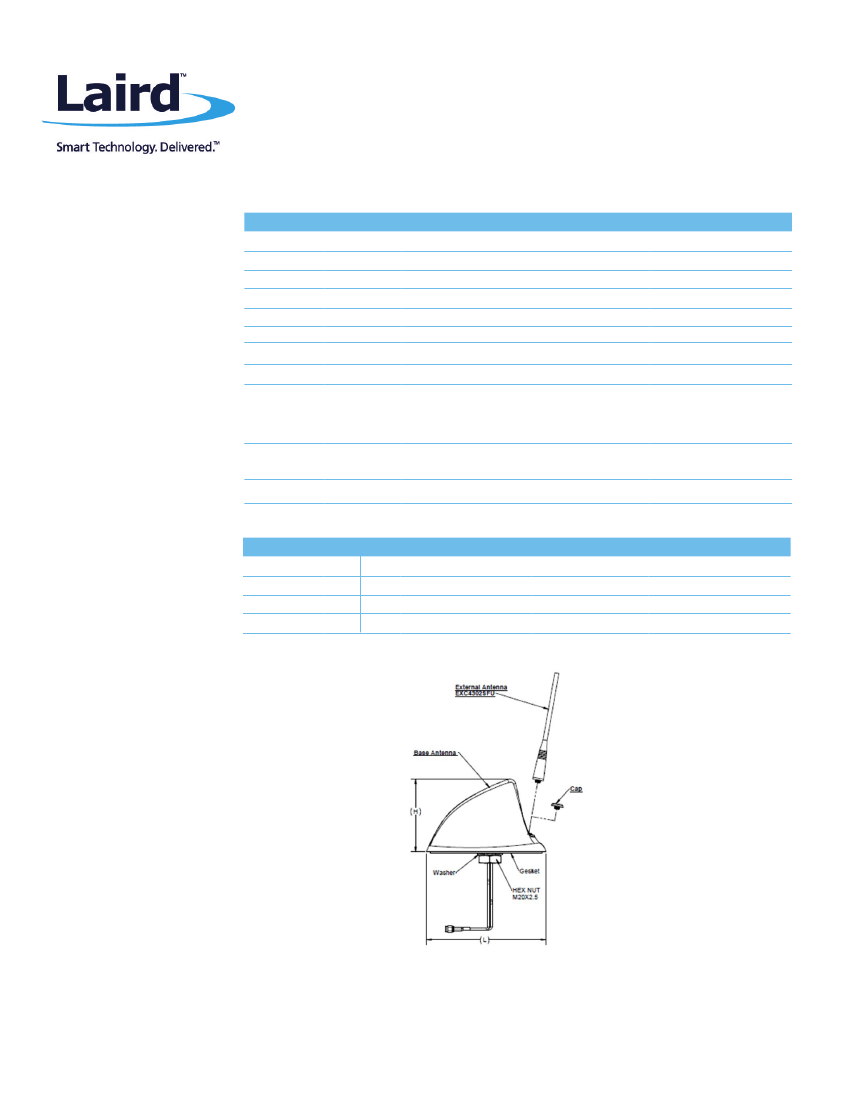

SPECIFICATIONS

PARAMETER

Antenna Model / No. of Ports:

Port ID

Frequency Bands, MHz

Peak Gain, Typical dBi

Peak Gain, Maximum dBi

Patent Pending

PERFORMANCE

FHQ69273CD

4G/LTE Port

4 ports

WiFi Port

UHF Port

698-960 MHz

1710-2700 MHz

2400-2500

MHz 4900-5875 MHz

380-430

MHz

3.4 dBi

4.0 dBi

N/A

< 1.9:1

< 2.0:1

5.5 dBi

6.4

dBi

N/A

< 1.5:1

< 2.0:1

6.6 dBi

7.1 dBi

N/A

< 1.3:1

< 2.0:1

6.2 dBi

7.8

dBi

4.1

dBi

< 1.3:1

< 2.0:1

2.0 dBi

2.6 dBi

N/A

< 1.6:1

< 2.0:1

Max

Gain

± 30°

Above Horizon, dBi

VSWR*, Typical

VSWR*,

Max

Port-to-Port

Isolation,

Maximum (Typical)

Nominal Impedance

Polarization

Azimuth Beam Width

Input Power, Max

Operating Temparture

Storage Temparture

Dimensions mm (inches)

Weight

Kg (lbs.)

Cable

Radome Material

Baseplate Material

UHF-LTE > 15 dB (18 dB)

UHF-WiFi > 20 dB (31 dB)

LTE-WiFi > 20 dB (23 dB)

50 Ohms

Vertical Linear

Omnidirectional

10 watt (ambient temp. of 25°C / 77°F

- 30°C to + 70°C ( - 22°F to + 158°F )

- 40°C to + 85°C ( - 40°F to + 185°F )

98 x 70 x 160 ( 3.9"x 2.7" x 6.30")

Approximately 0.52 Kg (1.15 lbs.)

LMR-100 ( 5.18 m / 17 ft.)

PC/ASA (Black)

Aluminum

RoHS

Compliant

IP67

Americas: +1.847 839.6925

IAS-AmericasEastSales@lairdtech.com

Europe: +44.(0).1628.858941

IAS-EUSales@lairdtech.com

Asia: IAS-AsiaSales@lairdtech.com

Material Compliance

Dust & Water Ingress

Rating

www.lairdtech.com

Laird warrants to the original end user customer of its products that its products are free from defects in material and

workmanship. Subject to conditions and limitations Laird will, at its option, either repair or replace any part of its products

that prove defective by reason of improper workmanship or materials.

This limited warranty is in force for the useful

lifetime of the original end product into which the Laird product is installed. Useful lifetime of the original end product may

vary but is not to exceed five (5) years from the original date of the end product purchase.

FHQ69273CD-518VC5 Related Products

	FHQ69273CD-518VC5	FHQ69273CD-518VC4	FHQ69273CD-518VC6	FHQ69273CD-518VC3
Description	RF ANT 405/829MHZ MODULE RP-SMA	RF ANT 405MHZ/829MHZ MODULE FME	RF ANT 405MHZ/829MHZ MODULE FME	RF ANT 405MHZ/829MHZ MODULE SMA
frequency group	broadband	broadband	broadband	broadband
Frequency (center/band)	405MHz，829MHz，2.2GHz，5.4GHz	405MHz，829MHz，2.2GHz，5.4GHz	405MHz，829MHz，2.2GHz，5.4GHz	405MHz，829MHz，2.2GHz，5.4GHz
Frequency Range	380MHz ~ 430MHz，698MHz ~ 960MHz，1.71GHz ~ 2.7GHz，4.9GHz ~ 5.875GHz	380MHz ~ 430MHz，698MHz ~ 960MHz，1.71GHz ~ 2.7GHz，4.9GHz ~ 5.875GHz	380MHz ~ 430MHz，698MHz ~ 960MHz，1.71GHz ~ 2.7GHz，4.9GHz ~ 5.875GHz	380MHz ~ 430MHz，698MHz ~ 960MHz，1.71GHz ~ 2.7GHz，4.9GHz ~ 5.875GHz
Antenna type	module	module	module	module
Number of frequency bands	4	4	4	4
VSWR	1.5	1.5	1.5	1.5
Gain	7.8dB	7.8dB	7.8dB	7.8dB
Power - Max	10W	10W	10W	10W
Termination	Connector, RP-SMA male, SMA male	Connector, FME male, SMA male	Connector, FME male, RP-SMA male, SMA male	Connector, SMA male
Intrusion protection	IP67	IP67	IP67	IP67
Installation type	Panel mounting	Panel mounting	Panel mounting	Panel mounting
Height (maximum value)	6.299"（160.00 mm）	6.299"（160.00 mm）	6.299"（160.00 mm）	6.299"（160.00 mm）
application	GPS，LTE，WLAN	GPS，LTE，WLAN	GPS，LTE，WLAN	GPS，LTE，WLAN
