FHQ69273CE-518VC4

Description
RF ANT 475MHZ/829MHZ MODULE FME
CategoryTopical application    Wireless rf/communication
File Size339KB,2 Pages
ManufacturerLaird Technologies
Download Datasheet Parametric Compare View All

FHQ69273CE-518VC4 Online Shopping

Suppliers Part Number Price MOQ In stock
FHQ69273CE-518VC4 - - View Buy Now

FHQ69273CE-518VC4 Overview

RF ANT 475MHZ/829MHZ MODULE FME

FHQ69273CE-518VC4 Parametric

Parameter NameAttribute value
frequency groupbroadband
Frequency (center/band)475MHz,829MHz,2.2GHz,5.4GHz
Frequency Range430MHz ~ 520MHz,698MHz ~ 960MHz,1.71GHz ~ 2.7GHz,4.9GHz ~ 5.875GHz
Antenna typemodule
Number of frequency bands4
VSWR2
Return loss-
Gain8.2dB
Power - Max10W
characteristic-
TerminationConnector, FME male, SMA male
Intrusion protectionIP67
Installation typePanel mounting
Height (maximum value)6.299"(160.00 mm)
applicationGPS,LTE,WLAN
Phantom Fin Multiband
Roof Mount Antenna
FHQ69273CE
PHANTOM FIN
4G/LTE, GPS, UHF & WLAN
ROOF MOUNT ANTENNA

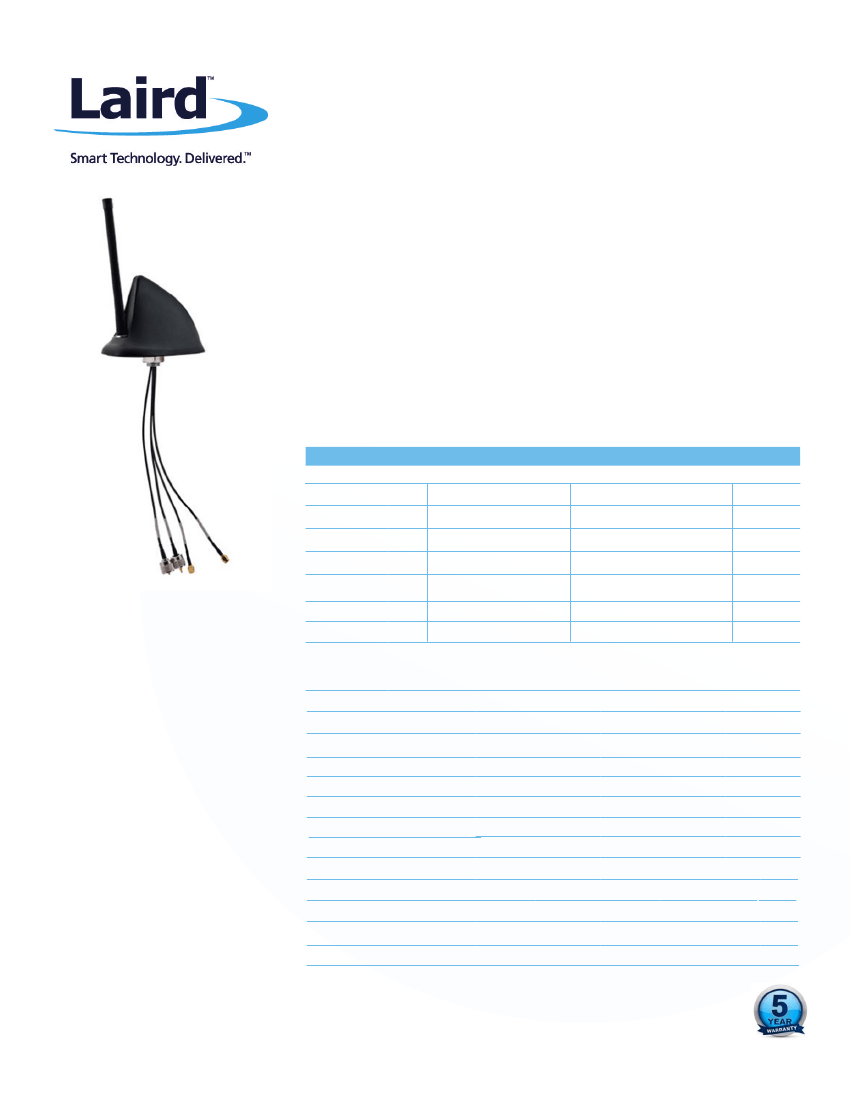

The Laird Phantom Fin multiband antenna provides an excellent solution for the public safety,
transportation and after market fleet applications. The Phantom Fin requires only (1) one single
hole
mount/fixing
which reduces vehicle damage, cost of installation and visual impact. The
Phantom Fin design provides multiple antenna functions while remaining discrete. The Phantom
Fin multiband antenna integrates 4G/LTE, GPS, UHF and WLAN frequency operation into one
aerodynamic housing.
FEATURES
• One (1) single hole
mount/fixing
which reduces
vehicle damage
and
cost of installation.
• Attractive
IP67
aerodynamic housing excellent
for overt and/or discrete installations.
Multiband 4G/LTE,GPS,UHF,
and
WLAN frequency operation.
MARKETS
Public Safety
Transportation
Aftermarket Fleet
Land Mobile Radio

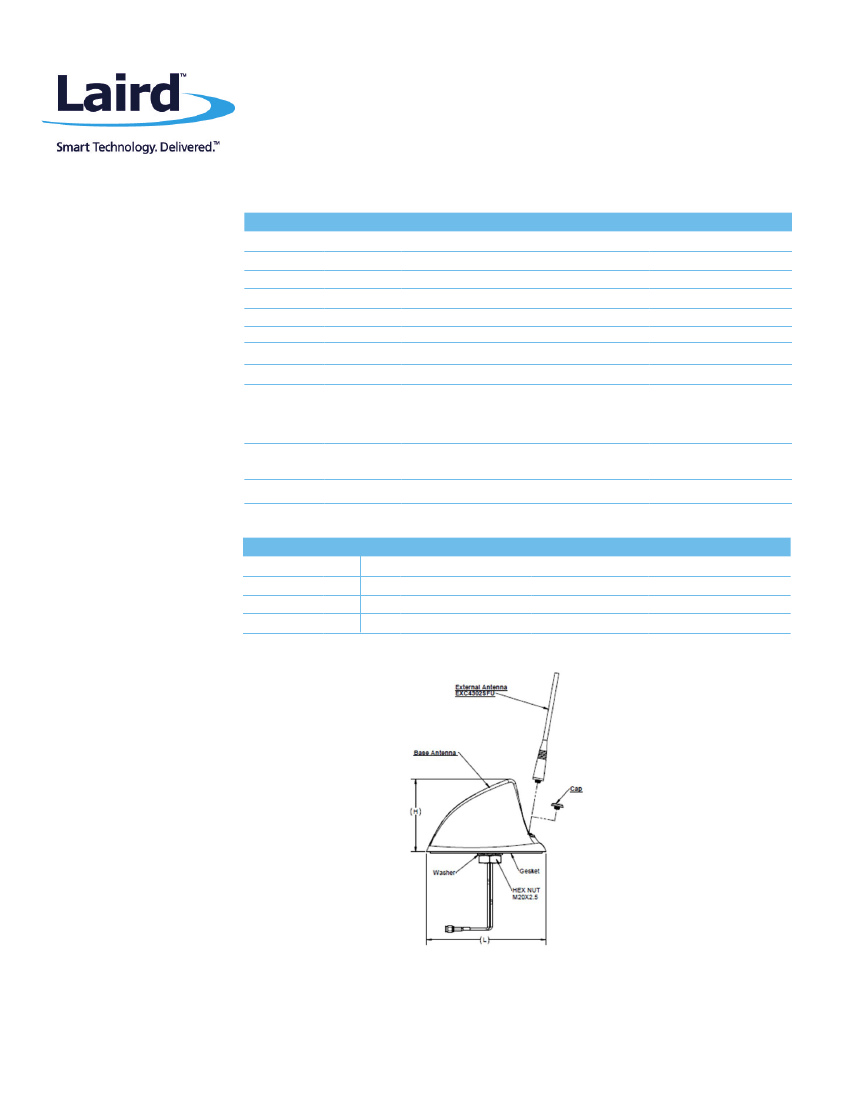

SPECIFICATIONS
PARAMETER
Antenna Model / No. of Ports:
Port ID
Frequency Bands, MHz
Peak Gain, Typical dBi
Peak Gain, Maximum dBi
Patent Pending
PERFORMANCE
FHQ69273CE
4G/LTE Port
4 ports
WiFi Port
UHF Port
698-960 MHz
1710-2700 MHz
2400-2500
MHz 4900-5875 MHz
430-520 MHz
3.5 dBi
4.1 dBi
N/A
< 1.8:1
< 2.0:1
5.4 dBi
7.1 dBi
N/A
< 1.4:1
< 2.0:1
UHF-LTE
UHF-WiFi
LTE-WiFi
50 Ohms
Vertical Linear
Omnidirectional
10 watt (ambient temp. of 25°C / 77°F
- 30°C to + 70°C ( - 22°F to + 158°F )
- 40°C to + 85°C ( - 40°F to + 185°F )
98 x 70 x 160 ( 3.9"x 2.7" x 6.30")
Approximately 0.52 Kg (1.15 lbs.)
LMR-100 ( 5.18 m / 17 ft.)
PC/ASA (Black)
Aluminum
RoHS
Compliant
IP67
6.5 dBi
7.3 dBi
N/A
< 1.3:1
< 2.0:1
6.5 dBi
8.2 dBi
3.6 dBi
< 1.3:1
< 2.0:1
2.1 dBi
2.5 dBi
N/A
< 1.7:1
< 2.0:1
Max
Gain
± 30°
Above Horizon, dBi
VSWR*, Typical
VSWR*,
Max
Port-to-Port
Isolation,
Maximum (Typical)
Nominal Impedance
Polarization
Azimuth Beam Width
Input Power, Max
Operating Temparture
Storage Temparture
Dimensions mm (inches)
Weight
Kg (lbs.)
Cable
Radome Material
Baseplate Material
> 15 dB (15 dB)
> 20 dB (35 dB)
> 20 dB (22 dB)
Americas: +1.847 839.6925
IAS-AmericasEastSales@lairdtech.com
Europe: +44.(0).1628.858941
IAS-EUSales@lairdtech.com
Asia: IAS-AsiaSales@lairdtech.com
Material Compliance
IP
Dust & Water Ingress
Rating
www.lairdtech.com
Laird warrants to the original end user customer of its products that its products are free from defects in material and
workmanship. Subject to conditions and limitations Laird will, at its option, either repair or replace any part of its products
that prove defective by reason of improper workmanship or materials.
This limited warranty is in force for the useful
lifetime of the original end product into which the Laird product is installed. Useful lifetime of the original end product may
vary but is not to exceed five (5) years from the original date of the end product purchase.
