1430-18-1-0500-010-1-TS datasheet, PDF

Datasheet> All Categories > Wire/cable> 1430-18-1-0500-010-1-TS

1430-18-1-0500-010-1-TS: DescriptionHOOK-UP STRND 18AWG VIOLET 500'; CategoryWire/cable; File Size173KB，1 Pages; ManufacturerCNC Tech; Environmental Compliance

Download Datasheet Parametric Compare View All

1430-18-1-0500-010-1-TS Overview

HOOK-UP STRND 18AWG VIOLET 500'

1430-18-1-0500-010-1-TS Parametric

Parameter Name	Attribute value
Cable type	electronic wire
Wire gauge	18 AWG
Number of wire strands	34/0.0071"
conductor material	Copper, tin plated
Sheath (insulation) material	Polyvinyl chloride (XLPVC), irradiated
Sheath (insulation) diameter	0.081"（2.06mm）
Sheath (insulation) thickness	0.015"（0.38mm）
length	500.0'（152.4m）
Voltage	300V
Operating temperature	-10°C ~ 105°C
Casing color	Purple
grade	UL Type 1430
characteristic	Oil resistant

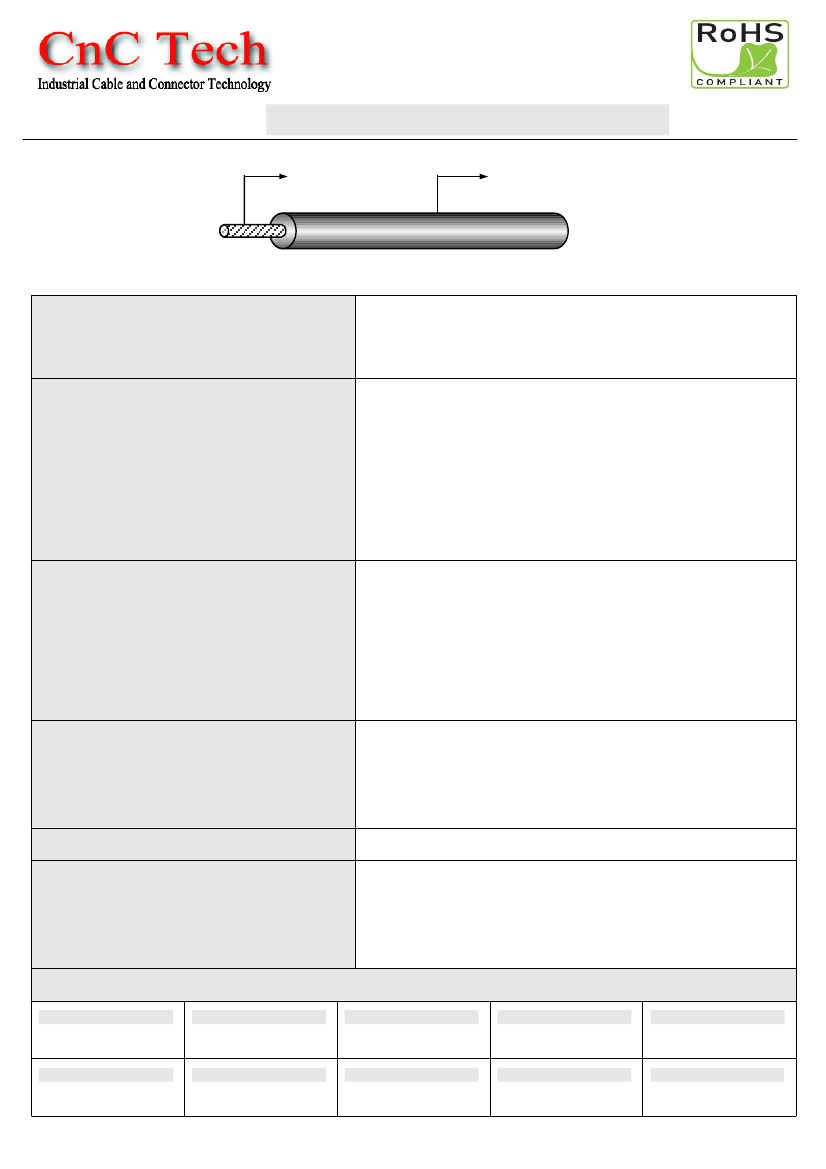

Preview

Download Datasheet

View All

P/N 1430-18-1-0500-0XX-1-TS

Conductor: Tinned Strands

(Conductor: Tinned strands)

Insulation: XLPVC

(Insulation: Silicone Rubber)

UL1430 XLPVC Wire 105°C 300V (18AWG)

CONSTRUCTION:

Tinned Strands, copper conductor, 34/0.180mm strands.

Overall Diameter=2.05+/-0.10mm

Insulation Thickness: 0.38mm

DUAL-RATED AWM: Can be used in USA and Canada

UL Subject 758 UL FILE NO:E108485

CSA Standard CSA FILE NO:LL84687

Printed Markings:

AWG 1430 VW-1 105°C 300V E108485-S ( )AWG REI HSING

CSA AWM I A 105° 300V LL84687 ()AWG FT1 -F- LF

CERTIFICATION & APPROVALS:

PHYSICAL

ELECTRICAL PROPERTIES:

Rated Temperature: 105

℃

~ -10

℃

Rated Voltage: 300V

Insulation Potential Strength: 2000 VAC/min.

Flexibility: XLPVC Insulation

Maximum Conductor Resistance: 24.4 ohm/km

Resistant to: Oil, hot & cold, lighter, flexing.

APPLICATIONS:

XLPVC Wire, pass VW-1 flame test

Suitable for electric cookers, hair dryers, internal transformer coils,

air-conditioners, lights fixture, electric ovens etc.

PACKAGING:

ENVIRONMENTAL APPROVALS:

500ft per reel.

Conforms to all current RoHS directives as laid out in EU

Directive 2011/65/EC.

Current SGS reports for this wire are available upon

request.

P/N's & COLORS

1430-18-1-0500-001-1-TS

1430-18-1-0500-002-1-TS

1430-18-1-0500-003-1-TS

1430-18-1-0500-004-1-TS

1430-18-1-0500-005-1-TS

BLACK

1430-18-1-0500-006-1-TS

WHITE

1430-18-1-0500-007-1-TS

YELLOW

1430-18-1-0500-008-1-TS

RED

1430-18-1-0500-010-1-TS

BLUE

1430-18-1-0500-011-1-TS

BROWN

GREEN

ORANGE

VIOLET

GREEN + YELLOW

1430-18-1-0500-010-1-TS Related Products

	1430-18-1-0500-010-1-TS	1430-18-1-0500-011-1-TS	1430-18-1-0500-006-1-TS	1430-18-1-0500-007-1-TS	1430-18-1-0500-005-1-TS	1430-18-1-0500-008-1-TS	1430-18-1-0500-001-1-TS	1430-18-1-0500-002-1-TS	1430-18-1-0500-004-1-TS	1430-18-1-0500-003-1-TS
Description	HOOK-UP STRND 18AWG VIOLET 500'	HOOK-UP STRND 18AWG GRN/YEL 50'	HOOK-UP STRND 18AWG BROWN 500'	HOOK-UP STRND 18AWG GREEN 500'	HOOK-UP STRND 18AWG BLUE 500'	HOOK-UP STRND 18AWG ORANGE 500'	HOOK-UP STRND 18AWG BLACK 500'	HOOK-UP STRND 18AWG WHITE 500'	HOOK-UP STRND 18AWG RED 500'	HOOK-UP STRND 18AWG YELLOW 500'
Cable type	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire
Wire gauge	18 AWG	18 AWG	18 AWG	18 AWG	18 AWG	18 AWG	18 AWG	18 AWG	18 AWG	18 AWG
Number of wire strands	34/0.0071"	34/0.0071"	34/0.0071"	34/0.0071"	34/0.0071"	34/0.0071"	34/0.0071"	34/0.0071"	34/0.0071"	34/0.0071"
conductor material	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated
Sheath (insulation) material	Polyvinyl chloride (XLPVC), irradiated	Polyvinyl chloride (XLPVC), irradiated	Polyvinyl chloride (XLPVC), irradiated	Polyvinyl chloride (XLPVC), irradiated	Polyvinyl chloride (XLPVC), irradiated	Polyvinyl chloride (XLPVC), irradiated	Polyvinyl chloride (XLPVC), irradiated	Polyvinyl chloride (XLPVC), irradiated	Polyvinyl chloride (XLPVC), irradiated	Polyvinyl chloride (XLPVC), irradiated
Sheath (insulation) diameter	0.081"（2.06mm）	0.081"（2.06mm）	0.081"（2.06mm）	0.081"（2.06mm）	0.081"（2.06mm）	0.081"（2.06mm）	0.081"（2.06mm）	0.081"（2.06mm）	0.081"（2.06mm）	0.081"（2.06mm）
Sheath (insulation) thickness	0.015"（0.38mm）	0.015"（0.38mm）	0.015"（0.38mm）	0.015"（0.38mm）	0.015"（0.38mm）	0.015"（0.38mm）	0.015"（0.38mm）	0.015"（0.38mm）	0.015"（0.38mm）	0.015"（0.38mm）
length	500.0'（152.4m）	50.00'（15.24m）	500.0'（152.4m）	500.0'（152.4m）	500.0'（152.4m）	500.0'（152.4m）	500.0'（152.4m）	500.0'（152.4m）	500.0'（152.4m）	500.0'（152.4m）
Voltage	300V	300V	300V	300V	300V	300V	300V	300V	300V	300V
Operating temperature	-10°C ~ 105°C	-10°C ~ 105°C	-10°C ~ 105°C	-10°C ~ 105°C	-10°C ~ 105°C	-10°C ~ 105°C	-10°C ~ 105°C	-10°C ~ 105°C	-10°C ~ 105°C	-10°C ~ 105°C
Casing color	Purple	green,yellow	brown	green	blue	orange color	black	White	red	yellow
grade	UL Type 1430	UL Type 1430	UL Type 1430	UL Type 1430	UL Type 1430	UL Type 1430	UL Type 1430	UL Type 1430	UL Type 1430	UL Type 1430
characteristic	Oil resistant	Oil resistant	Oil resistant	Oil resistant	Oil resistant	Oil resistant	Oil resistant	Oil resistant	Oil resistant	Oil resistant
