SmartZone
™
Network-Enabled M Series
Rack PDU
(for Aggregate Power Monitoring)
specifications
Network-Enabled M (Monitored) Series Rack Power Distribution Units (PDUs) safely and efficiently
manage and distribute power to installed equipment and are available in a range of electrical and
outlet configurations that cover all global regions. Network-Enabled M Series Rack PDUs connect
directly to the network to provide local and remote monitoring of aggregate power, and environmental
data to quickly identify potential power issues, and reclaim available or under-utilized power capacity.
Network-Enabled M Series Rack PDUs integrate with comprehensive DCIM software platforms, to
access current and historical trending information, and event notification alarms. For more specialized
applications, Panduit offers a custom made service which involves designing and manufacturing a
rack PDU to meet exact customer specifications.
S P E C I F I C AT I O N S H E E T
technical information
Dimensions:
Packaging:
Mounting:
Amperage ratings:
32A or smaller vertical units: 70"H x 2.5"W x 2.36"D (1778mm x 64mm x 60mm)
50A or larger vertical units: 70"H x 3.25"W x 2.36"D (1778mm x 82mm x 60mm)
Horizontal units: 1.73"H x 17.0"W x 8.84"D (44mm x 432mm x 225mm)
3-meter or 10 foot long power cord, screws, and tool-less button mounting
Vertical power strips provide multiple outlets and do not occupy any rack spaces
Horizontal units mount via EIA 19" equipment mounting rails
Global: 16, 32 Amps
NA: 20, 30, 50, 60 Amps
key features and benefits
Aggregate
power monitoring
Remote
power monitoring
Low profile breakers
Environmental
monitoring
Alarm thresholds
LCD digital display
Integrated
locking receptacle
Customizable
configurations
SmartZone
™
Software integration
Performs real-time monitoring of aggregate rack PDU current, voltage, kVA, kWhr, Power Factor, kW, and Frequency loads
to monitor, document, and manage operational power utilization
Allows users to remotely access, configure, or manage units, minimizing costly downtime and travel times to
service equipment
Low profile circuit breakers reduce the PDU depth preventing obstruction within the back of the cabinet
Includes two available ports for the connection of (optional) environmental sensors that monitor cabinet conditions
such as temperature, humidity, and airflow to facilitate capacity management, and identify potential causes of
equipment failure
Enables users to define critical power or environmental thresholds that, if reached, will prompt alarm notifications for
resolution to ensure operational resilience
Displays a visible on-unit warning when the current draw of rack PDU is close to the maximum Amp draw levels,
helping to quickly identify and resolve concerns and avoid risk of overloaded circuits
Protects against vibration and external elements that can easily dislodge external locking clips or guides; works with
any standard IEC power cord (See part descriptions for applicable Rack PDU models)
Offers standard or customizable builds with single or three phase options, a range of current ratings, and different
power outlets that can be adapted for varying power requirements
Captures actionable power and environmental data that can be utilized by SmartZone
™
Software to enable data
center operational and energy efficiencies, capacity management, and resilience
applications
The SmartZone
™
Network-Enabled M Series Rack PDU safely and efficiently manages and distributes power to multiple rack or cabinet devices via
a single power connector. It can be deployed and utilized as a standalone “intelligent” rack PDU.
The SmartZone
™
Network-Enabled M Series Rack PDU is available for order as standard “off-the-shelf” units for most common requirements, or
as customized build configurations that are designed and manufactured to meet exact product requirements.
The SmartZone
™
Network-Enabled M Series Rack PDU offers a variety of horizontal and vertical mounting options that support simple flexible
installations for Panduit
®
Net-Access
™
and Net-SERV
®
Cabinets, or 2- and 4-post racks.
As part of an fully intelligent data center or DCIM solution, the SmartZone
™
Network-Enabled M Series Rack PDU captures aggregate Rack PDU
power and environmental data that can be used by SmartZone
™
Software to more effectively manage and optimize operational efficiencies.
w w w.pa nd uit.c om
SmartZone
™
Network-Enabled M Series Rack PDU
(for Aggregate Power Monitoring)
test data
Parameter
Mounting
Upgradability
Network Connection
Connectivity
Supported Protocols
Operating Temperature
Rated Voltage
Rated Current
Rated Frequency
Value
Tool-less button style
Firmware upgradeable
RJ45 socket
10/100 MB Ethernet
HTTP, HTTPS, SNMP, NTP, SMTP
50°F to 104°F (10°C to 40°C)
120, 208, or 230/400 VAC (Three phase), 120, 208, or 230 VAC (Single phase)
Up to 63A AC Nominal
48 to 62Hz

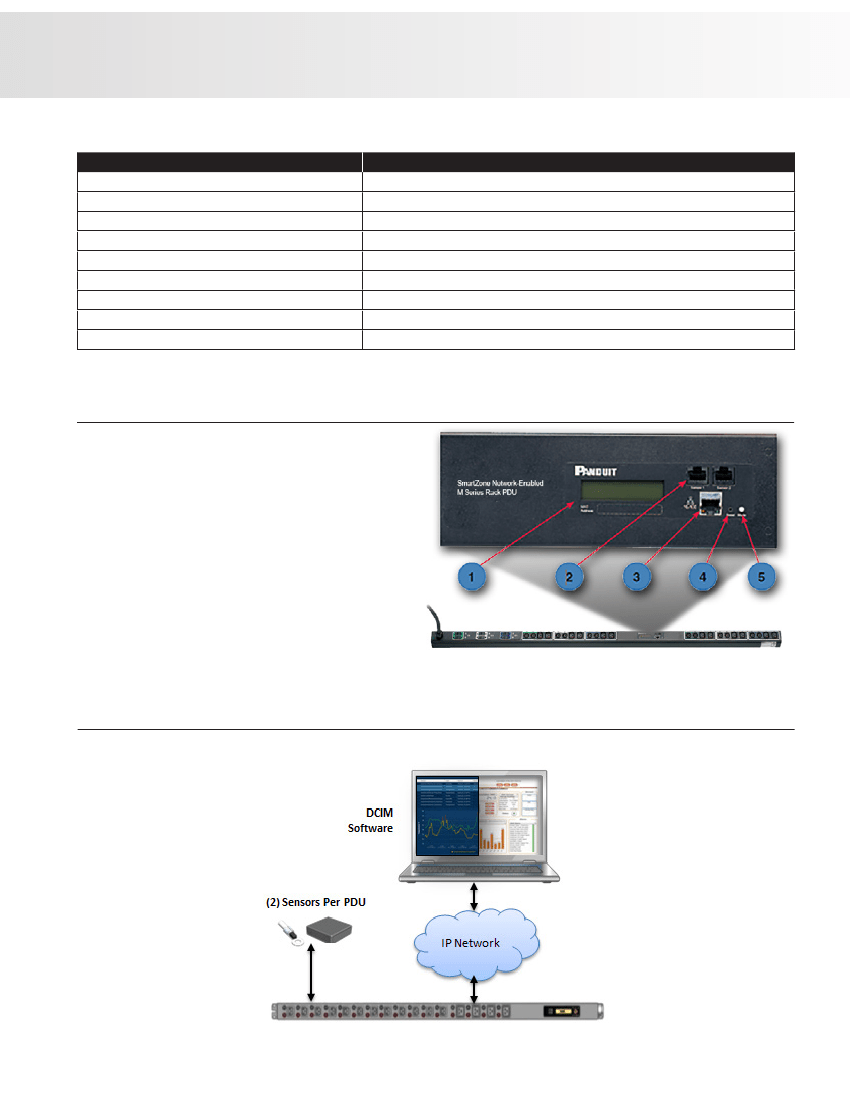

local display features
1.
Local LCD Display
– Shows the firmware version number,
device model number, serial number, MAC Address, IP
Address, power and environmental sensor readings
Remote Sensors
– Includes two RJ45 connector ports to
monitor environmental conditions, and transmits SNMP-based
or email alert notifications when conditions exceed
defined thresholds
Network Connection
– 10/100 MB Ethernet connection
for remote power monitoring
Reset –
Reboots the processor
Mode –
Allows reset to defaults and changes the displayed
information on the LCD
2.
3.
4.
5.
network-enabled rack PDU connection to the network
2
SmartZone
™
Network-Enabled M Series Rack PDU
(for Aggregate Power Monitoring)
part numbers
Item Number
Q1N1B3H0A30AXA0
Q1N2B2Q0A30AHA0
Q1N2B2P6M30AHA0
Q1N1B3H0A24AFA0
Q1N1B3H0A30AHA0
Q1N2B3J2M30AHA0
Item Description
16 A Single Phase Vertical Rack PDU, 230V 30 IEC C-13 receptacles, IEC 60309-6H 2P+E plug
16 A Three Phase Vertical Rack PDU, 230/400V, WYE 24 IEC C-13 and 6 IEC C-19 receptacles, IEC 60309-6H
3P+N+E plug
32 A Three Phase Vertical Rack PDU, 230/400V, WYE, 24 IEC C-13 and 6 IEC C-19 receptacles, IEC 60309-6H
3P+N+E plug
16 A Single Phase Vertical Rack PDU, 230V, 18 IEC C-13 and 6 IEC C-19 locking receptacles, IEC 60309-6H 2P+E plug
16 A Single Phase Vertical Rack PDU, 230V, 24 IEC C-13 and 6 IEC C-19 receptacles, IEC 60309-6H 2P+E plug
32 A Single Phase Vertical Rack PDU, 230V, 24 IEC C-13 and 6 IEC C-19 locking receptacles, IEC 60309-6H 2P+E plug
SmartZone
™
Network-Enabled M Series Rack PDUs (Global)
SmartZone
™
Network Enabled M Series Rack PDUs (NA)
P1N1B1C0A10AKA0
P1N1B1M2M10AKA0
P1N1B1L2N08ATA0
Q1N1B1C0A24AKA0
Q1N1B1D0A24AKA0
Q1N2B1M2M24AKA0
Q1N2B1N3N30AHA0
Q1N2B2W6N30APA0
Q1N2B2W6N30AHA0
Q1N2B1J0A30AHA0
Q1N2B1P3N30AHA0
Q1N2B4E3N30AEA0
Q1N1B1E0A30AHA0
Q1N1B1F0A30AHA0
Q1N2B1L2N30AHA0
Q1N2B2T6N30AHA0
Q1N2B2C3N30AHA0
ZEAIR-02
ZETHL-15
ZEDIFFPRESS-01, 02,
03, 05
ZETHL-14
ZEWS-03-03
20 A Single Phase Horizontal Rack PDU,120V 10 NEMA 5-20R receptacles, NEMA 5-20P plug
30 A Single Phase Horizontal Rack PDU, 120V, 10 NEMA 5-20R receptacles, NEMA L5-30P plug
30 A Single Phase Horizontal Rack PDU, 208V, 6 IEC C-13 and 2 IEC C-19 locking receptacles, NEMA L6-30P plug
20 A Single Phase Vertical Rack PDU, 120V 24 NEMA 5-20 in-line receptacles, NEMA 5-20P twist lock plug
20 A Single Phase Vertical Rack PDU, 120V 24 NEMA 5-20 in-line receptacles, NEMA L5-20P twist lock plug
30 A Single Phase Vertical Rack PDU, 120V 24 NEMA 5-20 receptacles, NEMA L5-30P twist lock plug
30 A Three Phase Vertical Rack PDU, 208 V, Delta, 24 IEC C-13 and 6 IEC C-19 receptacles, NEMA L15-30P twist lock plug
60 A Three Phase Vertical Rack PDU, 208V, Delta, 18 IEC C-13, 12 IEC C-19 receptacles, IEC 60309-9H 3P+E plug
60 A Three Phase Vertical Rack PDU, 208V, Delta, 24 IEC C-13, 6 IEC C-19 receptacles, IEC 60309-9H 3P+E plug
20 A Three Phase Vertical Rack PDU, 208V, WYE 24 IEC C-13 and 6 IEC C-19 receptacles, NEMA L21-20P twist lock plug
30 A Three Phase Vertical Rack PDU, 208V, WYE, 24 IEC C-13 and 6 IEC C-19, NEMA L21-30P twist lock plug
30 A Three Phase Vertical Rack PDU, 120/208V, WYE, 18 IEC C-13, 6 IEC C-19 receptacles and 6 NEMA 5-20R,
NEMA L21-30P twist lock plug
20 A Single Phase Vertical Rack PDU, 208V, 24 IEC C-13 and 6 IEC C-19 receptacles, NEMA 6-20P twist lock plug
20 A Single Phase, Vertical Rack PDU, 208V, 24 IEC C-13 and 6 IEC C-19 receptacles, NEMA L6-20P twist lock plug
30 A Single Phase, Horizontal Rack PDU, 208V, 6 IEC C-13 and 2 IEC C-19 locking receptacles, NEMA L6-30P plug
50 A Three Phase, Vertical Rack PDU, 208V, 24 IEC C-13 and 6 IEC C-19 receptacles, NEMA CS-8365c plug
60 A Single Phase, Vertical Rack PDU, 208V, 24 IEC C-13 and 6 IEC C-19 receptacles, IEC 60309 - 6H 2P+E plug
Airflow Sensor
Humidity Sensor
Differential Pressure Transducer
Temperature Sensor
Water Rope Sensor
(Optional) SmartZone
™
Sensors
