ø30mm - XN E-Stops
Switches & Pilot Devices
Switches & Pilot Devices
30mm XN E-Stops

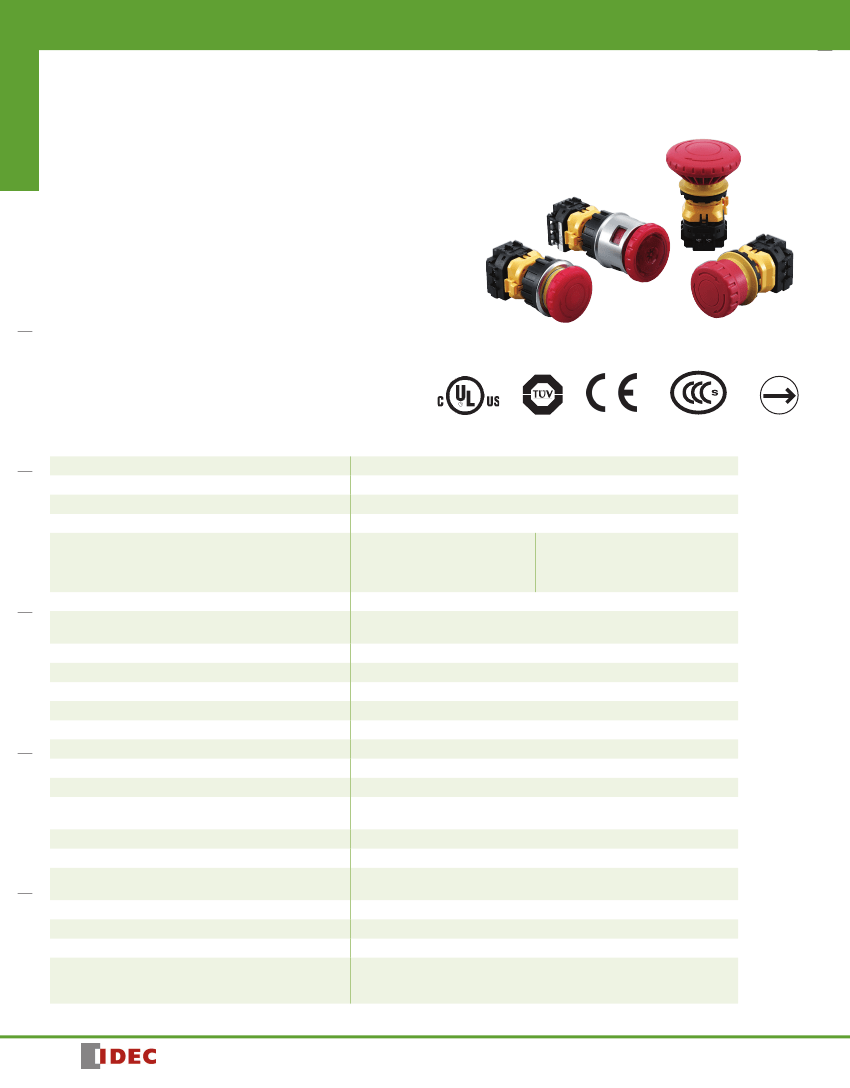

Key features:
• Plastic bezel, metallic padlock and flush bezel available
• Install up to 20 padlocks (XN4E)
• ø40, ø44 or ø60mm Mushroom heads available
• IDEC’s original “safe break action” ensures that the contacts stay open when the contact
block is detached from the operator.
Signaling Lights
Relays & Sockets
• Safety-lock mechanism (IEC60947-5-5, 6.2)
• 2-in-1: Push-to-lock, Pull/Turn-to-Reset
• Push-ON LED model allows E-Stops to be illuminated only when latched
• Direct Opening Action mechanism (IEC60947-5-5, 5.2, IEC60947-5-1, Annex K)
• Very short panel depth
• Degree of protection IP65 (IEC60529)
• RoHS compliant (EU directive 2002/95/EC).
• XN4E series complies with OSHA and ISO 12100-2:2003 standards
• UL, c-UL listed, EN compliant
• UL NISD category emergency type device (File# E305148)
File No. E68961
Specifications
Applicable Standards
Operating Temperature
Operating Humidity
Storage Temperature
Operating Force
Minimum Force Required for Direct Opening Action
Min Operator Stroke Required
for Direct Opening Action
IEC60947-5-1, EN60947-5-1, IEC60947-5-5, EN60947-5-5, UL508, UL991, CSA C22.2 No. 14
Non-illuminated: –25 to +60°C (no freezing), Illuminated: –25 to +55°C (no freezing)
45 to 85% RH (no condensation)
–45 to +80°C
XN1E, XN5E
Push-to-lock: 32N
Pull-to-reset: 21N
Turn-to-reset: 0.27 N·m
80N
4mm
4.5mm
50mΩ maximum (initial value)
Gold plated silver
100MΩ minimum (500V DC megger)
2.5kV
3
900 operations/hour
Operating extremes: 150m/s
2
(15G), Damage limits: 1000m/s
2
(100G)
Operating extremes: 10 to 500Hz, amplitude 0.35mm acceleration 50m/s
2
Damage limits: 10 to 500Hz, amplitude 0.35mm acceleration 50m/s
2
250,000 operations minimum
100,000 operations minimum, (250,000 operations minimum @ 24V AC/DC, 100mA)
Operator: IP65 (IEC60529)
Terminal: IP20 (when XW9Z-VL2MF is installed)
M3.0 screw terminal
2.5N·m
16 AWG max
XN1E: Plastic bezel: 83g (ø40 mm), 93g (ø60 mm)
XN5E: Flush bezel: 89g
XN4E: Padlock type: 20g
XN4E
Push-to-lock: 32N
Pull-to-reset: N/A
Turn-to-reset: 0.4 N·m
Timers
Contactors
Terminal Blocks
Circuit Breakers
Maximum Operator Stroke
Contact Resistance
Contact Material
Insulation Resistance
Impulse Withstand Voltage
Pollution Degree
Operation Frequency
Shock Resistance
Vibration Resistance
Mechanical Life
Electrical Life
Degree of Protection
Terminal Style
Recommended Tightening Torque for Locking Ring
Wire Size
Weight
714
www.IDEC.com
1705151134

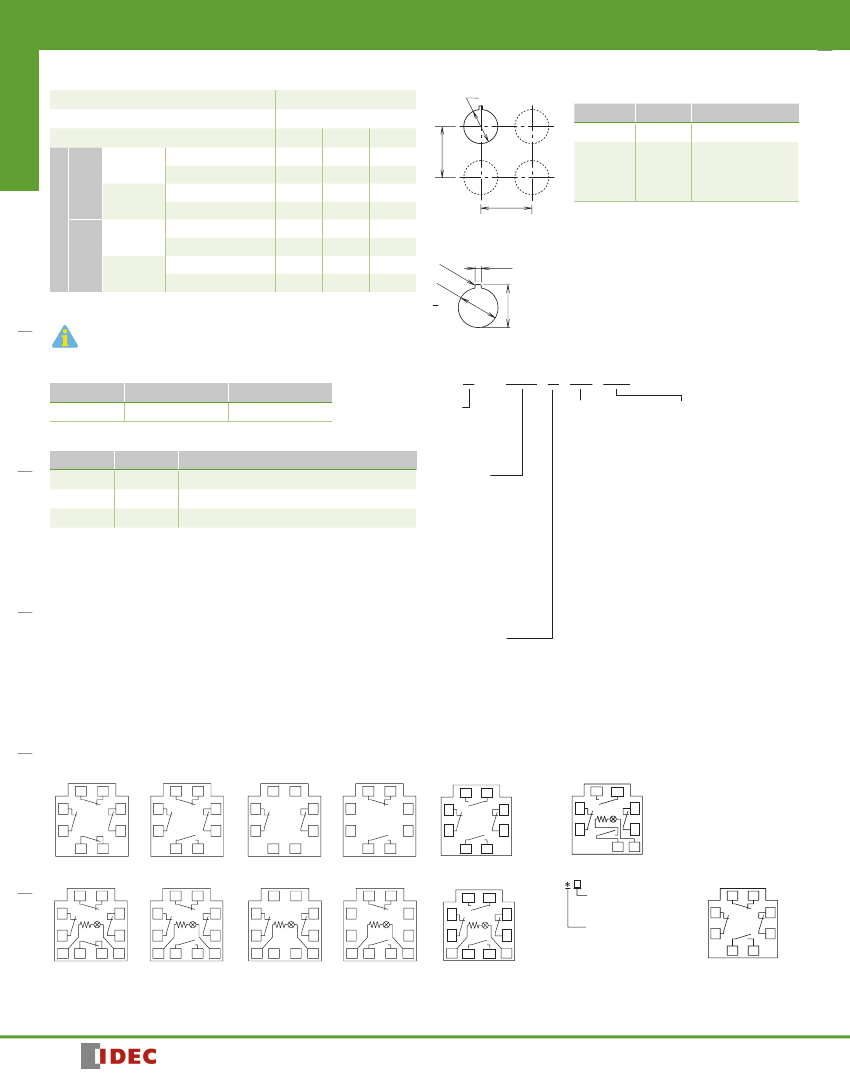

ø30mm - XN E-Stops
Switches & Pilot Devices
Switches & Pilot Devices
Mounting Hole Layout
250V
5A
30V
–
–
2A
1A
–
–
2A
18.5
Contact Ratings
Rated Insulation Voltage (Ui)
Rated Current (Ith)
Rated Operating Voltage (Ue)
Main
Monitor
Contacts (NO) Contacts (NC)
Rated Operating Current
AC 50/60Hz
DC
AC 50/60Hz
DC
Resistive Load (AC-12)
Inductive Load (AC-15)
Resistive Load (DC-12)
Inductive Load (DC-13)
Resistive Load (AC-12)
Inductive Load (AC-14)
Resistive Load (DC-12)
Inductive Load (DC-13)
øA
Measurements
Size
øA
30.5
+0.5
30.5
X&Y
70mm min
For XN4E, determine
the values according to
the size and number of
padlocks and hasp.
XN1E, XN5E
125V
5A
3A
0.4A
0.22A
1.2A
0.6A
0.4A
0.22A
250V
3A
1.5A
0.2A
0.1A
0.6A
0.3A
0.2A
0.1A
X
Y
XN4E
Signaling Lights
Panel Cutout
R0
ø3
0.5
.8
m
ax
+0
.
0 5
1A
.
4.8
+0.2
0
Relays & Sockets
Illuminated
Illuminated Unit LED Ratings
1. Minimum applicable load: 5V AC/DC, 1mA (reference value).
47.7
2. The rated operating currents are measured at resistive/inductive load types specified
in IEC 60947-5-1.
Locking Ring
Push-ON
M3 Terminal
Screws
20.1
33
Rubber Gasket

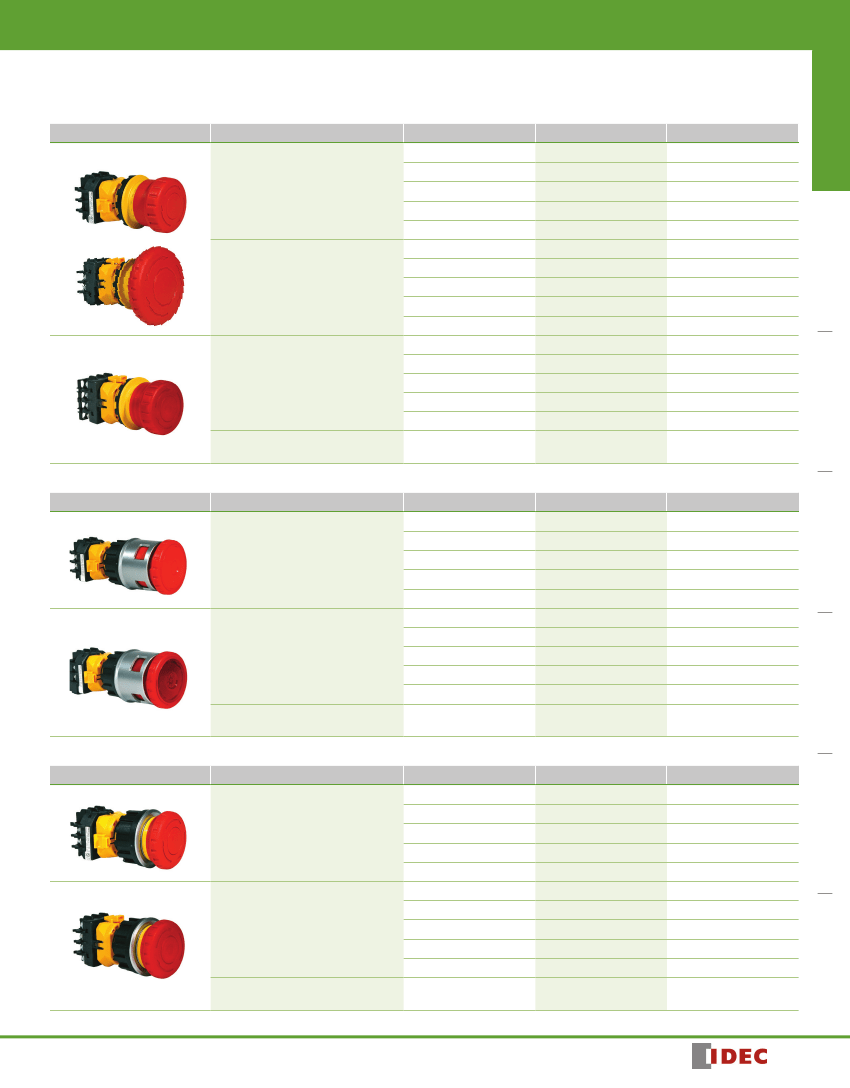

Part Numbers
Panel Cut-out
Model
XN
Operating Voltage
24V AC/DC ±10%
Current
37
XN1E - L V 4 02 Q4 MR
ø4
0
33.0
+0.5
0
15mA
Depth Behind the Panel
Model
XN1E
XN5E
XN4E
Depth (mm)
47.7
60.4
61.4
Description
Terminal Cover
XW9Z-VL2M
Bezel
1: Plastic Bezel
4: Padlock
Panel Thickness 1 to 5
5: Flush Bezel
Illumination
XN1E, XN5E
BV: Non-Illuminated
LV: Illuminated LED
TV: Illuminated
Push-ON LED
XN4E
BL: Non-Illuminated
LL: Illuminated LED
TL: Illuminated
Push-ON LED
Mushroom Size
4: ø40mm: XN1E, XN5E
ø44mm: XN4E
5: ø60mm
(XN1E non-illuminated only)
1 - 4 contacts, plastic bezel
1 - 4 contacts, flush bezel
1 - 4 contacts, padlock
Contact Configuration*
11: 1NO - 1NC
02: 2NC
13: 1NO - 3NC
22: 2NO - 2NC
04: 4NC
12: 1NO-2NC (Push-ON
LED only)
Voltage Code
Blank: Non-Illuminated
Q4: 24V AC/DC (Illuminated
& Push-ON LED type)
Contactors
Timers
*Contact IDEC for additional configurations.
Terminal Arrangements (Bottom View)
4NC
Non-Illuminated
TOP
1NO-3NC
TOP
*1
*1
*2
*2
*1
*2
2NC
TOP
*3
*4
*1
1NO-1NC
TOP
*1
*2
*2
*1
2NO-2NC
TOP
*3
*2
R
1NO-2NC
Push-ON
TOP
∗4
LED
∗1
∗2
X1 X2
R
∗3
Terminal Blocks
*1
*2
*2
*4
*1
R
L
∗2
∗1
L
*1
*2
R
L
*1
*2
R
L
*1
*2
R
L
*1
*2
L
*1
*2
*4
*3
*2
*1
*4
*3
*4
*3
*4
*3
Illuminated
*1
*2
TOP
*2
*1
*2
LED
*1
TOP
*2
*1
*2
LED
*3
TOP
*4
*1
*2
LED
*3
TOP
*4
*1
TOP
*3
*2
R
*2
Terminal Marking Description
•
Contact Type
1-2: NC main contact
3-4: NO monitor contact
•
Contact Number (1-4)
Starting with the
contact on TOP in a
counterclockwise direction.
Note:
1: contact on the TOP
2: contact on the Left
3: contact on the Bottom
4: contact on the Right
TO P
11
22
L
21
34
33
42
12
41
R
*4
LED
*1
R
*2
X2
Circuit Breakers
L
*1
R
*2
L
*1
R
*2
L
*1
R
*2
L
*1
LED
L
*1
X1
*4
X1
*2
*1
X2
X1
*4
*3
X2
X1
*4
*3
X2
X1
*4
*3
X2
*3
(Example: 1NO-3NC contact)
716
www.IDEC.com
1705151134
ø30mm - XN E-Stops
Switches & Pilot Devices
Switches & Pilot Devices
Operating Instructions

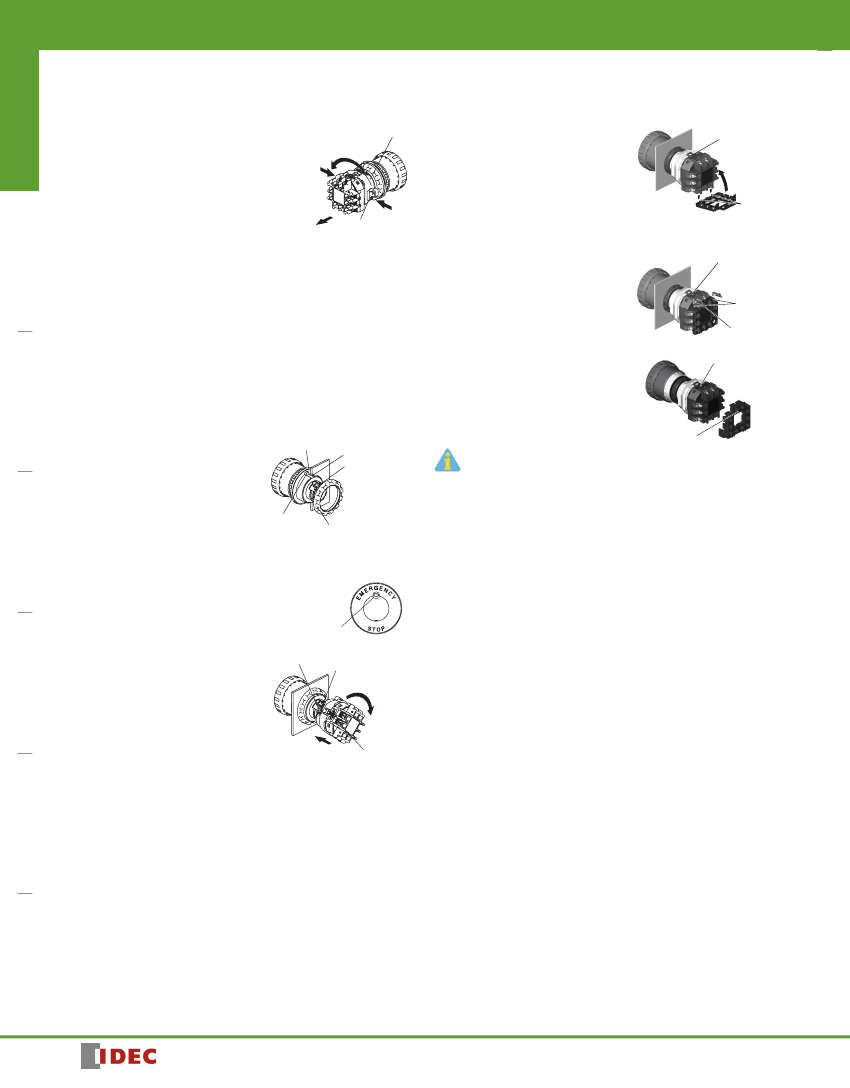

Removing the Contact Block
