Power cable - SAC-4P-M12MST/10,0-PUR/M12FST - 1408811
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Power cable, 4-position, PUR halogen-free, black-gray RAL 7021, Plug straight M12, T-coded, on Socket
straight M12, T-coded, cable length: 10 m
Your advantages
Easy and safe: 100% electrically tested plug-in components
High-performance: DC connectors for up to 12 A and 63 V DC
Protection against incorrect connection using special T-coding
Our standard: robust halogen-free PUR cable
Key Commercial Data
Packing unit
GTIN
GTIN
4046356838757
1 pc
Technical data
Dimensions
Length of cable
10 m
Ambient conditions
Ambient temperature (operation)
Degree of protection
-25 °C ... 85 °C (Plug / socket)
IP65
IP67
IP68
General
Rated current at 40°C
Rated voltage
Number of positions
Insulation resistance
12 A
63 V DC
4
≥ 100 MΩ
10/28/2018 Page 1 / 5
https://www.phoenixcontact.com/pi/products/1408811
Power cable - SAC-4P-M12MST/10,0-PUR/M12FST - 1408811
Technical data
General
Coding
Standards/regulations
Status display
Protective circuit/component
Overvoltage category
Degree of pollution
Insertion/withdrawal cycles
T power
M12 connector IEC 61076-2-111
No
Unwired
III
3
> 100
Material
Flammability rating according to UL 94
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
V0
CuSn
Ni/Au
PA
PA
Zinc die-cast, nickel-plated
Standards and Regulations
Standard designation
Standards/regulations
Flammability rating according to UL 94
M12 connector
IEC 61076-2-111
V0
Cable
Cable type
Cable type (abbreviation)
Cable abbreviation
UL AWM style
Conductor cross section
AWG power supply
Conductor structure, voltage supply
Core diameter including insulation
Thickness, insulation
Wire colors
Overall twist
Length of twist, overall twist
External sheath, color
Outer sheath thickness
External cable diameter D
Minimum bending radius, fixed installation
Minimum bending radius, flexible installation
Number of bending cycles
Minimum bending radius, drag chain applications
Traversing path
PUR halogen-free black
PUR
Li9YV1-11Y
20233 / 10493 (80°C/300 V)
4x 1.5 mm²
16
78x 0.15 mm
2.35 mm ±0.05 mm
≥ 0.25 mm
brown, white, blue, black
4 wires, twisted
90 mm
black-gray RAL 7021
approx. 1.3 mm
8.4 mm ±0.25 mm
5xD
10 x D
4000000
10 x D
10 m
10/28/2018 Page 2 / 5
https://www.phoenixcontact.com/pi/products/1408811
Power cable - SAC-4P-M12MST/10,0-PUR/M12FST - 1408811
Technical data
Cable
Traversing rate
Acceleration
Cable weight
Outer sheath, material
Material conductor insulation
Conductor material
Insulation resistance
Conductor resistance
Nominal voltage, cable
Test voltage, cable
Flame resistance
3 m/s
10 m/s²
109 kg/km
PUR
PP
Bare Cu litz wires
≥ 1 GΩ*km (at 20 °C)
≤ 13 Ω/km (at 20 °C)
≤ 300 V AC
≥ 3000 V AC (Spark test)
According to UL 758/1581 (Cable Flame)
according to UL 758/1581 FT1
According to DIN EN 60332-1-2
Halogen-free
Resistance to oil
Other resistance
in accordance with DIN VDE 0472 part 815
in accordance with DIN EN 50267-2-1
According to DIN EN 60811-2-1, 168 h at 100°C
According to UL 758, 168 h at 60°C
Hydrolysis and microbe resistant as per VDE 0282 section 10
Low adhesion
abrasion-resistant
Resistant to salt water
Ambient temperature (operation)
-50 °C ... 80 °C (cable, fixed installation)
-30 °C ... 80 °C (cable, flexible installation)
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
Schematic diagram
4
Schematic diagram
4
1
3
2
3
1
2
Pin assignment for M12 plug, 4-pos., T-coded, view of plug side
Pin assignment of M12 socket, 4-pos., T-coded, socket side view
10/28/2018 Page 3 / 5
https://www.phoenixcontact.com/pi/products/1408811
Power cable - SAC-4P-M12MST/10,0-PUR/M12FST - 1408811

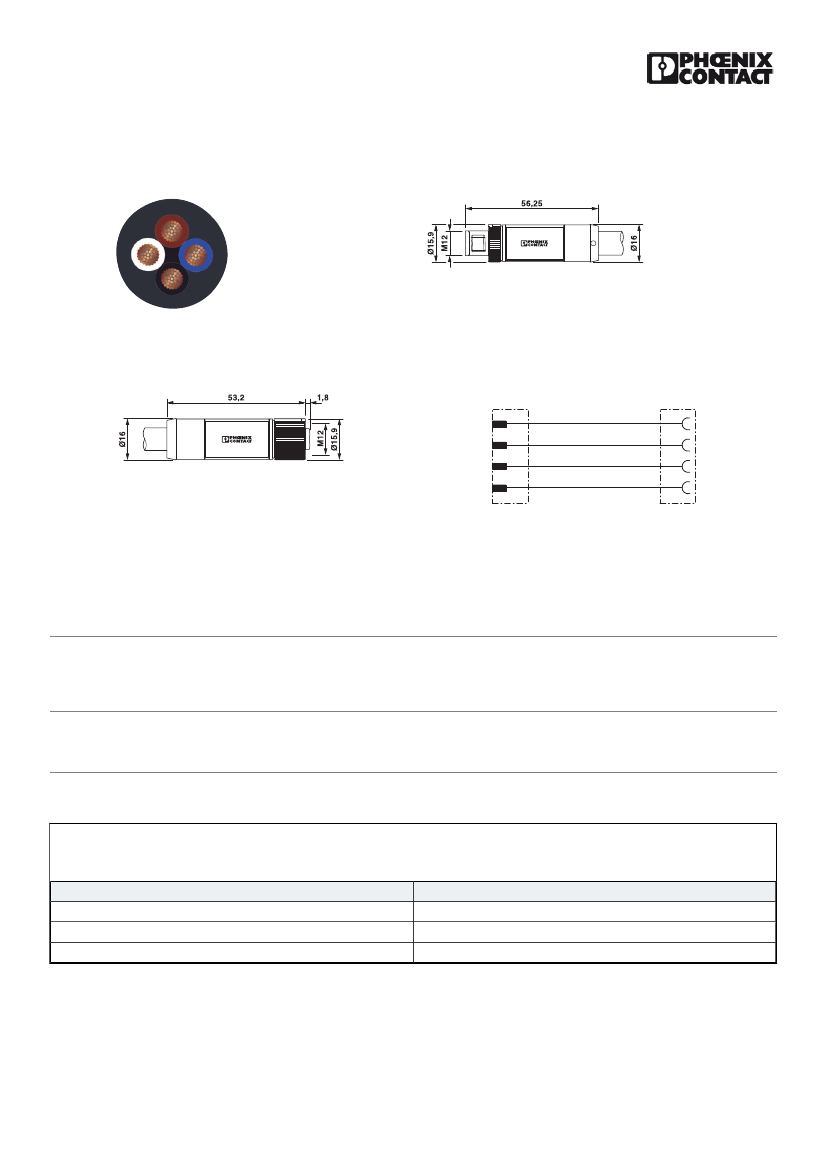

Cable cross section
Dimensional drawing
Plug, M12 x 1, straight
PUR halogen-free black [PUR]
Dimensional drawing
Circuit diagram
1
4
3
1
4
3
2
M12 x 1 socket, straight
2
Contact assignment of the M12 connector and the M12 socket
Approvals
Approvals
Approvals
UL Listed / cUL Listed / cULus Listed
Ex Approvals
Approval details
UL Listed
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
63 V
12 A
16
E468743
10/28/2018 Page 4 / 5
https://www.phoenixcontact.com/pi/products/1408811
Power cable - SAC-4P-M12MST/10,0-PUR/M12FST - 1408811
Approvals
cUL Listed
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
63 V
12 A
16
E468743
cULus Listed
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
10/28/2018 Page 5 / 5
