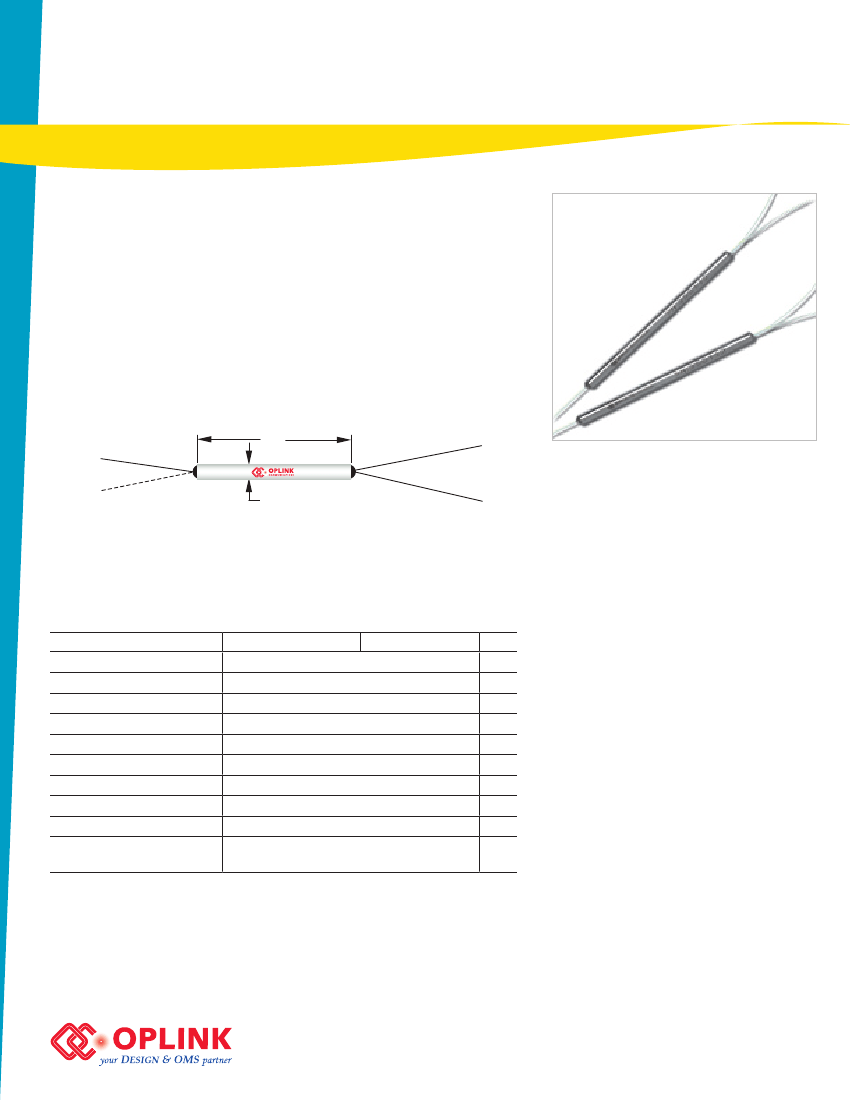

Fused Single-Mode WDM
(1480/1550nm)
SWDM54 Series
Product Description
Oplink’s 1480/1550 nm fused single-mode wavelength division multiplexers are
manufactured using the proven fused biconical taper technology and Oplink’s
stringent quality procedures. With low insertion loss and flat passband, this
device is ideal for combining pump (1480 nm) and signal light at 1550 nm in
optical fiber amplifiers.
Oplink can provide customized designs to meet specialized feature applica-
tions. Also, Oplink offers modular assemblies that integrate other components
to form a full function module or subsystem.
Port 1 In
L
Port 2 Signal
Port 4 (terminated for
1x2 configuration)
Ø
Port 3 Pump
Features
Performance Specificationns
SWDM54 Series
Premium
Grade A
Unit
Ultra Low Insertion Loss
Ultra High Isolation
Low Polarization Sensitivity
High Directivity
High Stable & Reliable
Bidirectional
Operating Wavelength
Insertion Loss
Isolation
Polarization Dependent Loss
Directivity
Maximum Power Handling
Operating Temperature
Storage Temperature
Fiber Type
Package Dimensions
**
1475 - 1485nm / 1545 - 1555nm
< 0.4
> 13
< 0.13
> 55
500
- 10 to + 70
- 40 to + 85
SMF-28
P1: 250µm bare fiber
P2: 900µm loose tube
(ø)3.0 x (L)60
(ø)3.0 x (L)65
mm
< 0.6
> 11
< 0.15
dB
dB
dB
dB
mW
°C
°C
Applications
CATV
Local Area Networks
Telecommunications
Subscriber Loop
Laboratory R&D
Note:
* Values are referenced without connector loss.
** The mechanical tolerance should be +/-0.2 mm on all package dimensions unless otherwise custom speci-
fied.
S0167 - R02. 20100630
Fused Single-Mode WDM (1480/1550nm)
SWDM54 Series
Ordering Information
Oplink can provide a remarkable range of customized optical solutions. For detail, please contact Oplink’s OEM
design team or account manager for your requirements and ordering information (510) 933-7200.
SWDM
5
4
S
0
0
Wavelength
1550/1480nm= 54
Premium Grade = P
A Grade = A
Grade
Fiber Length
0.5 Meter = H
1.0 Meter = 1 *
1.5 Meters = 5
2.0 Meters = 2
Connector Type
None = 1
FC/PC = 2
FC/SPC = 3
FC/APC = 4
SC/PC = 5
SC/SPC = 6
SC/APC = 7
ST = 8
LC = 9
MU = A
Type
Standard= S
Configuration
1x2 = 1
2x2 = 2
Package & Fiber Type
P1+ 250μm bare fiber= 11
P2+ 900μm loose tube= 22
46335 Landing Pkwy Fremont, CA 94538 Tel: (510) 933-7200 Fax: (510) 933-7300 Email: Sales@Oplink.com • www.oplink.com
Notes :
* 1 meter is standard. The lead time
for special fiber length will be longer.
S0167 - R02. 20100630
