The MLX90380 is a monolithic contactless sensor IC
sensitive to the flux density applied orthogonally and
parallel to the IC surface.
High-speed dual analog outputs allow the MLX90380 to
deliver accurate sine/cosine signals when used with a
rotating permanent magnet.
With a wide range of operating temperature, supply
voltage and magnetic flux density, the MLX90380 can
resolve the angular position of a rotating axis over 360
degrees in many industrial and automotive
applications.
Selectable magnetic axes ensure compatibility with
end-of-shaft and through-shaft configurations.
Sensitivity and filter bandwidth can be programmed
through the 4 application pins to optimally use the ADC
input range of the companion MCU.

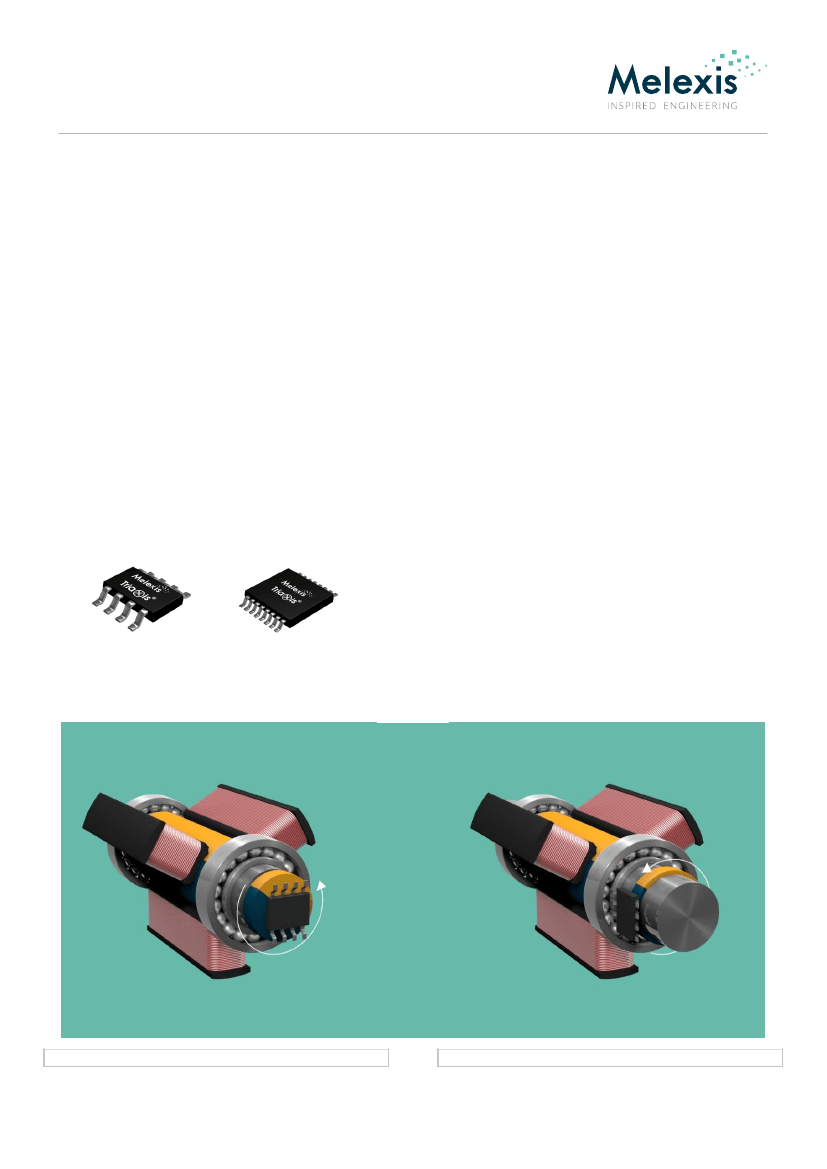

SOIC-8
TSSOP-16
Figure 1: End of Shaft
REVISION 10 – 25 APRIL 2018
3901090380
Figure 2: Through Shaft
MLX90380 - Triaxis® Resolver
Datasheet
Contents
1. Features and Benefits ............................................................................................................................ 1
6. Glossary of Terms .................................................................................................................................. 6
7. Detailed General Description................................................................................................................. 7
8. Intrinsic Magnetic Axis........................................................................................................................... 8
8.1. X/Y magnetic axis ................................................................................................................................ 9
8.2. X/Z magnetic axis ................................................................................................................................ 9
8.3. Z/Y magnetic axis .............................................................................................................................. 10
9. Pin Definitions and Descriptions .......................................................................................................... 10
9.1. Pin Definition for SOIC-8................................................................................................................... 10
9.2. Pin Definition for TSSOP-16 .............................................................................................................. 11
10. Absolute Maximum Ratings ............................................................................................................... 12
11. General Electrical Specifications ........................................................................................................ 12
12. Magnetic Specifications ..................................................................................................................... 14
12.1. Sensitivity Temperature Coefficient Characteristic ...................................................................... 16
12.2. Output Offset Temperature Drift Characteristic ........................................................................... 16
12.2.1. Output Offset Temperature Drift Characteristic..................................................................... 17
12.2.2. Output Offset Temperature Drift Characteristic vs. Sensitivity ............................................. 18
