Connector set - HC-STA-B24PT-BWSC-LS-M32-ELCAL - 1416358
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

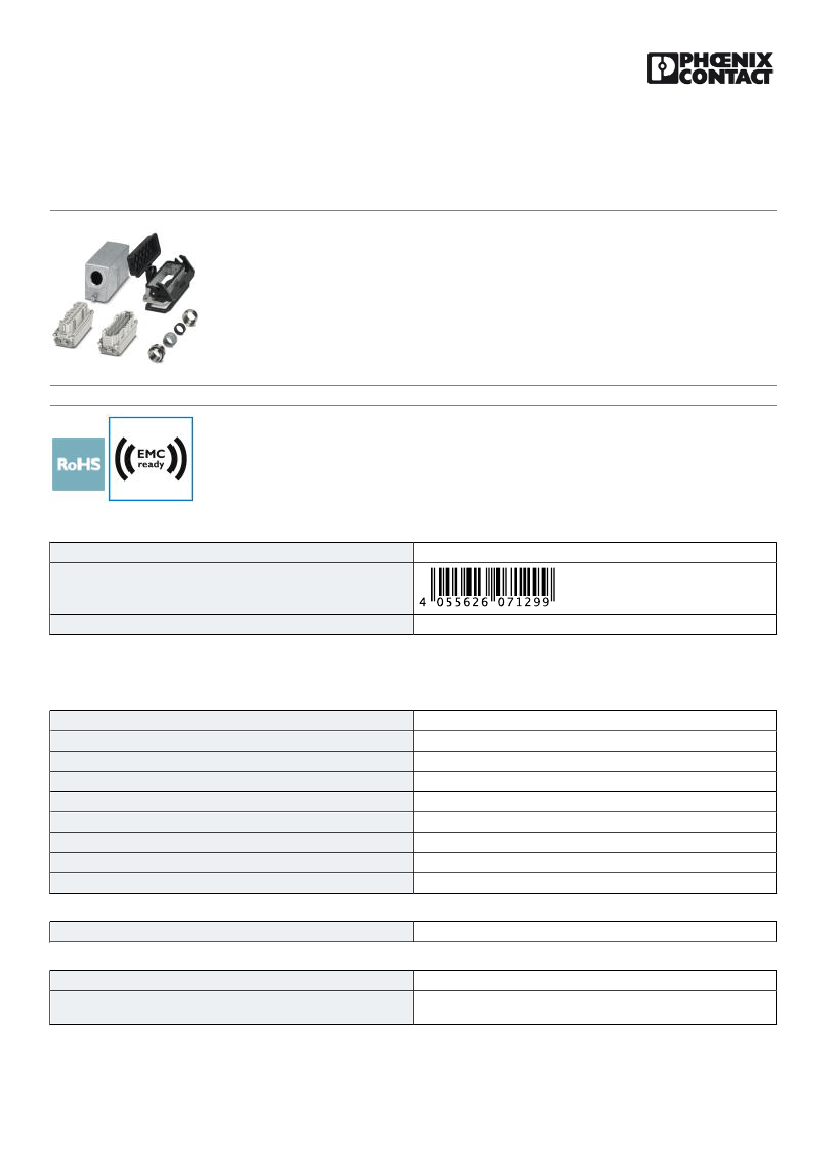

Connector set, number of positions: 24, material: Die-cast aluminum, salt water resistant, connection method:
Push-in connection, connection cross section: AWG 26- 14
Key Commercial Data
Packing unit
GTIN
GTIN
4055626071299
1 pc
Technical data
General
Number of positions
Type
Connection method
Degree of protection for housing
Connection method
Rated voltage (III/3)
Rated surge voltage
Rated current
24+PE
B24
Push-in connection
IP66
IP67
Push-in connection
500 V
6 kV
16 A
Standards and Regulations
Flammability rating according to UL 94
V0
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
10/29/2018 Page 1 / 4
https://www.phoenixcontact.com/pi/products/1416358
Connector set - HC-STA-B24PT-BWSC-LS-M32-ELCAL - 1416358

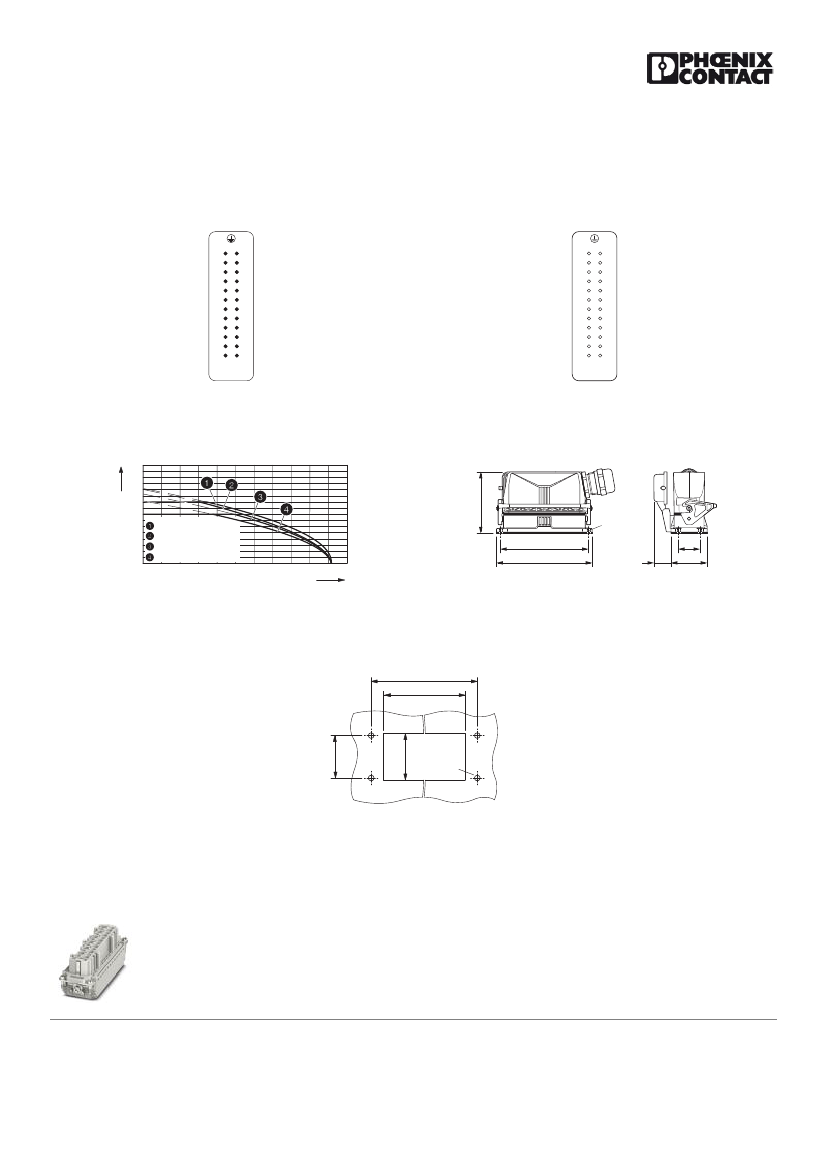

Drawings
Schematic diagram
Schematic diagram
13
14
15
16
17
18
19
20
21
22
23
24
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Pin assignment, connection side, pin
Pin assignment, connection side, socket
Diagram
32
28
24
20
16
12
8
4
0
0
Dimensional drawing
Current strength [A]
= 2,5 mm HC-B 06 PT
2
= 2,5 mm HC-B 10 PT
2
= 2,5 mm HC-B 16 PT
2
= 2,5 mm HC-B 24 PT
2
90,5
Ø4,5
130
140,5
60
70
80
90 100 110
32
24,8
53
10
20
30
40
50
Ambient temperature [°C]
Dimensional drawing
Derating diagram
Dimensional drawing
130
113
32
35
Ø4,5
Mounting cutout

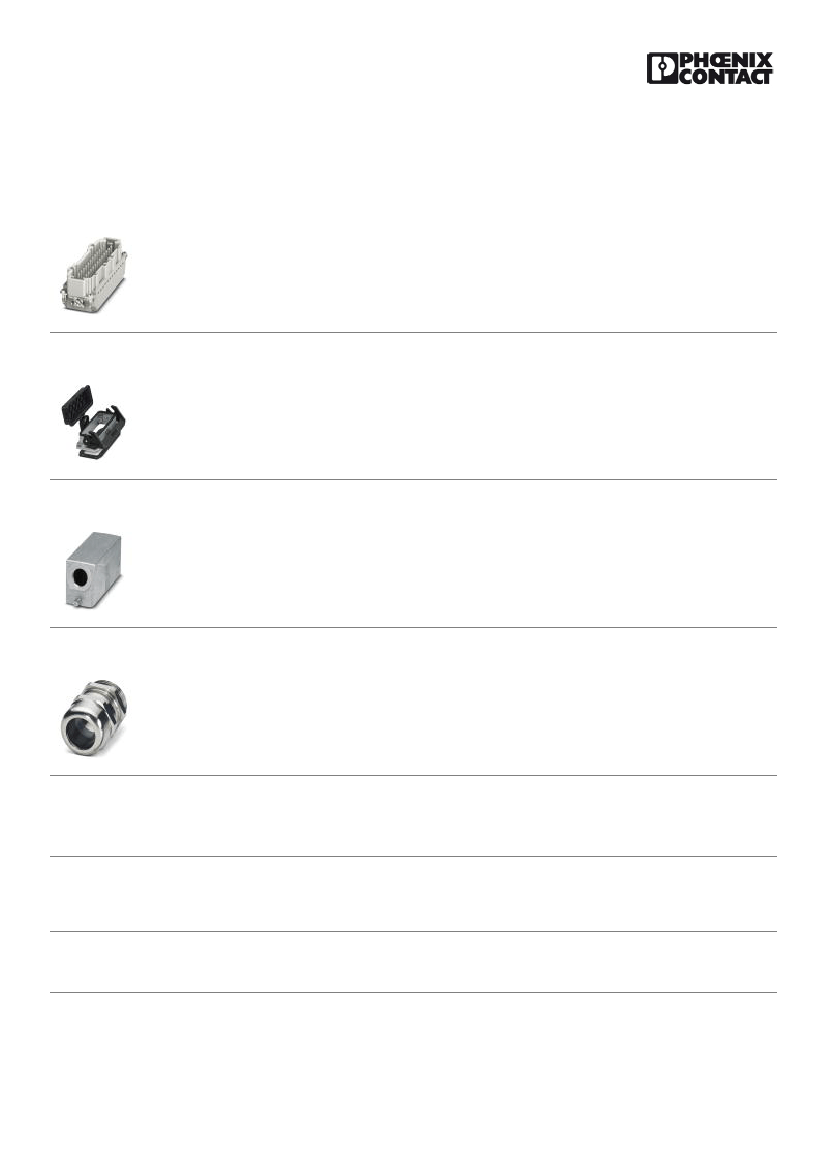

Articles in set
Contact insert - HC-B24-I-PT-F - 1407735
Contact insert, number of positions: 24+PE, size: B24, number of connections per position: 1, Socket, Push-in
connection, 500 V, 16 A, 0.14 mm² ... 2.5 mm², application: Power
10/29/2018 Page 2 / 4
https://www.phoenixcontact.com/pi/products/1416358
Connector set - HC-STA-B24PT-BWSC-LS-M32-ELCAL - 1416358
Articles in set
Contact insert - HC-B24-I-PT-M - 1407736
HEAVYCON pin insert, B24 series, 24 + PE-pos., push-in connection
Housing - HC-STA-B24-BWSC-ELC-AL - 1411330
HEAVYCON B24 panel mounting base, with single locking latch, with plastic protective cover, with flat gasket, salt-
water-resistant aluminum, conductive profile gasket.
Housing - HC-STA-B24-HLFS-1STM32-EL-AL - 1412784
Sleeve housing B24, for single locking latch, material: Die-cast aluminum, salt water resistant, cable outlets: 1, lateral,
height: 60 mm, cable gland: none, support sleeve: no, 1x M32, Standard
Cable gland - G-INS-M32-M68N-NNES-S - 1411166
Cable gland, cable gland material: Nickel-plated brass, external cable diameter 15 mm ... 21 mm, shielding: no,
connecting thread: M32 x 1.5, color: silver, with O-ring
Approvals
Approvals
Approvals
GL / EAC
Ex Approvals
Approval details
10/29/2018 Page 3 / 4
https://www.phoenixcontact.com/pi/products/1416358
Connector set - HC-STA-B24PT-BWSC-LS-M32-ELCAL - 1416358
Approvals
GL
http://exchange.dnv.com/tari/
6196614 HH
EAC
RU C-
DE.AI30.B.01102
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
10/29/2018 Page 4 / 4
