GQA2W010A120V-007-R datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> GQA2W010A120V-007-R

GQA2W010A120V-007-R: DescriptionDC DC CONVERTER 12V 120W; CategoryPower/power management The power supply circuit; File Size581KB，2 Pages; ManufacturerTDK-LAMBDA

Download Datasheet Parametric View All

GQA2W010A120V-007-R Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	GQA2W010A120V-007-R	-	-	View	Buy Now

GQA2W010A120V-007-R Overview

DC DC CONVERTER 12V 120W

GQA2W010A120V-007-R Parametric

Parameter Name	Attribute value
package instruction	MODULE-8
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	36 V
Minimum input voltage	9 V
JESD-30 code	R-XDFM-X8
Maximum load regulation	0.03%
Number of functions	1
Output times	1
Number of terminals	8
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Maximum output voltage	13.2 V
Minimum output voltage	10.8 V
Nominal output voltage	12 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
surface mount	NO
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal form	UNSPECIFIED
Terminal location	DUAL
Maximum total power output	120 W
Fine-tuning/adjustable output	YES
Base Number Matches	1

Preview

Download Datasheet

View All

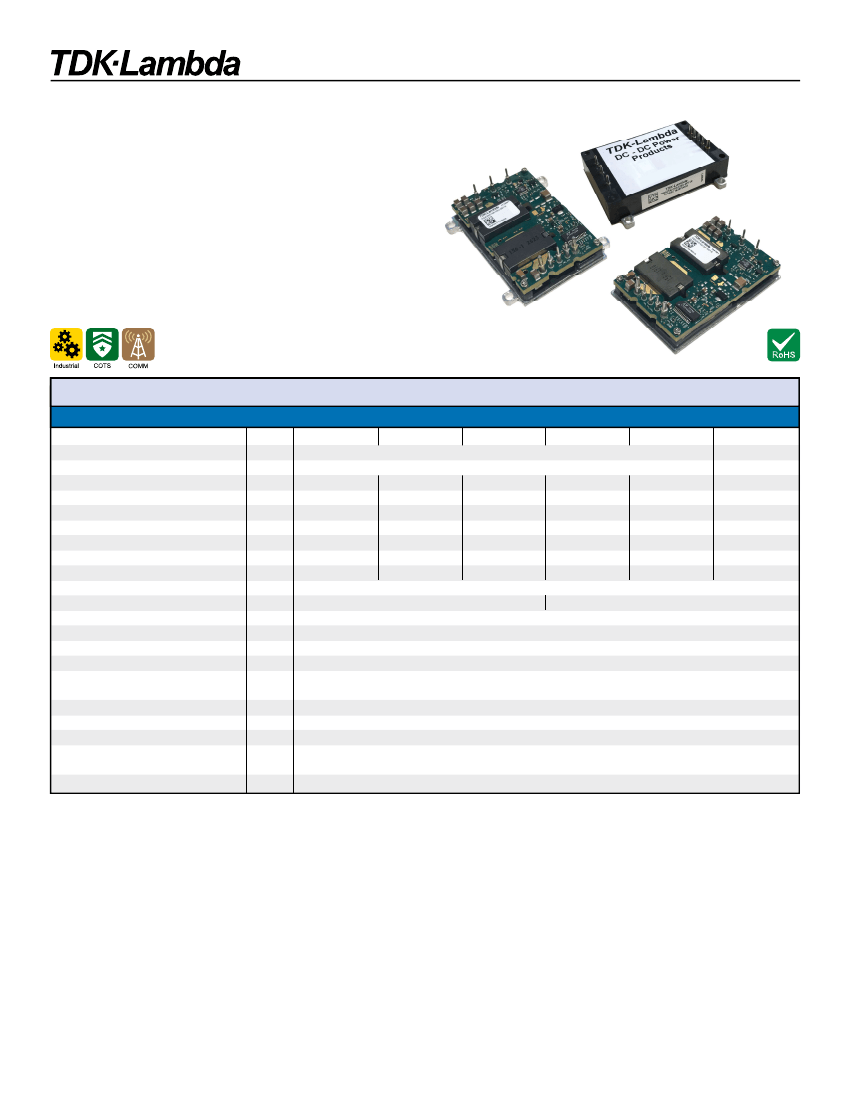

GQA120 Series

120W Industrial Quarter Brick Converters

Features



Standard Quarter Brick Footprint



9-36 or 18-36V Input



Up to 91.5% Eﬃciency



Up to 105

C baseplate temperatures



1,500VDC Isolation (2,250VDC or 3,000VDC option)

Key Market Segments & Applications

Speciﬁcations

Model

Nominal Output Voltage (1)

Input Voltage Range

Input Current (Maximum)

Eﬃciency (100% load, 24V input)

Output Voltage Adjustment

Ripple & Noise (max) pk-pk

Line Regulation (typ)

Load Regulation (max)

Overcurrent Protection (typ)

Overvoltage Protection (typ)

Remote On/Oﬀ

Remote Sense

Operating Temperature

Storage Temperature

Temperature regulation

Cooling

Withstand Voltage

Isolation Resistance

Safety Agency Certiﬁcations

Weight (Typ)

Size (LxWxH)

Warranty

VDC

MΩ

in (mm)

yrs

12V

GQA120

15V

24V

28V

48V

9 - 36V

18 - 36V

17A

10A

90%

89%

87%

89%

91.5%

4.5 - 5.5V

10.8 - 13.2V 13.5 - 16.5V 21.6 - 26.4V 25.2 - 30.8V 45.6 - 52.8V

150mV

180mV

200mV

250mV

300mV

0.05%

0.03%

37A

14.5A

12A

6.2A

5.1A

6.5V

15V

18V

32V

35V

54V

Yes; Low = ON, Open = OFF

Yes

Not as standard

-40 C to +105 C

-55

C to +125

0.5% across full temperature range

Conduction, convection or forced air

Input to Output 1,500VDC (-NP7 suﬃx: 2,250VDC, -0P7 suﬃx: 3,000VDC),

Baseplate to Input or Output 1,500VDC. (-NP7 & -0P7 suﬃx: 2,250VDC)

>10MΩ

UL60950-1, CSA60950-1, EN60950-1, CE Mark

85g (Flanged baseplate, open frame)

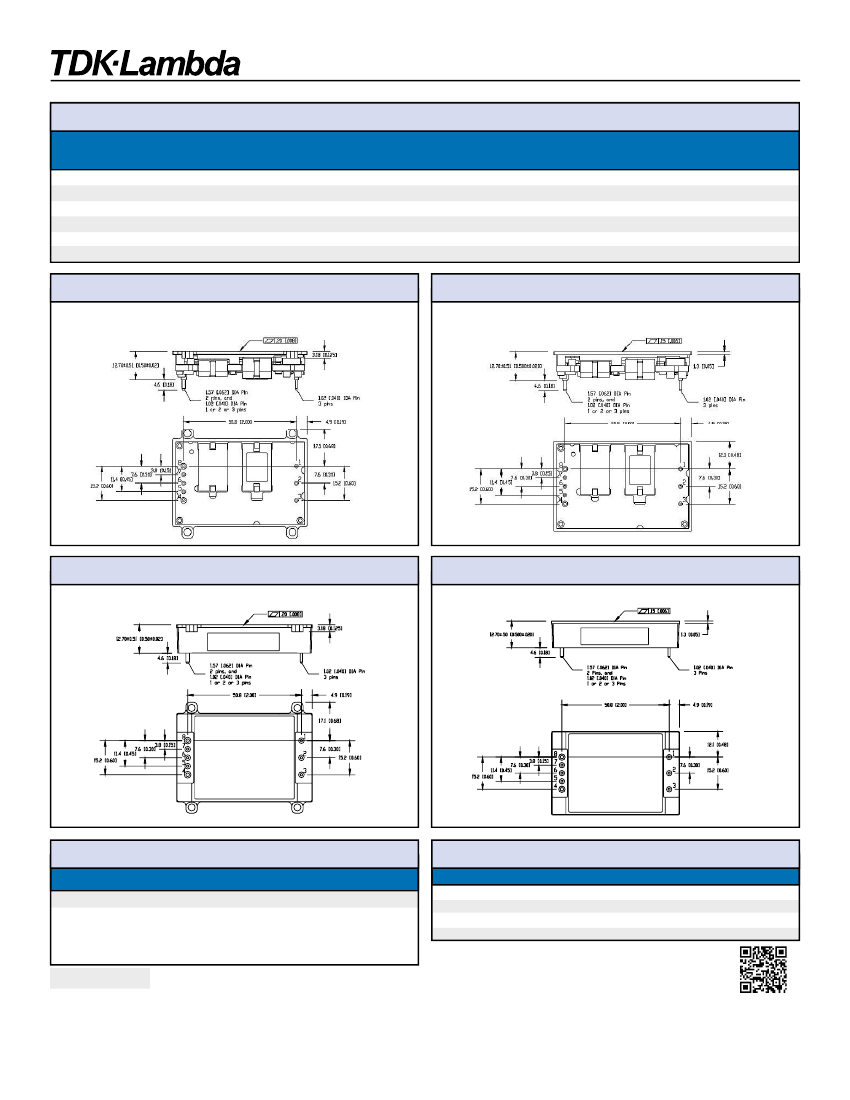

Flanged version: 2.39 x 1.95 x 0.5” (60.6 x 49.5 x 12.7);

Non-ﬂanged version: 2.39 x 1.56 x 0.5” (60.6 x 39.5 x 12.7)

3 Years

Note: See Installation Manual for full details, test methods of parameters and application notes

(1) Up to 50V input transient for 1 second

1-800-526-2324 • www.us.tdk-lambda.com/lp/

180

Disclaimer: us.tdk-lambda.com/lp/legal.htm
