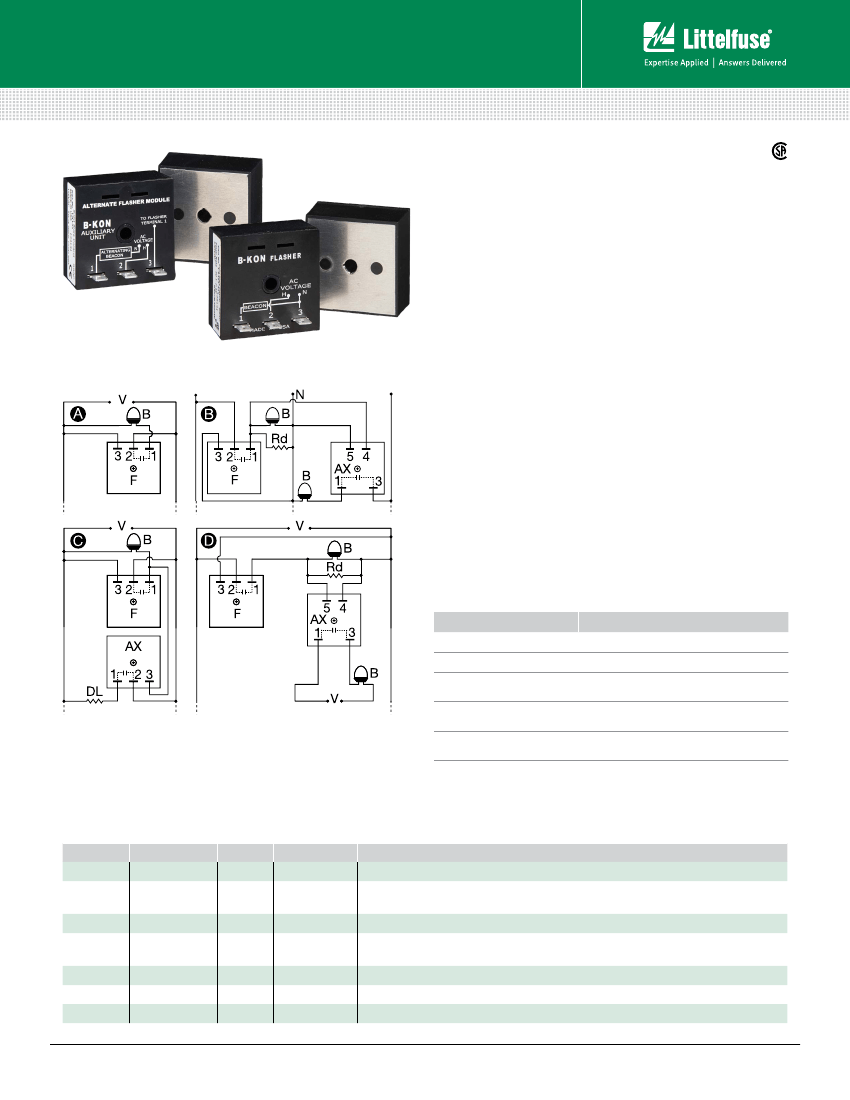

Flashers and Tower Lighting Controls
Tower and Obstruction Lighting Controls
FA / FS SERIES
*
*(FS155 & FA155 models only)
FA155
Description
FS165-30T
Wiring Diagram
N/L2
L1
(H)
L1
L2
The FA/FS Series have proven their reliability through years of
use on communication towers, smoke stacks, cooling towers,
tall buildings, bridges and utility towers. The highest quality
components are encapsulated in a rugged plastic housing with
a molded-in heat transfer plate. The flash rate, ratio, and fail-
safe design meet FAA regulations. Zero voltage switching can
increase lamp life up to ten times. The FS155-30RF includes
superior RF filtering circuitry for use in high RF installations,
including AM hot towers.
Operation
FS Series - Flasher (OFF First)
FA Series - Auxiliary Modules
Upon application of input voltage, the T2 OFF time begins. At
the end of the OFF time, the T1 ON time begins and the load
energizes. At the end of T1, T2 begins and the load de-energizes.
This cycle repeats until voltage is removed.
Reset:
Removing input voltage resets the output and the
sequence to T2.
FS Series
N/L2
L1
FA155-2
L1
N/L2
(H)
Features & Benefits
FEATURES
FA155
FA165
FA155-2
FA165-2
BENEFITS
Delivers up to 10 times longer lamp life
Protects against shock, vibration, and humidity
Facilitates heat transfer in high current applications
Zero voltage switching
Encapsulated
Metalized
mounting surface
V = Voltage
N = Neutral
B = Beacon
DL = Dummy Load for Constant Line Loading
Rd = 3.3 KΩ @ 5W for 120VAC; 8.5 KΩ @ 5W for 230VAC
F = Flasher (FS155-30T, FS155-30RF FS165-30T)
,
AX = Auxiliary Unit (FA155, FA155-2, FA165, FA156-2)
Superior RF filtering
Ideal for AM hot towers and other high
circuitry (RF models only)
RF installations
High inrush capability
up to 200A
Will withstand the repetitive inrush current of
incandescent beacons
Ordering Information
MODEL
INPUT VOLTAGE
WATTAGE
INRUSH RATING DESCRIPTION
FA155
FA155-2
FA165
FA165-2
FS155-30RF
FS155-30T
FS165-30T
120VAC
120VAC
230VAC
230VAC
120VAC
120VAC
230VAC
2500W
2500W
5000W
5000W
2500W
2500W
5000W
200A
200A
200A
200A
200A
200A
200A
Auxiliary unit to provide constant line loading
Auxiliary unit for synchronized operating of additional beacons. Synchronized flashing of
additional beacons on a 3 wire system
Auxiliary unit to provide constant line loading
Specifications
Auxiliary unit for synchronized operating of additional beacons. Synchronized flashing of
additional beacons on a 2 wire system
For high RF interference locations including AM hot towers
Standard beacon flasher
Standard beacon flasher
Rev: 1-A-062316
If you don’t find the part you need, call us for a custom product 800-843-8848
© 2016 Littelfuse Protection Relays & Controls
www.littelfuse.com/fa-fs
Flashers and Tower Lighting Controls
Tower and Obstruction Lighting Controls
FA / FS SERIES
Accessories
P1015-13
(AWG 10/12),
P1015-64
(AWG 14/16),
P1015-14
(AWG 18/22)
Female Quick Connect
These 0.25 in. (6.35 mm) female terminals are
constructed with an insulator barrel to provide
strain relief.
P1015-18 Quick Connect to Screw Adapter
Screw adapter terminal designed for use with
all modules with 0.25 in. (6.35 mm) male quick
connect terminals.
Specifications
Operation
Flash Rate (FS Series Only)
ON/OFF Ratio
(FS Series Only)
Voltage
AC Line Frequency
Output Rating (Zero
Voltage Switching)
Inrush Current
Mounting*
Dimensions
Termination
Circuitry
Operating/Storage
Temperature
Humidity
Weight
Single & multiple beacon flashing with
auxiliary modules
30 ±10 FPM
50 - 67% ON time; 33 - 50% OFF time
120 or 230VAC ±20%
50/60Hz
2500W @ 120VAC; 5000W @ 230VAC
200A peak for 1 cycle of AC line
Surface mount with one #10 (M5 x 0.8) screw
H
50.8 mm (2”);
W
50.8 mm (2”);
D
38.4 mm (1.51”)
0.25 in. (6.35 mm) male quick connect terminals
Encapsulated
-55° to 65°C / -55° to 85°C
95% relative, non-condensing
≅
3.9 oz (111 g)
Flasher Function Diagrams
FLASHER (OFF FIRST)
FLASHERS & AUX.
MODULES
V = Voltage
R = Reset
L = Load
T1 = ON Time
T2 = OFF Time
T1
≅
T2
F = Flasher
DL = Dummy
Load
AX = Auxillary
Module
* Note: Must be mounted to metal surface using the included heat sink compound. The maximum
mounting surface temperature is 90°C.
© 2016 Littelfuse Protection Relays & Controls
www.littelfuse.com/fa-fs
Rev: 1-A-062316
