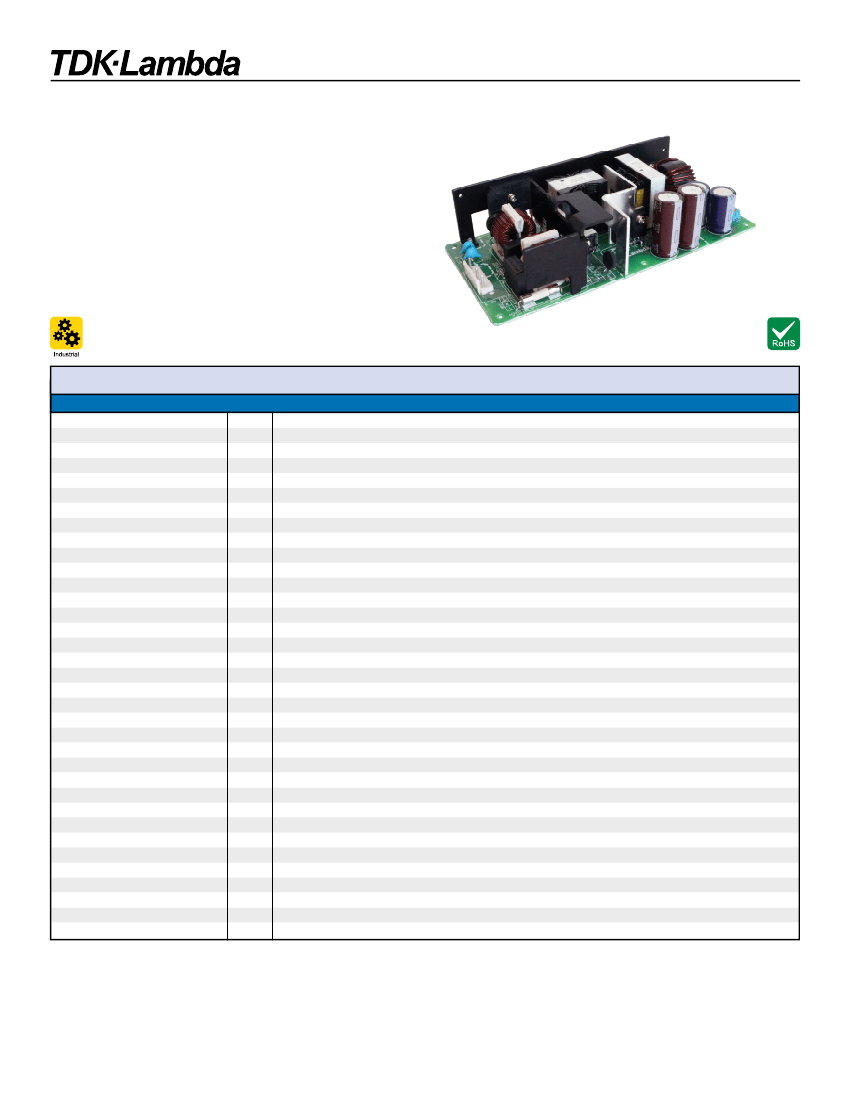

ZWS240RC-24 Series
240W 24V Output Power Supply with EN62477-1 OVC III
Features
Certified to IEC/EN62477-1 OVC III
12 Year e-cap Lifetime
5 Year Warranty
Convection Cooling
Key Market Segments & Applications
Specifications
Model
Nominal Output Voltage
Maximum Output Current
Maximum Output Power
Efficiency (typ)
AC Input Voltage range (1)
Input Current (typical) (2)
Inrush Current - cold start (2)
PFHC
Power Factor (2)
Output Voltage Accuracy
Output Voltage Range
Ripple and Noise (pk-pk)
Line Regulation
Load Regulation
Temperature Coefficient
Overcurrent Protection
Overvoltage Protection
Hold Up time (Typ) (2)
Leakage Current (Typ) (3)
Cooling
Operating Temperature (4)
E-cap lifetime (5)
Storage Temperature
Humidity (non condensing)
Withstand Voltage
Isolation Resistance
Vibration (non operating)
Shock
Safety Agency Certifications
Conducted Emission
Radiated Emission
Immunity
Weight (Typ)

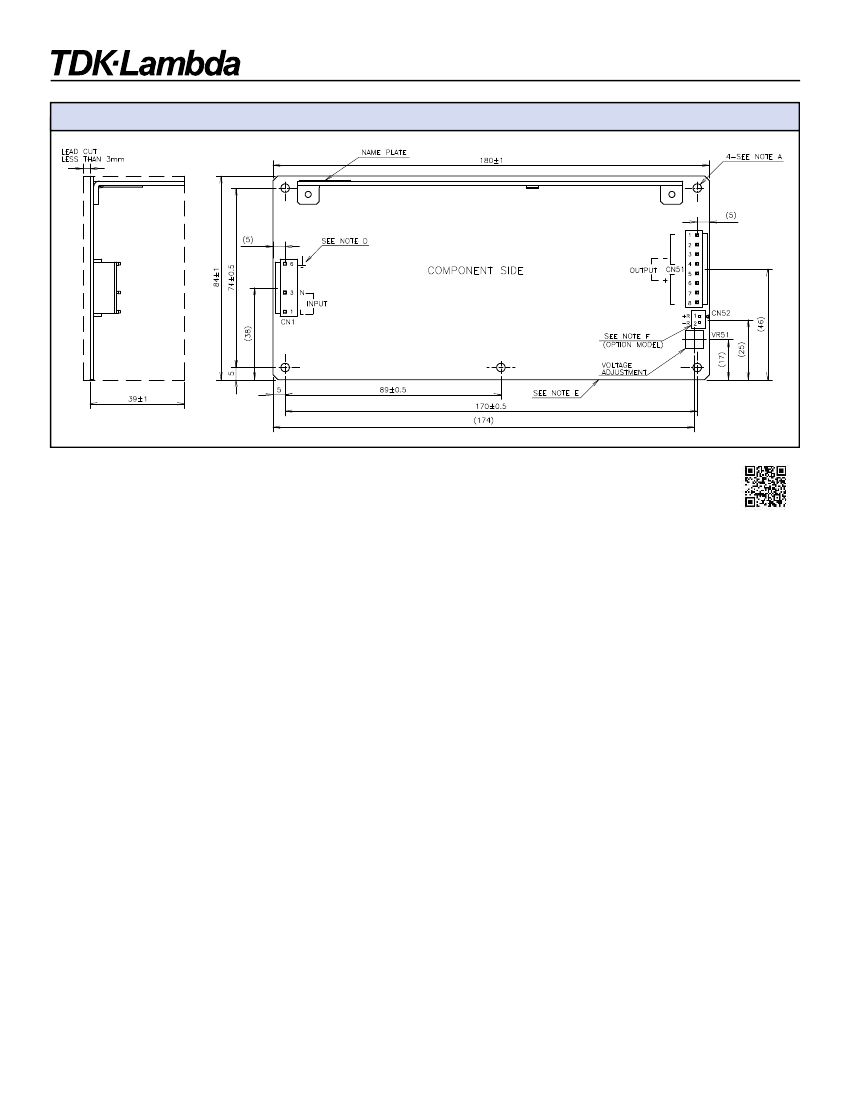

Size (W x H x D)
Warranty
V
A
W
%
-
A
A
-
-
%
VDC
mV
mV
mV
%/°C
-
V
ms
mA
-
°C
Years
°C
%RH
VAC
Ω
-
-
-
-
-
-
g
mm
Years
ZWS240RC-24
24V
10A
240W
87 / 90% (100 / 200VAC)
85 - 265VAC (47 - 63Hz)
2.8 / 1.5A
15 / 30A
Active Power Factor Correction - Designed to meet EN/IEC61000-3-2
0.93 / 0.9
±2%
21.6 - 26.4V
200mV (0 to +70°C) (Maximum)
96mV (Maximum)
150mV (Maximum)
<0.02%/°C
>10.5A
27.6 - 32.4V (Cycle AC to reset)
31ms
0.2 / 0.4mA
Convection
-10°C to +70°C, derate linearly to 30% load from 50°C to 70°C
Up to 12 years; 50°C ambient, 100% full load, 24 hours a day operation
-30°C to +75°C
Operating: 30 - 90%RH, Storage: 10 - 90%RH
I/P to Gnd 2kVAC (10mA), I/P to O/P: 3kVAC (10mA), O/P to Gnd: 500VAC (20mA) for 1min
>100MΩ at 25°C & 70%RH, Output to Gnd: 500VDC
10 - 55Hz (1 minute sweep), 19.6 m/s
2
constant X, Y, Z 1 hour each
<196.1m/s
2
UL60950-1, CSA60950-1, EN60950-1, EN62477-1 (OVC III), CE Mark
EN55011 / EN55032-B, FCC-B, VCCI-B
EN55011 / EN55032-A, FCC-A, VCCI-A
IEC61000-6-2 ; IEC61000-4-2, -3, -4, -5, -6, -8, -11
520g
84 x 42 x 180mm
Five Years
(4) Refer to Application Notes
(5) Refer to Reliability Data
Notes:
(1) Derate linearly to 80% load from 90 to 85VAC input
(2) 100/200VAC, full load
(3) 100/230VAC
