Priority keylock switch - rectangular collar
1.10.119.467/0000
Included: 4 keys.
Key 1 switches to lock position 1, key 2 switches to lock positions 1 and 2, etc...
General information
Form of collar
Dimensions
Length of collar
Width of collar
Overall height
Mounting depth
Mounting hole
Mechanical design
Mounting
Terminals
Contact system
Contact function
Contact arrangement
Contact materials
Illumination
Mechanical design of lock
Lock
Wafers
Lock type
Number of locking positions
Main key
Symmetric key
Key removal position
Mechanical characteristics
Operating force min.
Operating force max.
Electrical characteristics
Rated voltage AC/DC max.
Rated voltage AC/DC min.
Rated current AC/DC max.
Rated current AC/DC min.
rectangular
24 mm
18 mm
7.5 mm
39.5 mm; with plug-in socket 41.25 mm
16.2 mm
ring nut
solder terminals
sliding contact, self cleaning
latching
1 NO at every switching position
Au alloy
no
cylinder lock with pin tumblers
5 pins
5001
10,000
yes
yes
0+1+2+3
0.035 Nm
1.8 Nm
35 V
5V
100 mA
5 mA
Technical data are approximate and intended solely for general orientation in the selection of a product.
Subject to modifications and errors. Images and other graphics may only be similar.
For more information, refer to www.rafi.de chapter Imprint / Data Protection.
10.10.2016
ESD strength max.
Insulation resistance
Contact resistance max.
Other specifications
Operating life (operations)
Degree of protection from front side
Operation temperature min.
Ambient temp. operating max.
Storage temperature min.
Storage temperature max.
Environmental restistance
Soldering temperature max.
Soldering time max.
Weight
Rotating angle
ROHS compliant
REACH compliant

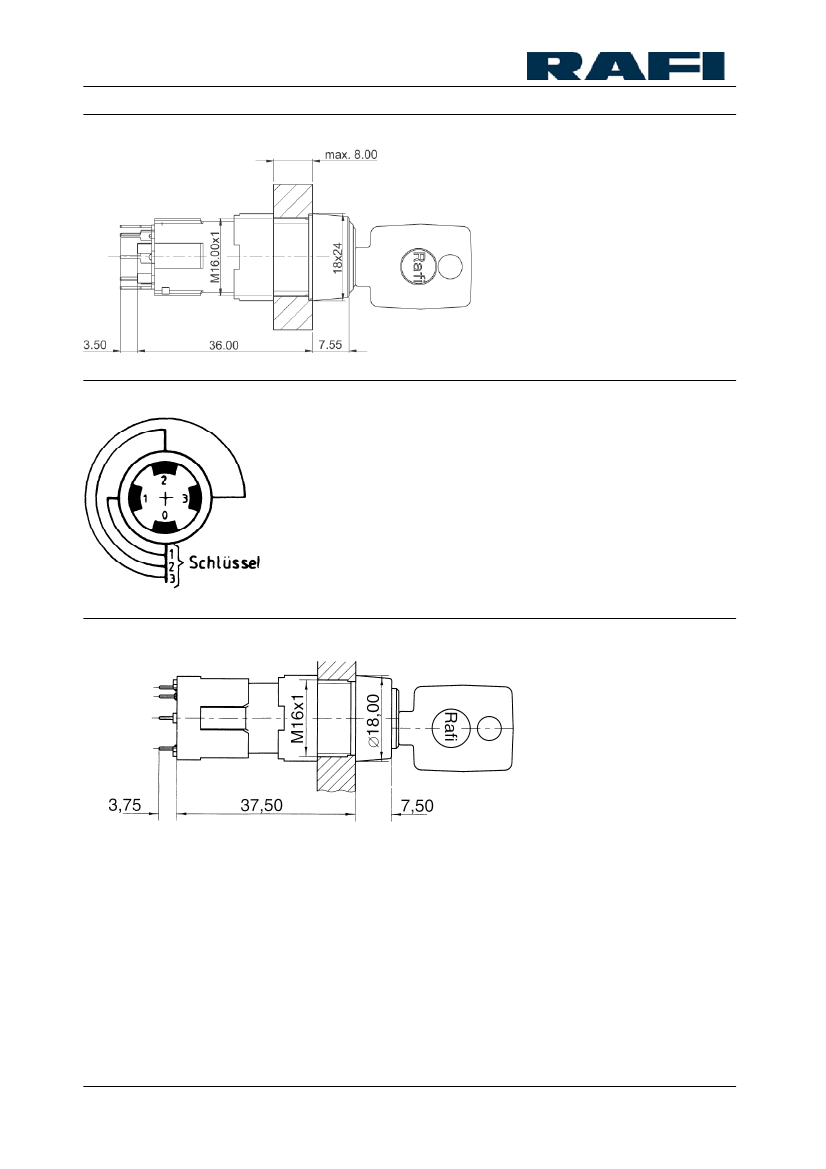

Panel cut-out
12 kV
6 x 10
8
Ω
200 mΩ
50,000 cycle
IP65 (DIN EN 60529)
-25 °C
+70 °C
-40 °C
+80 °C
acc. to IEC 60068-2-14, -30, -33 and -78
350 °C
3s
29 g
3 x 90°
yes
yes
PCB hole pattern, sight on component side
