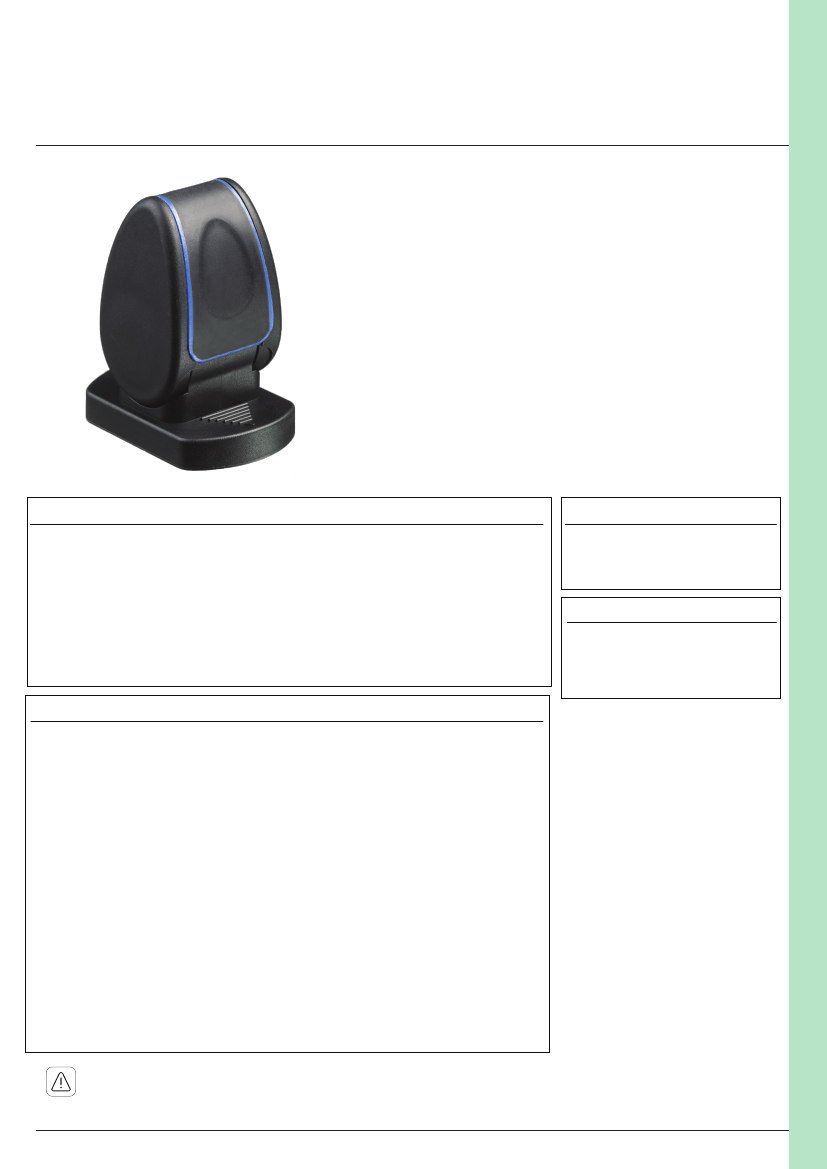

Paddle joystick controllers
Distinctive features and specifications
BH series
Hall effect joystick and switch function
Sculpted ergonomic rubber grip
5V operation - standard dual redundant outputs
Analog or PWM outputs
Custom lever colors & designs available
IP67 sealed
EMC shielded
60mm above panel height
ELECTRICAL SPECIFICATIONS
•
Gain (Output Voltage Span): ±10% x V to ±50% x V
•
Output at Center: V/2 ± (5% x Gain)
•
Power Supply: 5V ±0.5V Transient free
•
Switch Outputs: Open Drain, pulled high within paddle control via 1K5 to 5V,
and smoothed to 0V with 100nF
•
Sensor Type: Hall effect
•
Current Consumption: <20mA
•
Loads: Minimum 10K, preferred 100K+
•
PWM frequency range: 100Hz to 1KHz
MATERIALS
•
Body: PA
•
Actuator: PA & PC
•
Rubber Grip: TPE
GENERAL SPECIFICATIONS
•
Operating Angle: ± 30 Degrees
•
Life Cycles: 10 million cycles
•
Soft touch lever with color options
ENVIRONMENTAL SPECIFICATIONS
•
Storage: -40°C to 85°C (-40°F to
185°F)
•
Operating Temperature: -25°C to 70°C (-13°F to 158°F)
•
Seal Above Panel: IP67 Dust & Water Ingress - to BS EN60529:1992+A2:2013
•
Damp Heat – BS EN 60068-2-78:2002 Test Cab 21 days exposure @ +85°C 85%RH
•
Salt Spray – BS EN 60068-2-11:1999 Test Ka 48 hours exposure @ +35°C with 5% NaCl
•
Conducted Emissions: CISPR 25:2008 Ed. 3.0
• Radiated Emissions: CISPR 25:2008 Ed. 3.0, EN61000-6-4: 2011
•
Radiated Immunity: ISO 11452-2: 2004 (150V/m), EN61000-6-2: 2005
•
Conducted Immunity: ISO 11452-4: 2011
•
Signal Cable Transients: EN 61000-6-2: 2005
•
AC Magnetic Field Immunity: MIL-STD-461F
•
Electrostatic Discharge: ISO 10605: 2008 inc A1: 2014 (8KV contact / 15KV air discharge)
EN61000-4-2
•
Random vibration according to ISO15003 level 1 in 3 axes 10…350Hz, Level 2, 8 hours/axis
•
Bump - BS EN 60068-2-27:2009 40g 6ms half sine, 50 shock in each sense of each axis,
total 300 shocks
•
Freefall drop - BS EN 60068-2-31:2008 1000mm drop onto all faces and edges
•
Shock - BS EN 60068-2-27:2009 50g 6ms half sine, 3 shocks in each sense of each axis,
total 18 shocks
All parameters shown are based on a standard configuration and are provided for guidance only.
Please contact APEM for assistance on how to achieve the best performance from your chosen configuration.
Note: The company reserves the right to change specifications without notice.
APEM
www.apem.com
1
BH series
Overview
Paddle joystick controllers
SERIES
BH 60mm (2.36in)
above the pane
l
10
25
30
40
50
CONFIGURATION
1
2
3
Standard Dual Outputs
Inverse Dual Outputs
PWM
GAIN
±10% x V
±25% x V
±30% x V
±40% x V
±50% x V
BK
HANDLE
Black
DETAIL COLOR
BK
RE
BL
YE
GR
Black
Red
Blue
Yellow
Green
MODIFIER
00 None
LEVER OPERATION
A01
Spring to Center
SWITCHING POINTS
00
05
15
30
No Switches
±5 Degrees
±15 Degrees
±30 Degrees
Intentionally
left blank
Note: The company reserves the right to change specifications without notice.
2
www.apem.com
APEM
Paddle joystick controllers
Overview

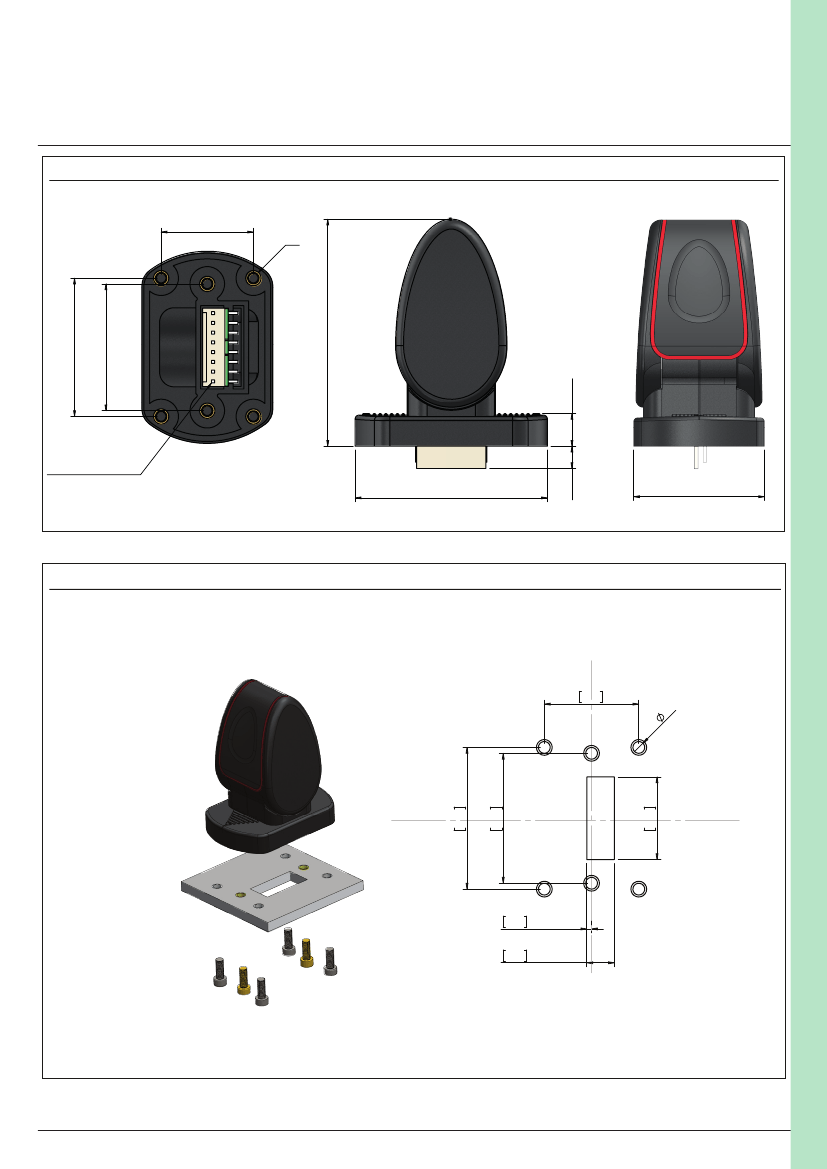

GENERAL DIMENSIONS
BH series
24
(0.94)
M3
36
(1.41)
33
(1.29)
60
(2.36)
5.79
(0.22)
8 WAY CONNECTOR
2.54mm PITCH
(0.1INCH PITCH)
8.50
(0.33)
50
(1.96)
34
(1.33)
DROP IN MOUNTING - PANEL CUT-OUT & MOUNTING INSTALLATION
The Paddle may be mounted with two different hole patterns:
• Two screws – in line on the Y axis (shown as yellow screws)
• Four screws – one in each corner (shown as silver screws)
N
0.94
24
1.42
36
1.30
33
0.05
1.20
0.28
7
TOP VIEW
S
The Paddle is fitted with M3 bushes in all six positions, as standard.
Fasteners are not supplied as standard. The appropriate length of fastener is dependent on panel thickness.
NOTE: All dimensions in mm/(inch).
Note: The company reserves the right to change specifications without notice.
APEM
www.apem.com
0.83
21
3
3
BH series
Overview
Paddle joystick controllers
MECHANISM
The brand new mechanism design has been developed for strength and long life while retaining a superb feel.
SPRING TO CENTER
The lever springs back to the center position when released.
CONNECTIONS
The paddle is fitted, as standard, with an industry standard 2.54mm pitch 8 way connector.
CONNECTIONS
Paddles are supplied with an eight way connector as standard.
PIN 1:
PIN 2:
PIN 3:
PIN 4:
PIN 5:
PIN 6:
PIN 7:
PIN 8:
5V
Switch 1(+)
0V
Analog/PWM output 1
Analog/PWM output 2
0V
Switch 2 (-)
5V
PIN 1

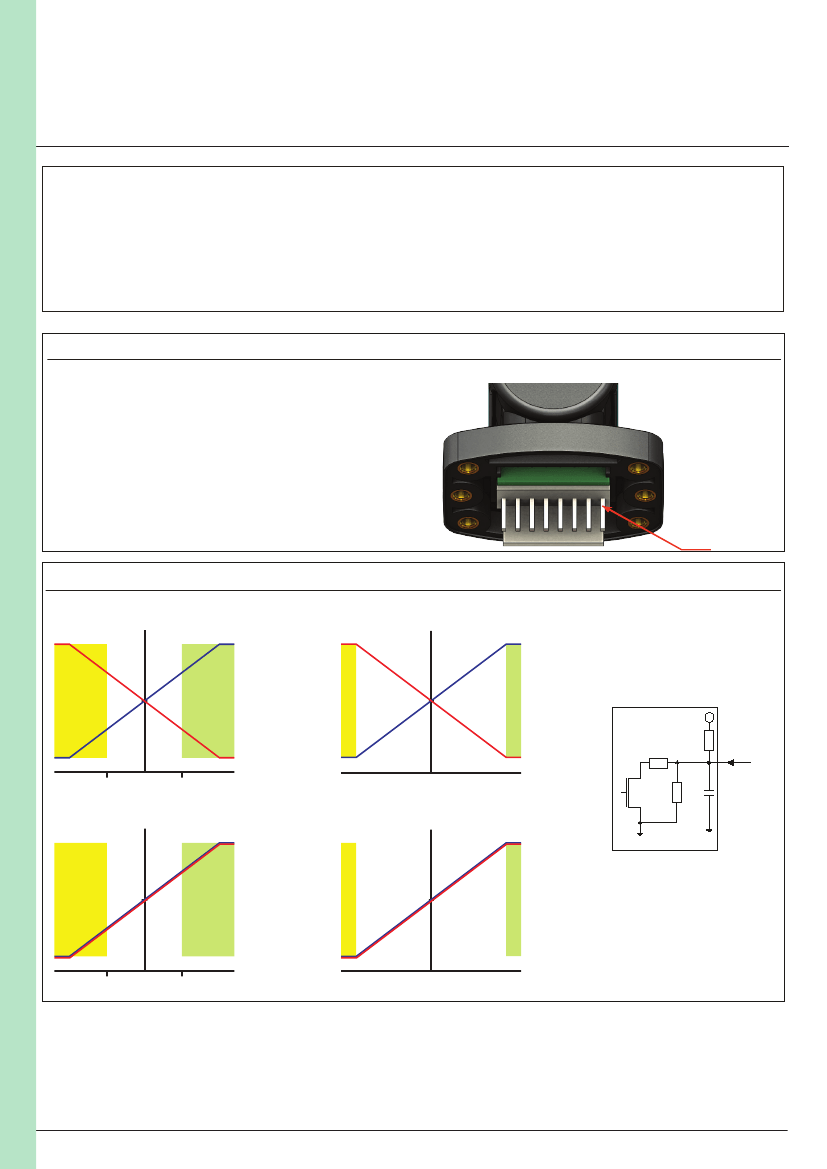

BH SERIES DUAL OUTPUT CHARACTERISTICS
40% GAIN INVERSE
Switches at 15 Degrees
4.5V
4
Switches at 30 Degrees
Output 1
4.5V
4
Output 1
Switch 2 On
Switch 2
On
2.5
2
Switch 1
On
2.5
2
Switch 1 On
3
3
Equivalent circuit
for the switch output
5V
1
0.5
1
1k5
Output 1
10
0.5
Output 1
10
20
30
175
Ω
SWITCH
OUTPUT
10mA
Max
-30
-25
40% GAIN
Switches at 15 Degrees
4.5V
4
Switches at 30 Degrees
Output 1
Output 1
4.5V
4
Output 1
Output 1
Switch 2 Off
Switch 2
Off
2.5
2
Switch 1
On
2.5
2
1
0.5
1
0.5
-30
-20
-15
-10
0
10
15
20
30
Degrees Deflection
Switch 1 On
3
3
-30
-20
-10
0
10
20
30
Degrees Deflection
Note: When Dual Output (non-inverted) option is selected the polarity of Switch 2 is inverted
Note: The company reserves the right to change specifications without notice.
4
www.apem.com
100 nF
125
Ω
6k
Ω
-10
-15
0
15
25
30
Degrees Deflection
-30
-20
-10
0
Degrees Deflection
APEM
Paddle joystick controllers
Overview
OUTPUT OPTIONS
The BH series paddle joystick is configured as two “electrical” controls in one mechanical package. The Paddle operates from
5V and provides two proportional outputs. The second output is accurate to the first within ±3% of the power supply. The
power supply for the secondary output is also completely independent. Customers may choose their preference of voltage
outputs (gains).
The secondary output can be of the same or inverse polarity to the primary wiper. For example, with a secondary inverse
output, the first and second outputs can be summed and compared to zero to verify that the joystick is operating correctly.
Paddles having two identical outputs of the same polarity may be used to drive two identical dual redundant circuits.
There are also two Hall effect switches that trigger at pre-determined lever positions.
The BH series paddle joystick may be specified with a variety of PWM output options. For more details on available PWM
options please refer to APEM.
BH series
ADDITIONAL OUTPUT INFORMATION
SELECTABLE SWITCHING POINTS
The Paddle incorporates two Hall effect switches. The angle of the lever at the switch trigger point can be selected when
ordering. If no switches are specified then the output on pins 2 and 7 will be unused. The outputs are configured as
‘open drain’ type with a 1K5 pull up resistor to 5V.
GAIN OPTIONS
The voltage output on the wiper, at full scale deflection is determined by the gain. The gain is expressed as a percentage
of the voltage supplied. Therefore (assuming a 5V supply) a Paddle specified with ± 25% gain would yield 1.25V at South,
2.5V at center and 3.75V at North. A range of gain options are available as standard. All controls are supplied pre-set and
no further calibration is needed throughout the lifetime of operation.
OUTPUT IMPEDANCE
The voltage outputs at center and at each end of travel are specified across an infinite load, with no current flowing. The
output impedance specified in the electrical specification should be taken into account when designing a system. Load
resistance of less than 10K Ohms is not recommended.
Note: The company reserves the right to change specifications without notice.
APEM
www.apem.com
5
